Manufacturer Name: Hendi 230220

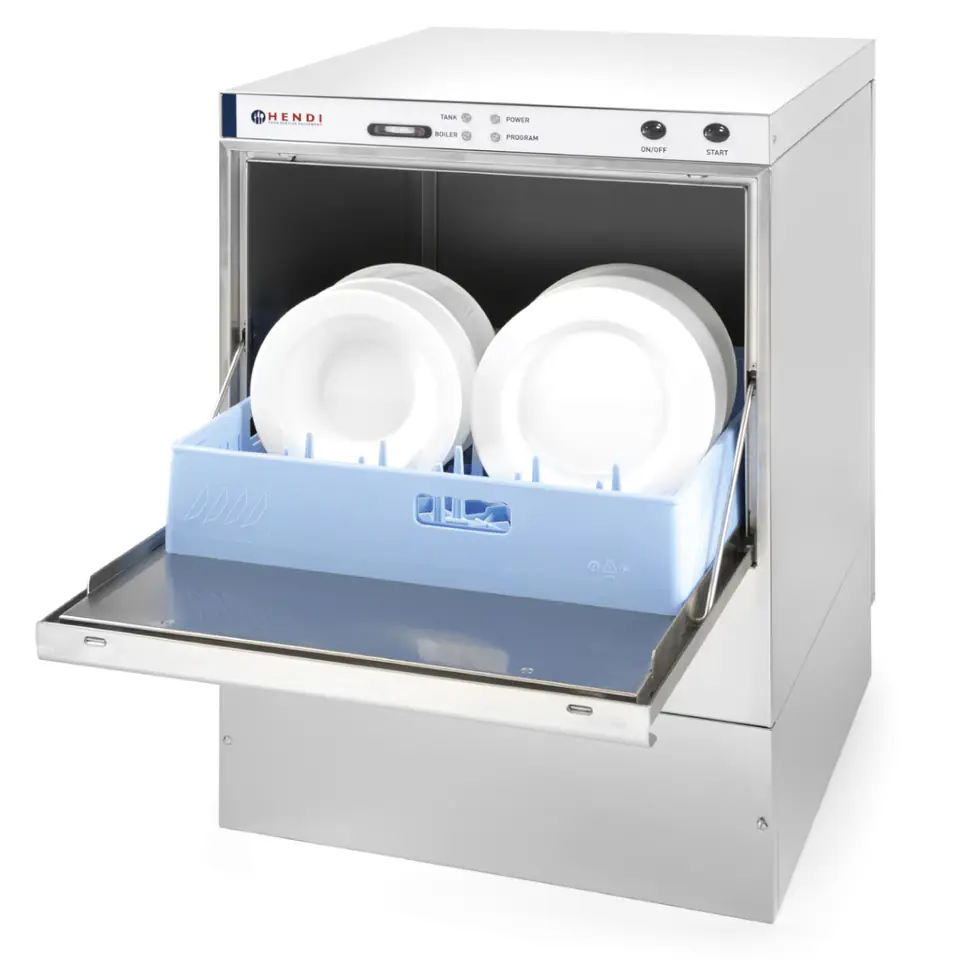

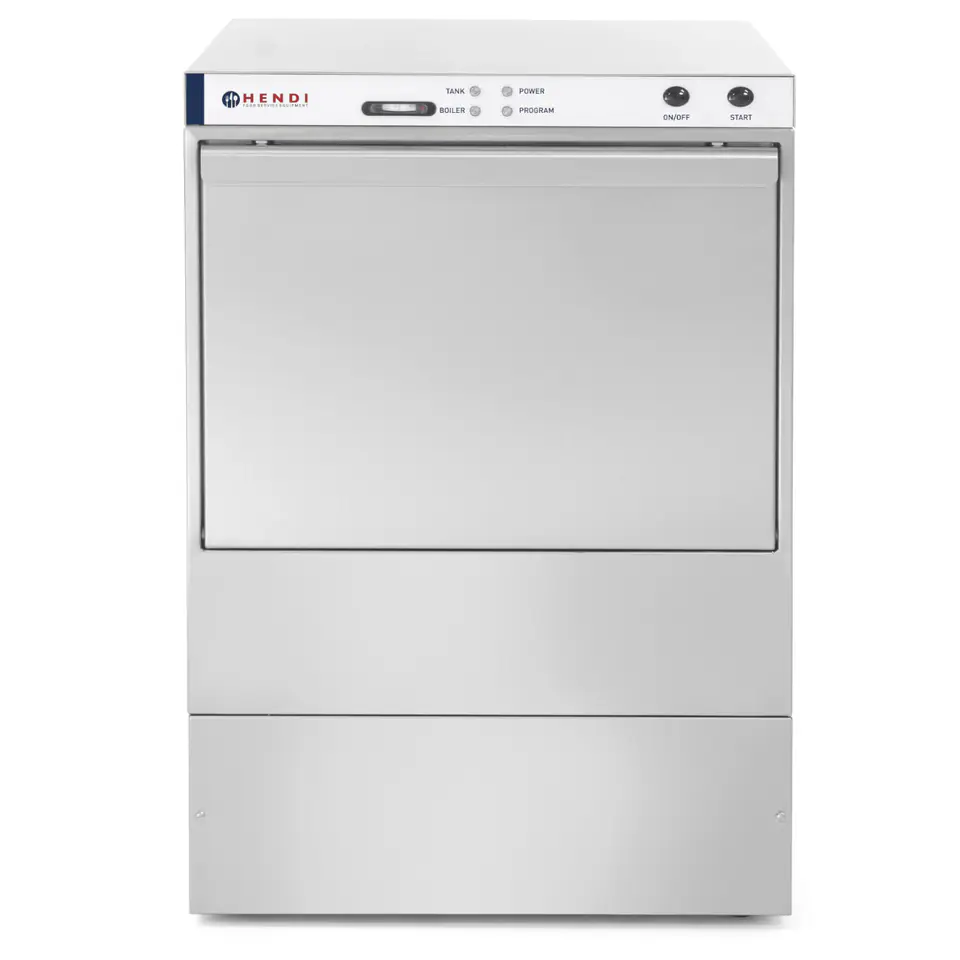

The fast and economical Hendi electromechanically controlled bar dishwasher is a device designed for cafes, restaurants, hotels and other professional establishments and catering establishments. It is perfect for washing cups, cups, cutlery or plates and is extremely easy to use, keep clean and service.
Features and functions:
- - up to 30 baskets per hour,
- - electromechanical control,
- - stainless steel housing AISI 304,
- - separate washing arms (plastic) and rinsing arms made of stainless steel,

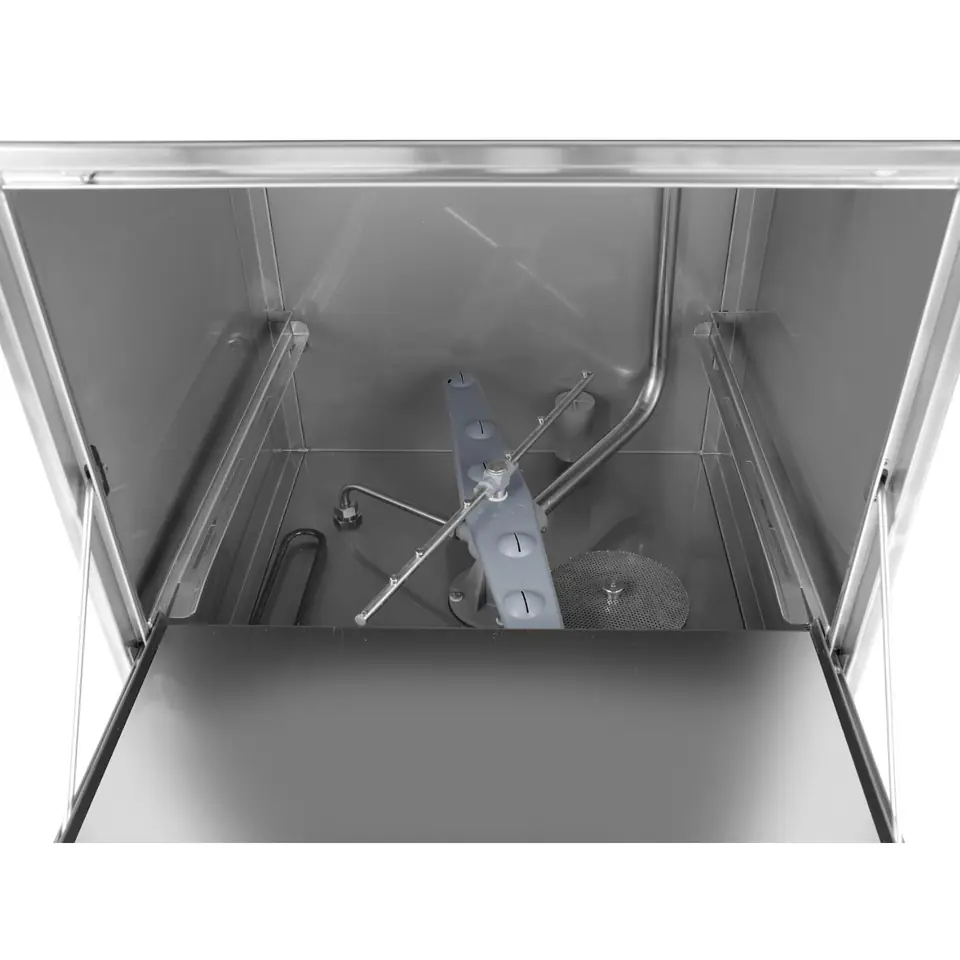

- - at the top, stationary washing arms, swivel rinsing arms,
- - solid two-layer doors,
- - washing cycle with a length of 120 s,
- - extensive set,
- - electric cable without plug,
- - rinse aid dispenser,
- - adapted to the installation of a detergent dispenser (screw in the back wall of the bath),
- - vertically adjustable feet with a diameter of ø40 mm (± 10 mm).
- - Voltage - 230 V
- - Power - 3600 W
- - Housing material - Stainless steel (AISI 304)
- - Washing arm material - Plastic
- - Rinse arm material - Stainless steel
- - Length of 1 washing cycle - 120 s
- - Capacity - 30 baskets per hour
- - Water consumption (1 cycle) - 2-2.5 l (depending on water pressure)
- - Washing water temperature - 62 deg.C
- - Rinse water temperature - 85 deg.C
- - Boiler (capacity / power) - 230 V – 6 l / 3 kW
- - Bath (capacity / power) - 35 l / 2.8 kW
- - Pump power - 0.75 hp
- - Safety thermostat (boiler) - 105 deg.C
- - Safety thermostat (baths) - 99 deg.C
- - Pump tightness factor - IP 44
- - Max. basket dimensions - 500 x 500 x 335 mm
- - Dimensions (LxWxH) - 570 x 600 (+370) x 830 mm
- - Weight - 57 kg

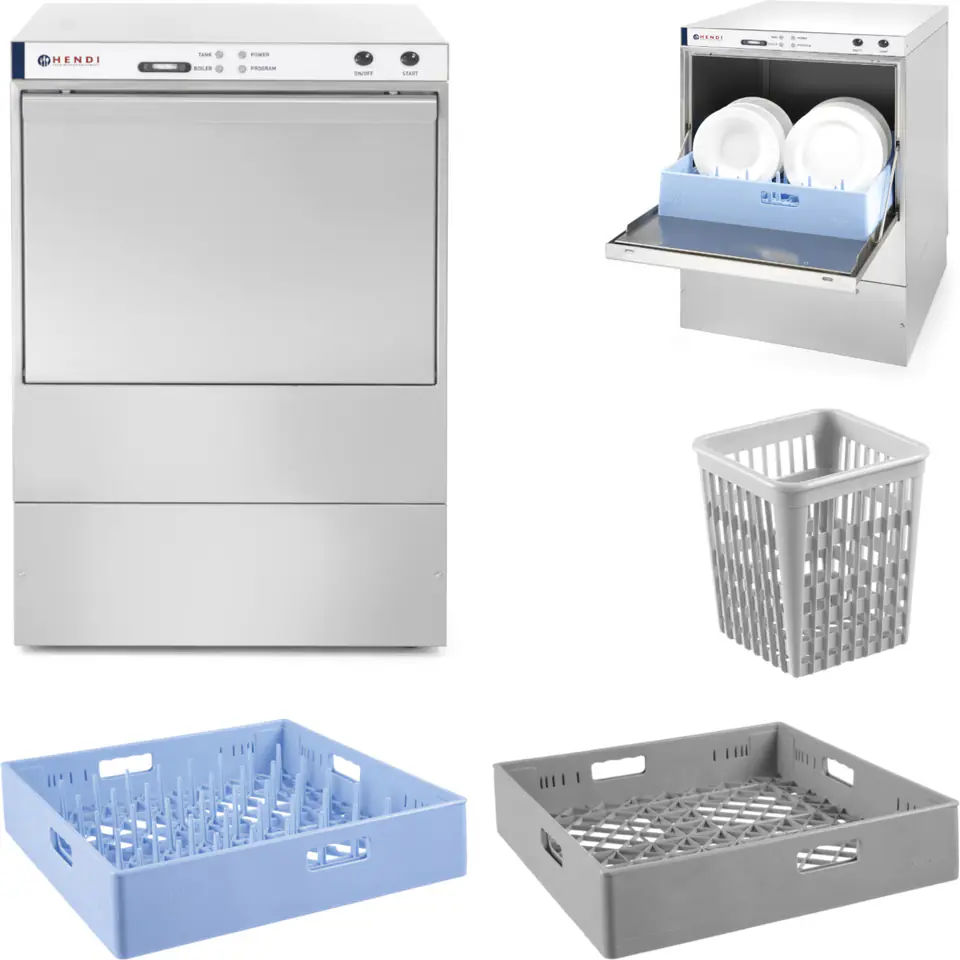

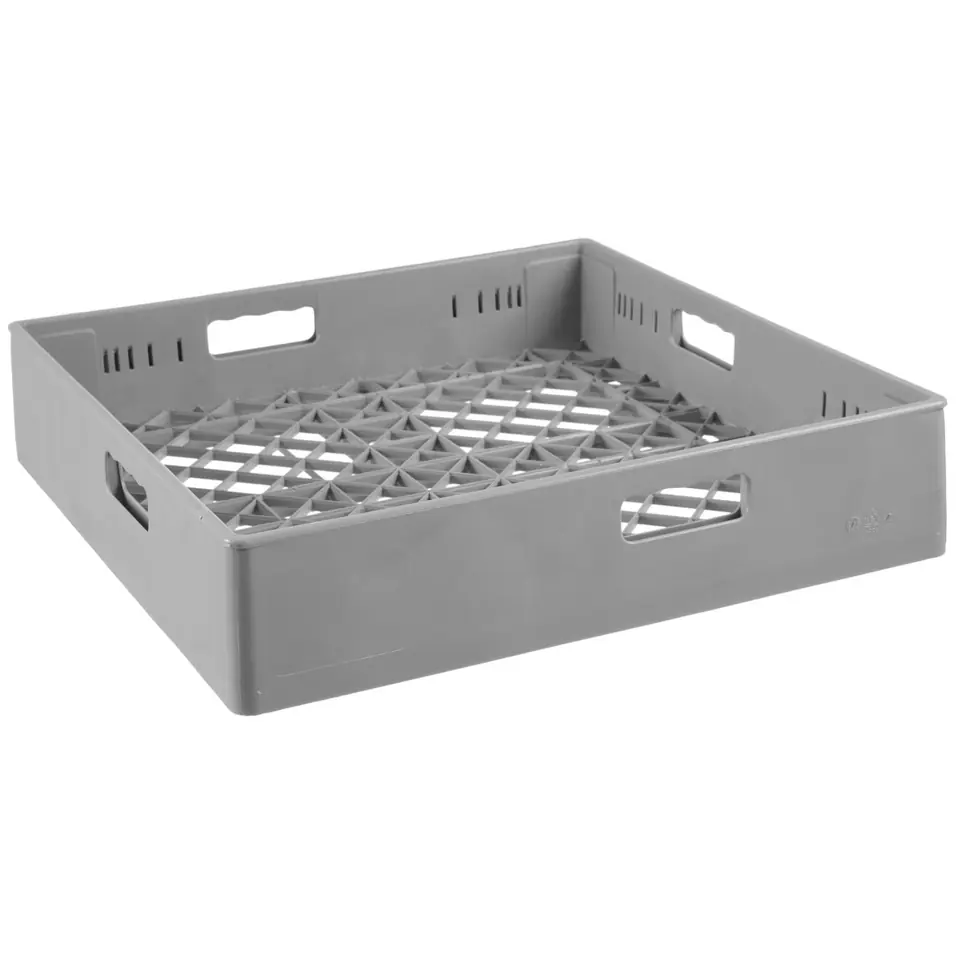

- - 1x universal basket 500x500x(H)105 mm, for glass

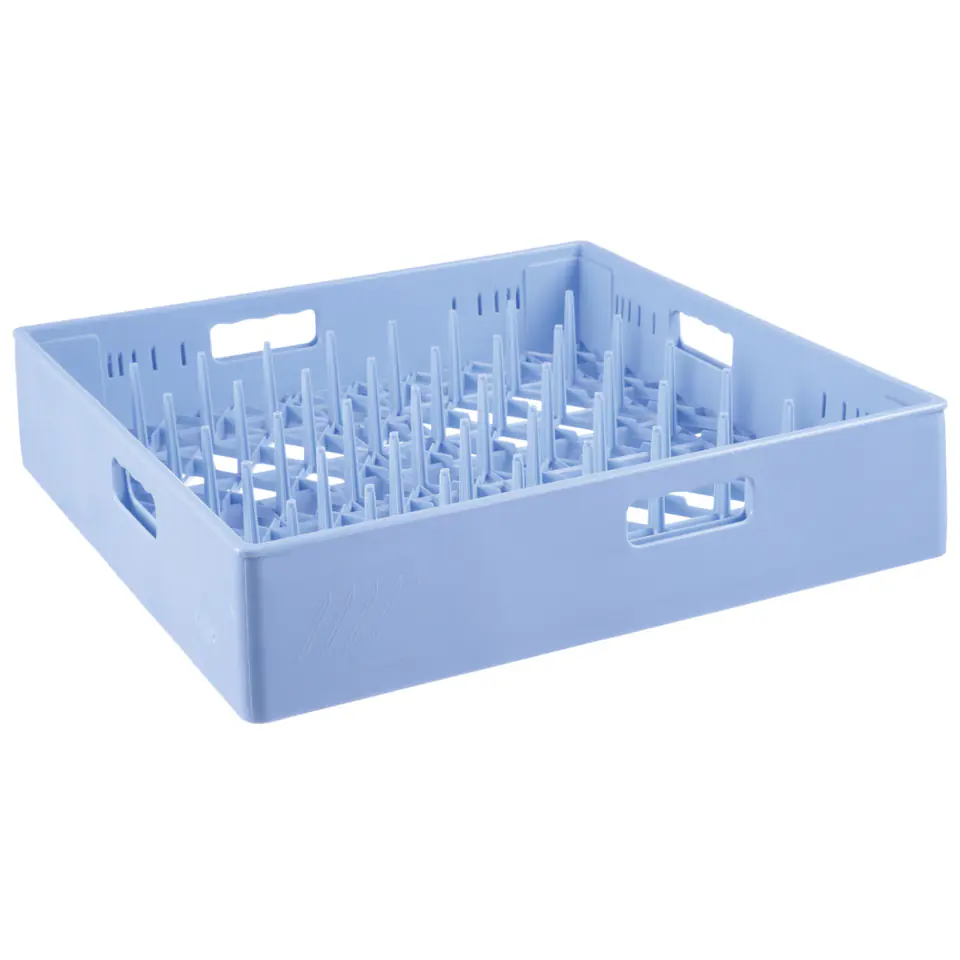

- - 1x basket with pins in the 5x8 system, 500x500x(H)105 mm, for deep and shallow plates

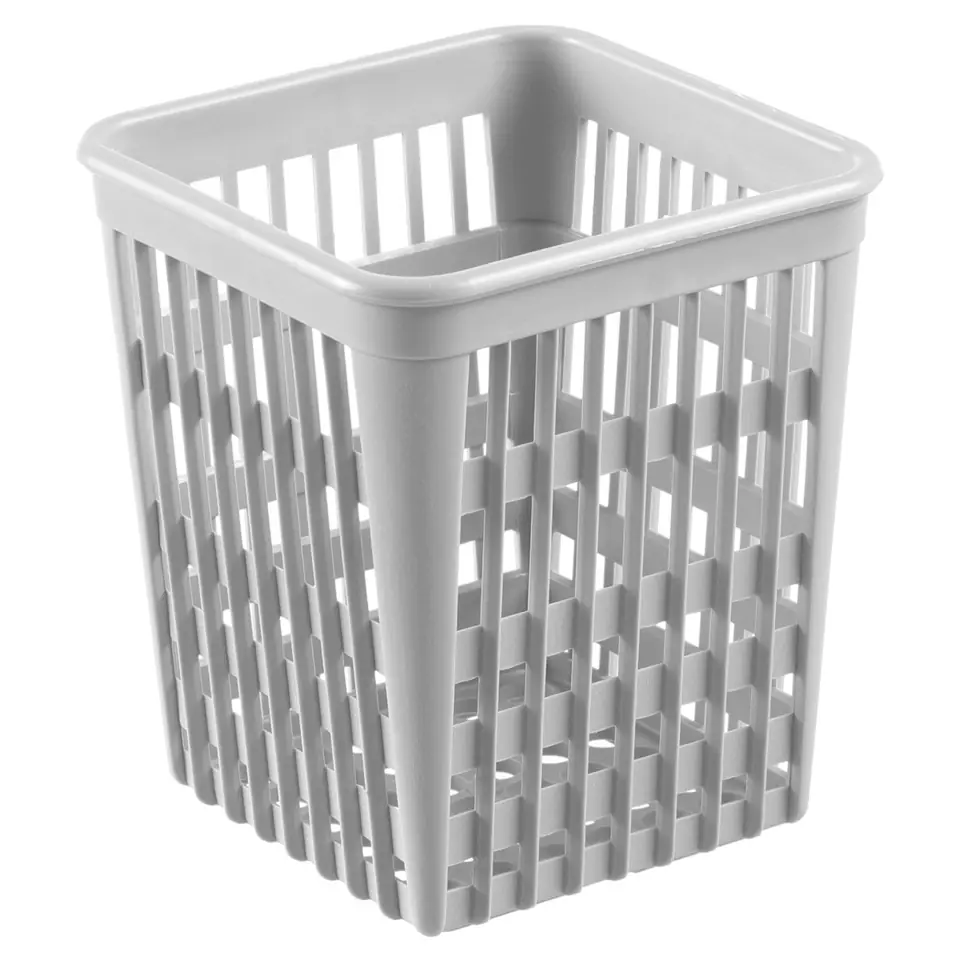

- - 1x basket 110x110x(H)130 mm, for cutlery
- - Rinse aid dispenser
- - Adaptation to the installation of a detergent dispenser (screw in the back of the bath)
- - water supply hose 1.5 m long, with connection 3/4 internal thread.
- - drain hose length 2 m, Ø 25 mm (height 40 mm)
- - electric cable without plug
- - vertically adjustable feet ± 10 mm, Ø 40 mm
