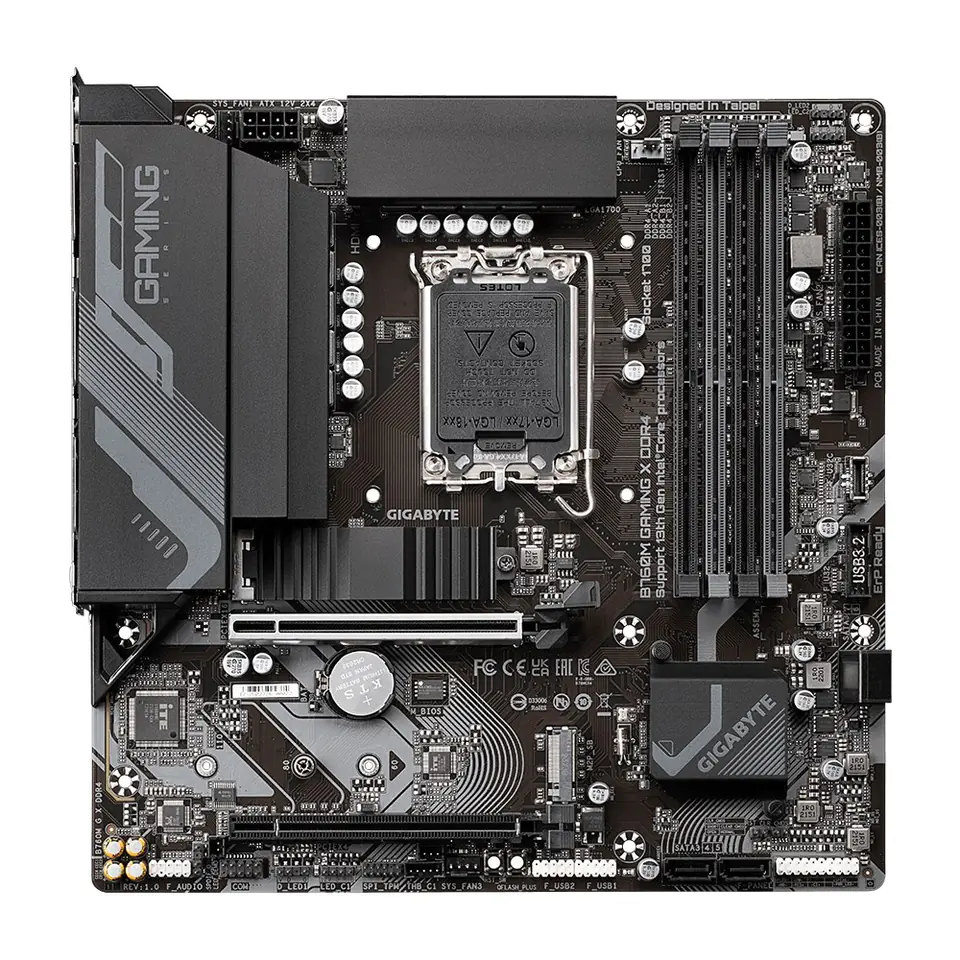

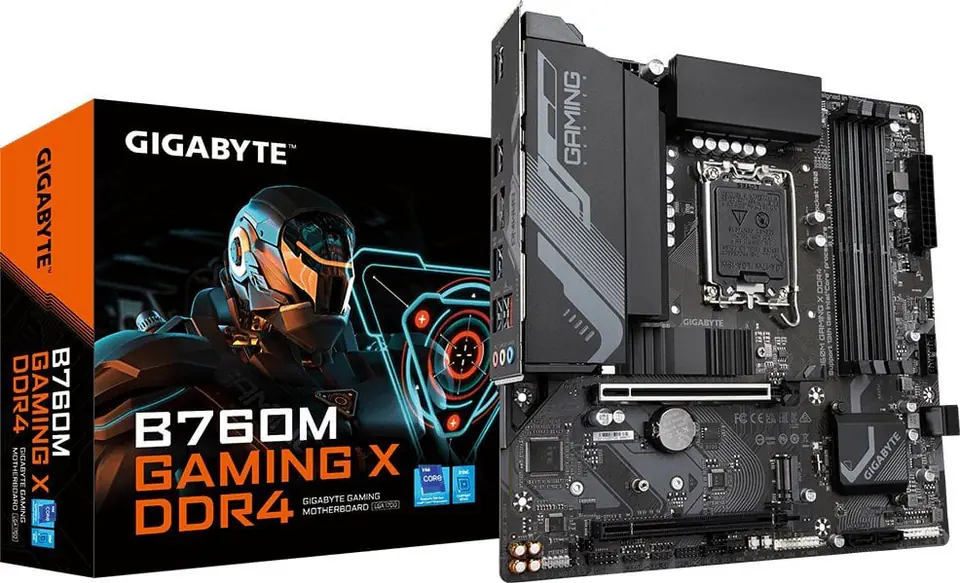

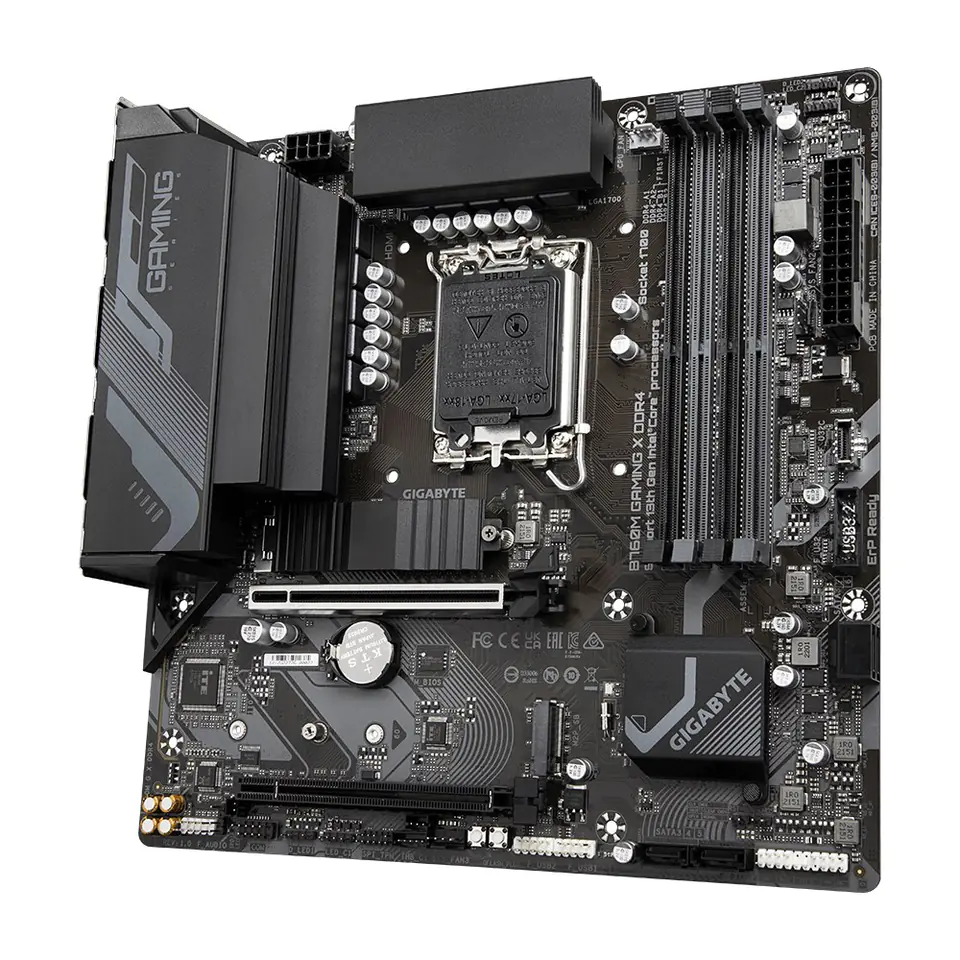

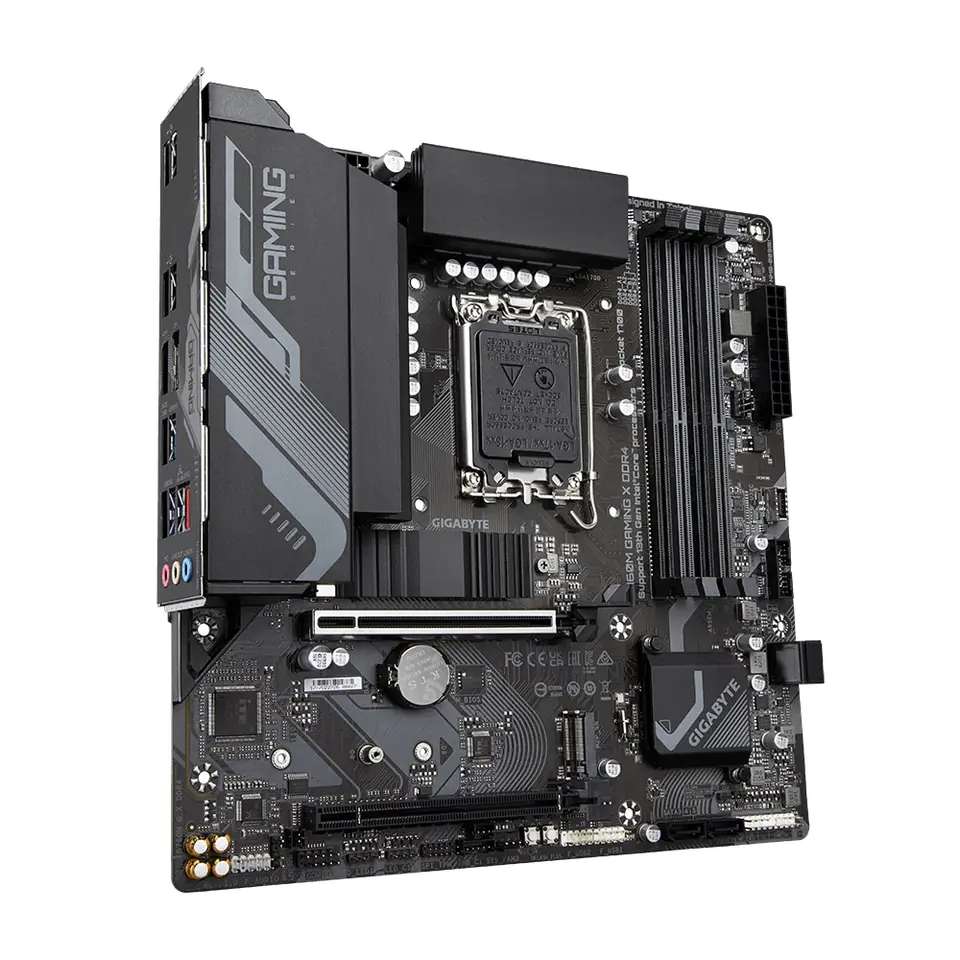

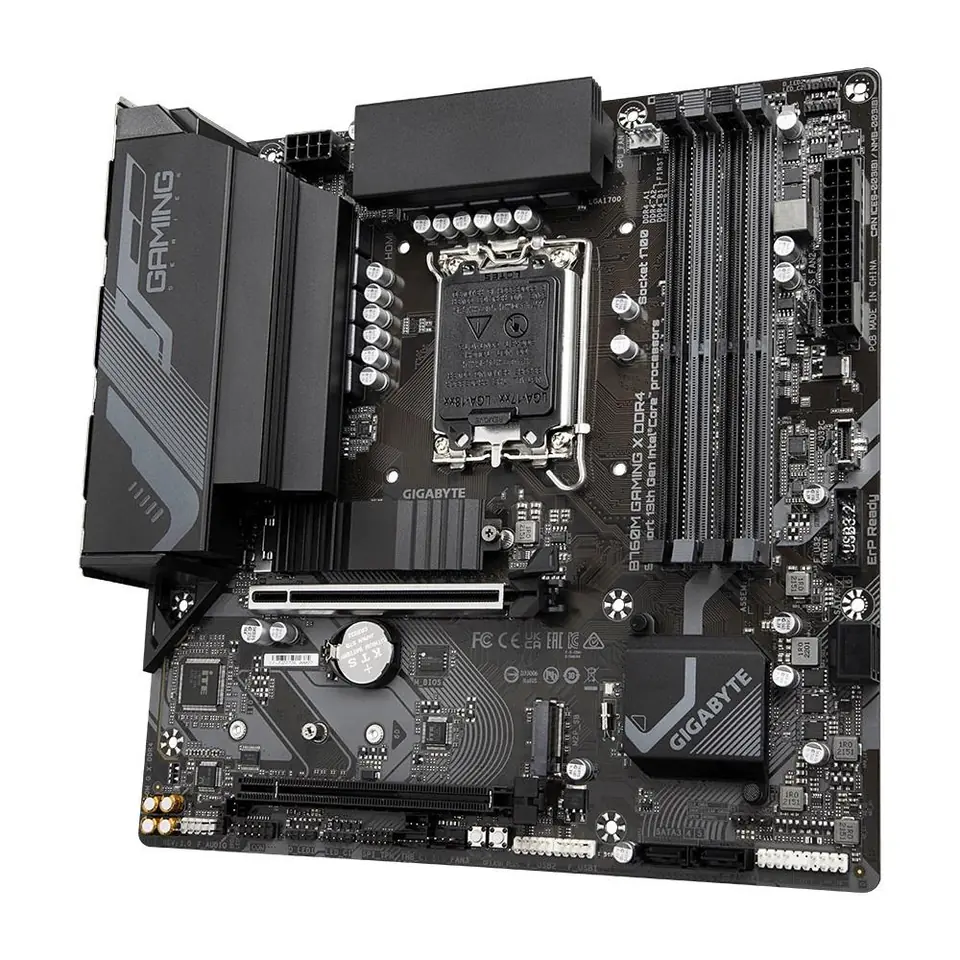

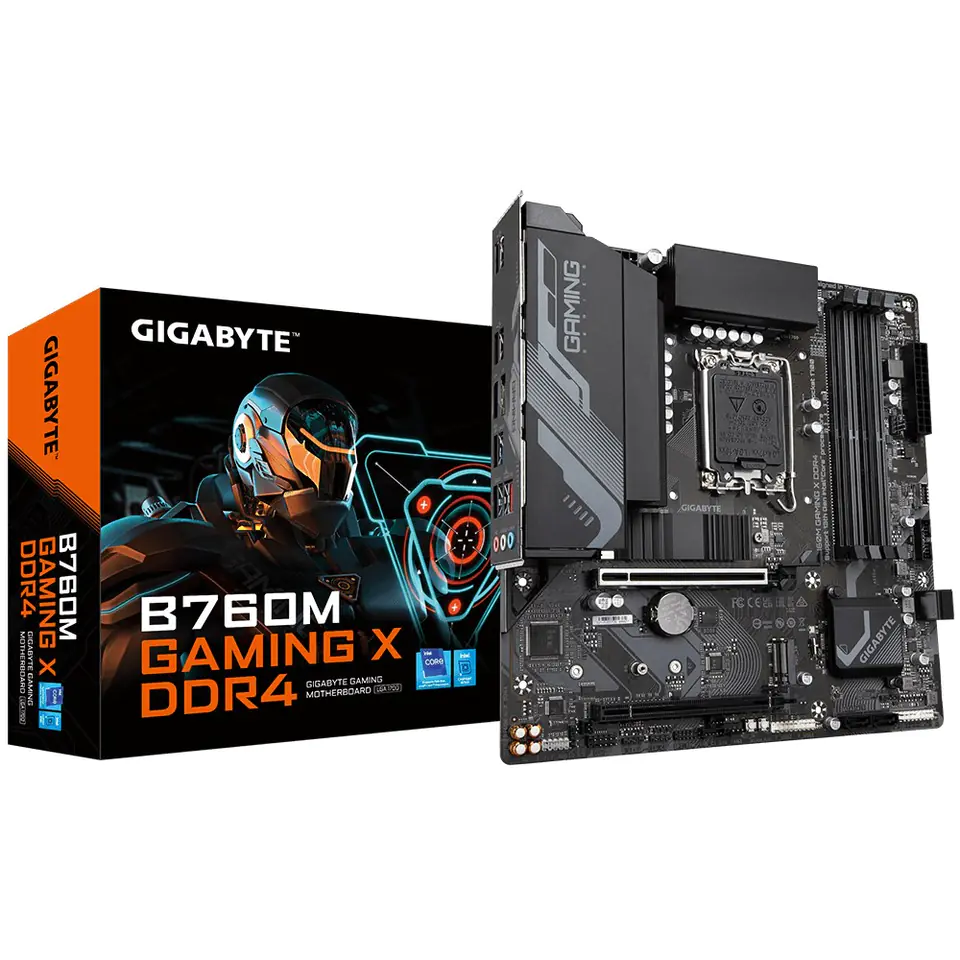

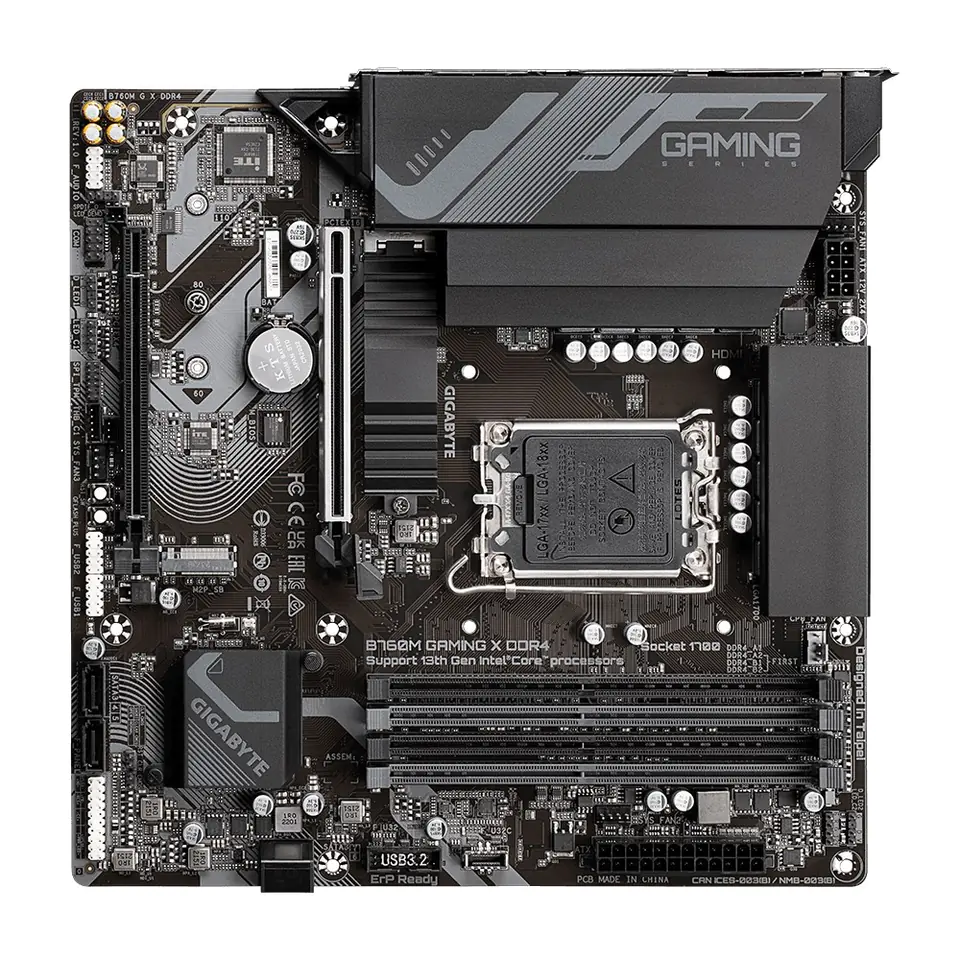

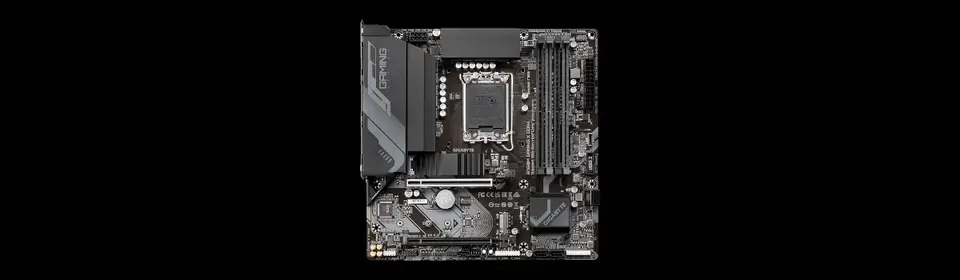

B760M GAMING X DDR4 s1700 DDR4 DP/HDMI mATX motherboard

€152.94
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Gigabyte
Product code:
B760M GAMING X DDR4 / 4719331851255

Specification

Atx power connector (24-pin):Yes
Audio output channels:7.1 channels

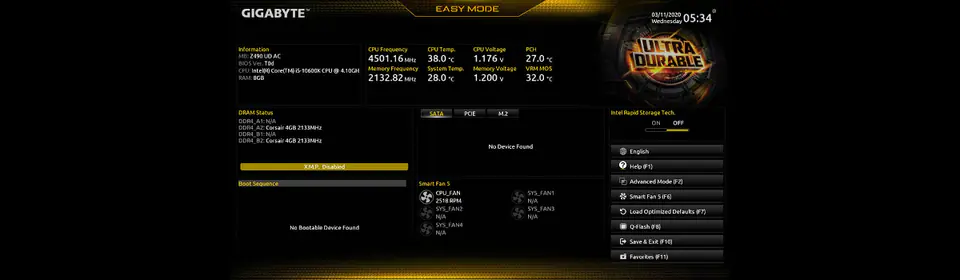

Bios type:UEFI AMI
Clear cmos jumper:Yes
Compatible processor series:Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Cpu fan connector:Yes
Depth:244 mm
Desktop management interface (dmi) version:2.7
Displayports quantity:1
Eps power connector (8-pin):Yes
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Front panel connector:Yes
Hdcp:Yes
Hdmi ports quantity:1
Hdmi version:2.0
Headphone outputs:1
Line-in:Yes
Maximum internal memory:128 GB
Maximum resolution:4096 x 2304 pixels
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset family:Intel
Motherboard form factor:micro ATX
Number of chassis fan connectors:3
Number of m.2 (m) slots:1
Number of memory slots:4
Number of sata iii connectors:4
Number of storage drives supported:6
Parallel processing technology support:Not supported
Pc health monitoring:Water cooling, Temperature, Fan, Voltage
Pci express x16 (gen 3.x) slots:1
Pci express x16 (gen 4.x) slots:1
Power source type:ATX
Processor manufacturer:Intel
Processor socket:LGA 1700
Raid levels:10, 5, 1, 0
Raid support:Yes
Rgb led pin header:Yes
S/pdif out connector:Yes
Serial port headers:1
Supported memory clock speed (max):4933 MHz
Supported memory clock speeds:3400, 3866, 3000, 2933, 4300, 4400 MHz, 4500, 3200 MHz, 2666, 4266, 2400, 4700, 3300, 4133, 4000, 4800, 4933 MHz, 4600, 2133, 3333
Supported memory types:DDR4-SDRAM
Supported processor sockets:LGA 1700
Supported storage drive interfaces:M.2, SATA III
Supported storage drive types:HDD & SSD
Thunderbolt headers:2
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:5
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:3
Usb 3.2 gen 2 (3.1 gen 2) connectors:1
Width:244 mm
Windows operating systems supported:Windows 10, Windows 11
Warranty:

B760M GAMING X DDR4

Intel RTP-H (700)/B760

  • 1 x M.2 22110
  • 1 x M.2 2280
  • 4 x SATA 6Gb/s
  • Integrated into the processor
  • Intel DVMT (Dynamic Video Memory Technology)
  • DirectX 12
  • Realtek ALC897
  • S/PDIF output
  • 7.1 Channel

LAN: Realtek RTL8125

244 x 244 mm

  • 1 x PCI Express x4 slot
  • 1 x PCI Express x16/x8 slot

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
