| Atx power connector (24-pin): | Yes |
|---|---|
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Displayports quantity: | 1 |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdcp version: | 2.3 |
| Hdmi ports quantity: | 1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Maximum internal memory: | 128 GB |
| Maximum resolution: | 4096 x 2304 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 3 |
| Number of m.2 (m) slots: | 3 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 6 |
| Number of usb 3.2 gen 2 type-a ports: | 1 |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Temperature, Fan, Water cooling, Voltage |
| Pci express x16 (gen 3.x) slots: | 2 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Raid levels: | 1, 5, 10, 0 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speed (max): | 5333 MHz |
| Supported memory clock speeds: | 3200 MHz, 2666, 4266, 3000, 5333 MHz, 2133, 2400, 4700 MHz, 3800, 3333, 4600 MHz, 2933, 3600 MHz, 3300, 5133, 4500, 3733, 4300, 4400, 5000, 3400, 3866, 4133, 4000, 3666, 4800 MHz, 4933 MHz, 3466 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 5 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 10, Windows 11 |

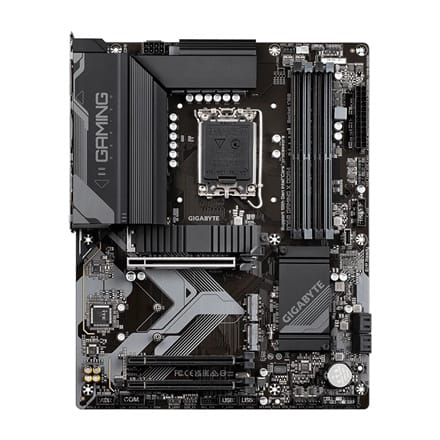

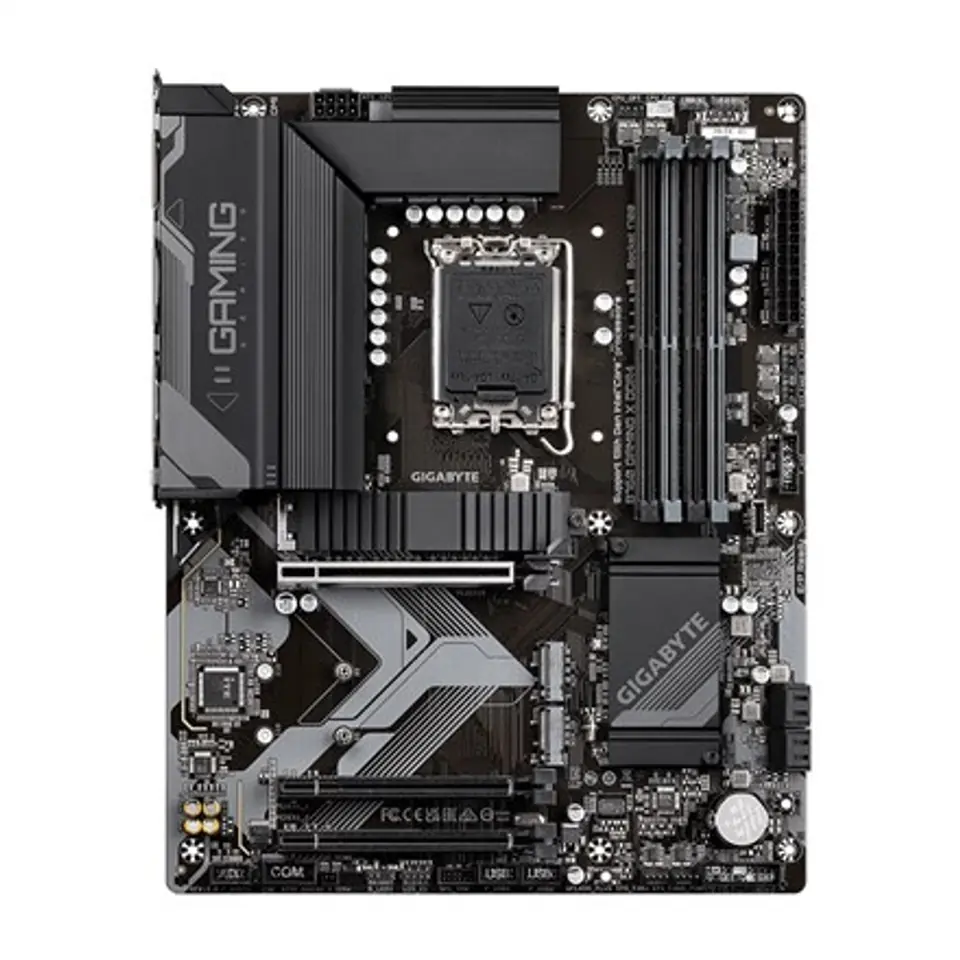

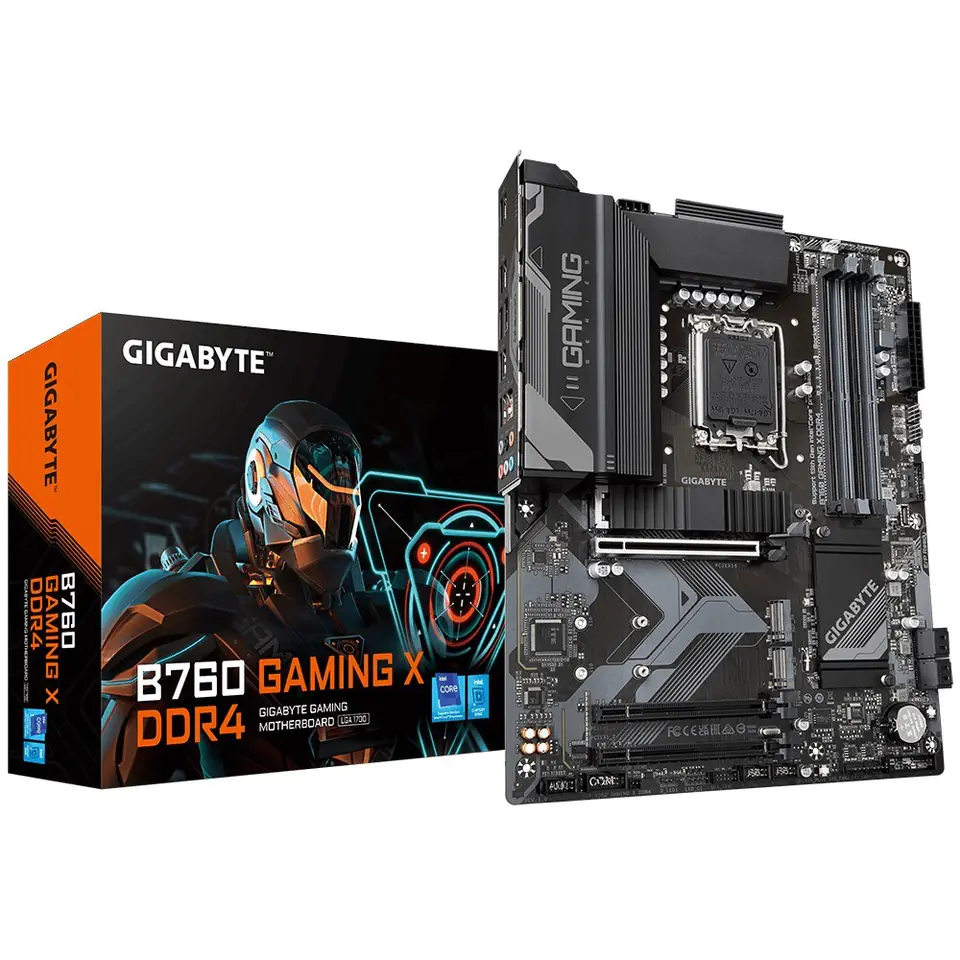

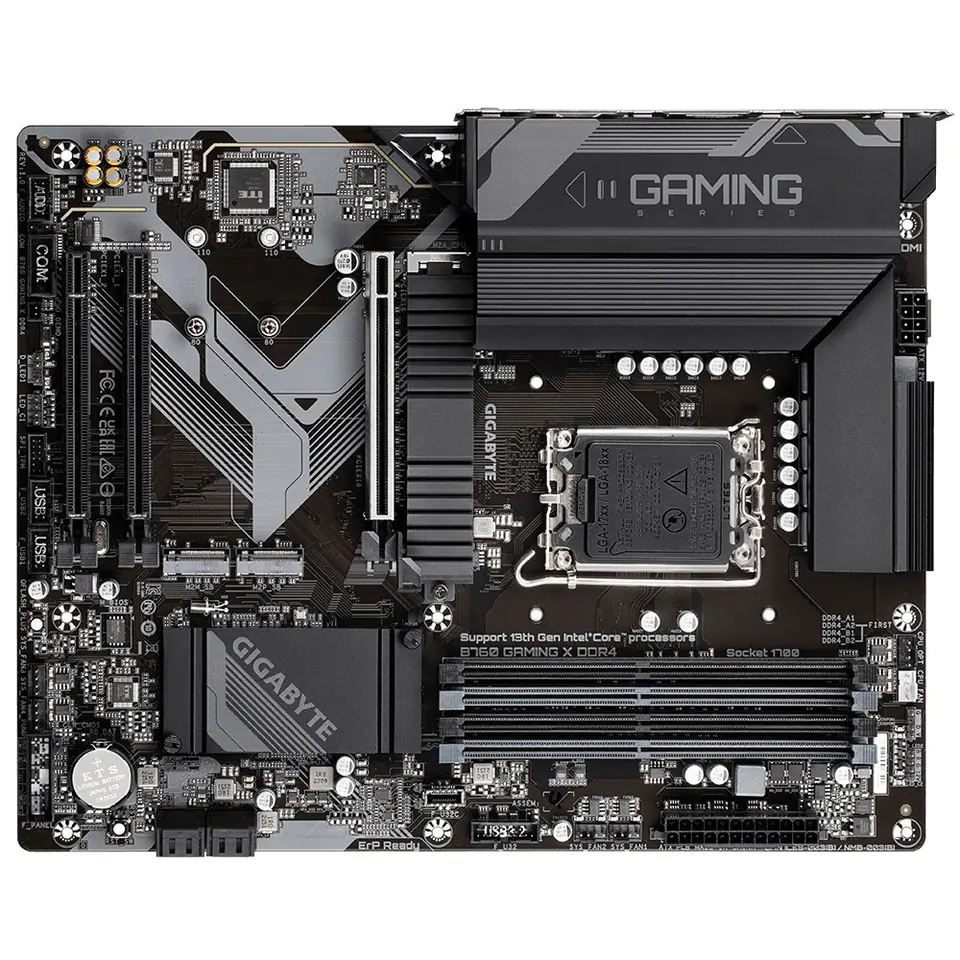

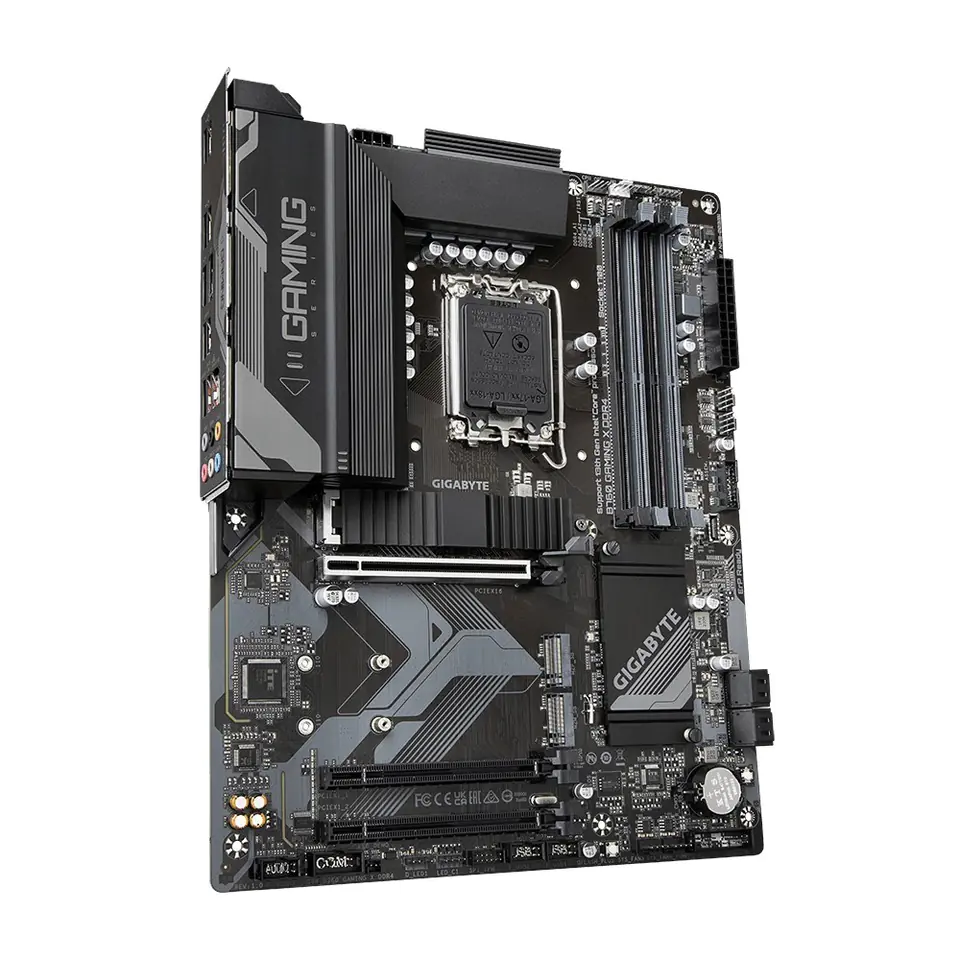

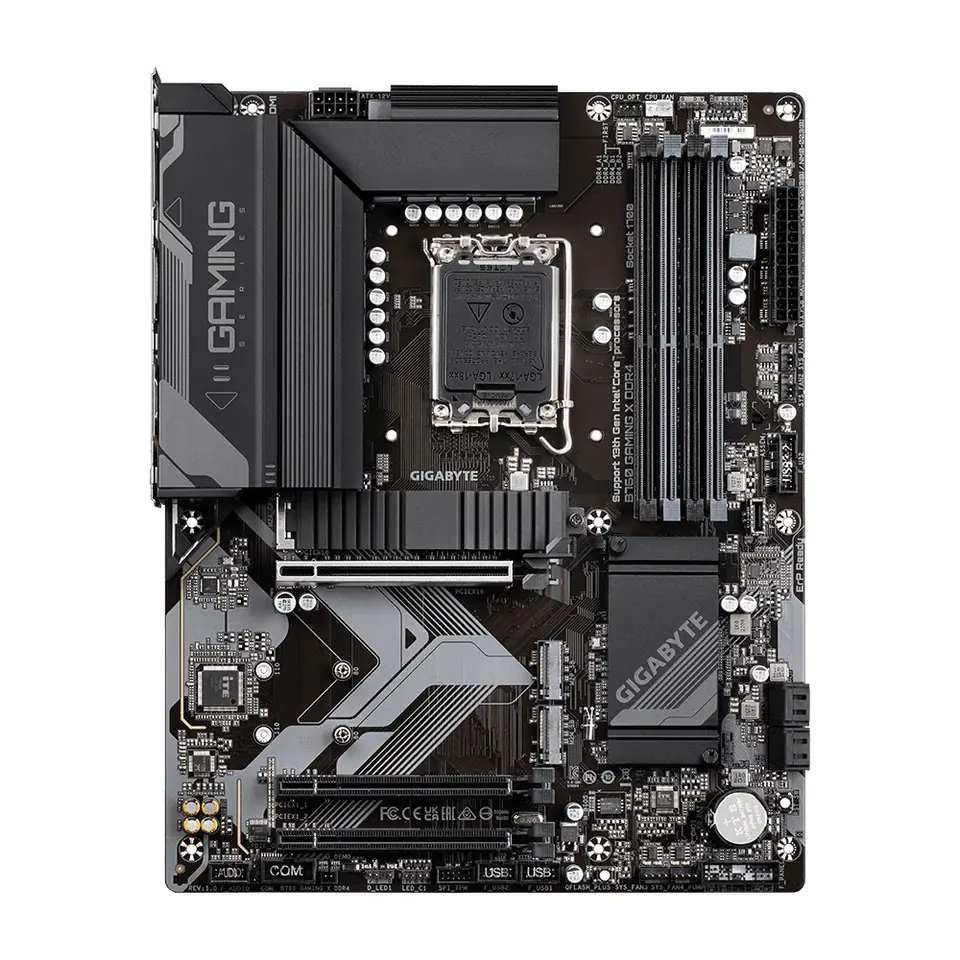

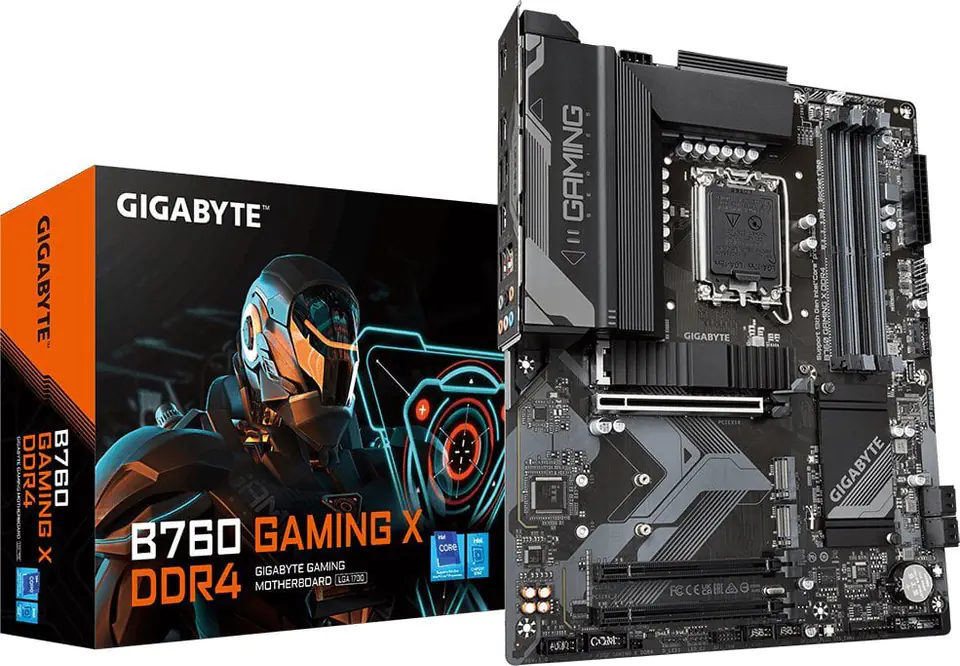

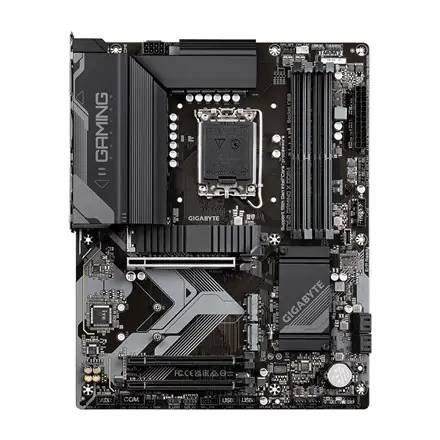

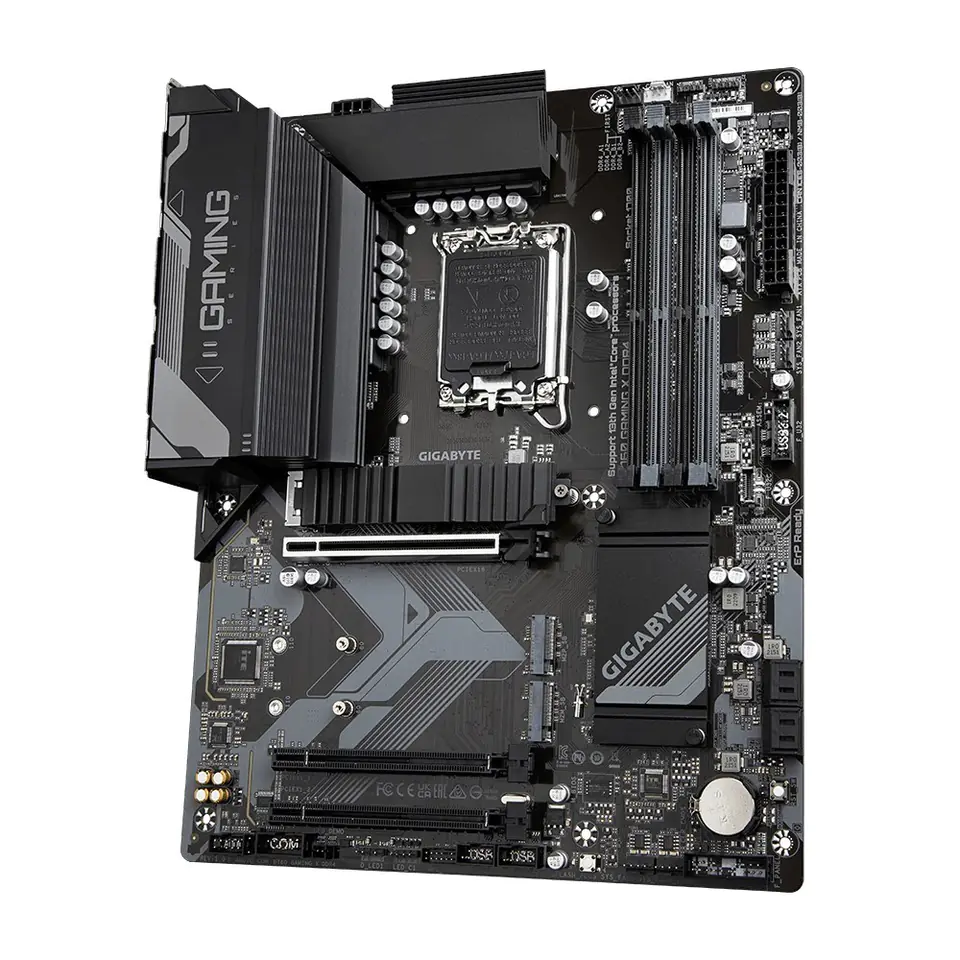

B760 GAMING X DDR4
Intel RTP-H (700)/B760
LAN: Realtek RTL8125
305 x 244 mm
