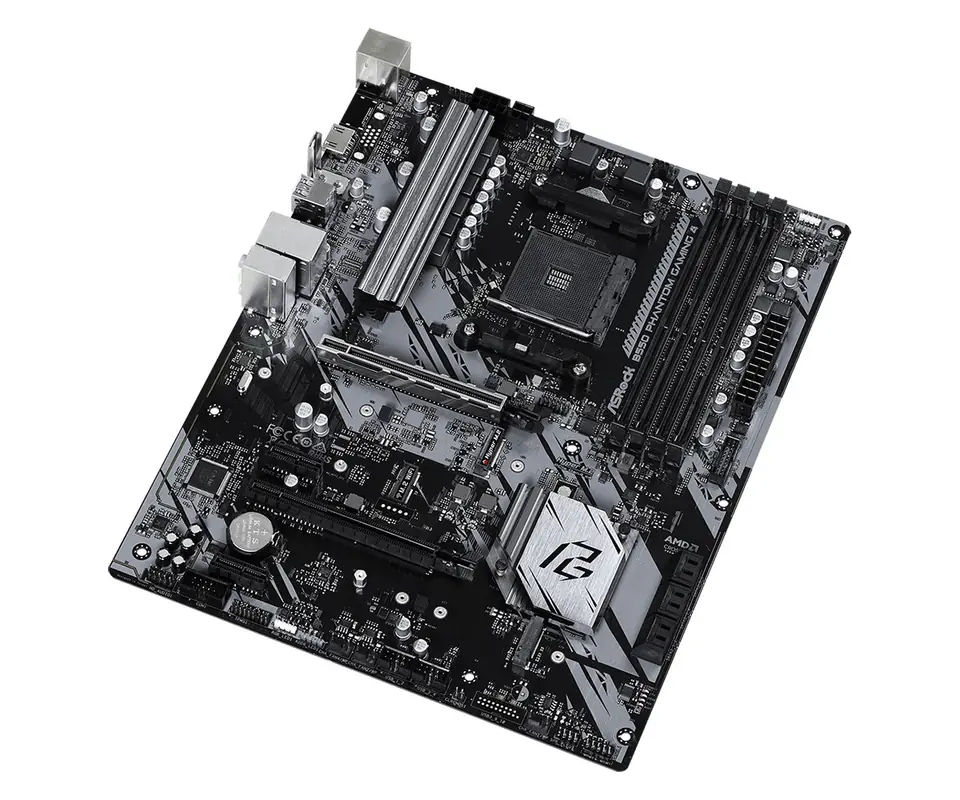

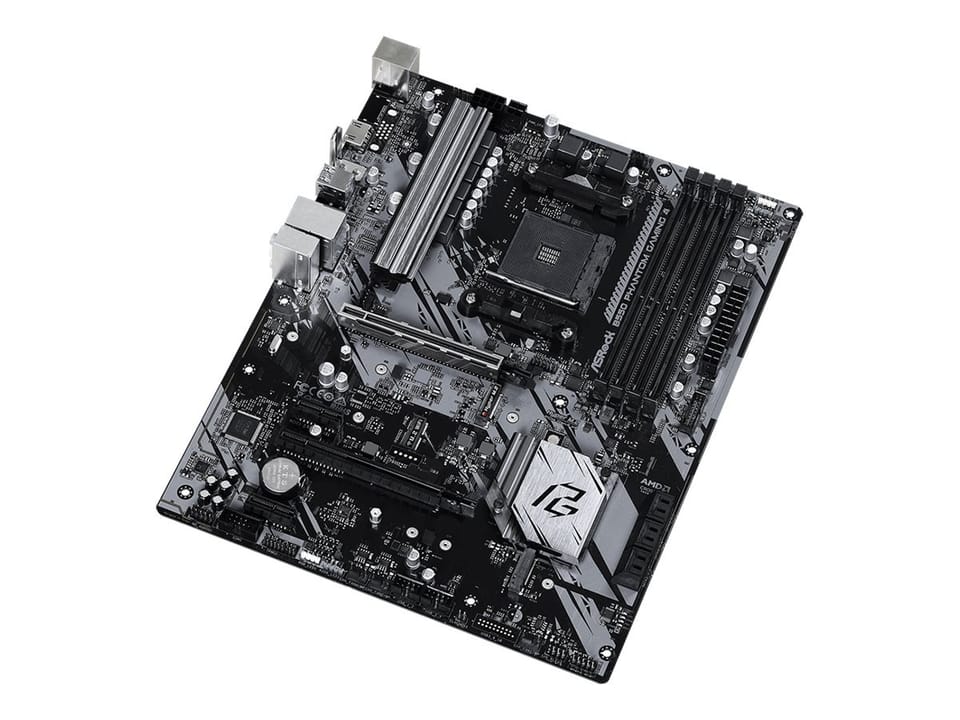

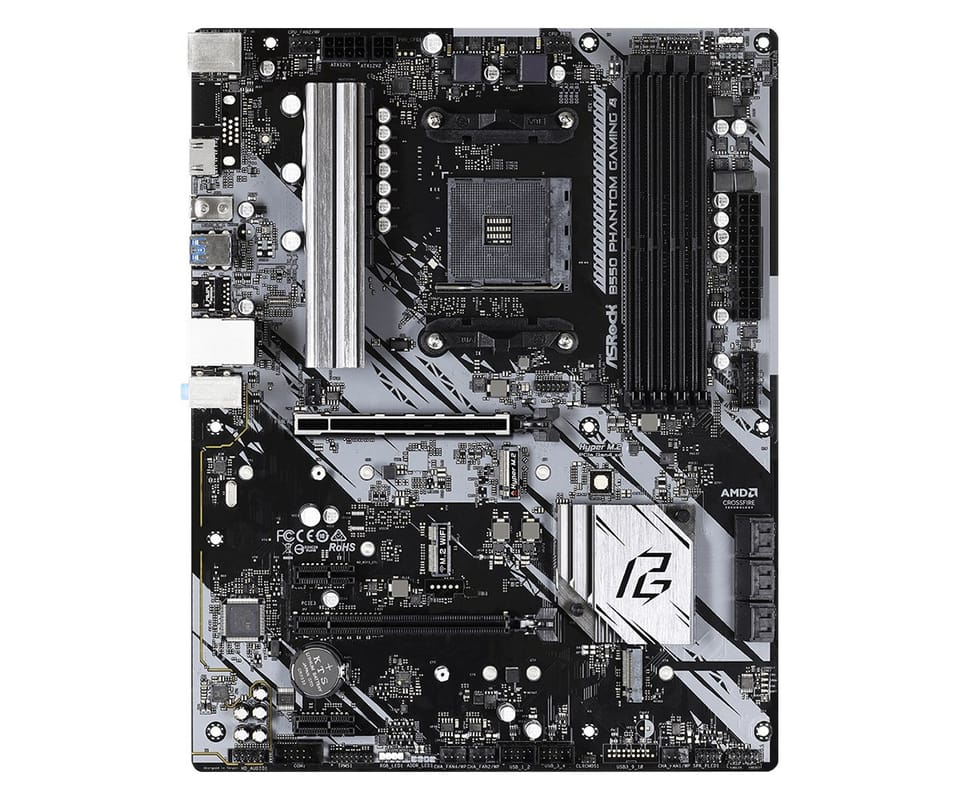

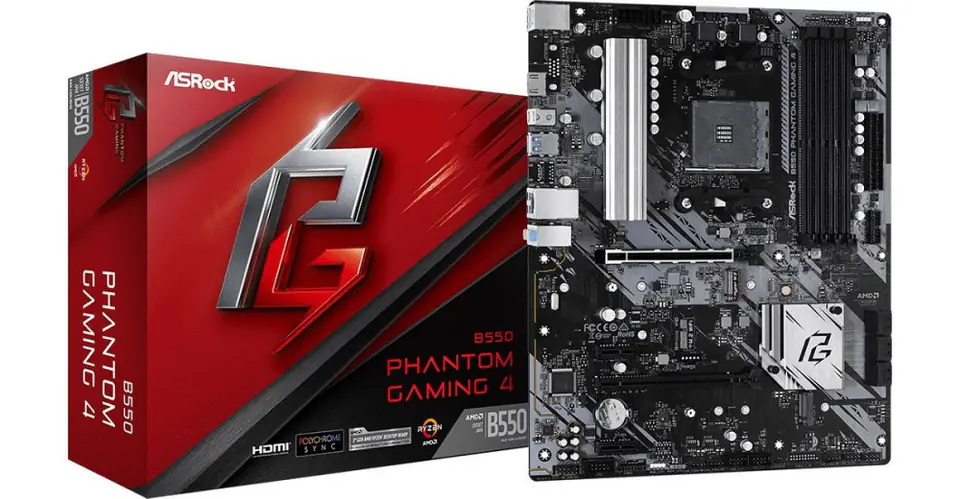

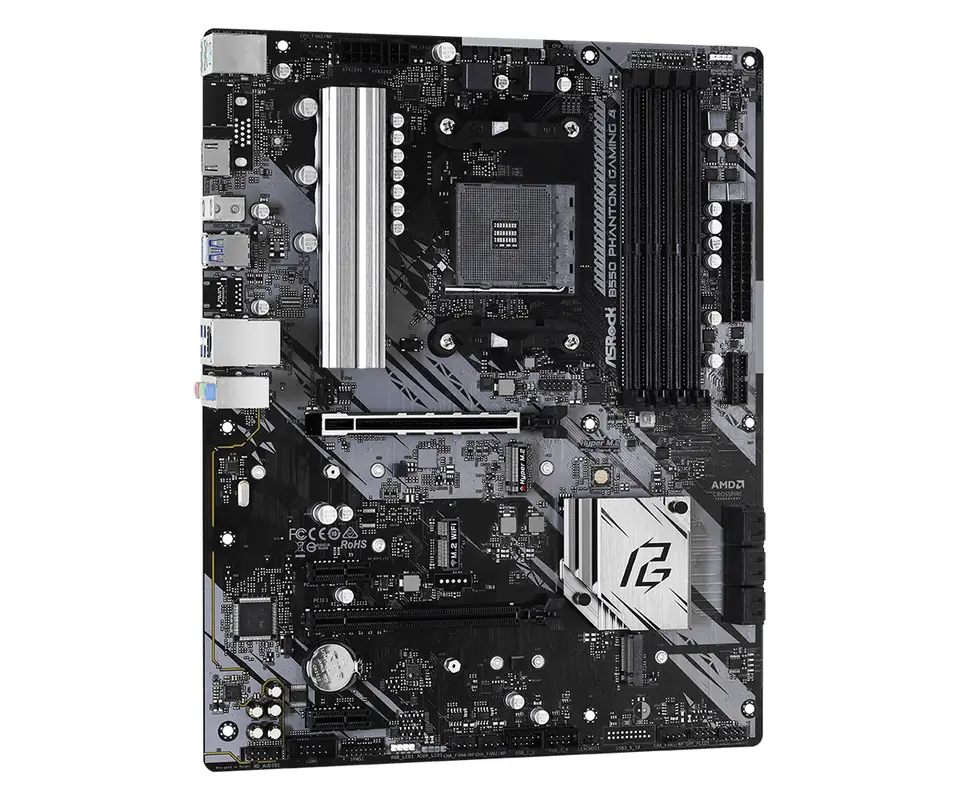

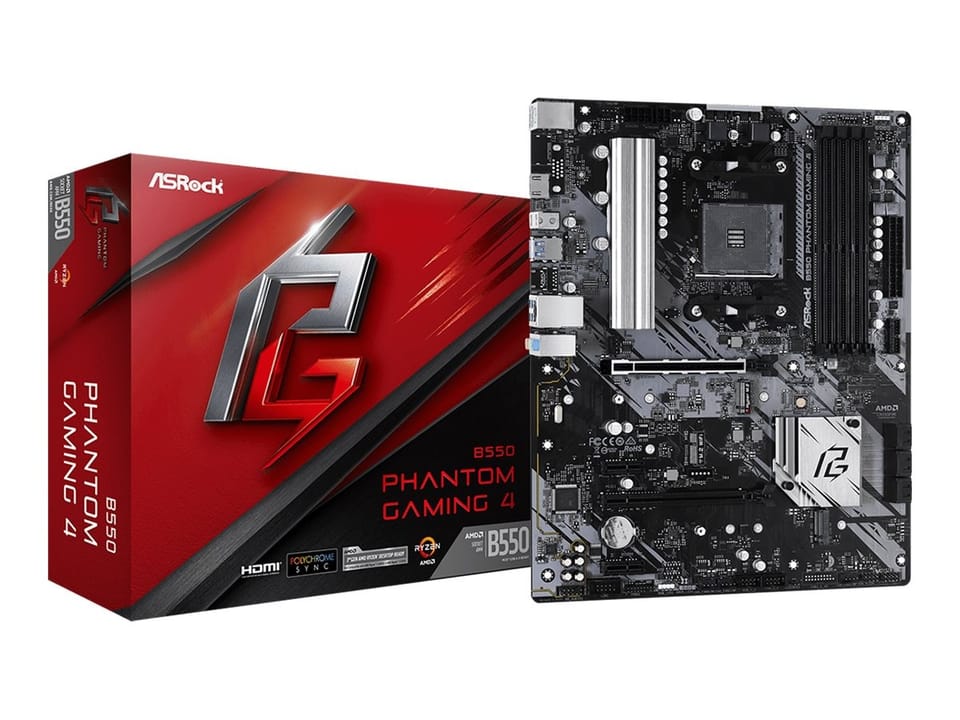

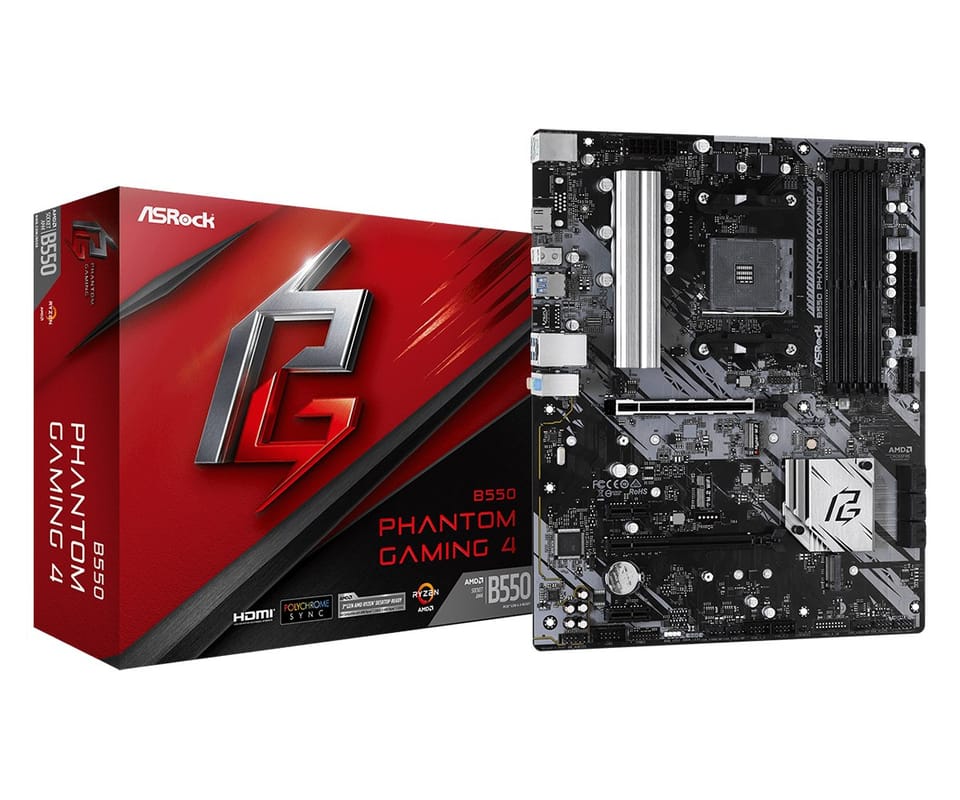

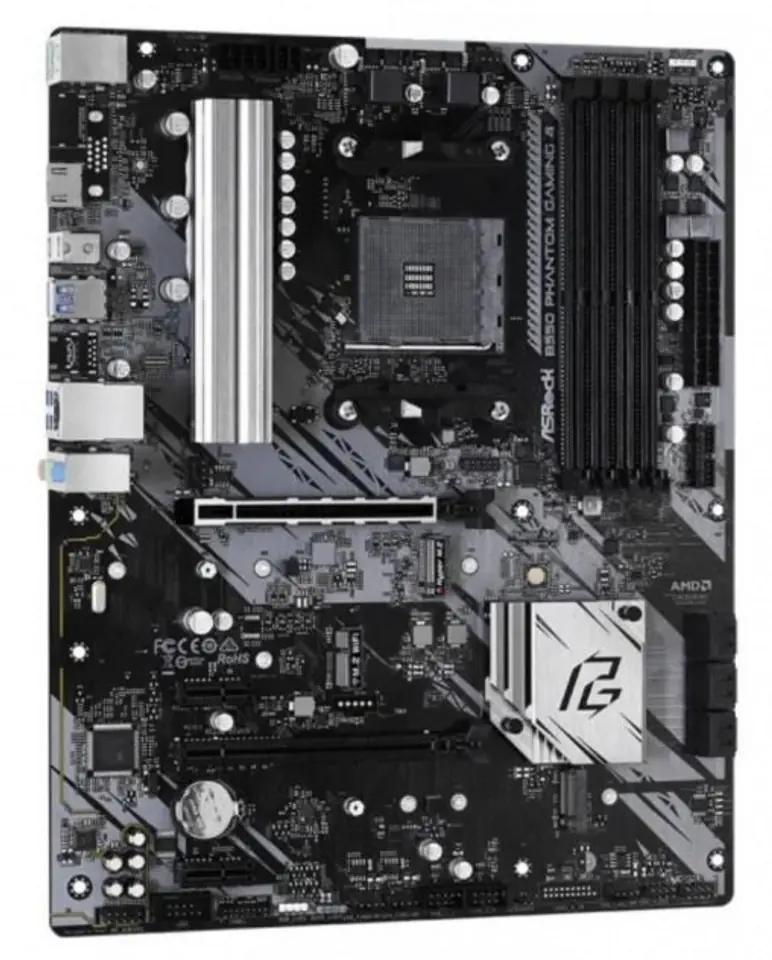

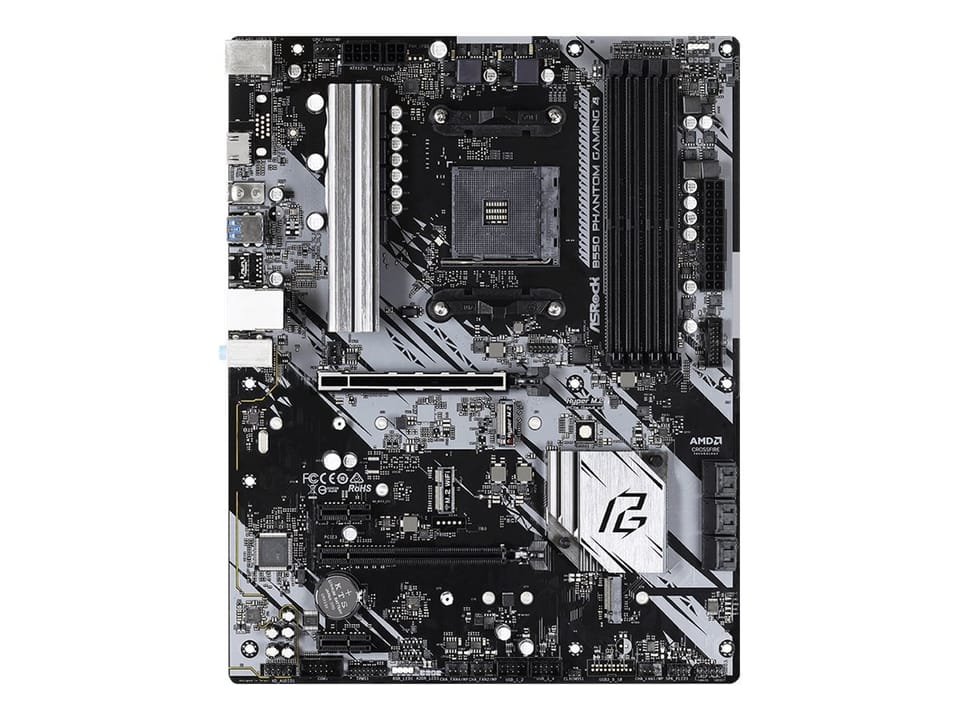

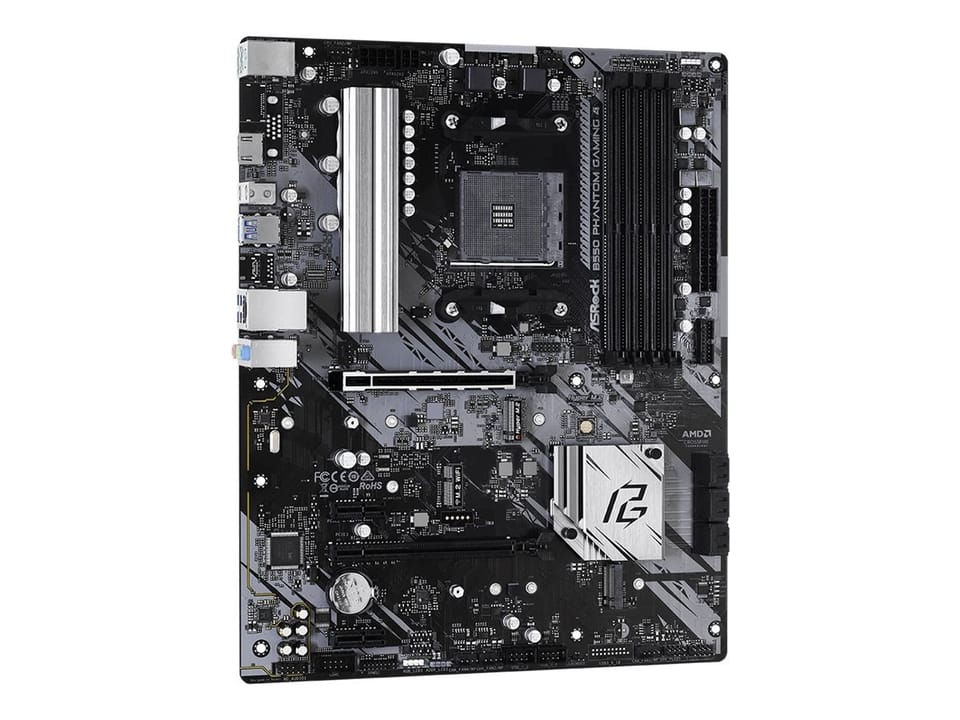

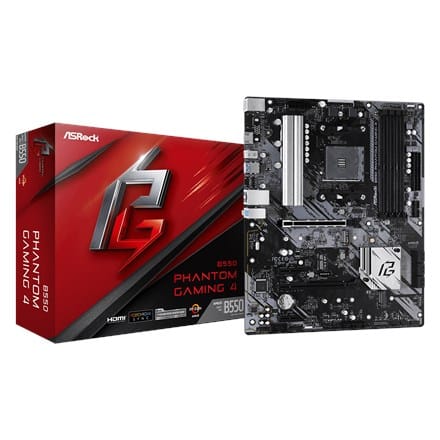

B550 Phantom Gaming 4 AM4 4DDR4 HDMI M.2 ATX Motherboard

€117.59

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: ASRock
Product code:: B550 PHANTOM GAMING 4 / 4710483931499

Specification

Atx power connector (24-pin):	Yes
Audio connector:	Yes
Audio output channels:	7.1 channels
Bios type:	UEFI
Compatible processor series:	3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen 5
Component for:	PC
Cpu fan connector:	Yes
Depth:	244 mm
Drivers included:	Yes
Ecc:	Y
Eps power connector (8-pin):	Yes
Ethernet interface type:	Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Lan controller:	Realtek RTL8111H
Maximum internal memory:	128 GB
Maximum number of smp processors:	1
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	AMD B550
Motherboard chipset family:	AMD
Motherboard form factor:	ATX
Non-ecc:	Y
Number of com connectors:	1
Number of memory slots:	4
Peripheral (molex) power connectors (4-pin):	4
Processor manufacturer:	AMD
Processor socket:	Socket AM4
Ps/2 ports quantity:	1
Raid levels:	0, 1, 10
Supported memory clock speeds:	3466, 3200 MHz, 4266, 3866, 2667, 3733, 4400, 2933, 3600 MHz, 4333, 4533, 4133, 4000, 3800, 4466, 2133, 4200, 2400
Supported memory types:	DDR4-SDRAM
Supported storage drive interfaces:	M.2, Serial ATA III
Usb 2.0 connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	6
Wake-on-lan ready:	Yes
Wi-fi:	No
Width:	305 mm

Phantom Gaming is designed by and for gamers! Underneath its appearance lies many game-oriented features and excellent gaming capabilities. The idea is to provide players with a new gaming experience!

Supports AMD AM4 Ryzen 3rd Generation / Future AMD Ryzen processors
8 Power Phase Design, Digi Power
Supports DDR4 4733+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 E key for WiFi
Graphics Output Options: HDMI
AMD CrossFireX
Audio HD 7.1 CH (Realtek ALC1200 audio codec), Nahimic Audio
6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 and SATA3)
8 USB 3.2 Gen1 (2 front, 6 rear)
Gigabit LAN

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
