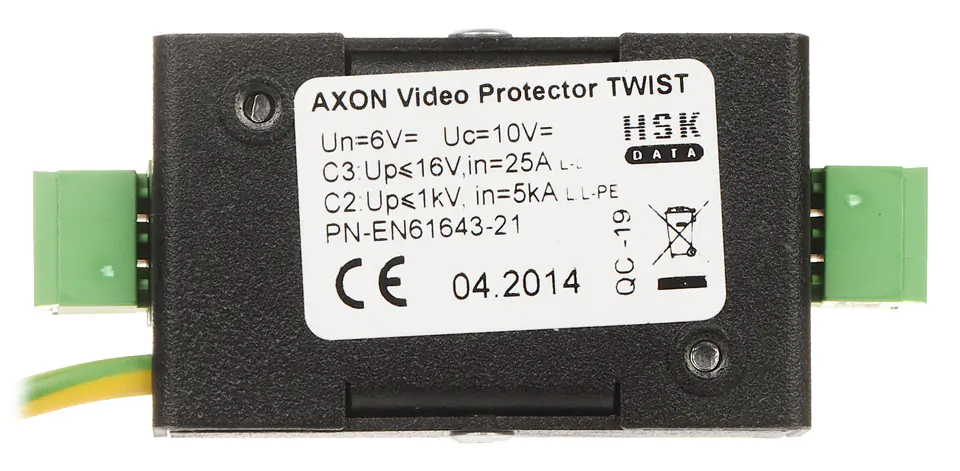

AXON-VIDEO-TWIST is designed for surge protection of analog cameras and recorders in CCTV systems using twisted-pair cables for video signal transmission
The device is an extensive protective element containing two-stage protectionThe first stage uses high-current gas elements, reduces overvoltages occurring between the transmission line and PE and discharges the interfering charge to the groundThe second stage contains fast semiconductor elements that eliminate overvoltages that may occur between wires in the transmission line

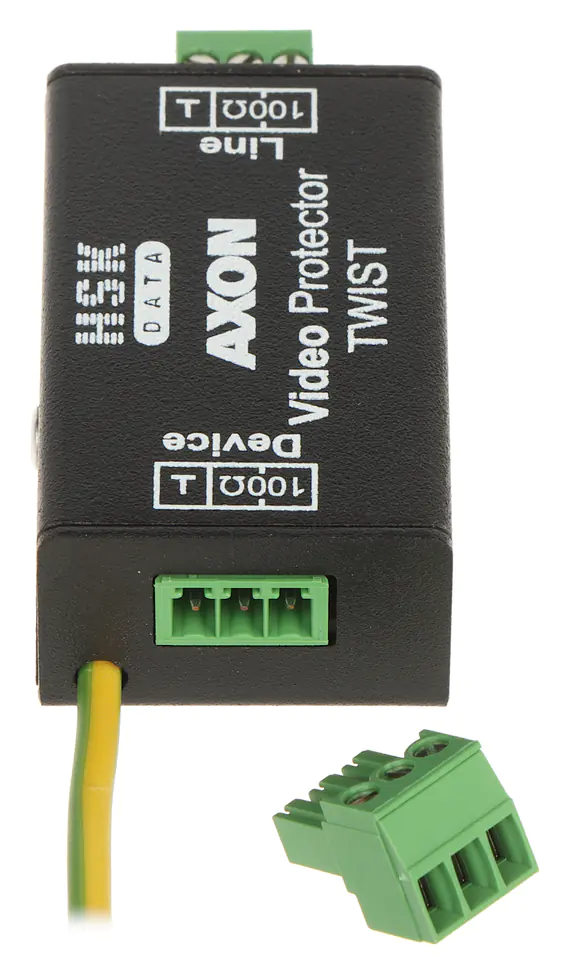

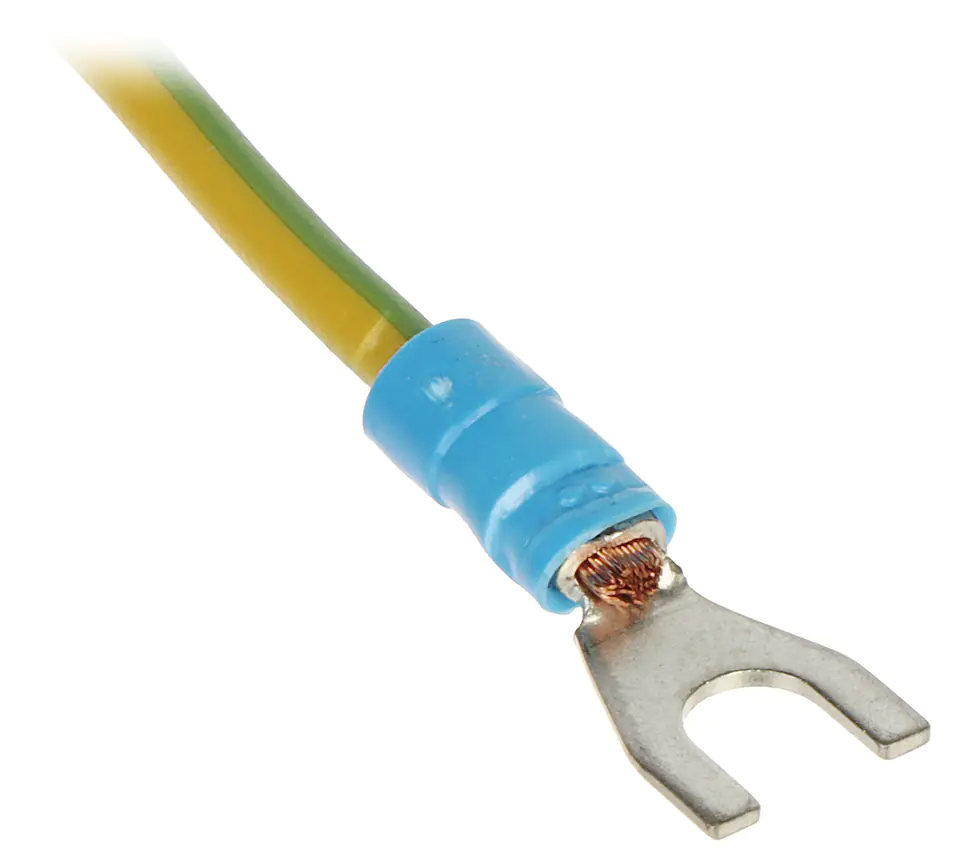

AXON-VIDEO-TWIST has a metal, shielding casingDetachable terminal connectors are used as connecting elementsThe terminals \"100 Ω\" are used to connect the signal pair of wires in the twisted pair cable, while the third terminal can be used by the installer as a ground or continuation of the screen for FTP cablesIf necessary, the auxiliary terminal is not factory connected to the groundThe grounding wire, terminated with a fork terminal, is led out and connects directly to the housing

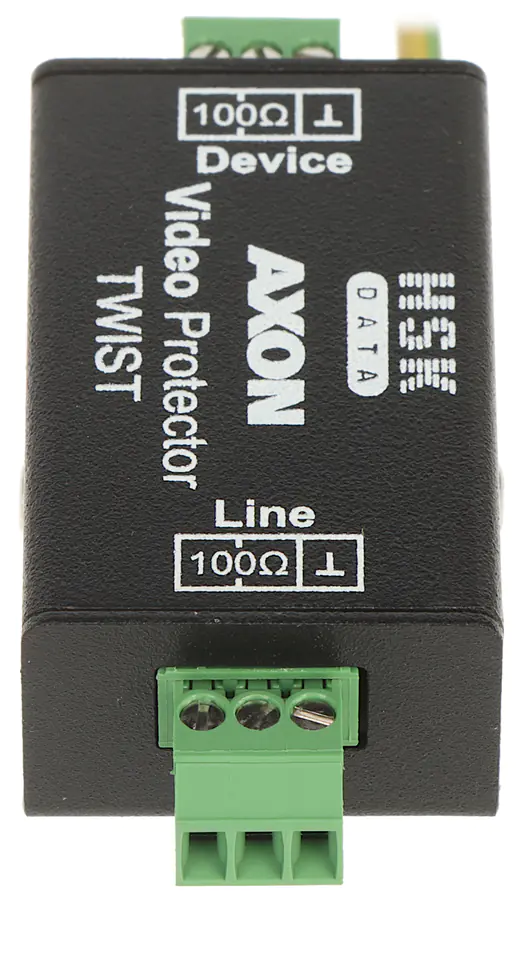

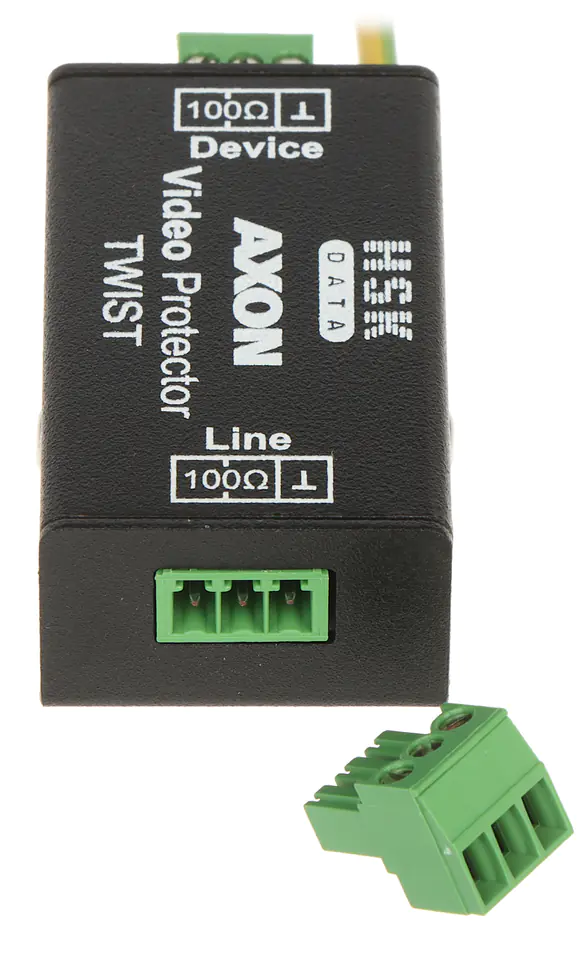

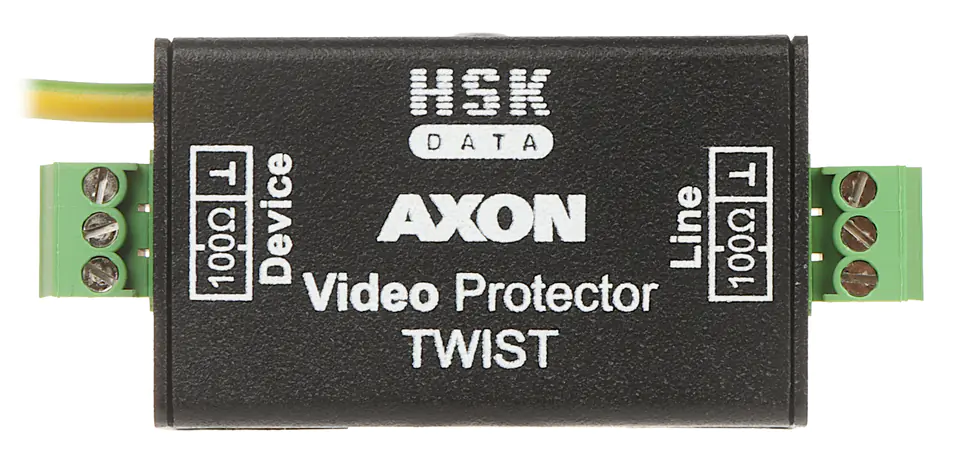

The device is an unbalanced protectorThe transmission line is connected to the terminals \"Line\", while the protected device to the \"Device\" connector. It should also be remembered that the condition for proper operation of the protector is to connect it to an efficient grounding or PE wire
