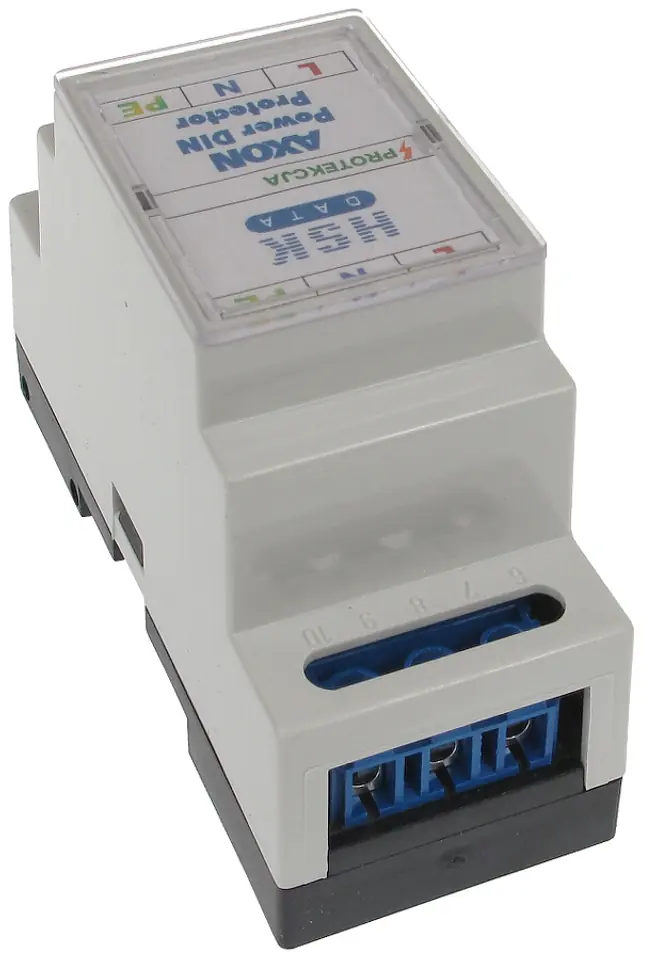

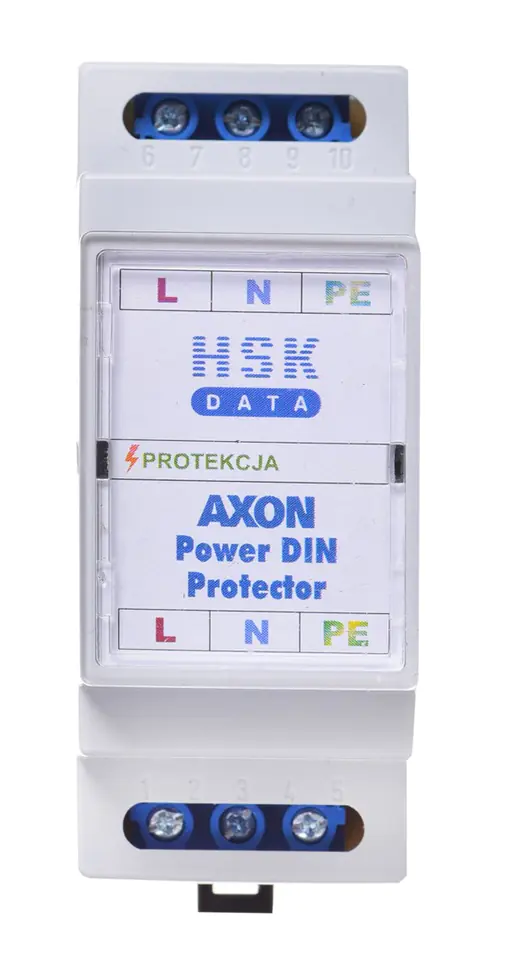

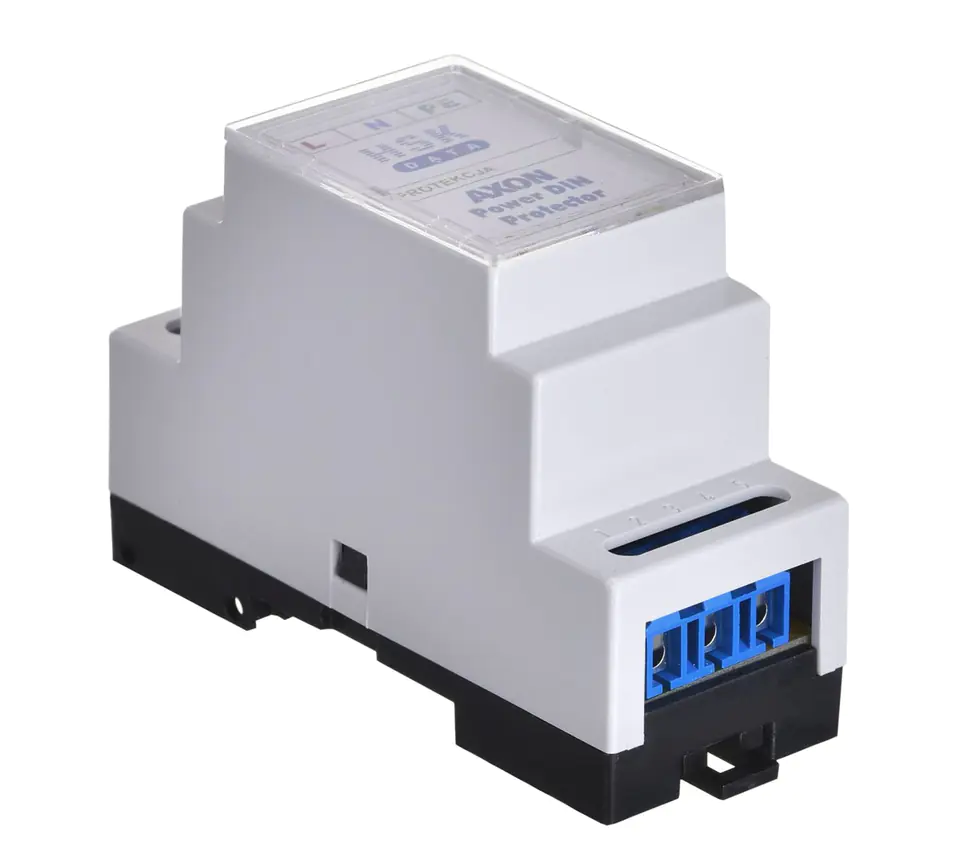

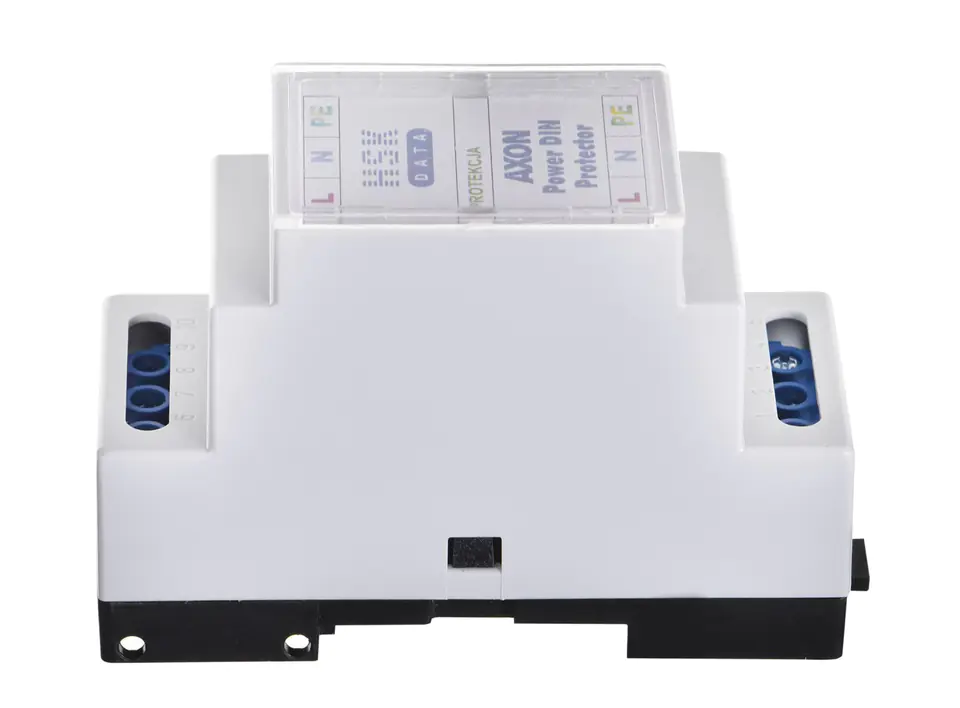

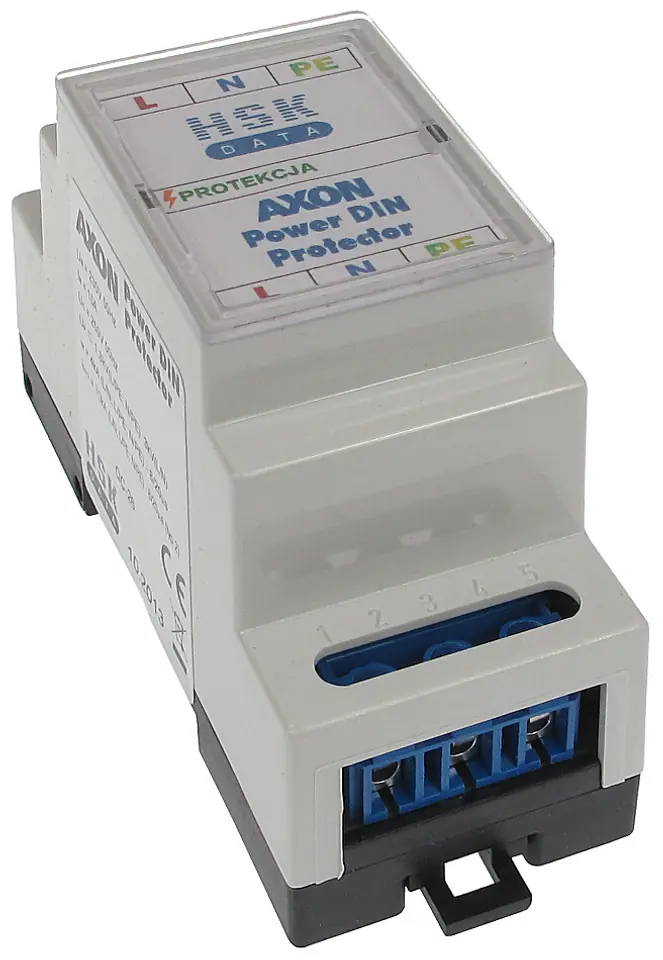

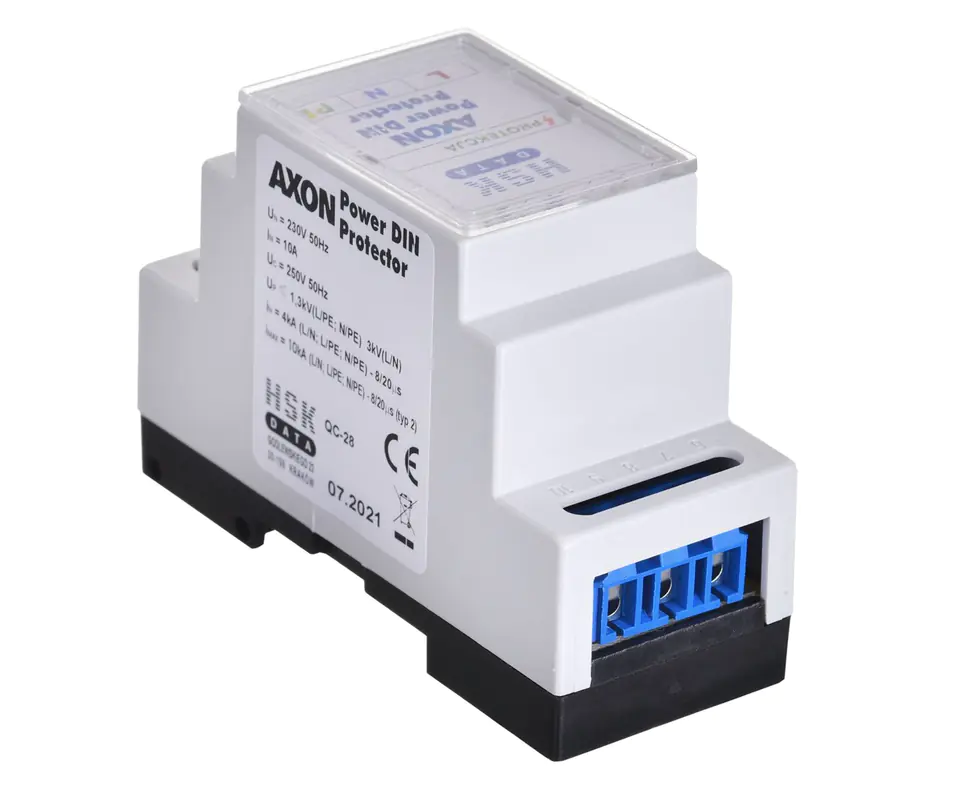

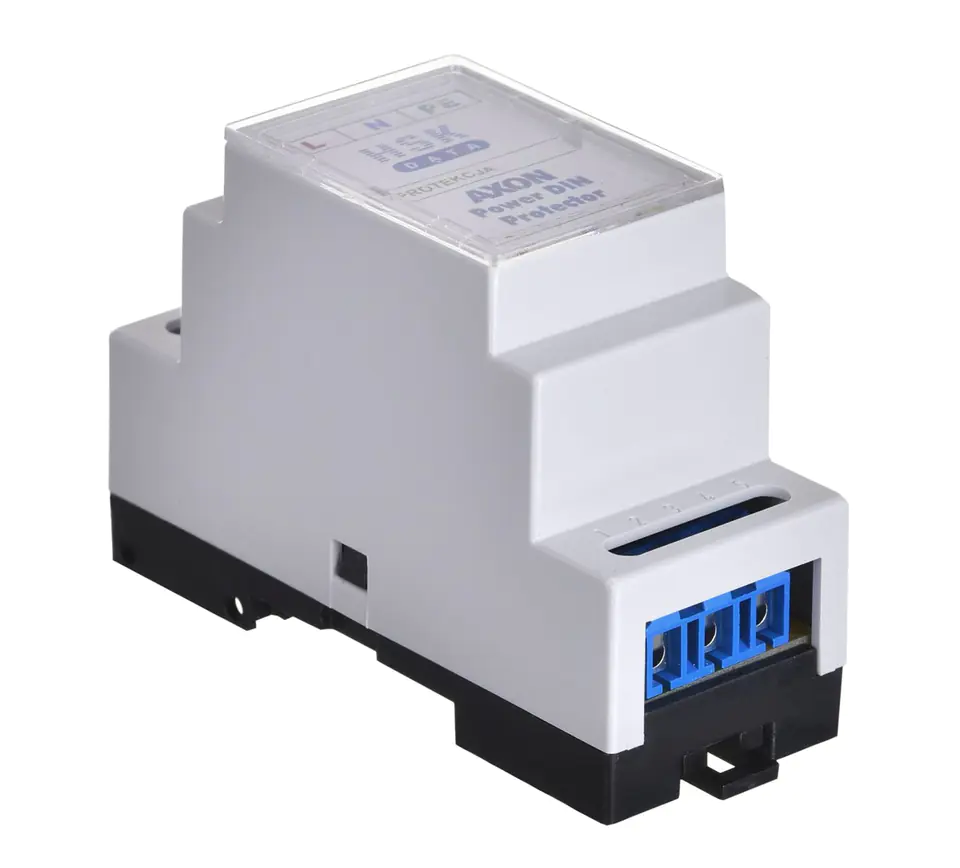

AXON [Power DIN Protector] - surge protection for industrial automation devices multi-channel protection system, small size

This product is not available
Availability:
expected delivery
Brand:
HSK Data
Product code:
AXON-POWER/DIN / 5904743333010

Specification

Level of protection u (l/pe, n/pe):≤1.3kV
Maximum discharge current (l/n, l/pe, n/pe):10 kA 8/20 μs (type 2)
Maximum discharge current i (l/n, l/pe, n/pe):10kA – 8/20μs (type 2)
Maximum voltage:250 VAC / 50 Hz
Protection level u (l/n):≤3kV
Protection level up l/n:≤ 3 kV
Protection level up l/pe, n/pe:≤ 1.3 kV
Rated discharge current (l/n, l/pe, n/pe):4 kA - 8/20 μs
Rated discharge current i (l/n, l/pe, n/pe):4kA – 8/20μs
Standards:EN 61643-11

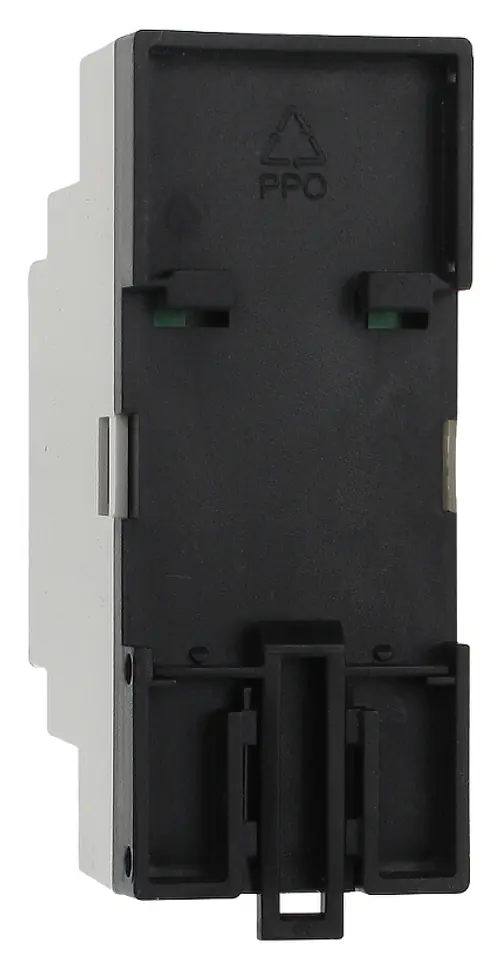

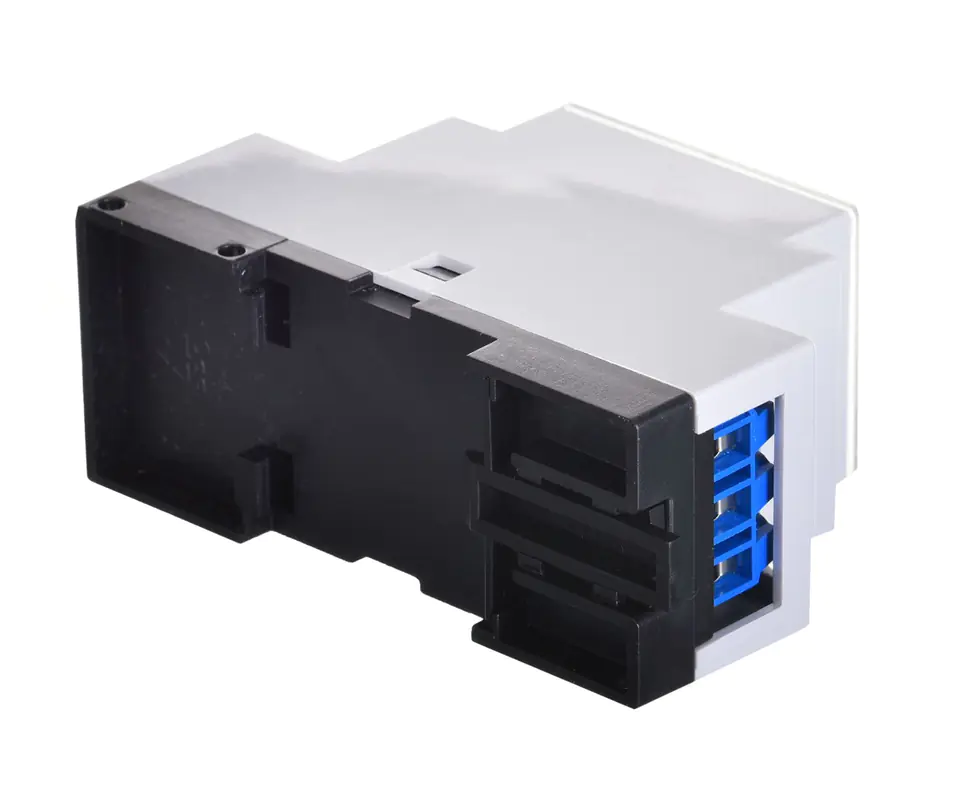

The protective strip protects the devices against lightning or overvoltages from the AC 230VAXON-POWER/DIN network is designed for mounting on a 35 mm DIN rail

In order for the AXON-POWER/DIN to work properly, it must be connected to a working grounding or PE protective conductor
