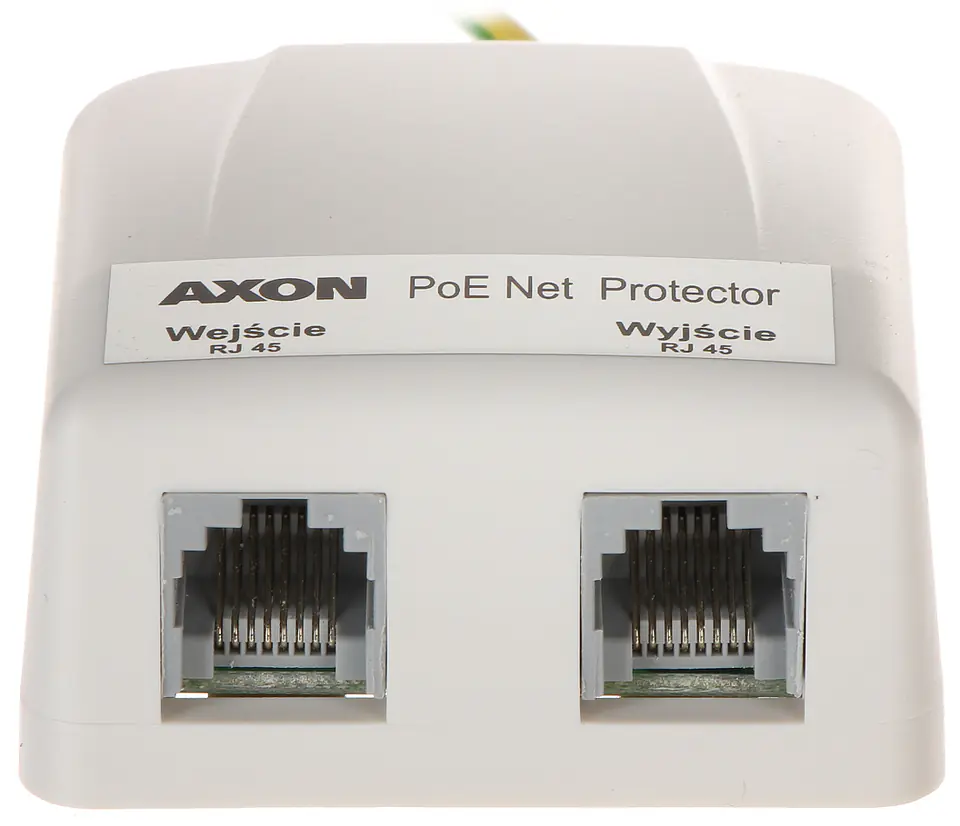

Limiter designed to protect devices connected to a 10/100 Mbps Ethernet network, including devices powered by PoE
The device contains 2 paths - data transfer path (lines 1-2, 3-6) and power supply path (lines 4-5, 7-8)Both tracks are protected by surge protectors that drain the load to the ground, and also protect the lines between each other within a pair of wiresIn order to increase the load capacity of the power supply path, line 4 is shorted from 5, and line 7 from 8
The condition for the correct operation of AXON-POE is to connect it to a working ground or PE protective wire
