AXON-NET/PROF SURGE ARRESTER

€47.12

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: AXON-NET/PROF / 5904743331009

Specification

Case:	Metal, Black
Dimensions:	94 x 50 x 31 mm
Line-to-ground protection voltage:	600 volts ... 1 kV/μs
Line-to-line protection level:	40 volts ... 1 kV/μs
Maximum voltage:	6 volts
Nominal discharge current (line-ground):	20 A (10/1000μs)
Nominal discharge current (line-to-line):	20 A (10/1000μs)
Protected cable pairs:	1-2, 3-6, 4-5, 7-8
Scales:	0.17 kg
Socket type:	RJ45(8P8C)
Standard:	Compliant with PN-EN61643-21
Voltage:	5 volts
Warranty:	2 years

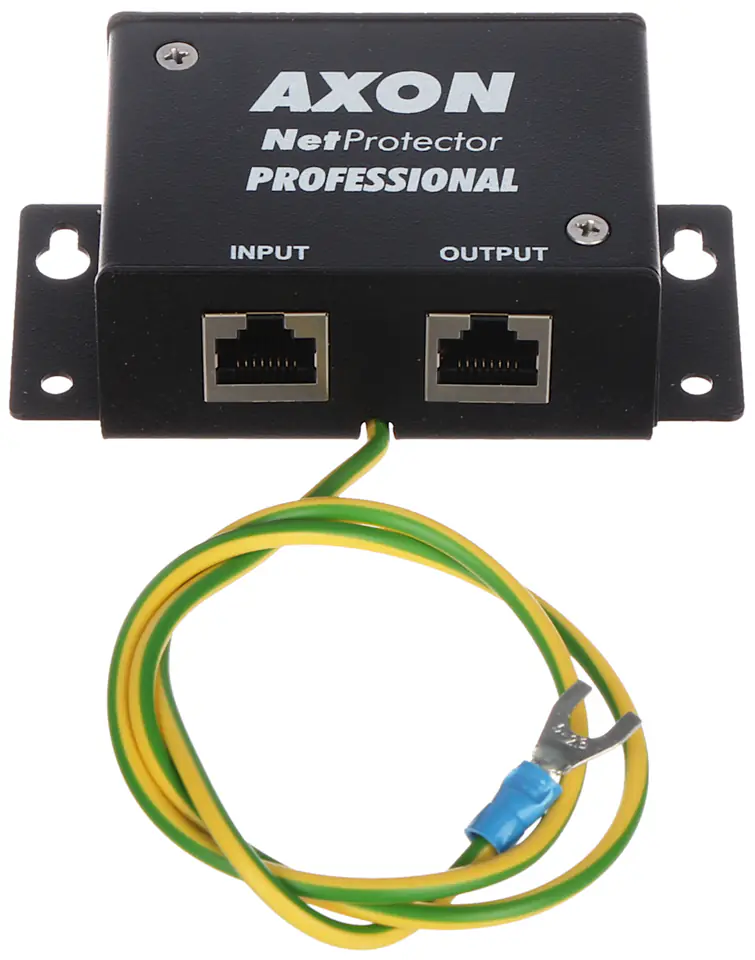

The device protects all pairs of wires in a four-pair cableWithin each pair, the elimination of overvoltages between the lines is ensured and the emerging charge is discharged to the ground through the protective wire PEAXON-NET/PROF is a reinforced version of the popular AXON-NET

The metal housing guarantees greater resistance to all kinds of mechanical damage and provides shielding of the entire protective systemThe use of a shielded RJ-45 socket allows to maintain the continuity of the screen when using twisted pair cableThe tap of the socket is attached to the grounding
