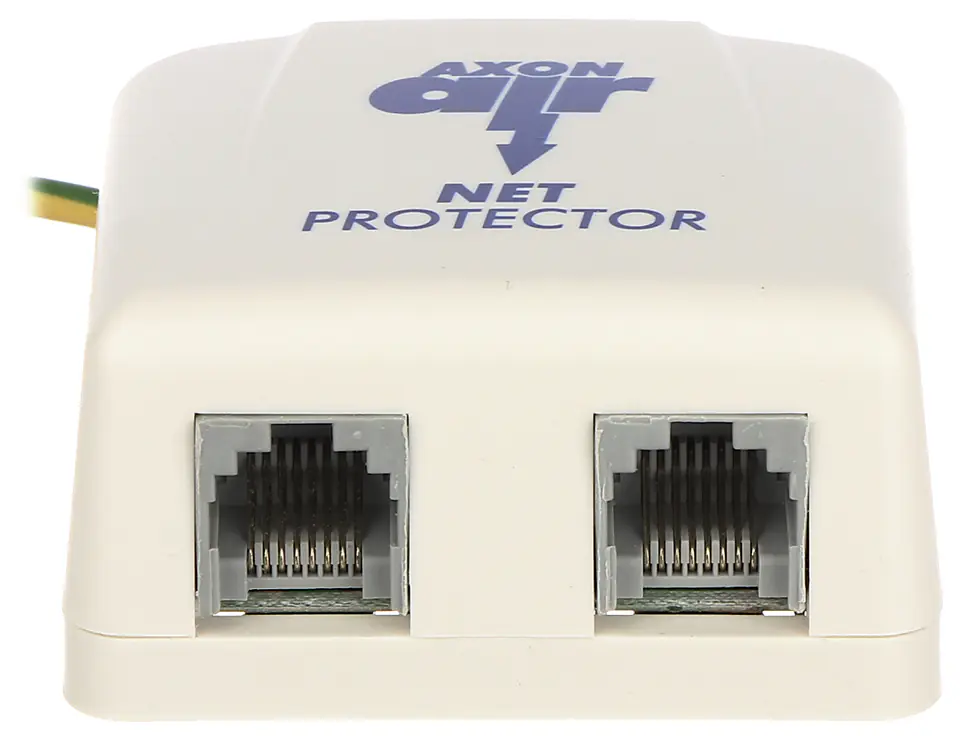

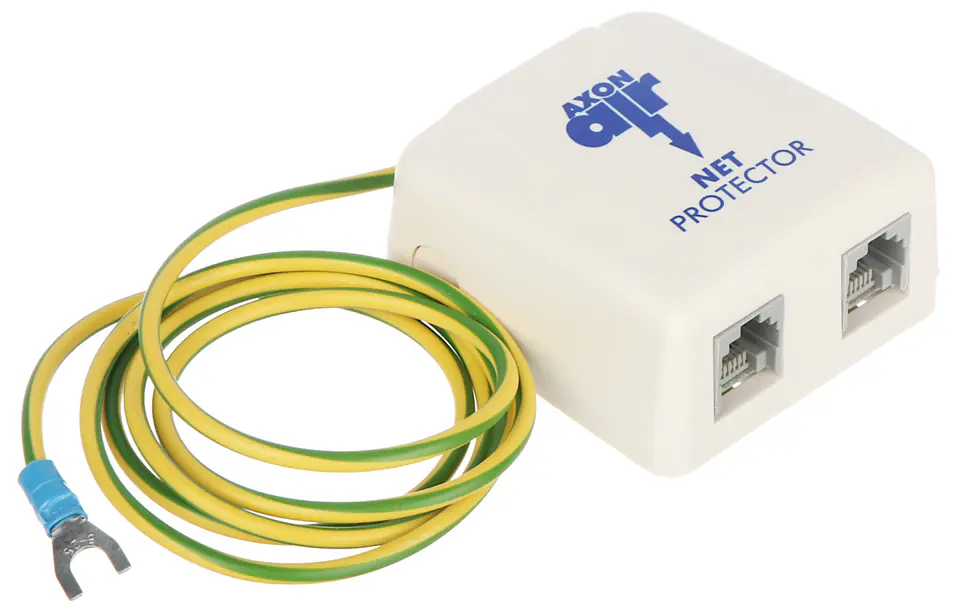

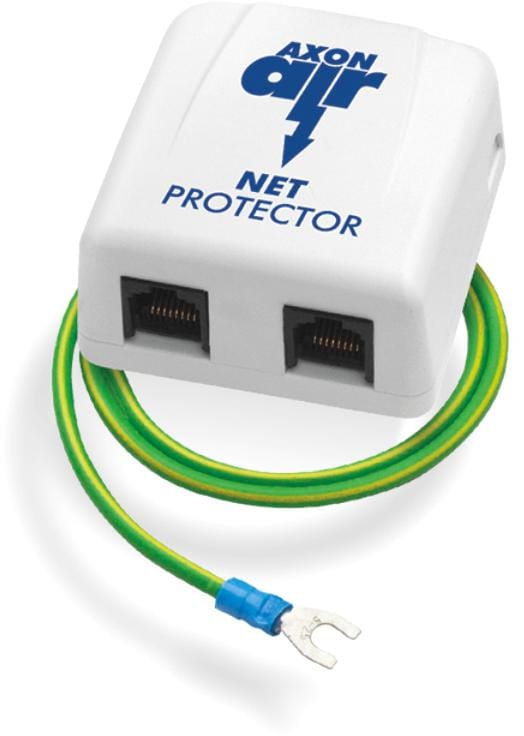

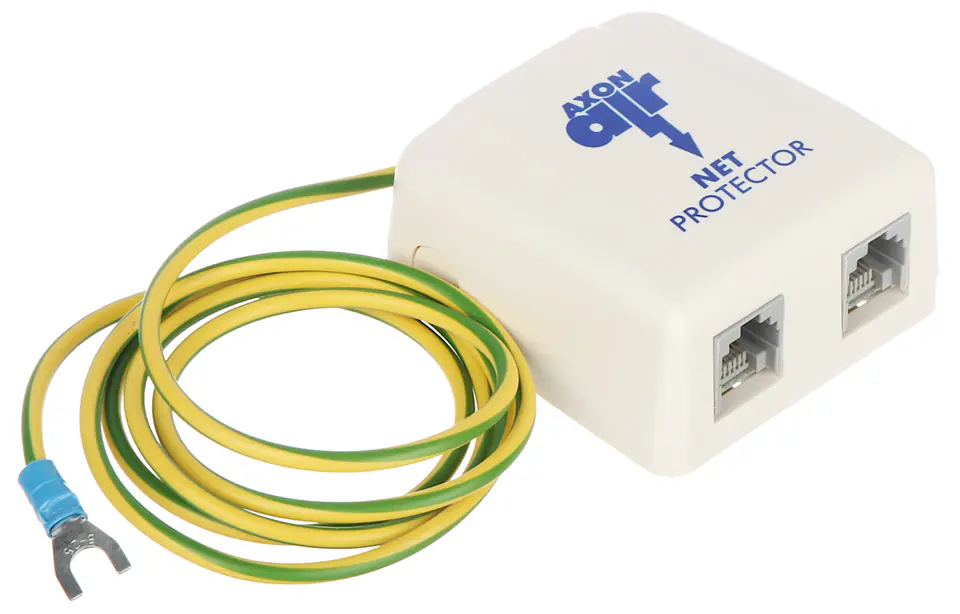

AXON-AIR SURGE ARRESTER

€31.54

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Product code:: AXON-AIR / 5904743330156

Specification

Dimensions::	66 x 60 x 30 mm
Maximum discharge current::	5 kA (8/20μs)
Maximum voltage::	60 volts
Nominal discharge current::	2.5 kA (8/20μs)
Protected cable pairs::	1-2, 3-6, 4-5, 7-8
Scales::	0.08 kg
Security level::	1000 volts
Socket type::	RJ45 (8P8C)
Voltage::	5 volts
Warranty::	2 years

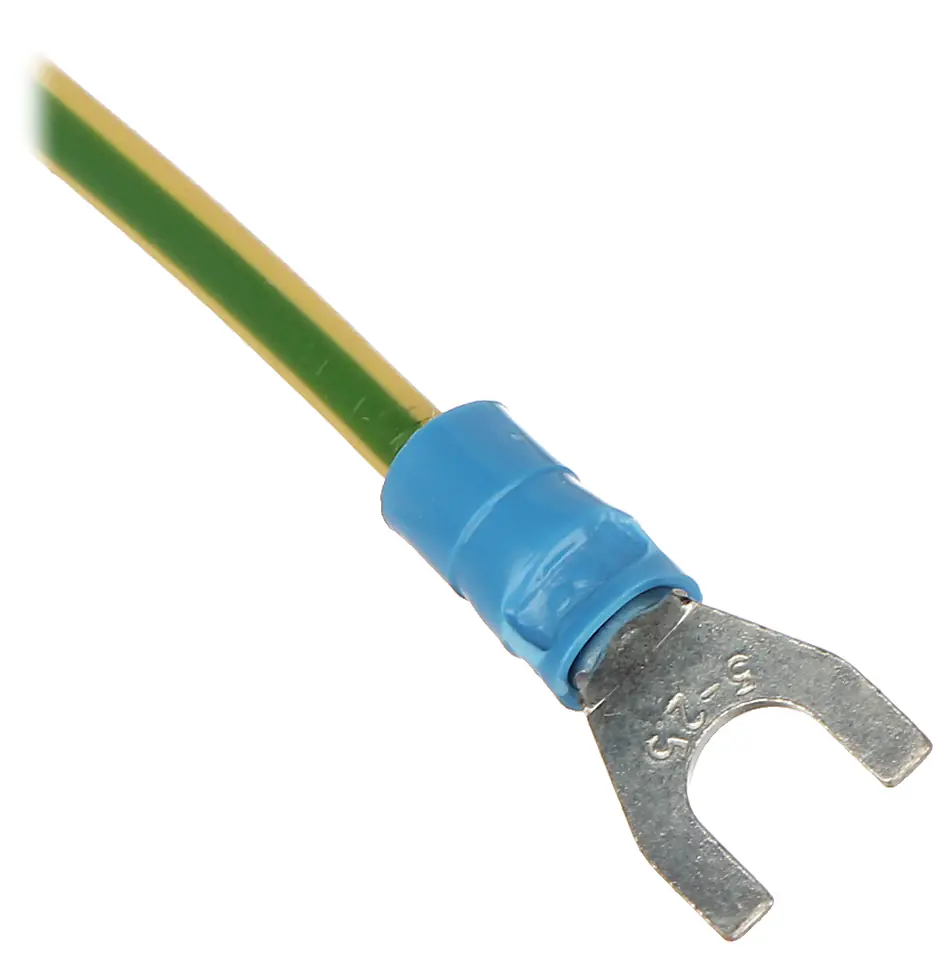

A device designed to protect devices connected to the 10/100/1000 Mbps Ethernet network, connected to each other by twisted pair cable running overhead lineThe device is the first degree of protection for overhead connectionsProtects each wire in a four-pair cable and discharges the electrical charge to the groundThe condition for proper operation of AXON-AIR is to connect it to a working smooth ground or PE protective wire

The best surge protection performance is ensured by the use of AXON-AIR on the outside line in combination with AXON-NET inside the building

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
