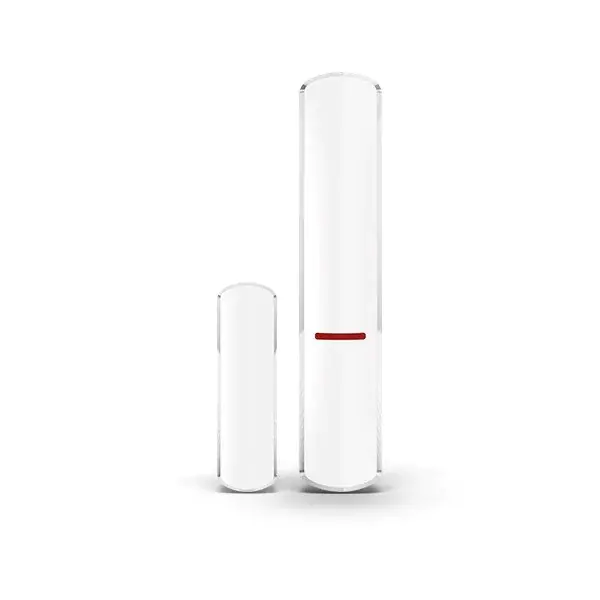

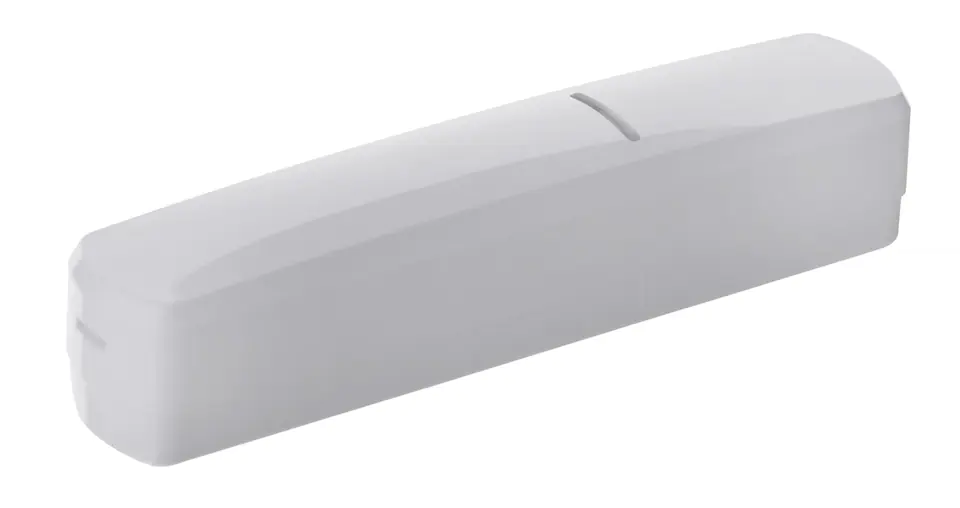

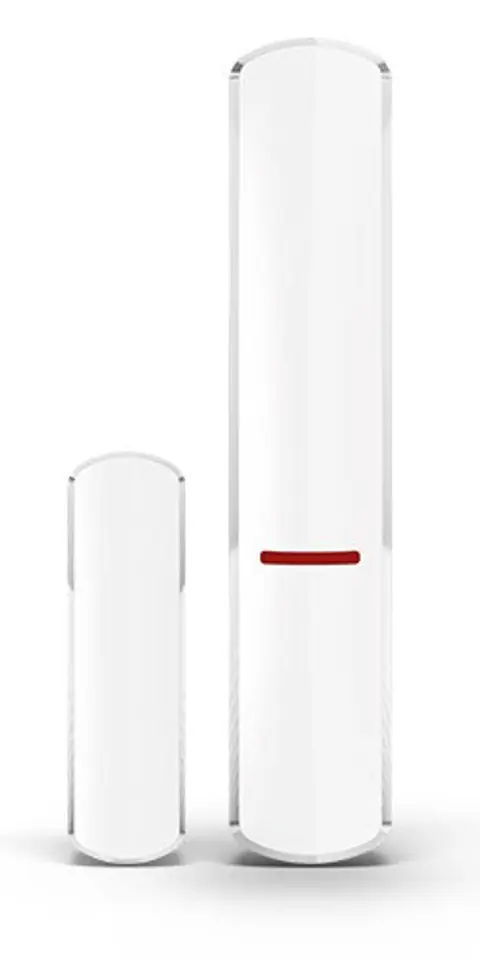

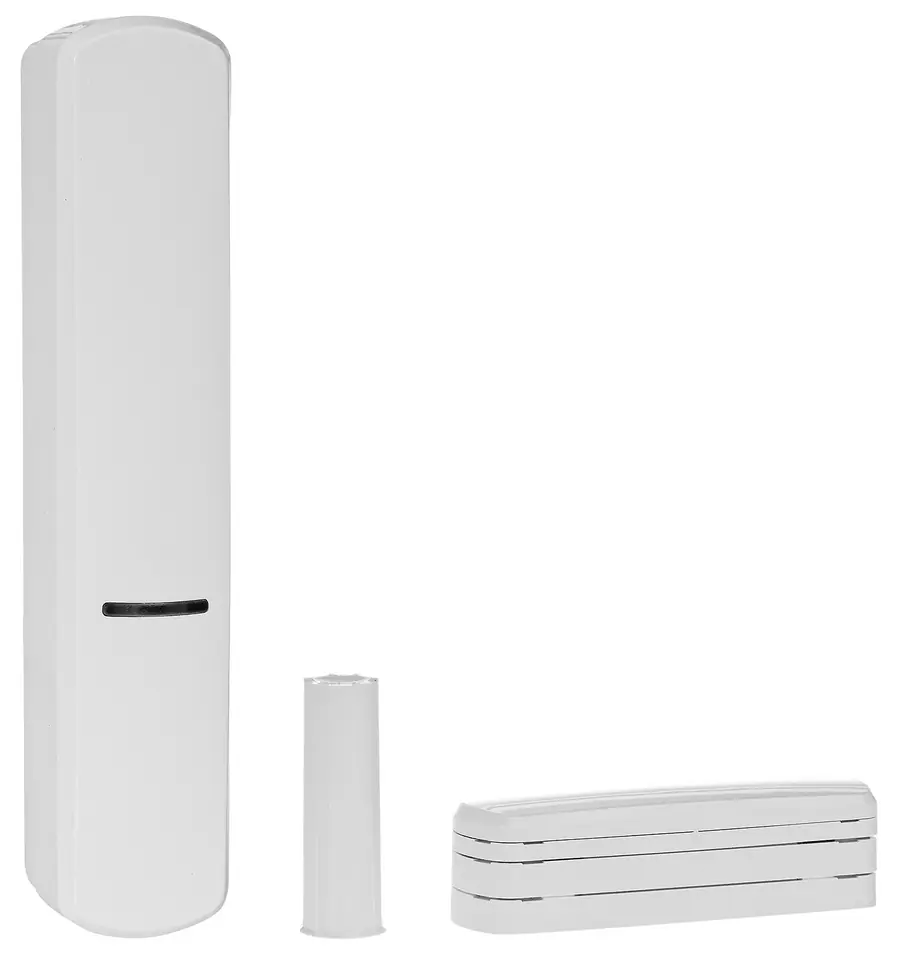

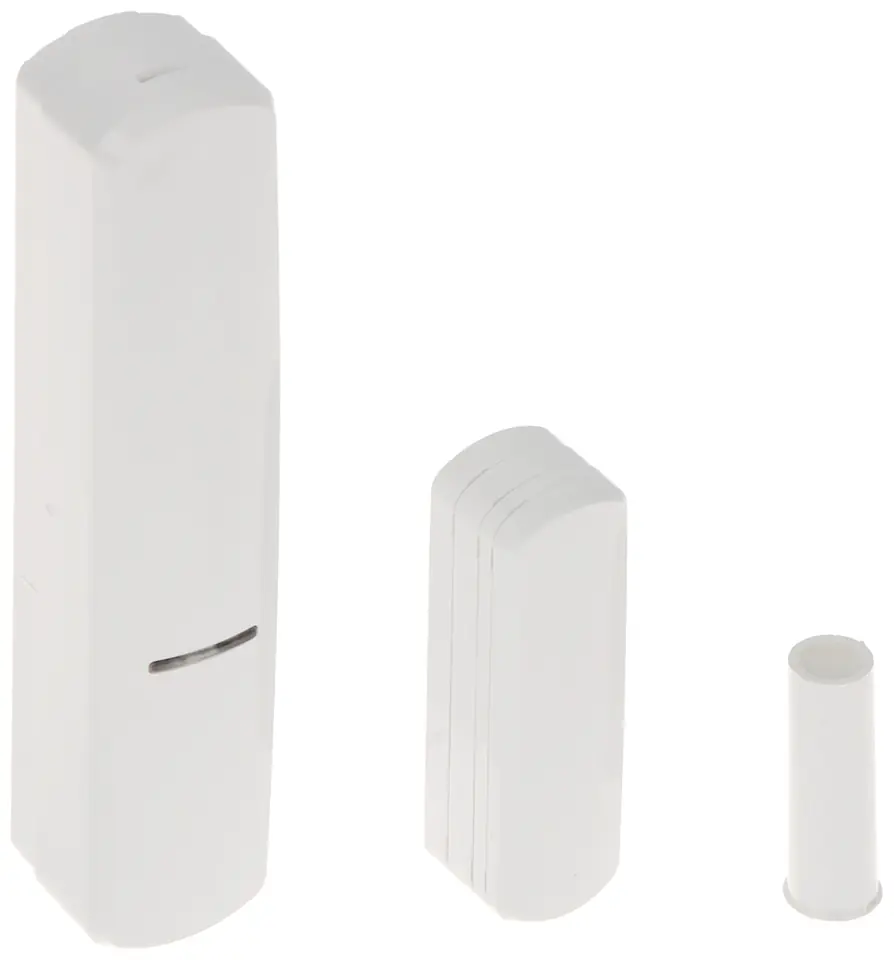

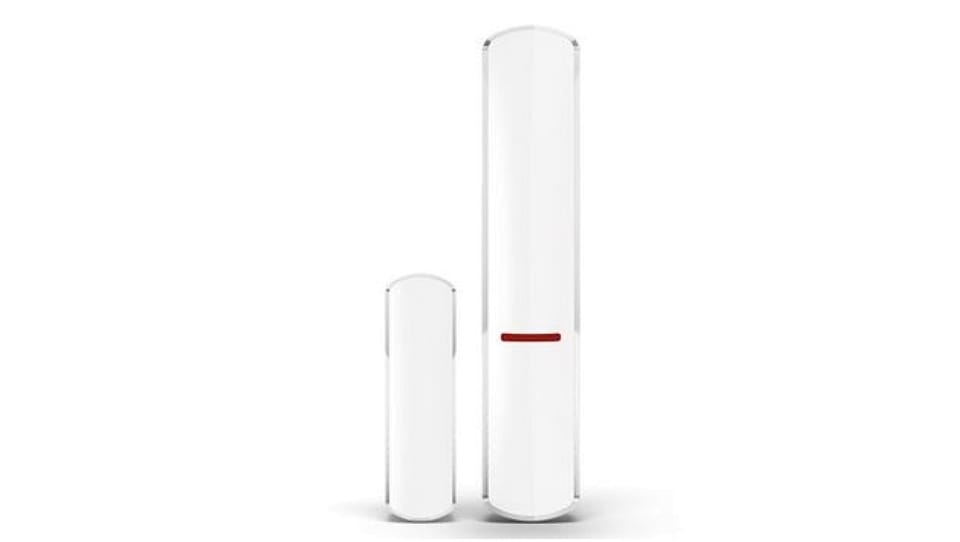

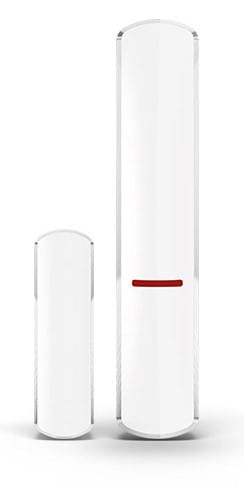

AXD-200 wireless motion detector
AXD-200 is a multifunctional device, operating as part of a two-way ABAX 2/ABAX wireless system. It complies with the requirements of EN 50131 Grade 2.
The device can operate in one of 7 modes, as a detector: magnetic, dual channel magnetic, magnetic with roller shutter input, shock and magnetic, displacement, temperature or flood. Changing the mode is done by appropriately tapping the detector housing. This procedure is performed before the unit is logged into the controller.
- Magnetic / dual channel magnetic / magnetic detector with roller shutter input
- Detection of opening of doors, windows, etc.
- Input to operate NC type wired detector
- Additional digital channel for operating a hard-wired detector (two-channel detector, with roller shutter input)
- Input to operate hard-wired rolling shutter detector (detector with rolling shutter input)
- Remote configuration and software update
- Built-in temperature sensor (temperature measurement from -10°C to +55°C)
- LED display indicating violations in test mode
- Low power consumption and battery monitoring
- ECO option to extend battery life (ABAX 2 only)

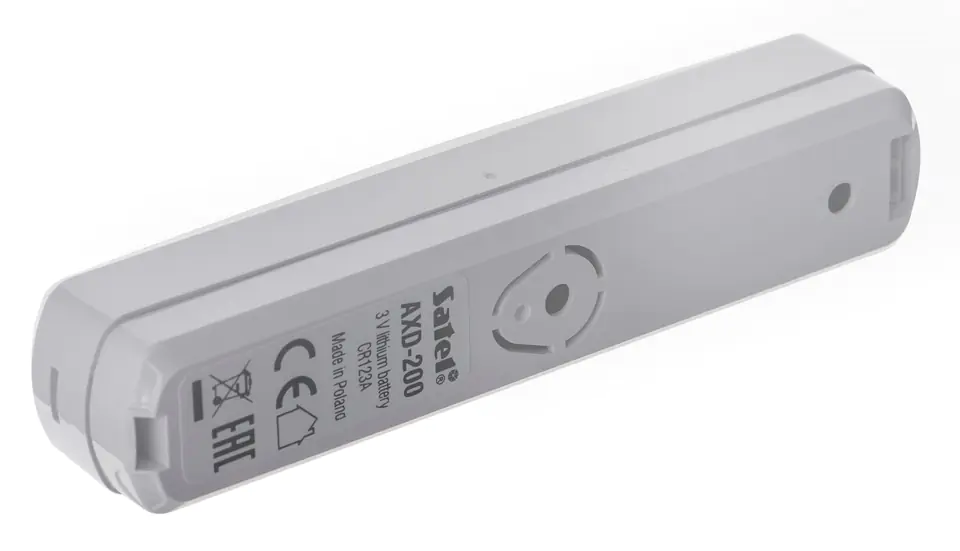

- Power supply: CR123A 3 V battery
- Tamper protection against opening the casing and against detachment from the ground
Shock and magnetic detection
- Detection of shock and vibration accompanying attempts to forcefully open a door or window
- Detection of opening of doors, windows, etc.
- Detection sensitivity adjustment
Displacement detector
- Detection of change in object position
- Individual protection of valuables
Temperature detector
- Temperature measurement from -10°C to +55°C
- Two programmable temperature thresholds (upper and lower)
Water leak detector
- Water leakage detection
- Input for connection of external flood probe FPX-1 (white), FPX-1 BR (brown) or FPX-1 DG (dark grey) - probe to be purchased separately

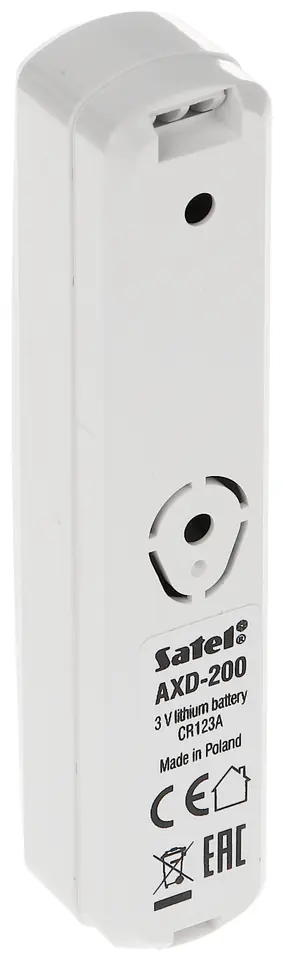

The AXD-200 is characterised by its low power consumption. It is powered by a CR123A 3 V lithium battery, the status of which is continuously monitored. The available ECO option (only on ABAX 2) enables the detector's operating time to be extended by up to four times.
A built-in LED makes it easy to check the device in test mode and also signals the next steps in the detector type selection process. Its configuration and software update can be carried out remotely. Radio communication in the ABAX 2 system is encrypted in the AES standard.
The product is equipped with tamper protection against opening the housing and against detachment from the ground.
The detector is available in white (AXD-200), brown (AXD-200 BR) or dark grey (AXD-200 DG).
It is certified in accordance with EN 50131 Grade 2.
Possiility to select one of the available modes of operation as a detector:
- Dual-channel magnetic
- Magnetic with roll-down input
- Shock and magnetic
- Displacement
- Temperature
- Flooding
Works with:
- ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 retransmitter
- ABAX system controllers (ACU-120, ACU-270, ACU-250 and ACU-100 (min. version 4.04)), INTEGRA 128-WRL control panel and ARU-100 retransmitter - please refer to its description on www.
Range of radio communication in open space:
- In ABAX 2: up to 2000 m (with ACU-220) / up to 1200 m (with ACU-280).
- In ABAX: up to 500 m
