AXAGON ADSA-SN Docking Station, USB 3.0, 1x 2.5"/3.5" SSD/HDD, SATA 6 - black

€24.16
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AXAGON
Product code:
ADSA-SN / 8595247905383

Specification

Ac adapter included:Yes
Ac input voltage:100 - 240 V
Backup button:No
Built-in fan:No
Cables included:USB Type-A to USB Type-B
Compliance certificates:RoHS
Connection to pc:Yes
Country of origin:China
Dc-in jack:Yes
Depth:59 mm
Height:65 mm
Host interface:USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Hot-plug support:Yes
Included power plug types:EU
Led indicators:Yes
Linux operating systems supported:Yes
Mac compatibility:Yes
Mac operating systems supported:Yes
Manual:Yes
Material:Plastic, Aluminium
Maximum data transfer rate:5 Gbit/s
Number of storage drives supported:1
On/off switch:Yes
Output current:2 A
Output voltage:12 V
Package depth:140 mm
Package height:60 mm
Package type:Box
Package weight:440 g
Package width:190 mm
Plug and play:Yes
Product colour:Black
S.m.a.r.t. support:Yes
Storage drive interface:Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported:3.5", 2.5
Storage media type:HDD, SSD
Trim support:Yes
Uasp support:Yes
Usb 3.2 gen 1 (3.1 gen 1) ports quantity:1
User guide:Yes
Weight:190 g
Width:130 mm
Windows operating systems supported:Yes

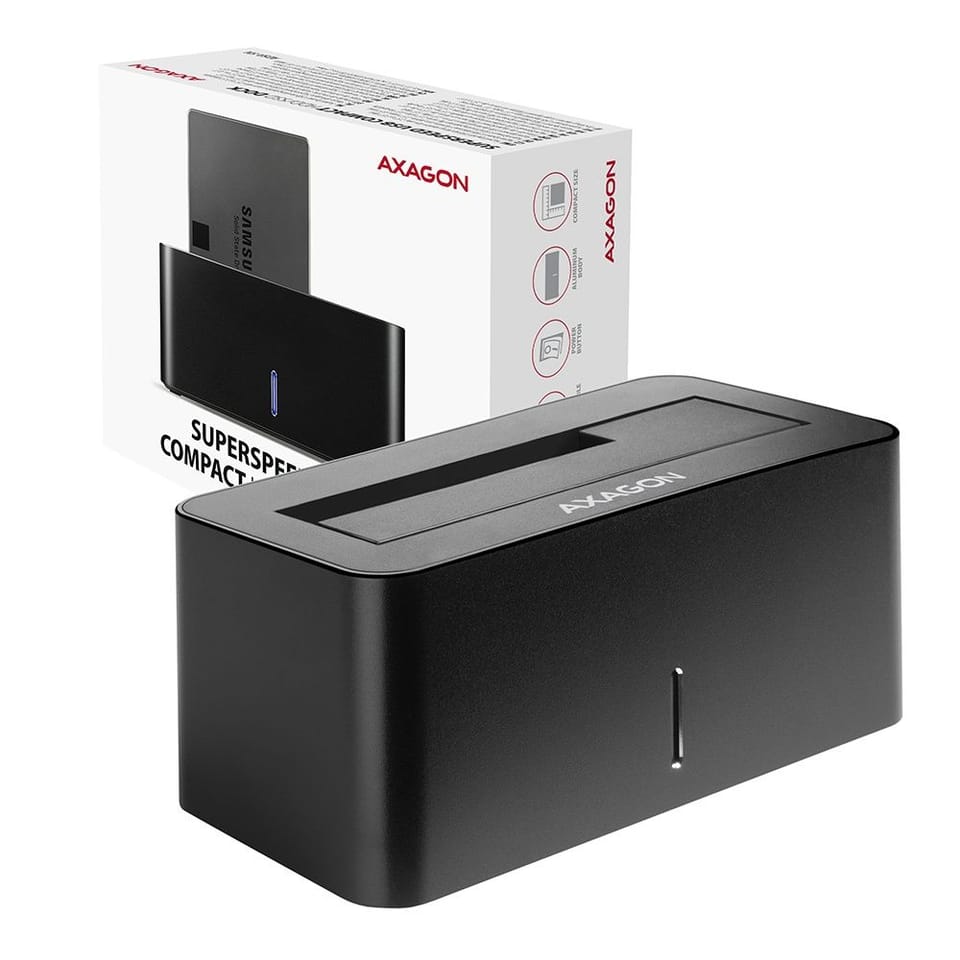

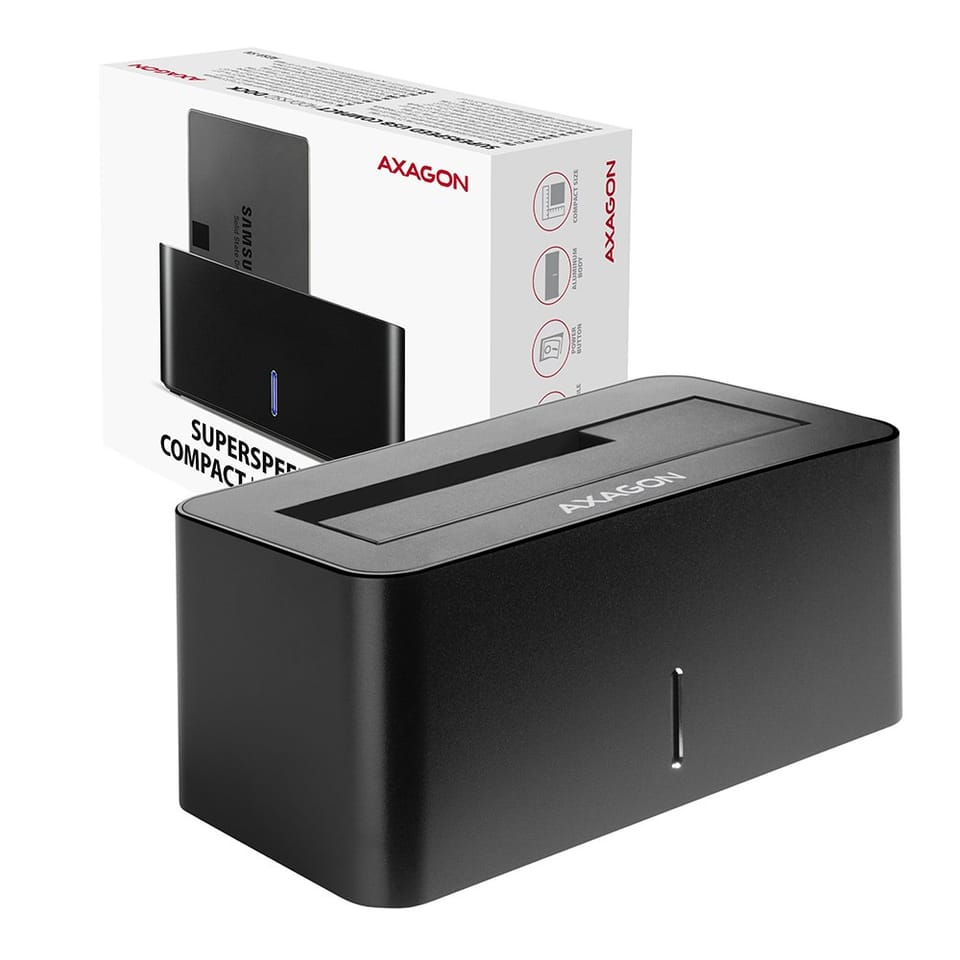

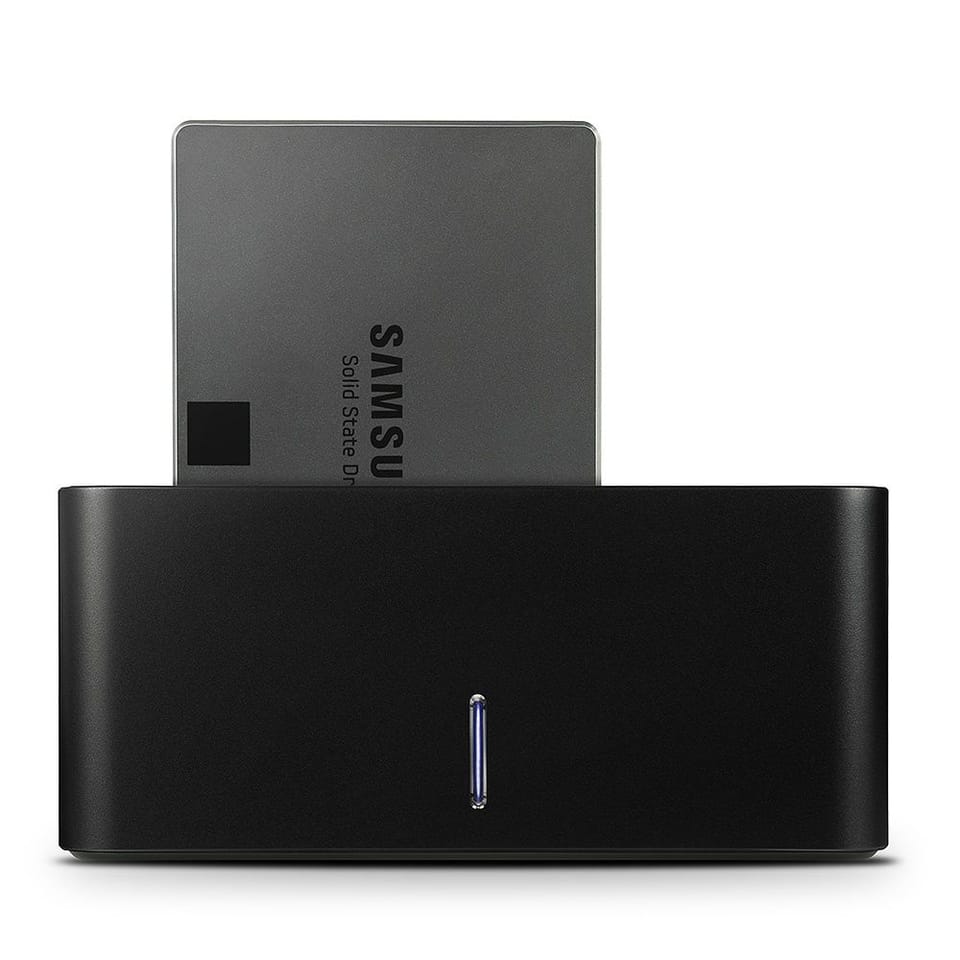

SuperSpeed USB AXAGON ADSA-SN COMPACT HDD/SSD DOCK docking station easily and quickly connects any SATA disk to your computer.

A handy helper for the easiest and fastest way of connecting SATA disks to your computer - just plug the disk into the base. Automatic installation can be done even by the layman.

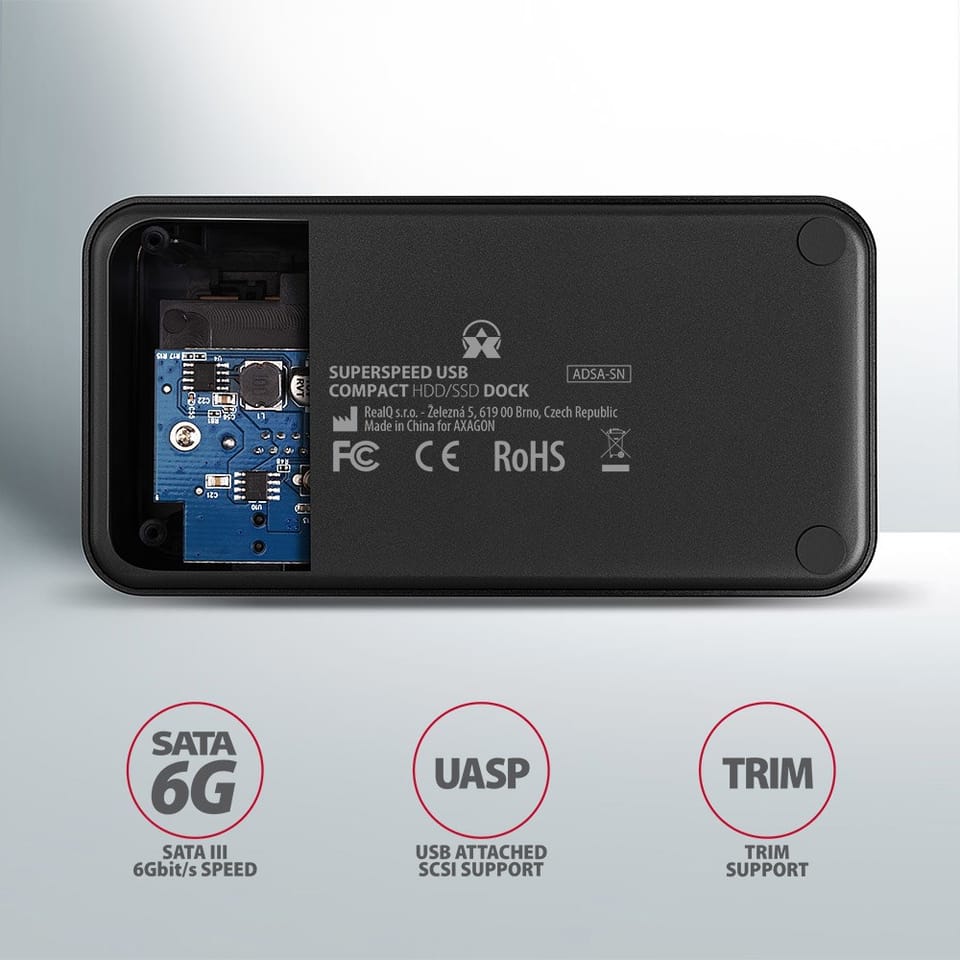

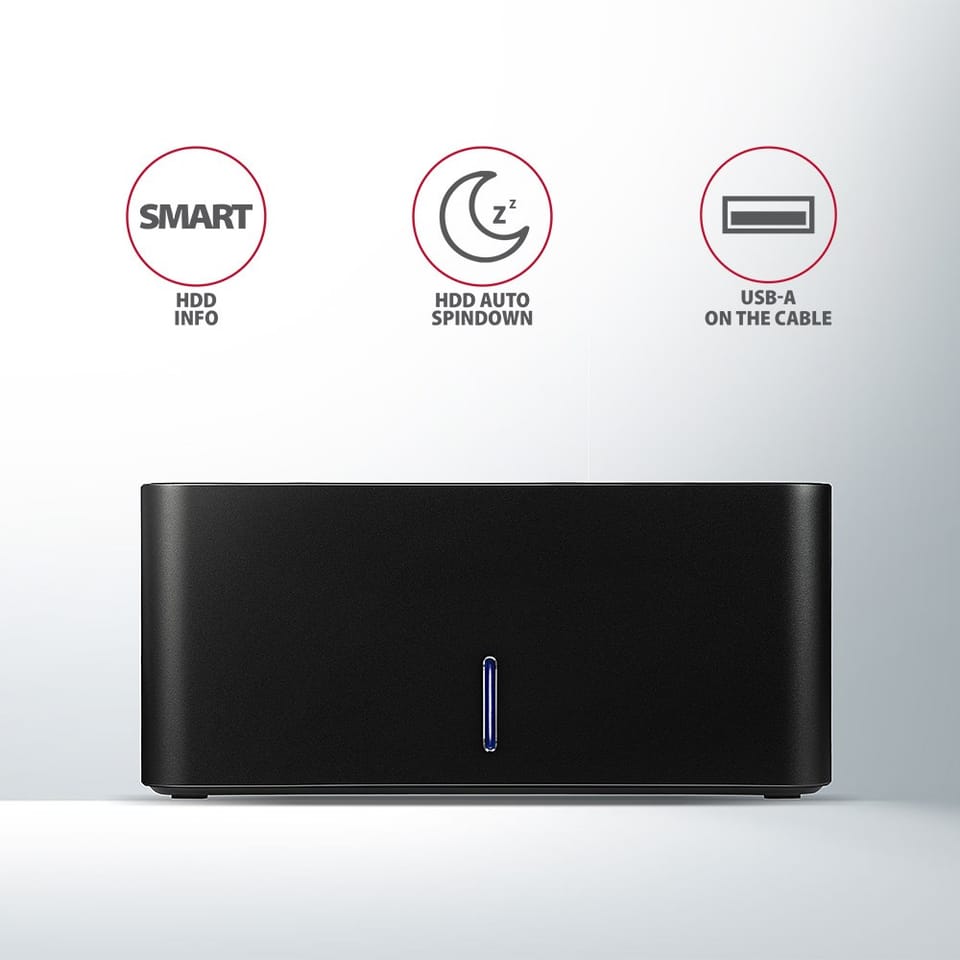

SATA 6G interface with UASP support allows you to enjoy the speed of modern SSD disks. The TRIM feature support limits the gradual degradation of SSD performance over time. Reading of S.M.A.R.T. information monitoring the condition of the connected disks. Supports sleeping of both the connected disks and station.

Low laid centre of gravity of the docking station for good stability. Rubber feet to reduce vibrations. Modern minimalist design of housing with aluminium casing.

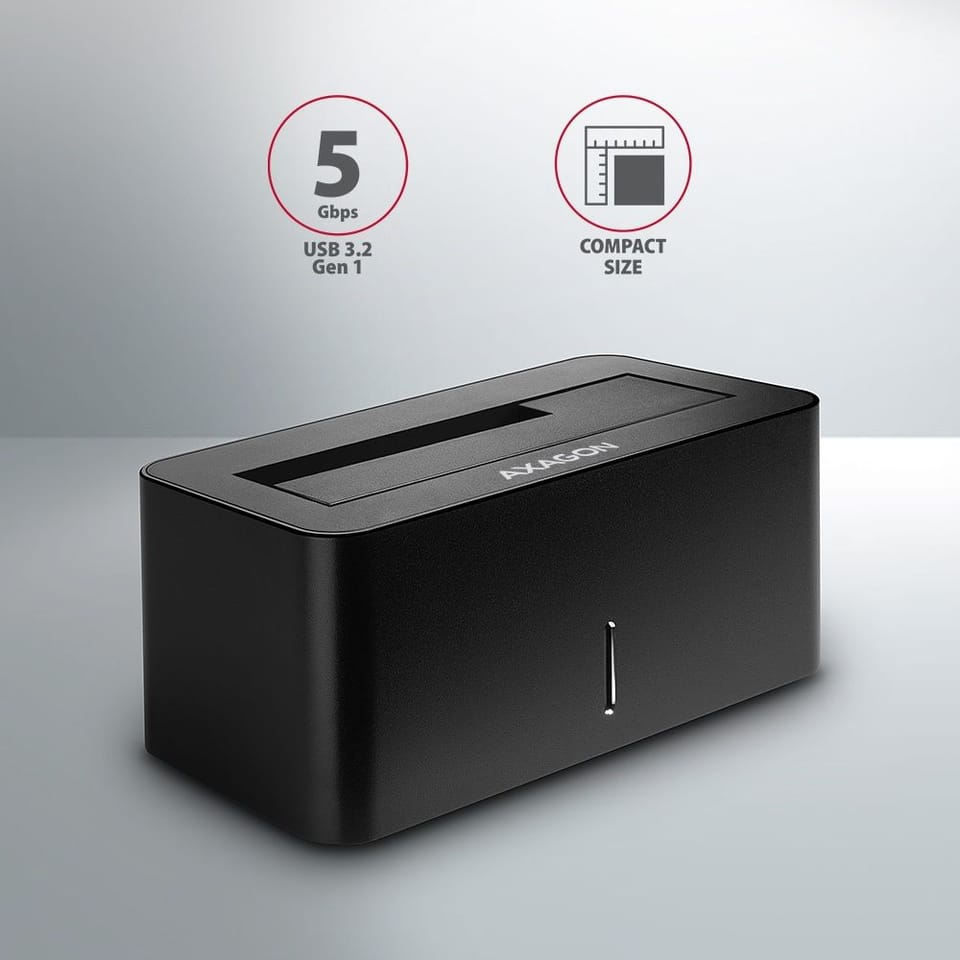

Input: USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0) SuperSpeed USB rate of up to 5 Gbit/s. Connection via micro USB type B female connector.

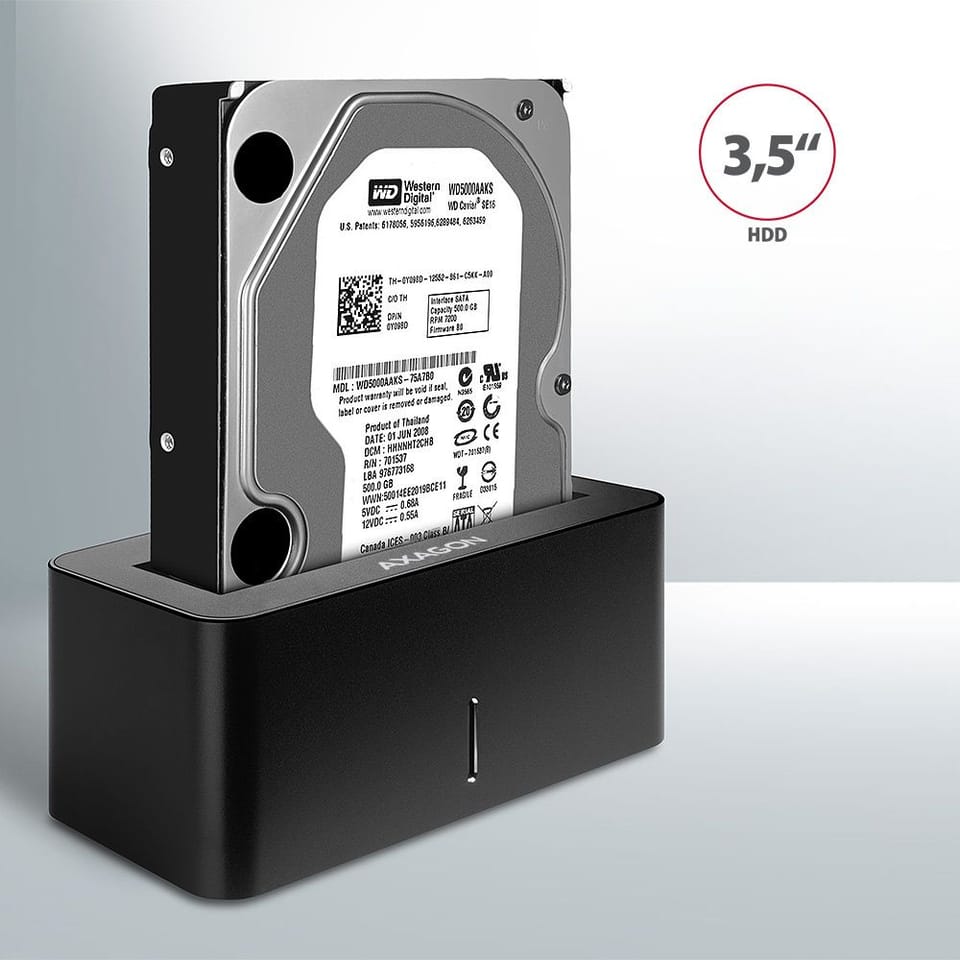

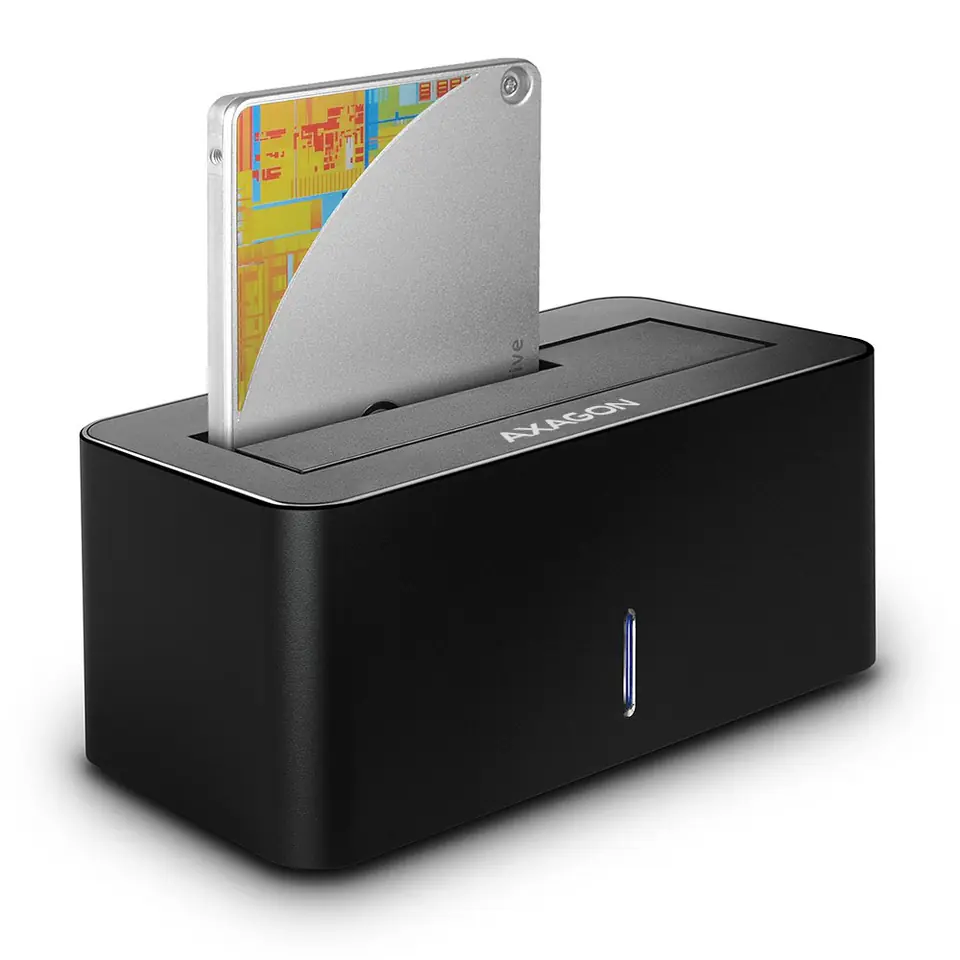

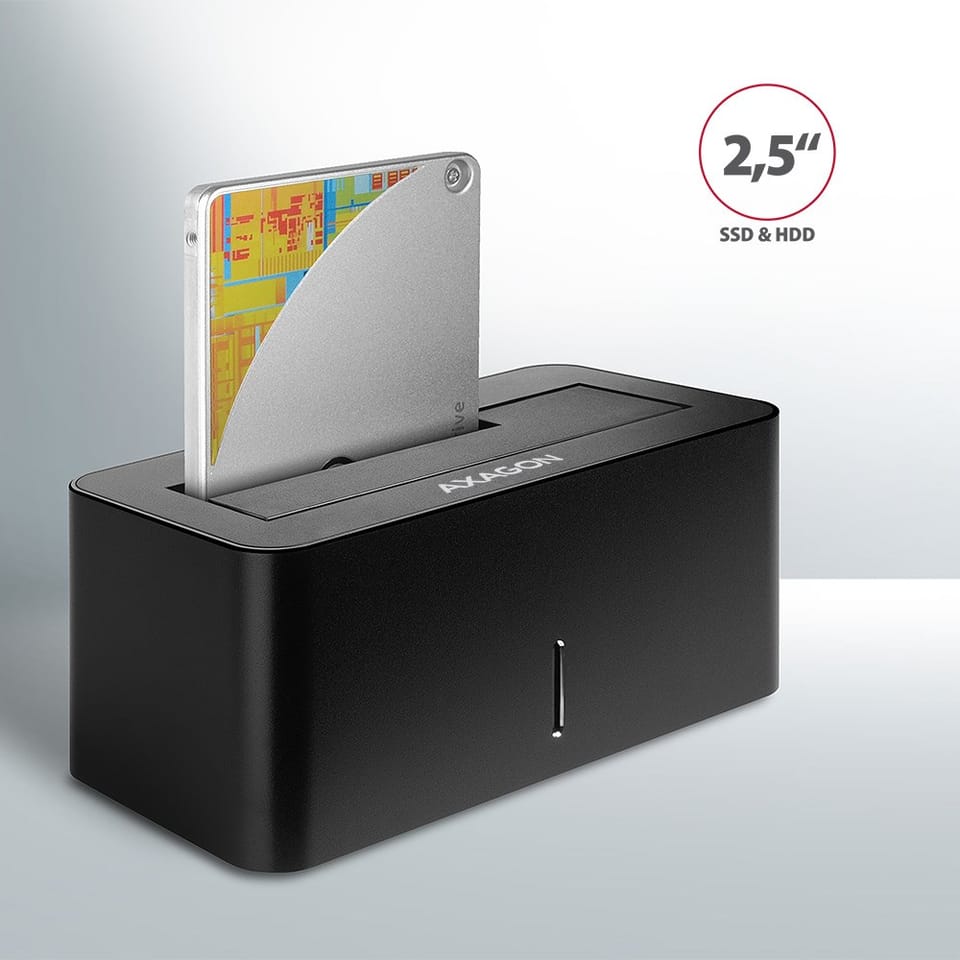

Device support: SATA III - 6 Gb/s (600 MB/s) interface, supports 2.5" HDD/SSD, supports 3.5" HDD, max. disk capacity all without limitation, max. 2.5" disk height- all without limitation.

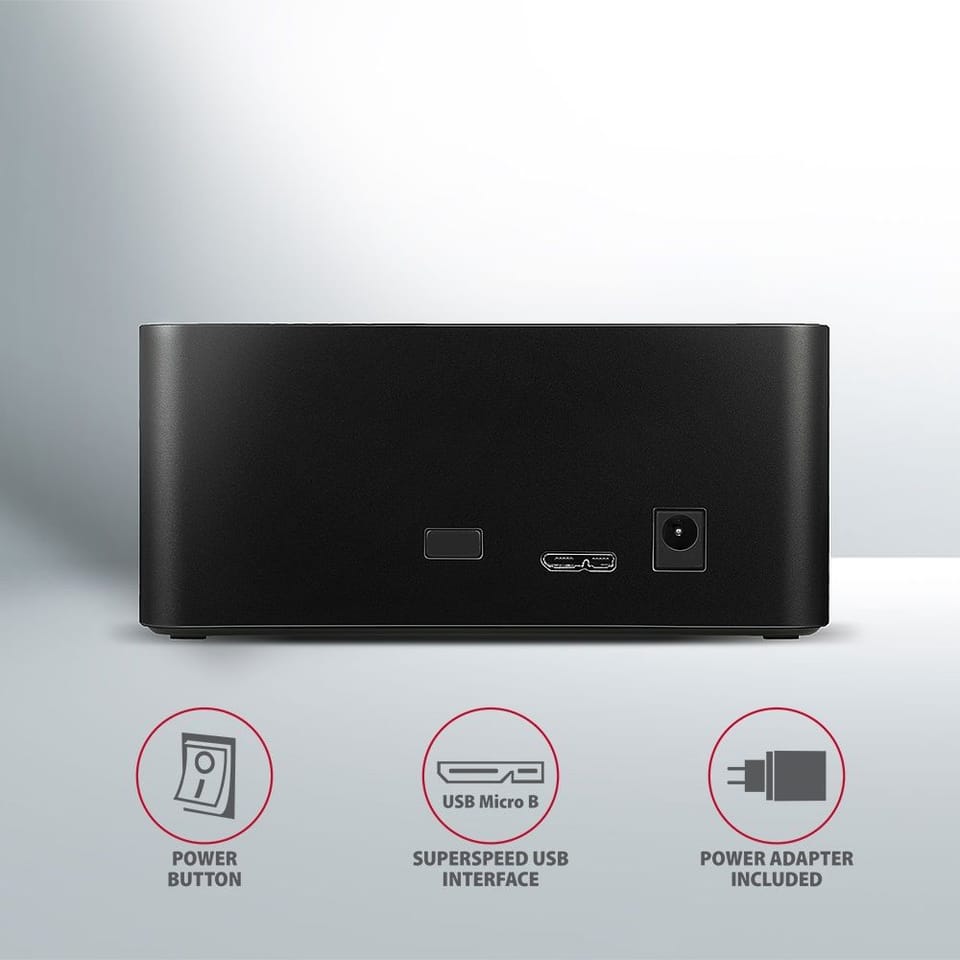

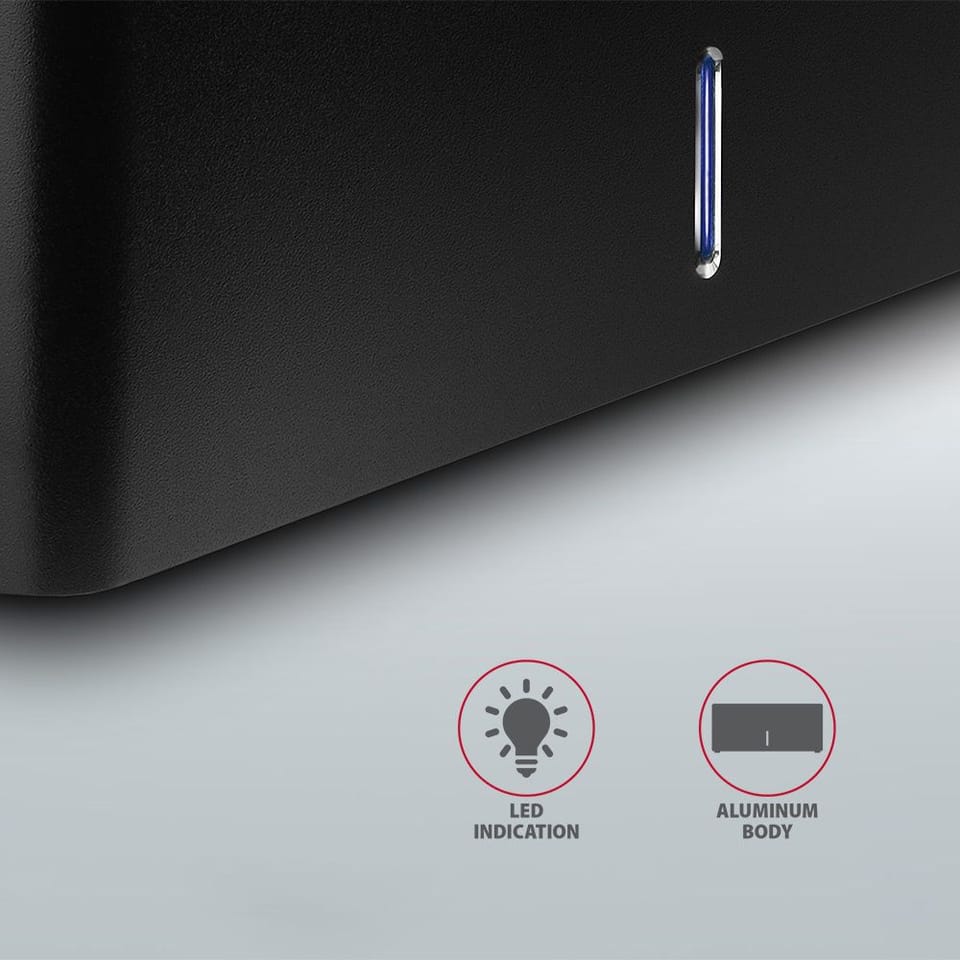

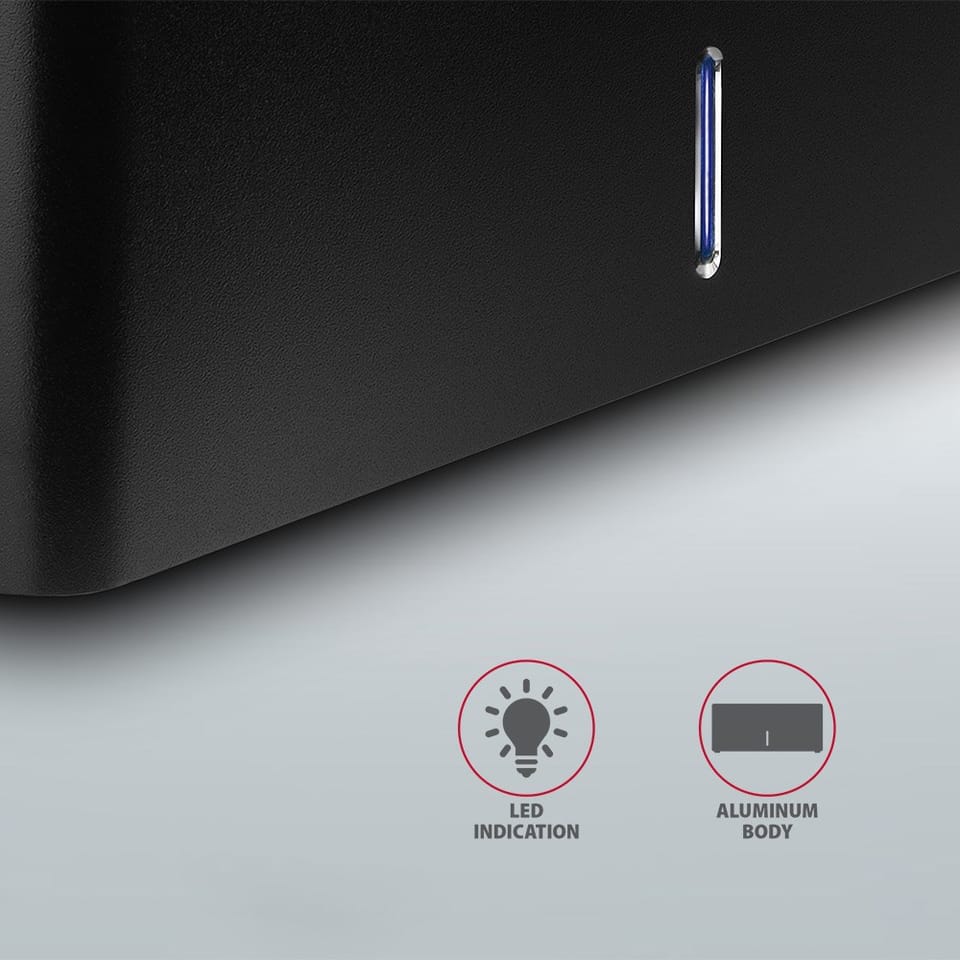

Other features: Compatible with USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0, backward compatible with USB 2.0. Supports transmission rates 5000 / 480 Mbit/s (SuperSpeed / HighSpeed). Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s). Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s). Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s). The total bandwidth / transmission rate of the station is determined by the USB interface used (theor. 5 Gbit/s). Supports UASP (USB Attached SCSI Protocol) and BOT (Bulk-Only Transport). SSD/HDD boot support in docking station. Possibility to connect your device while running thanks to the Hot Plug support. Full Plug and Play support. HDD Auto Spindown - automatic spinning down after period of inactivity lasting 15 minutes. HDD Turn Off - turns off the drive after removing the device or spinning down the PC. cable micro USB-B / USB-A 80 cm long is included. A decent blue LED indicating the connection to the computer's USB port (permanent light) and data transmission (blinking). Power switch. Power supply via a compact external AC/DC adapter 12V - 2A (24 W) with a 150 cm long supply cable. Station dimensions 130 x 65 x 59 mm. Weight 190 g.

Supported OSs: MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above.Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.

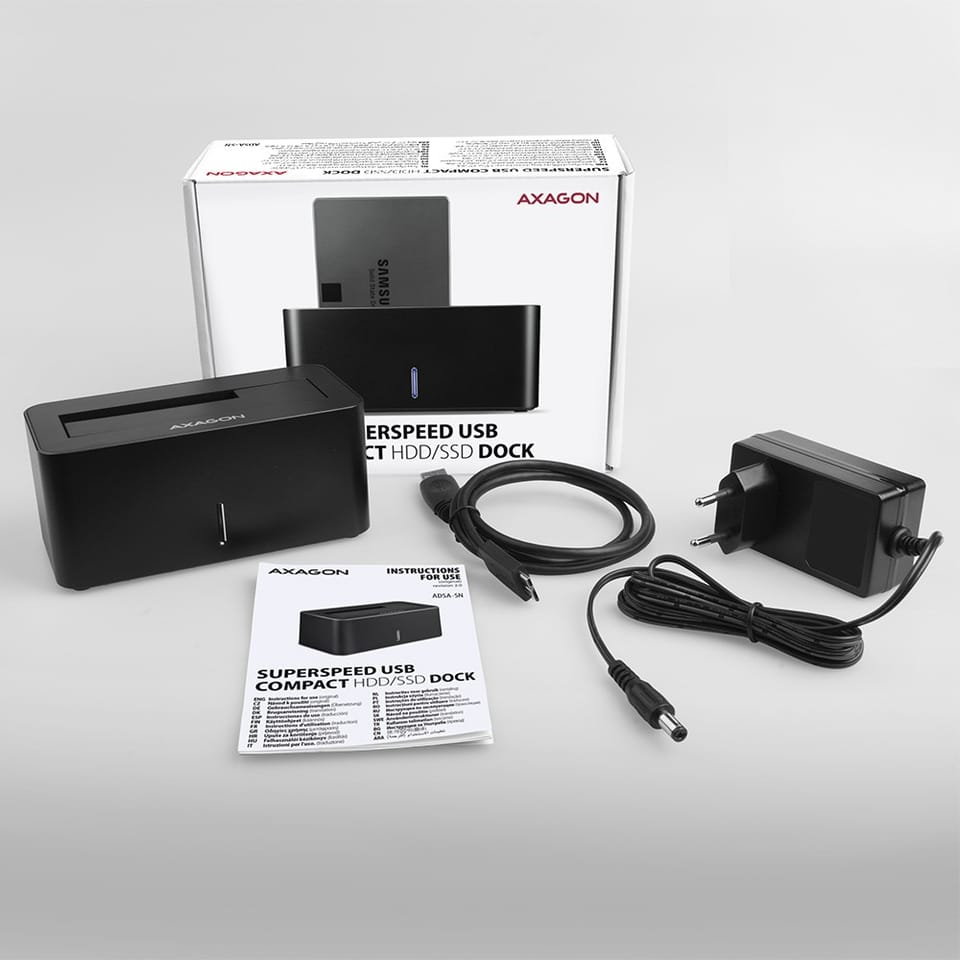

Package contains: USB 3.2 Gen 1 HDD dock, micro USB-B - USB-A cable 80 cm long, power adapter 100-240V / 12V-2A, multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packed in a cardboard box with clearly indicated parameters.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
