The device is designed to work with Hikvision AX PRO wireless access control systems operating in the 868 MHz band

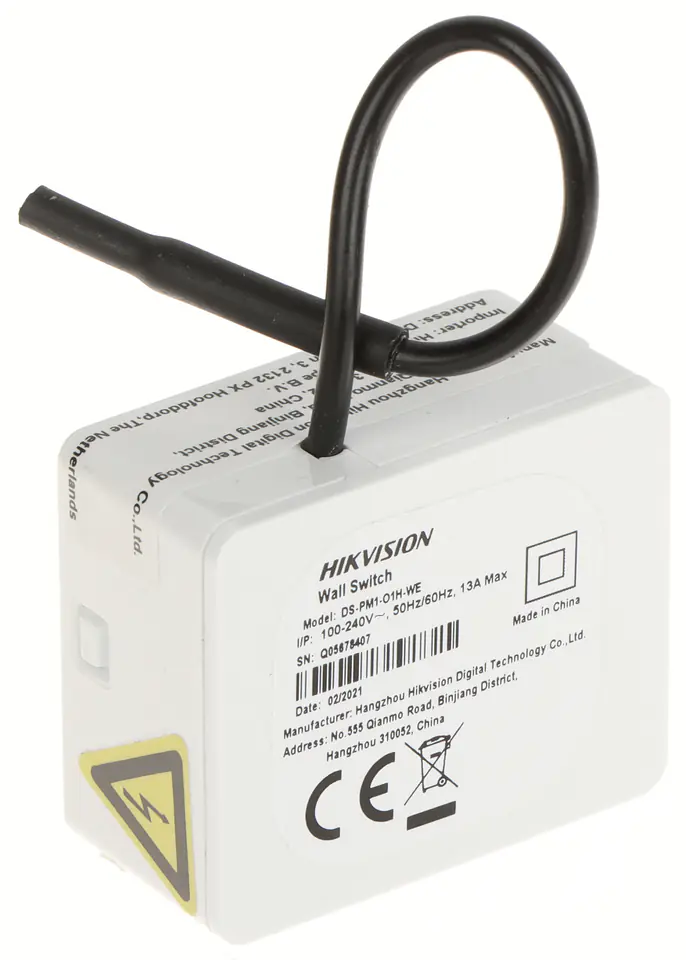

AX PRO DS-PM1-O1H-WE Hikvision WIRELESS RELAY MODULE
€41.55
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DSPM1O1HWE / 6941264076964
Share this product:
Specification
| Contact load capacity:: | 13 A (max), 100 V ... 240 V AC |
|---|---|
| Cooperation:: | HIKVISION AX PRO |
| Dimensions:: | 40 x 34 x 20 mm |
| Egress:: | NO/NC |
| Manufacturer / brand:: | Hikvision |
| Number of relay outputs:: | 1 |
| Operating temperature:: | -10 °C ... 55 °C |
| Power:: | 100 ... 240 V AC |
| Sap code:: | 302401745 |
| Scales:: | 0.032 kg |
| Selected features:: | 868 MHz wireless communication, Bidirectional communication AES 128-bit data encryption LED signaling, Event-based scenario setting Very easy installation, Small size Wall mounting - adhesive tape |
| Use:: | Wireless alarm systems HIKVISION AX PRO |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
