| Destiny:: | for power supply of the dvr - 12 V |
|---|---|
| Dimensions:: | 39 x 61 x 22 mm |
| Manufacturer / brand:: | ATTE |
| Number of inputs:: | 1 |
| Number of outputs:: | 1 |
| Output voltage:: | 12 VDC |
| Output:: | 2.5 A (max.) |
| Power:: | 30 W (max) |
| Scales:: | 0.03 kg |
| Security:: | Short-circuit counter ( 3 A ) Reverse polarization input voltage Surge protectors |
| Selected features:: | Efficiency : 90 % @ 12 V / 30 W |
| Supply voltage:: | 6 ... 35 VDC |
| Type:: | Lowering and increasing voltage, DC/DC |
| Warranty:: | 3 years |

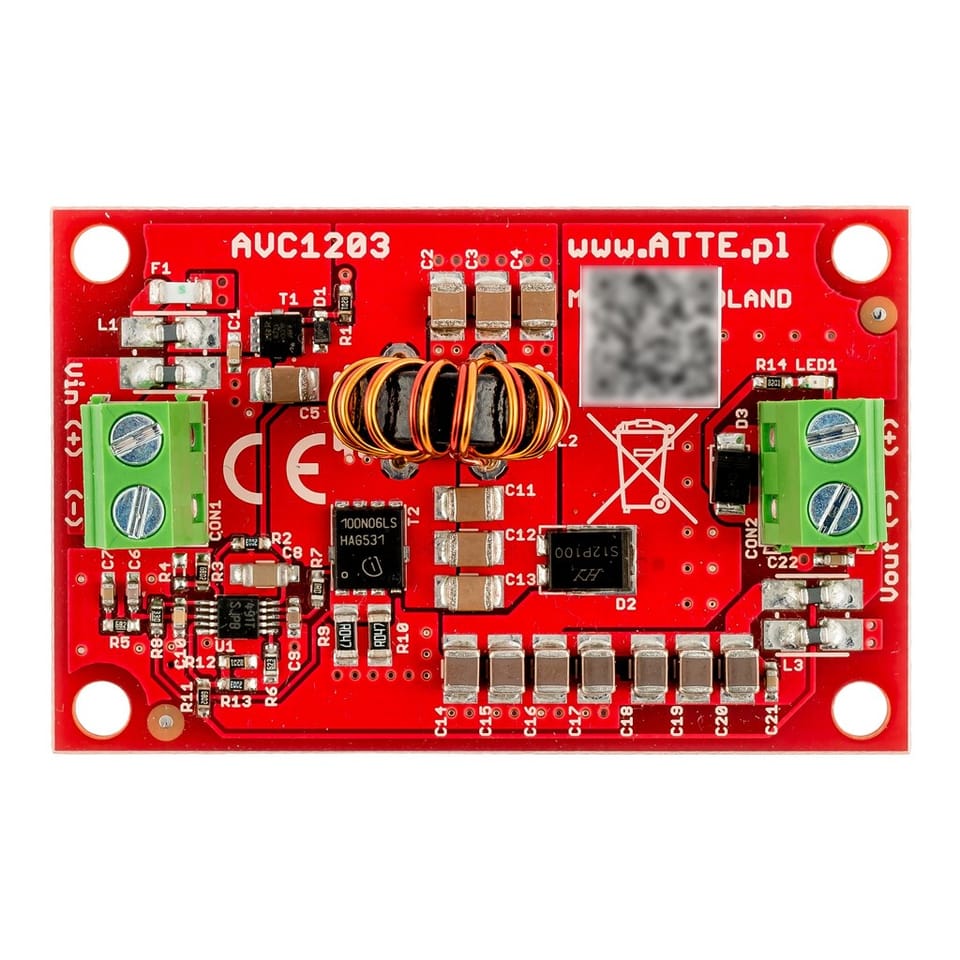

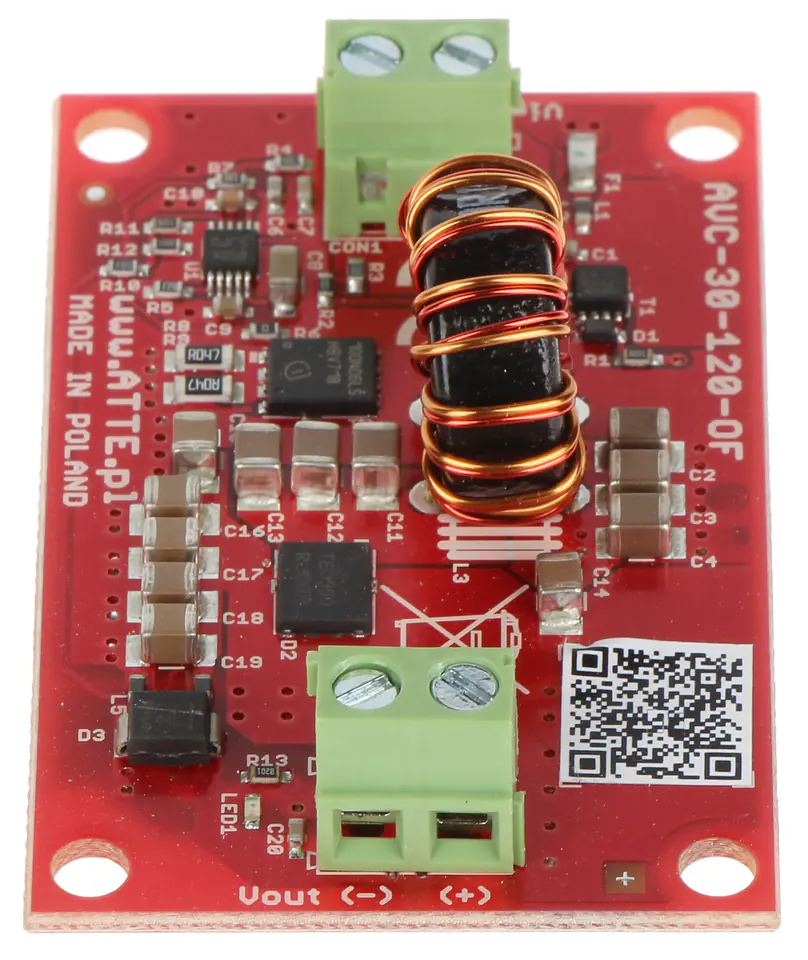

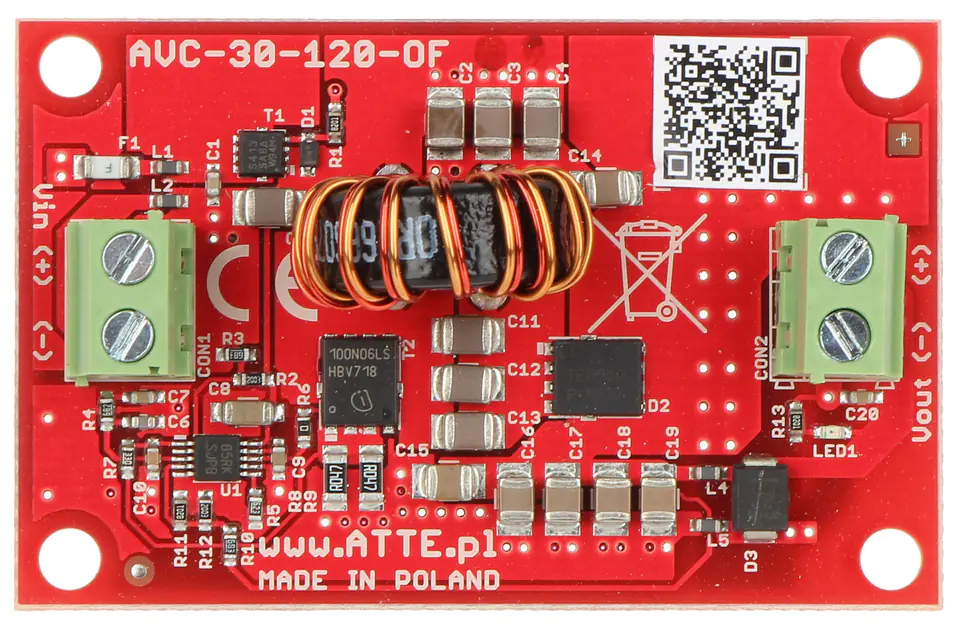

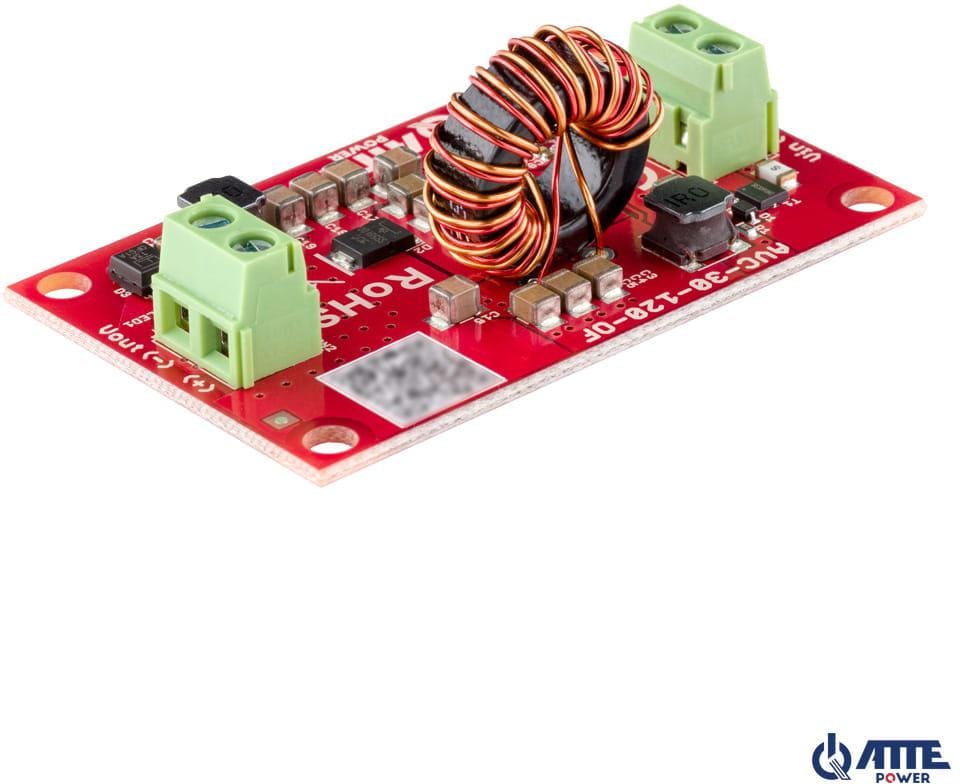

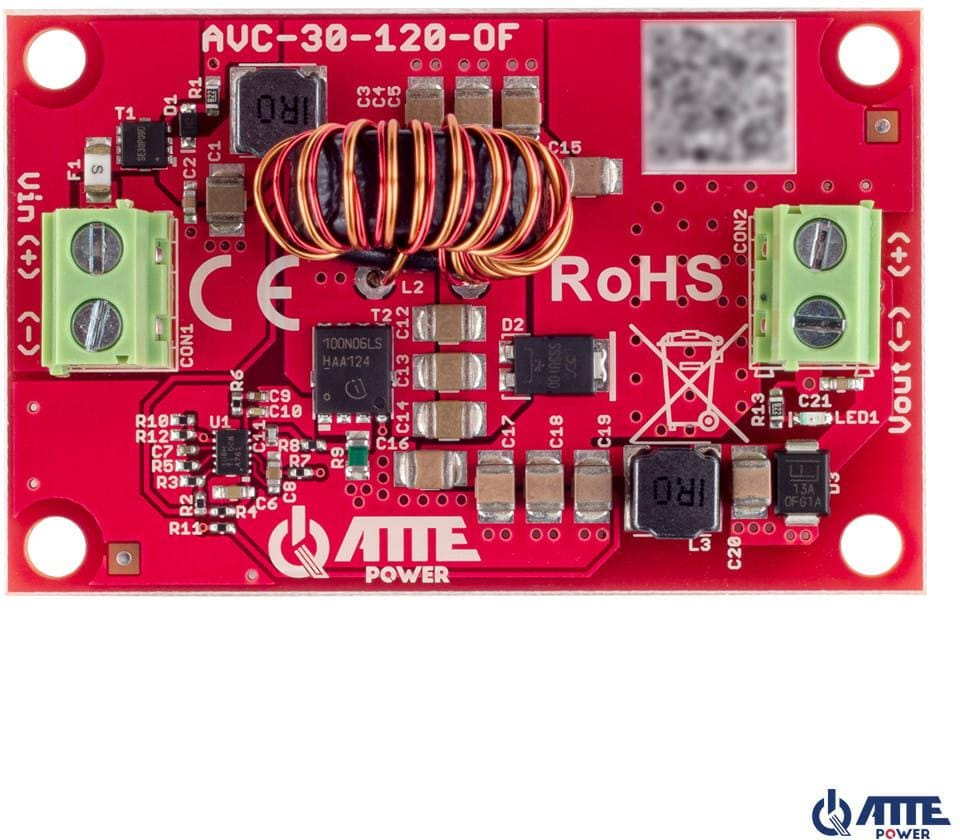

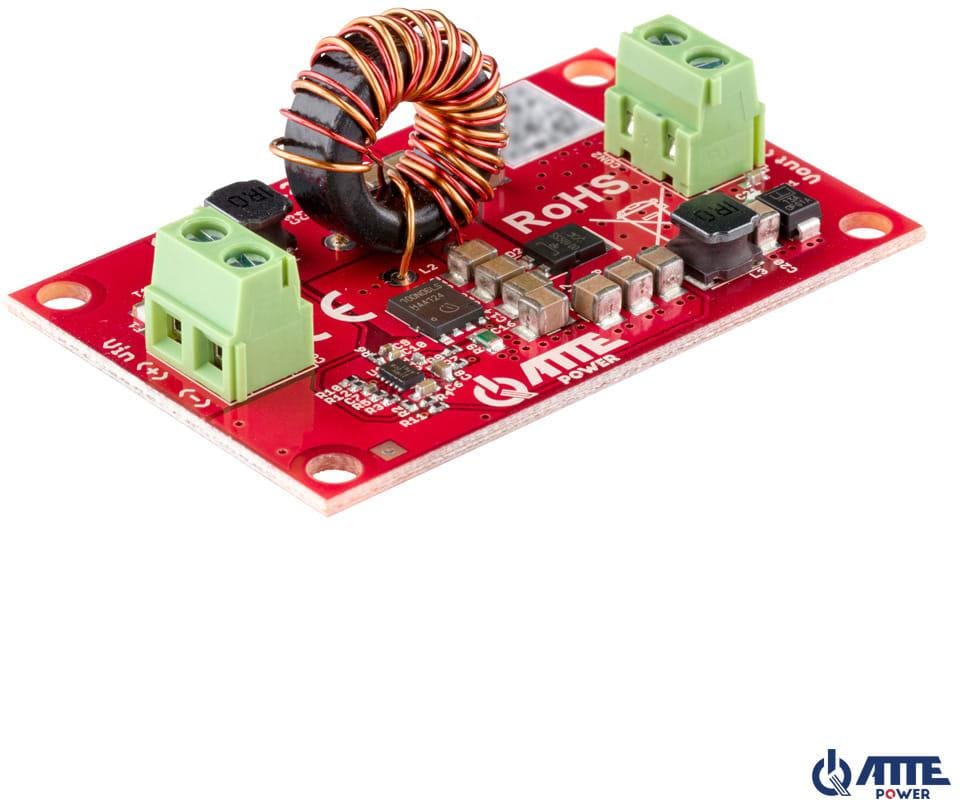

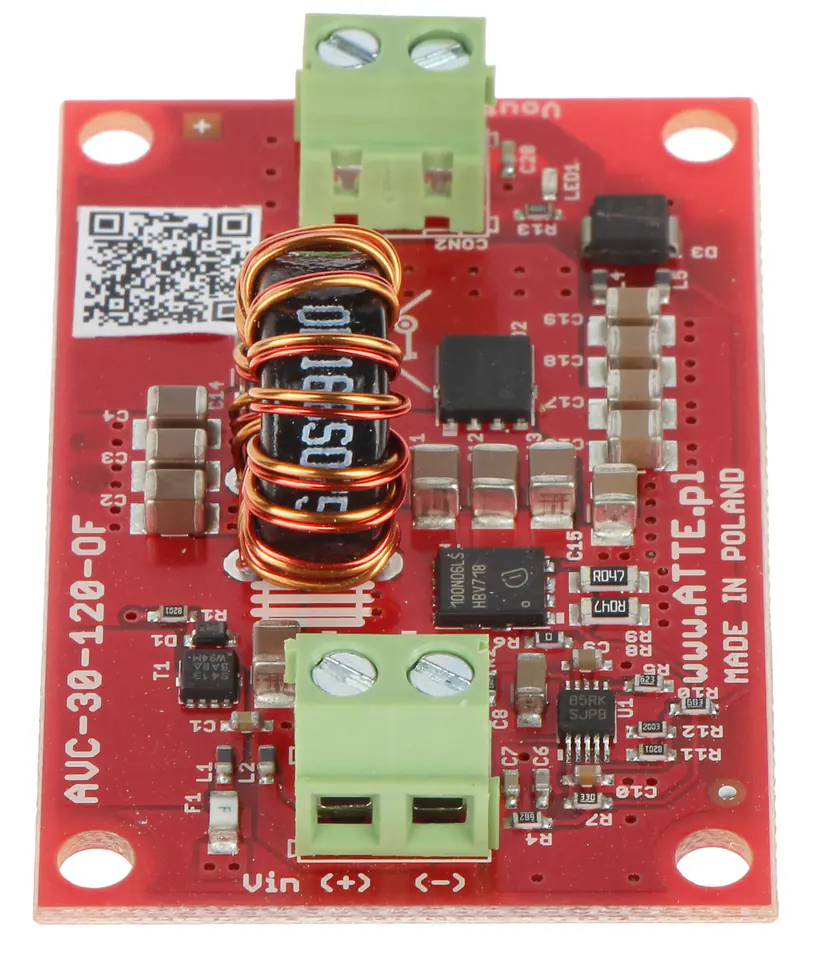

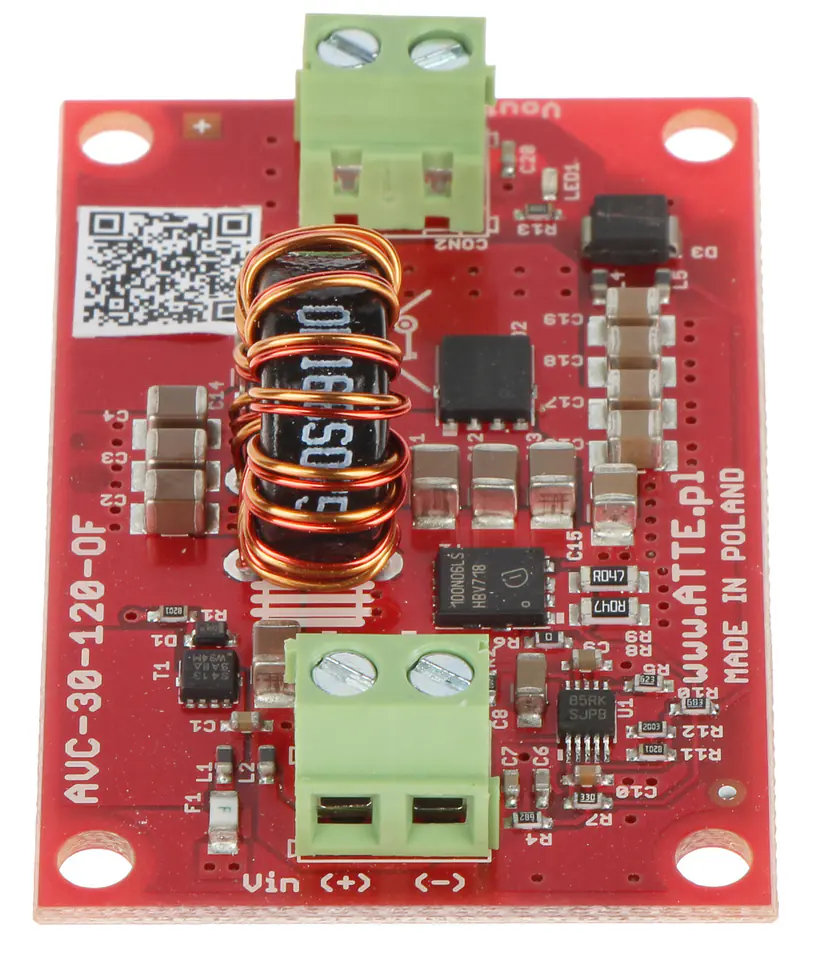

Lowering and boosting converter moduleAVC-30-120-OF converts input voltage to 12V DC
The module allows you to power e.g. cameras with 12V DC voltage using a wide range of input voltage: 6V ... 35V DCThe device is equipped with a number of functional protections for reliable operation
