Manufacturer Number: 10030313

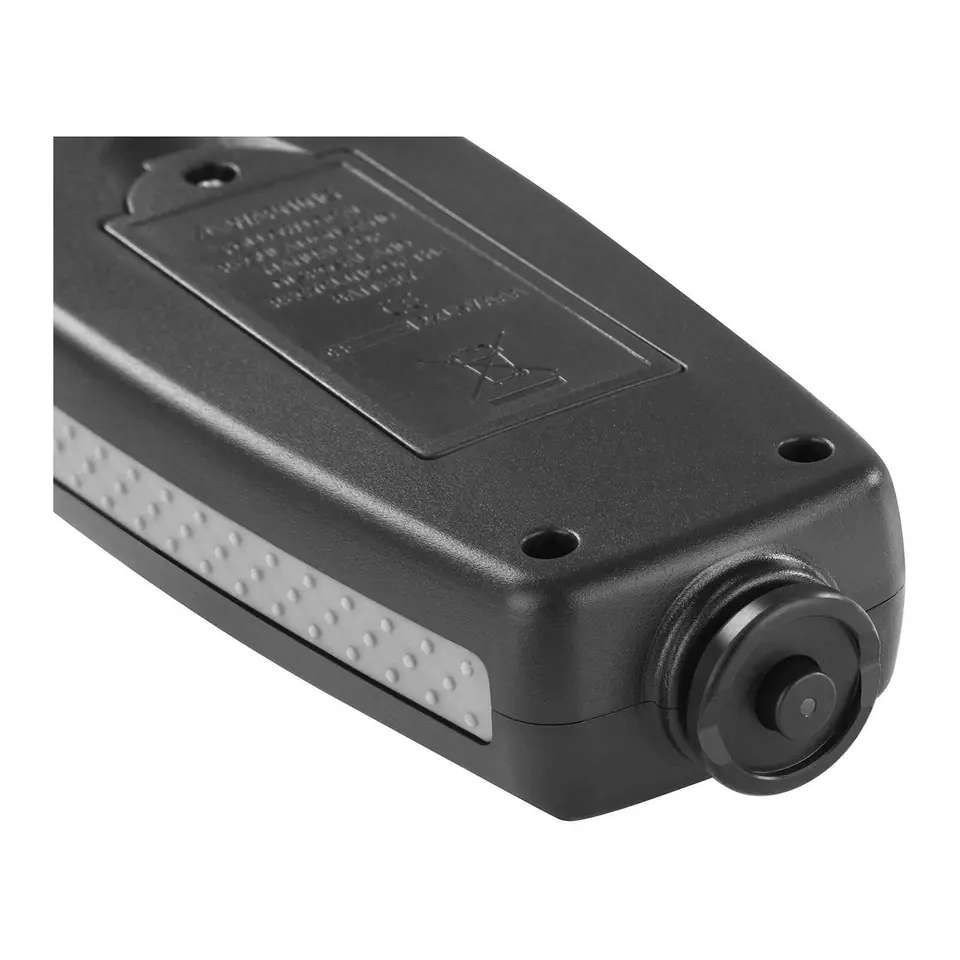

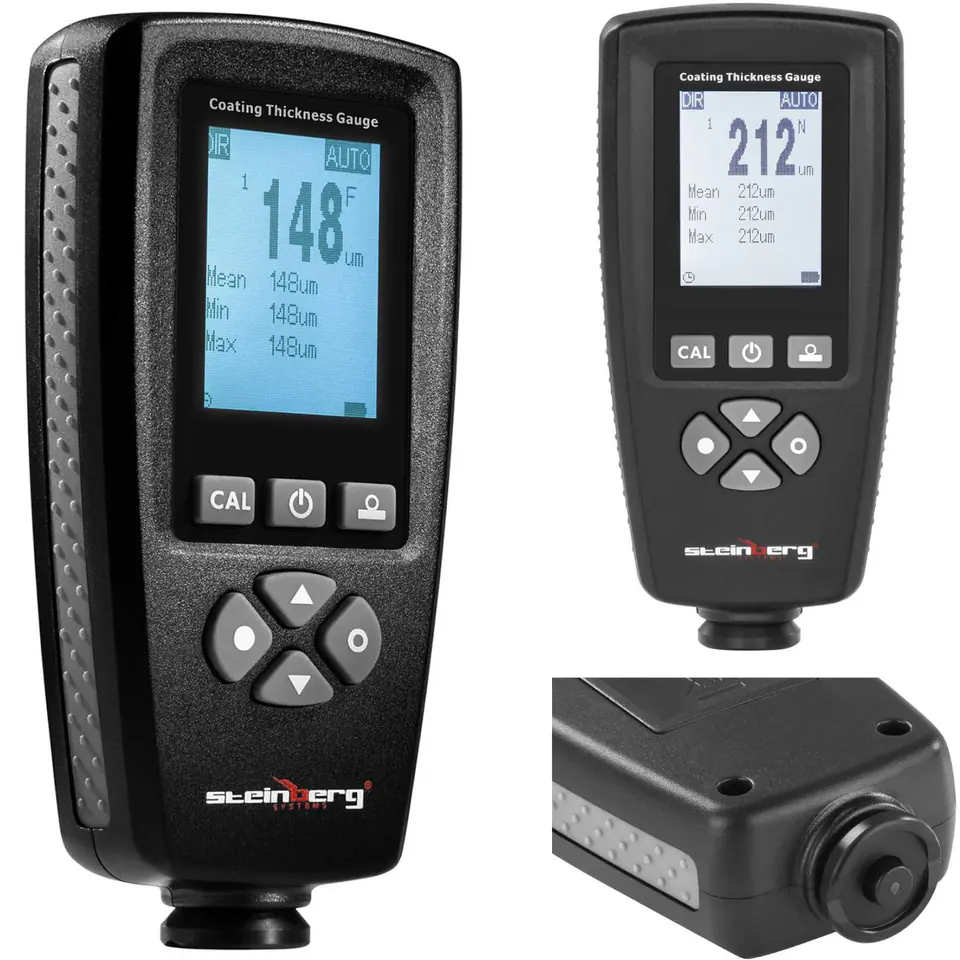

The precise paint thickness gauge Steinberg Systems is able to measure from 0 to 5000 μm with an accuracy of ±2% + 1 μm. The device is adapted to work on both straight and curved surfaces. This is due to the V-shaped tip, which provides a minimum measuring area of 20 mm, 5 mm for convex surfaces and 25 mm for concave surfaces.
The tester has many functions, m.in test mode, measurement method or measurement unit (μm, mm, mil). The device also allows you to save up to 320 results, and thanks to the mini USB port to save them to the computer's disk. The meter is designed to work at temperatures from 0 to 50 ° C and air humidity of 20-90%.

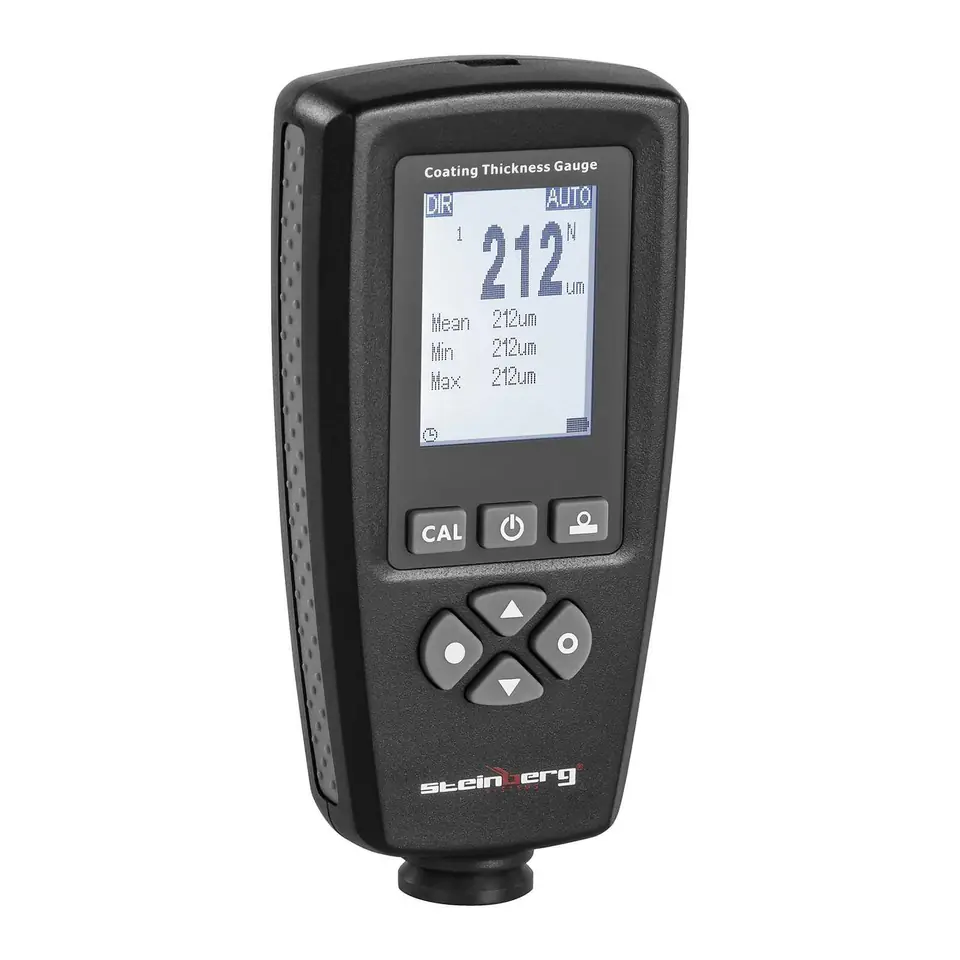

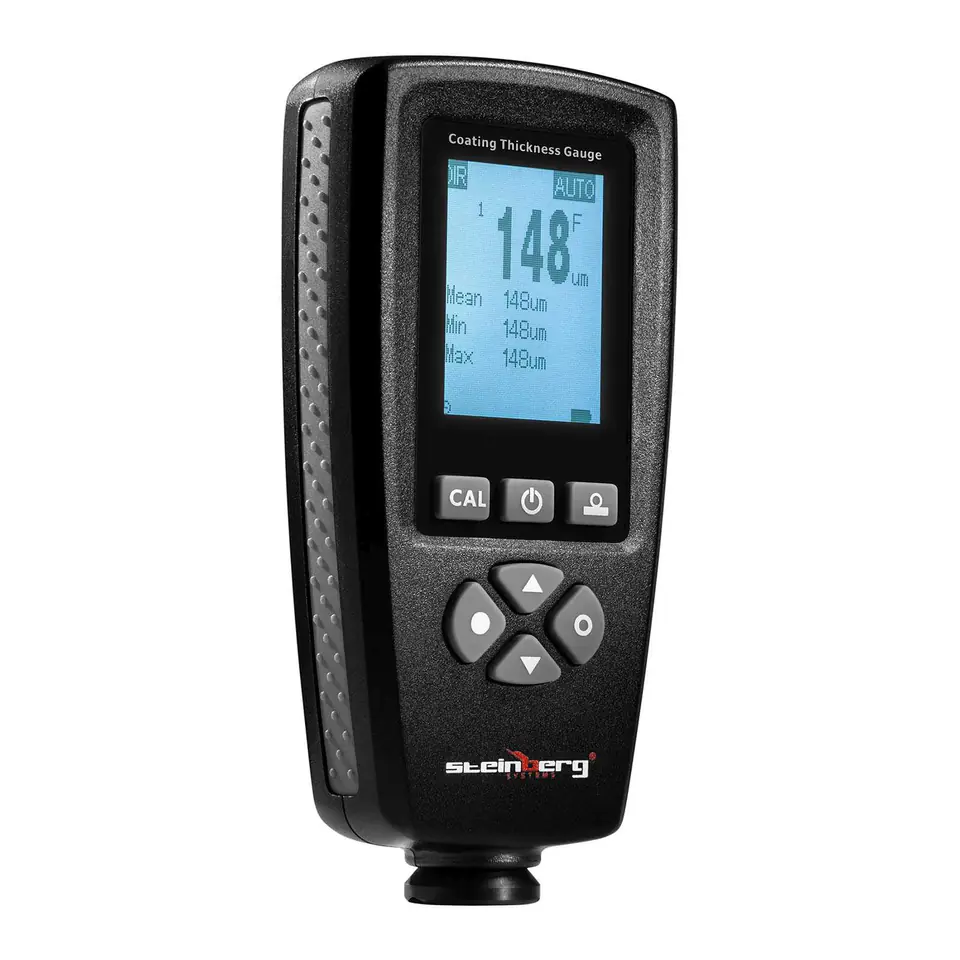

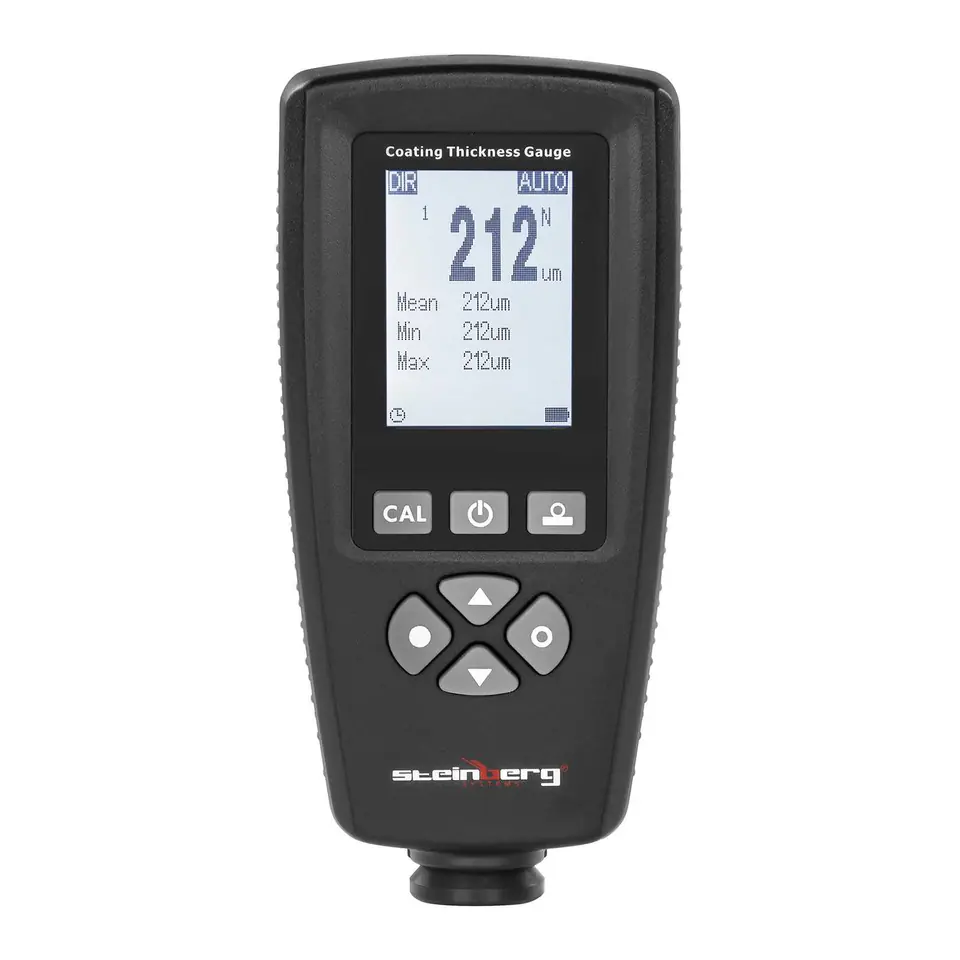

Operation of the device is simple thanks to the convex buttons and the backlit LCD. The spring-loaded sampler ensures safety during measurement, without the risk of scratching the paintwork. The end of the test is announced by an audible signal.
The set with the tester includes accessories necessary for its proper functioning. Among them are: USB cable, software CD and calibration boards. With the help of the latter, the user can independently ensure the precise operation of the meter. In addition, a comfortable suitcase will make it easier to transport the entire set.
The device is powered by two 1.5 V AAA batteries. A special system turns off the tester when not used for 3 minutes, which allows you to extend the life of the battery.
Product features:
- - Usability - quickly measures the paint coating of the car body and the thickness of the metal,
- - Versatility - will be used in the automotive industry and the metal industry,
- - Functionality - for ferromagnets,
- - Precise measurements - measuring with an accuracy of ±2% + 1 μm,
- - Efficiency - the ability to work at a temperature of 0-50°C and a humidity of 20-90%
- - Model - SBS-CT-123 PRO
- - Catalog No. - 10030313
- - Housing material - ABS plastic, rubber
- - Power supply - 2 x 1,5V AAA batteries
- - Measurement methods - Magnetic induction (for ferromagnets)
- - Measurement modes - Ferromagnets
- - Measurement range - 0 - 5000μm
- - Measurement accuracy - ±2% + 1μm
- - Resolution - 0.1μm in the range of 0μm - 99.9μm | 1μm in the range of 100μm - 999μm | 10μm in the range of > 1000μm
- - Units of measurement - μm, mm, mil
- - Minimum average measuring area - Ø20 mm
- - Minimum radius of curvature - 5 mm for convex surfaces | 25 mm for concave surfaces
- - Minimum material thickness - 0.2 mm for ferromagnets
- - Ambient temperature range during measurements - 0 - 50°C
- - Air humidity range during measurements - 20%-90%
- - Storage temperature - -10°C ~ 60°C
- - Built-in memory capacity - Max. 320 measurement results
- - Method connected to a computer - Mini USB
- - Batteries included - Yes
- - Calibration plates included - Yes
- - Portable suitcase - Yes
- - Mini USB cable length - 0.75 m
- - Dimensions (LxWxH) - 11.5 x 5 x 2.9 cm
- - Weight - 0.1 kg
- - Shipping dimensions (LxWxH) - 25 x 20 x 5 cm
- - Shipping weight - 0.5 kg
- - Paint thickness gauge – 1 pc.
- - Mini USB cable – 1 pc
- - CD with software – 1 pc.
- - Calibration plates – 7 pcs.
- - AAA batteries – 2 pcs.
- - Portable suitcase – 1 pc.
- - Manual EN
