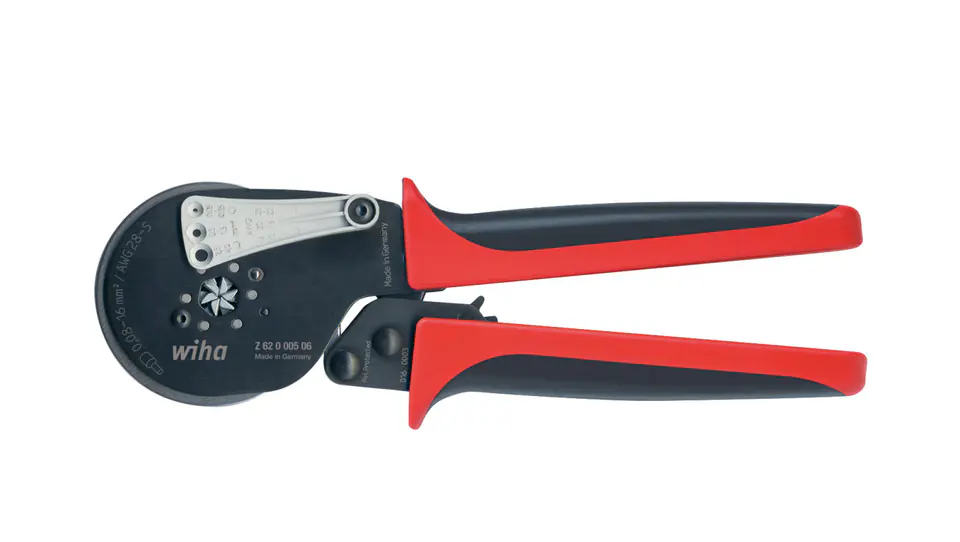

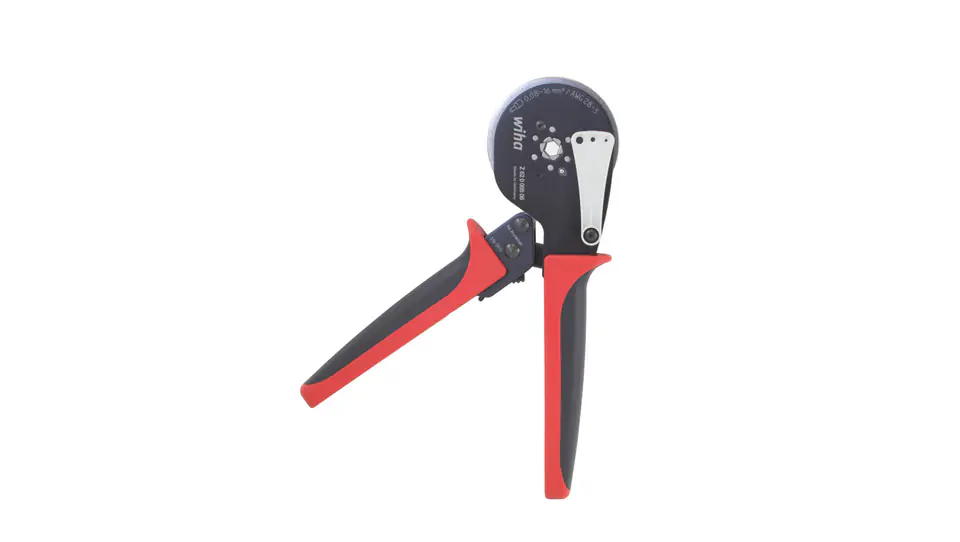

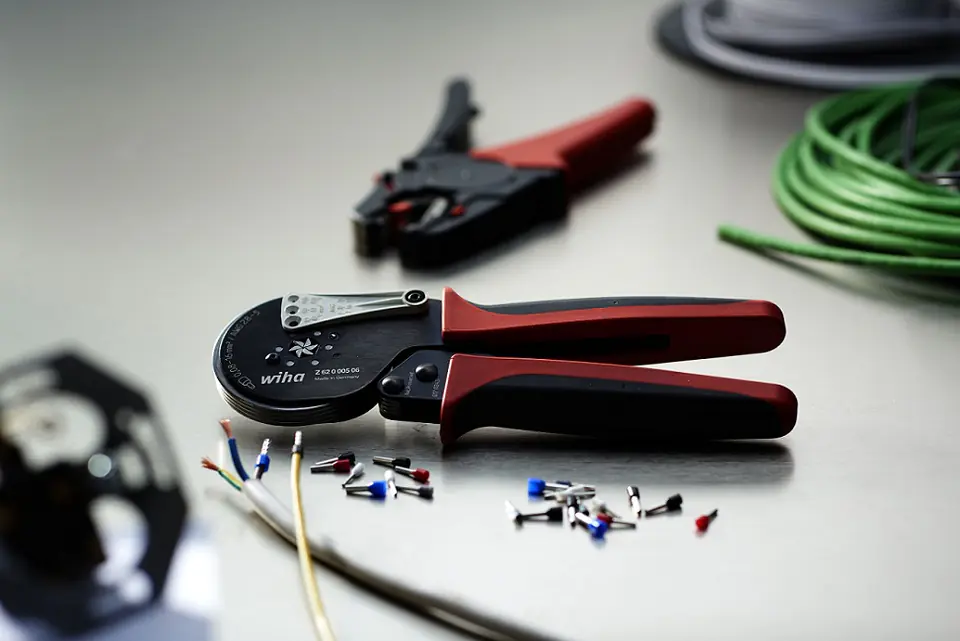

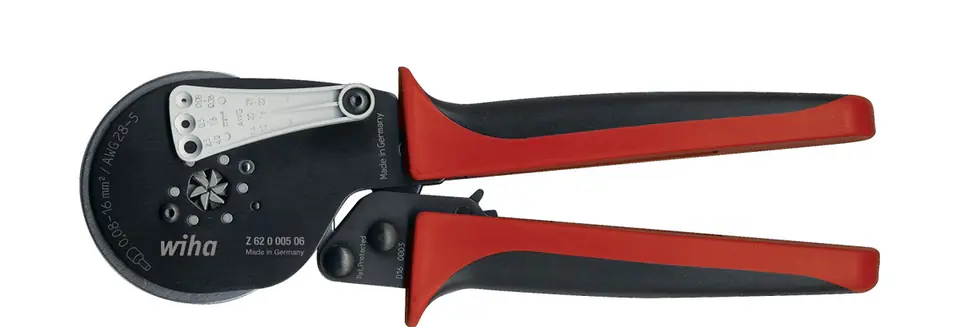

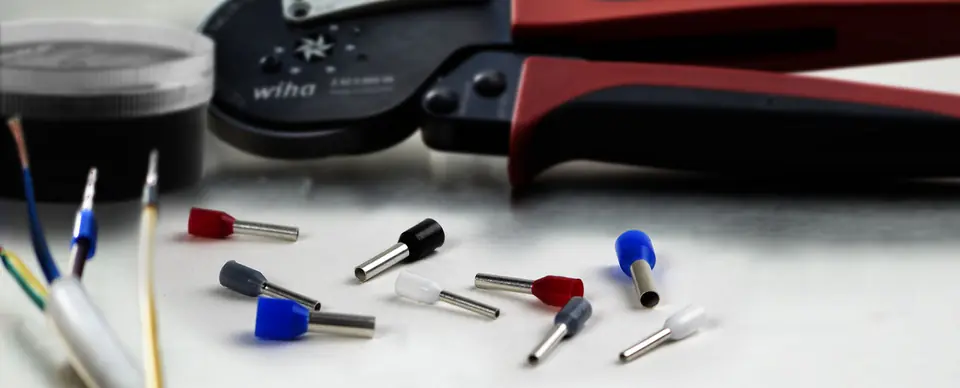

AUTOMATIC CRIMPING TOOL FOR CABLE SLEEVES

Specifications:

Overall length: 210 mm
Insulation removal area (min.- max.) (AWG): 28 -5
Operating range: 0.08 - 16 mm2
Weight: 545 g.
Catalog no.: 41246
EAN: 4010995412463


Automatic crimping tool for cable sleeves, hexagon clamp

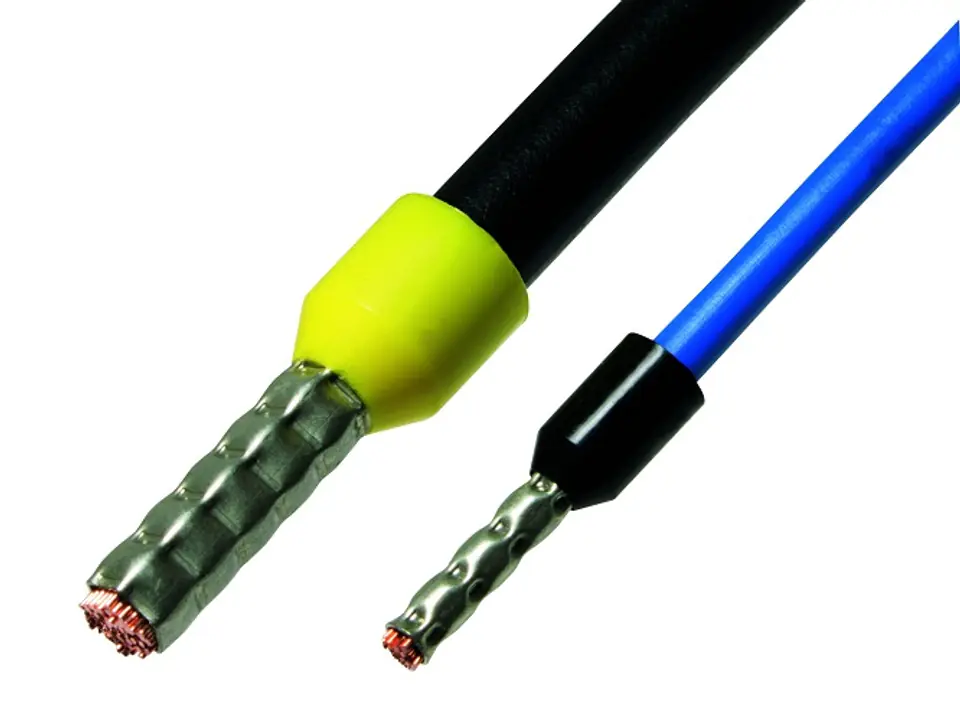

For clean cable termination. WIHA 41246

Automatic hexagon clamping pliers prevent unnecessary damage to cables and cable sleeves.

They have a large clamping range of 0.08-16 mm2 and compactly combine the function of two pliers in one, making them suitable for most applications.

The hexagonal clamp avoids the cable sleeves from getting hooked.

The introduction function provides additional process safety by preventing the plastic cable sleeve jacket from clamping.

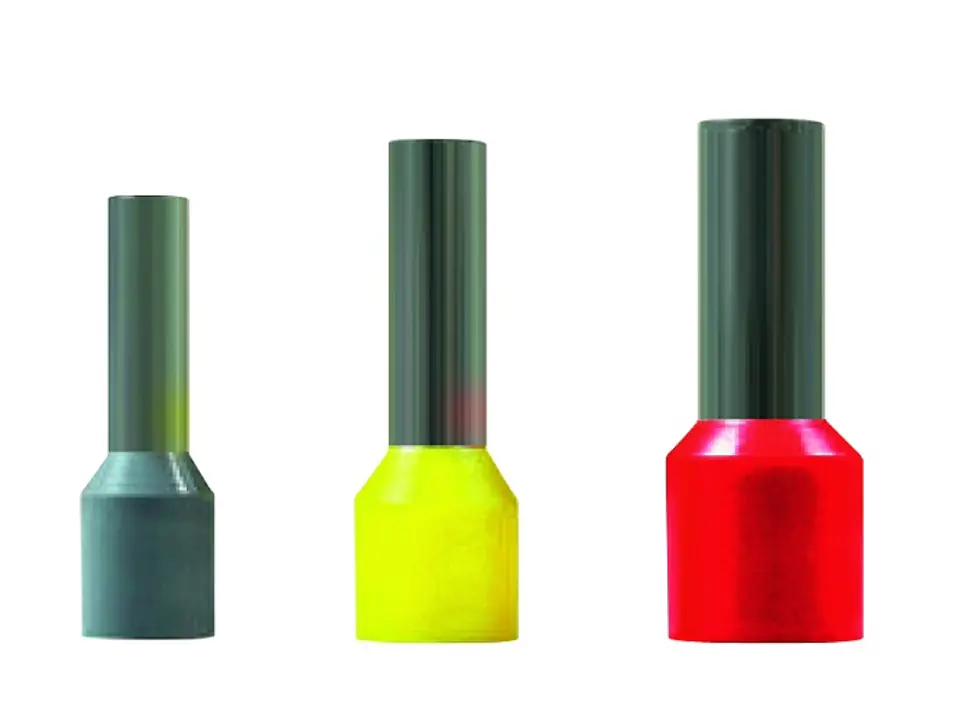

Thanks to the automatic clamping function, the pliers are suitable for both hollow bushings (up to 16 mm2) and Twin bushings (up to 10 mm2).

Flexible and cushioning plastic handles guarantee comfortable work, reducing fatigue.

The built-in lever allows you to manually interrupt the clamping process at any time.


Use:

For machining cable sleeves with or without insulation flange according to DIN 46228, EN 50027


**

The presented photos are for illustrative purposes
