Manufacturer no: 10060774

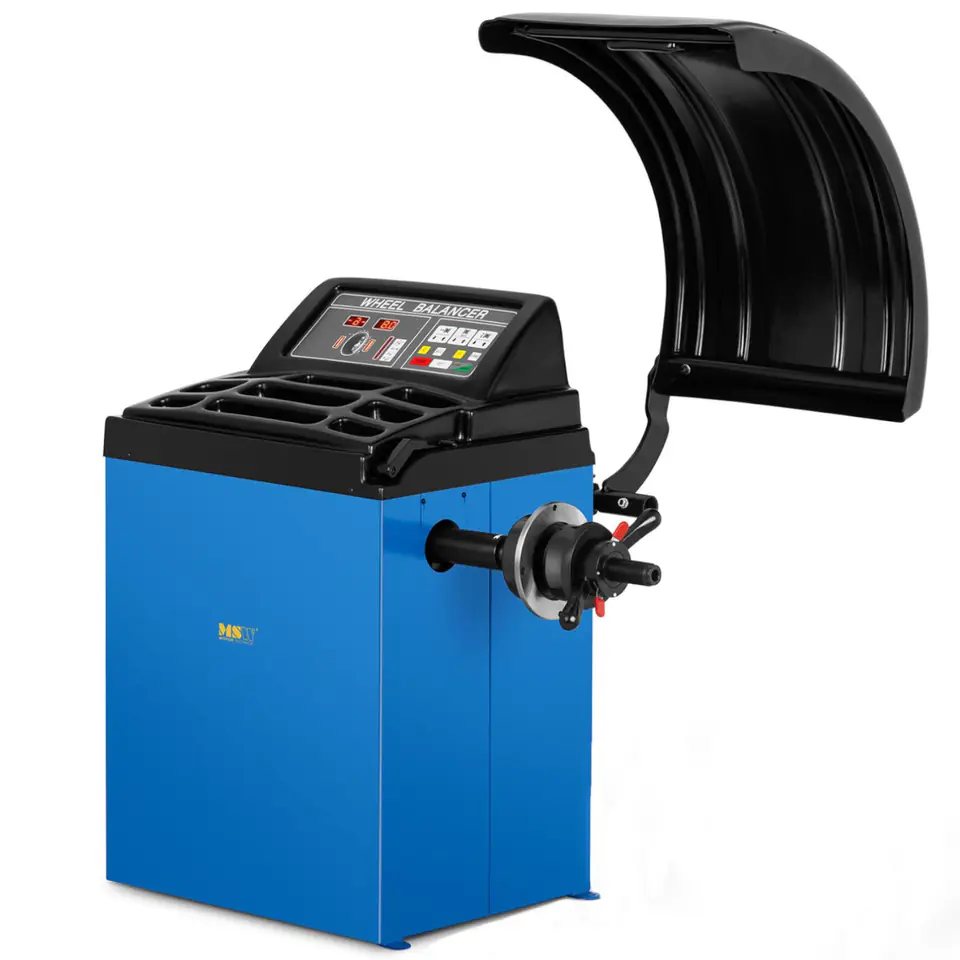

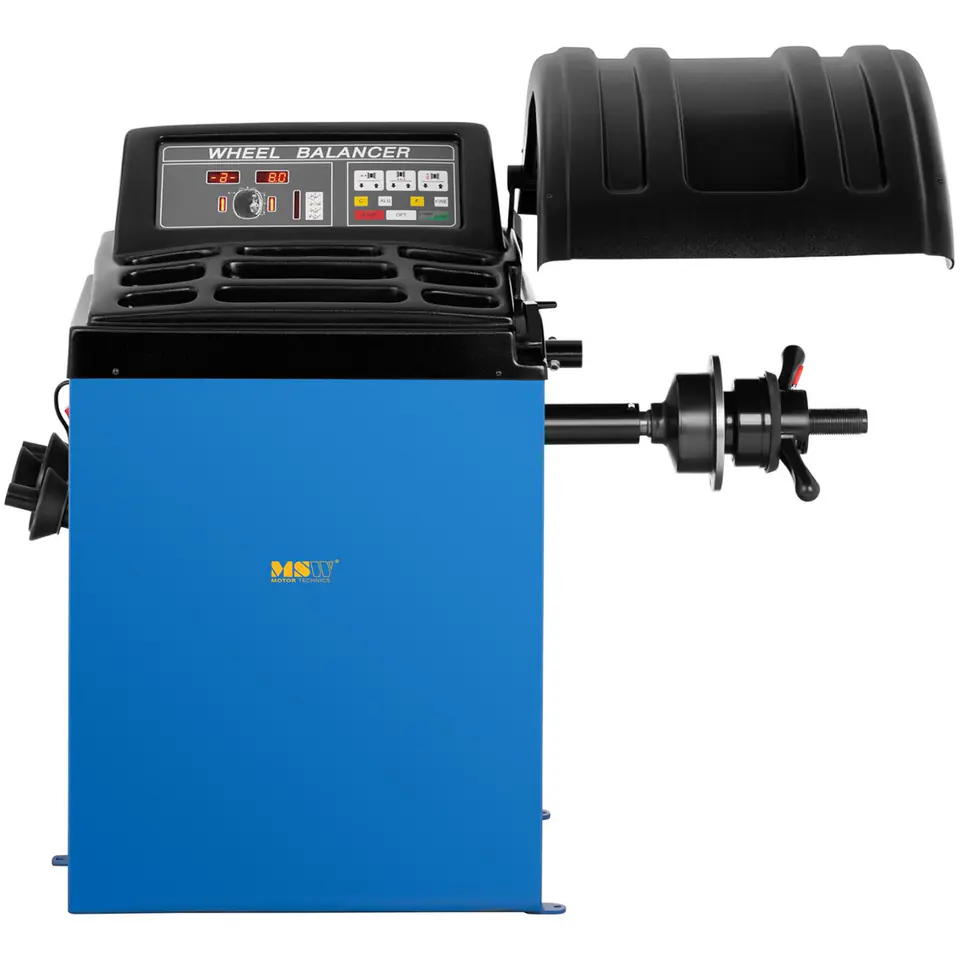

The wheel balancer of the German brand MSW is a professional device for vulcanization plants, car services, vehicle service stations and workshops. It will work well with wheels weighing up to 65 kg (10-24 rim diameter, 38-508 mm wide). The device provides fast and precise measurements. It allows you to handle cars, vans and motorcycles.
The engine accelerates the wheel to 189 rpm. The measurement result is obtained in 4-7 s. The LED display and touch panel improve the operation of the device, and the results are saved in the device's memory. The balancing machine has numerous measuring functions, the NORMAL program is used to balance steel and aluminum wheels, STATIC for motorcycle wheels. The ALU1, ALU2 and ALU3 functions are adapted to different types of light alloy wheels, and the S mode allows for effective measurement in the case of unusually shaped rims. The balance optimization function minimizes the number of weights needed to be placed on the wheel. The device measures the balance with an accuracy of 5 g. The automatic calibration function allows you to check and correct the parameters. The set includes four centering cones for different types of wheels and accessories to improve work as well as a plastic cover to protect against sand or gravel chips.
Product features:
- - Versatility - the device will work well when measuring wheel balance by max. rim diameter 24,
- - Versatility - a wide selection of programs,

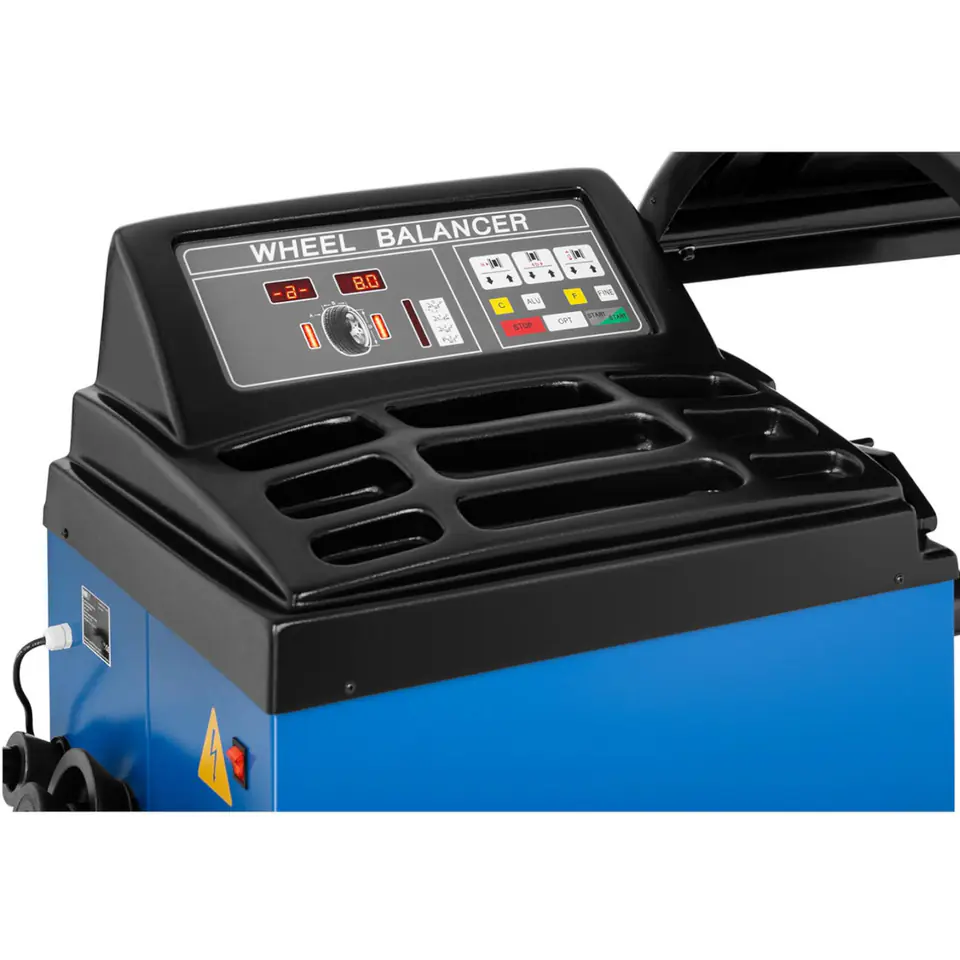

- - Easy operation - LED display and touch panel,
- - Precision - measurements with an accuracy of 5 g and automatic calibration,
- - Speed - a single measurement takes only 4 to 7 seconds,
- - Safety - a cover that protects the user from elements that may fall off the balanced wheel.
- - Model - MSW-WB-270
- - Catalog no. - 10060774
- - Article status - New
- - Voltage - 230 V
- - Measurement time - 4-7 s
- - Rotational speed - 189 rpm
- - Powder coating - Yes
- - Sound intensity - 60 dB
- - Power cord length - 1.82 m
- - Rim width - 1.5-20 (38-508 mm)
- - Rim diameter - 10-24 (254-610 mm)
- - Diameter of the hole in the wheel - 36-135 mm
- - Dimensions (LxWxH) - 118 x 80 x 143 cm
- - Weight - 65 kg
- - Shipping dimensions (LxWxH) - 100 x 66 x 111 cm
- - Shipping weight - 84 kg

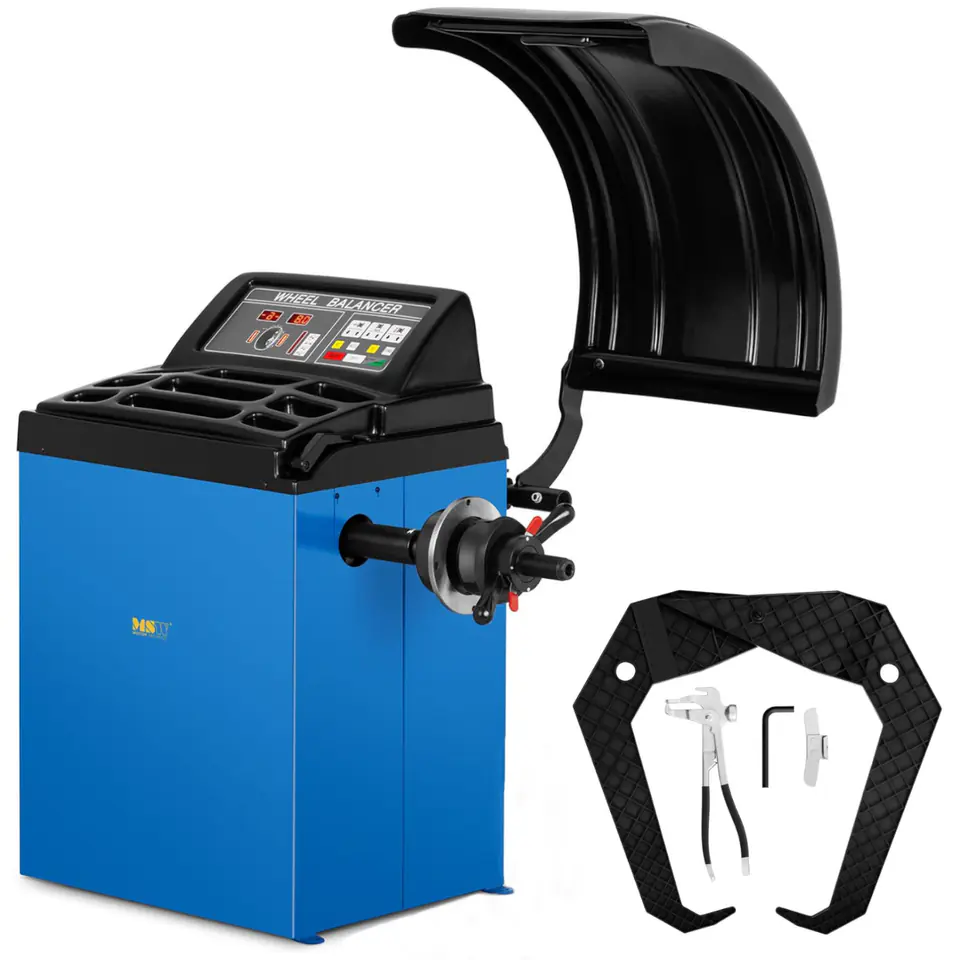

- - Wheel balancer
- - Centering cone - 4 pcs.

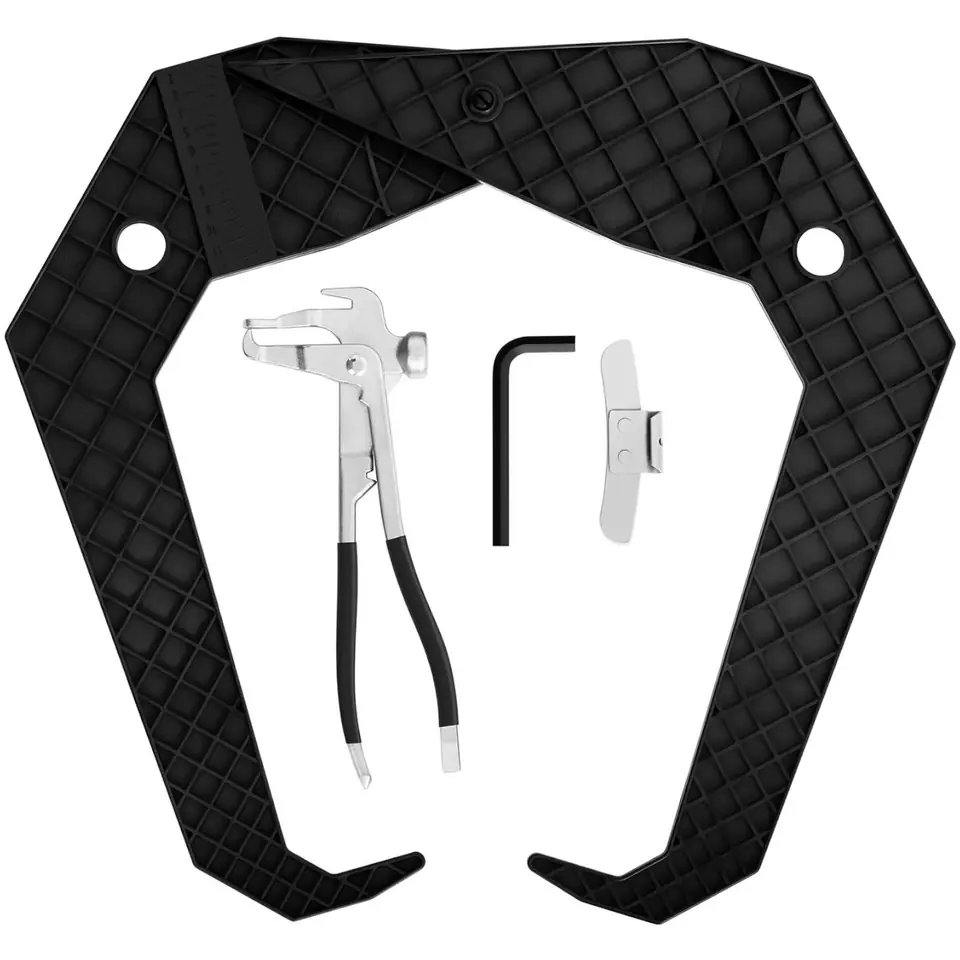

- - Rim width measuring tool
- - Weight pliers
- - Quick-release nut
- - Hexagonal wrench
- - Calibration weight
- - Protective cover
- - Manual EN
