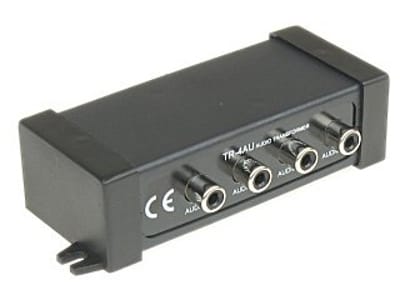

AUDIO TRANSFORMER TR-4AU

€41.35

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: TR-4AU / 5902887016707

Specification

Audio band range::	20 Hz ... 20 kHz
Audio range::	Max. 1200 m
Coaxial connector impedance::	600 Ω

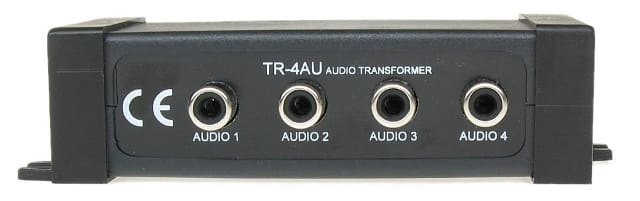

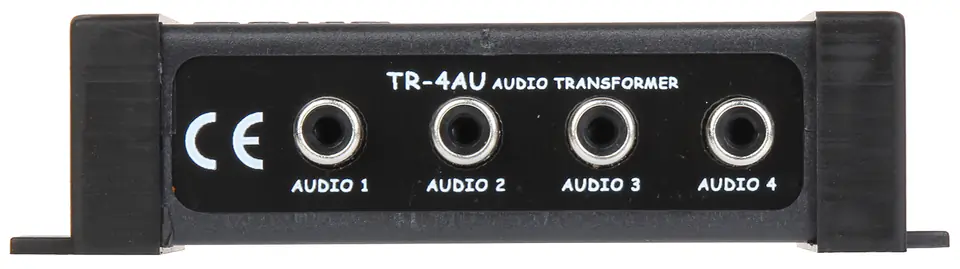

Coaxial connector type::	4 x CINCH Socket
Device type::	Passive
Dimensions::	120 x 30 x 60 mm
Galvanic separation between inputs and outputs::	600 volts
Impedance of the balanced connector::	100 Ω
Manufacturer / brand::	DELTA
Nominal audio input level::	1 volts
Nominal audio output level::	1 volts
Number of channels::	4 AUDIO
Operating temperature::	-50 °C ... 55 °C
Permissible relative humidity::	< 95 %
Scales::	0.133 kg

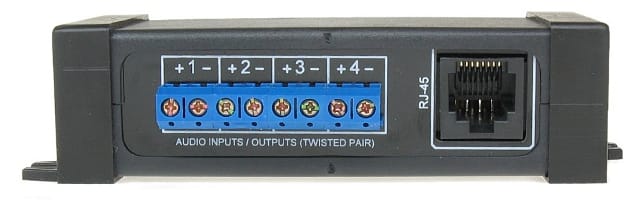

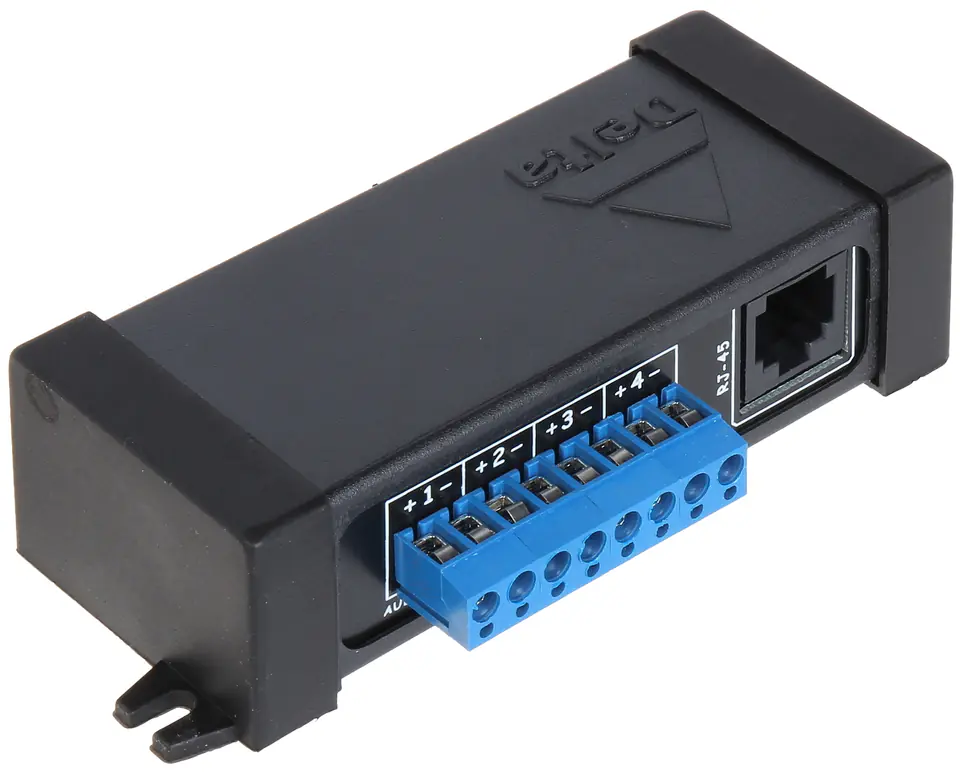

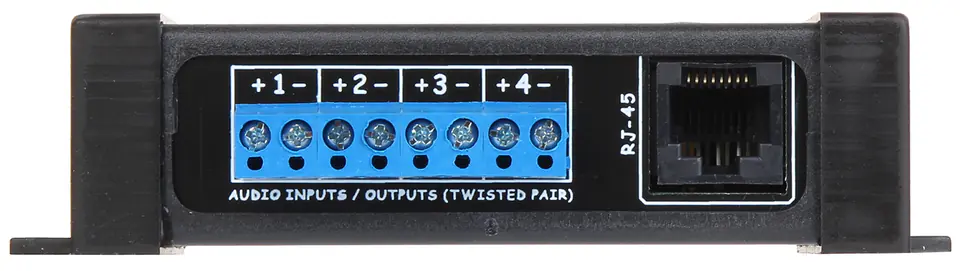

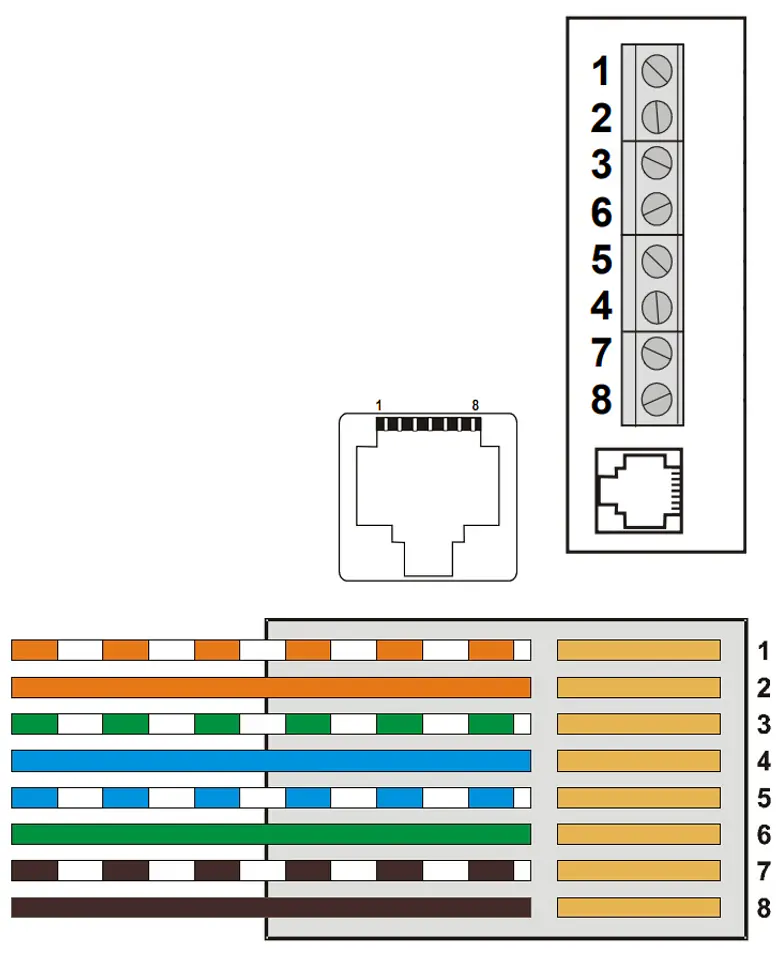

Symmetrical connector type::	RJ-45 (8-pin, 4 pairs) Socket Cable clamps
Warranty::	3 years

TR-4AU is designed to transmit 4 audio signals via twisted pair cableIn the audio path, galvanic separation takes place and the impedance of the 600Ω signal is matched to the impedance of the symmetrical cable, which allows the transmission of the audio signal up to 1200 metersTransferring the audio signal via twisted pair has the advantage over the shielded cable that any interference is eliminated, because the signal is transmitted differentially

Two such devices are required to build a full signal transmission path

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
