Manufacturer no: 10060481

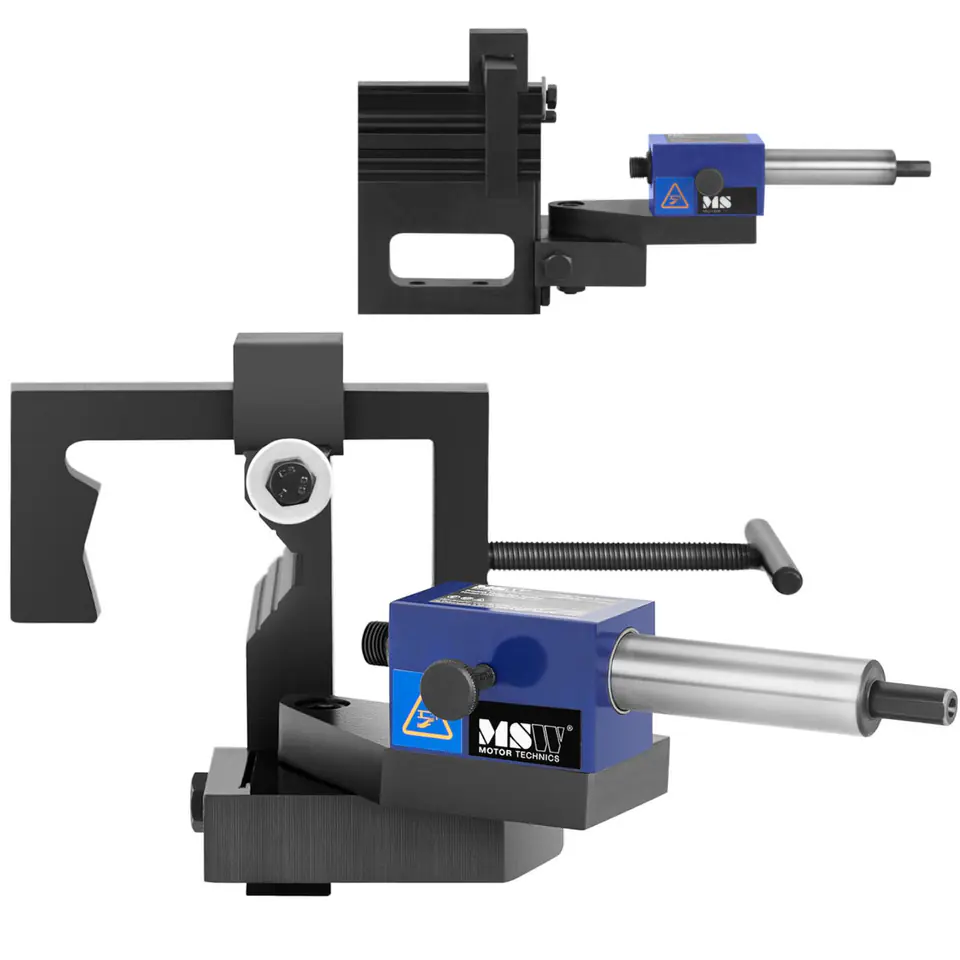

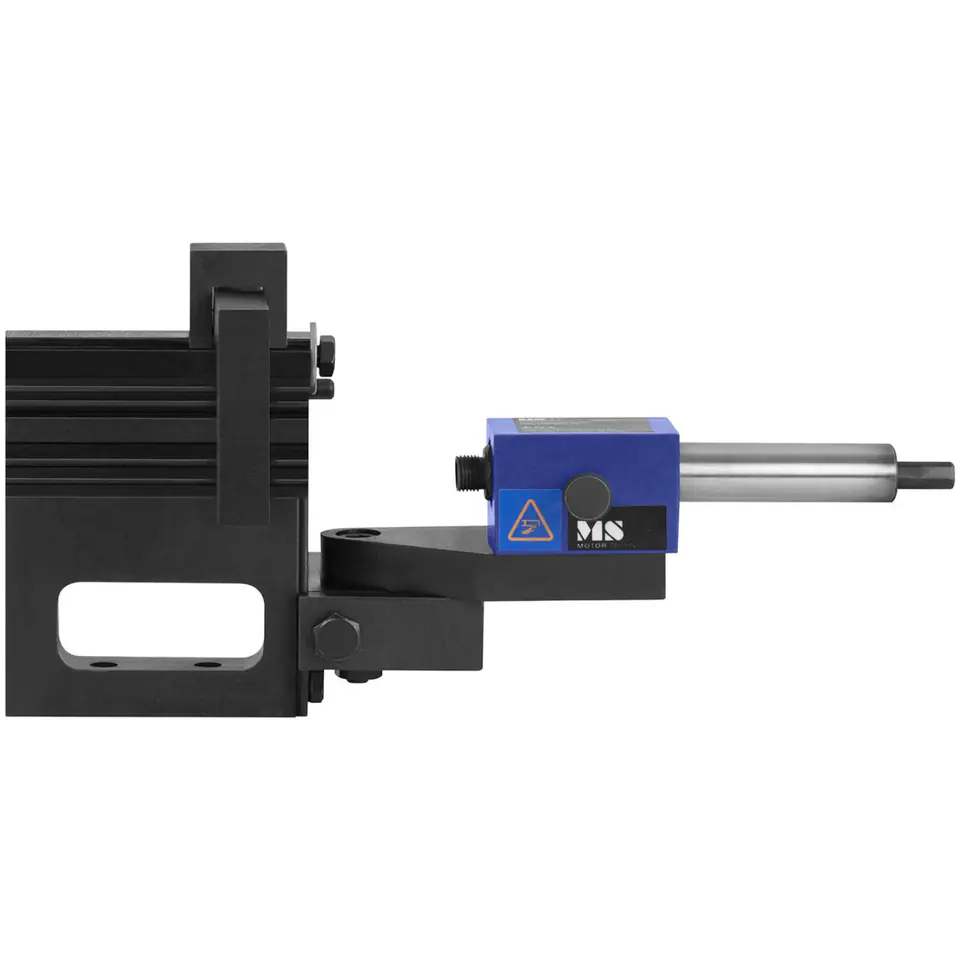

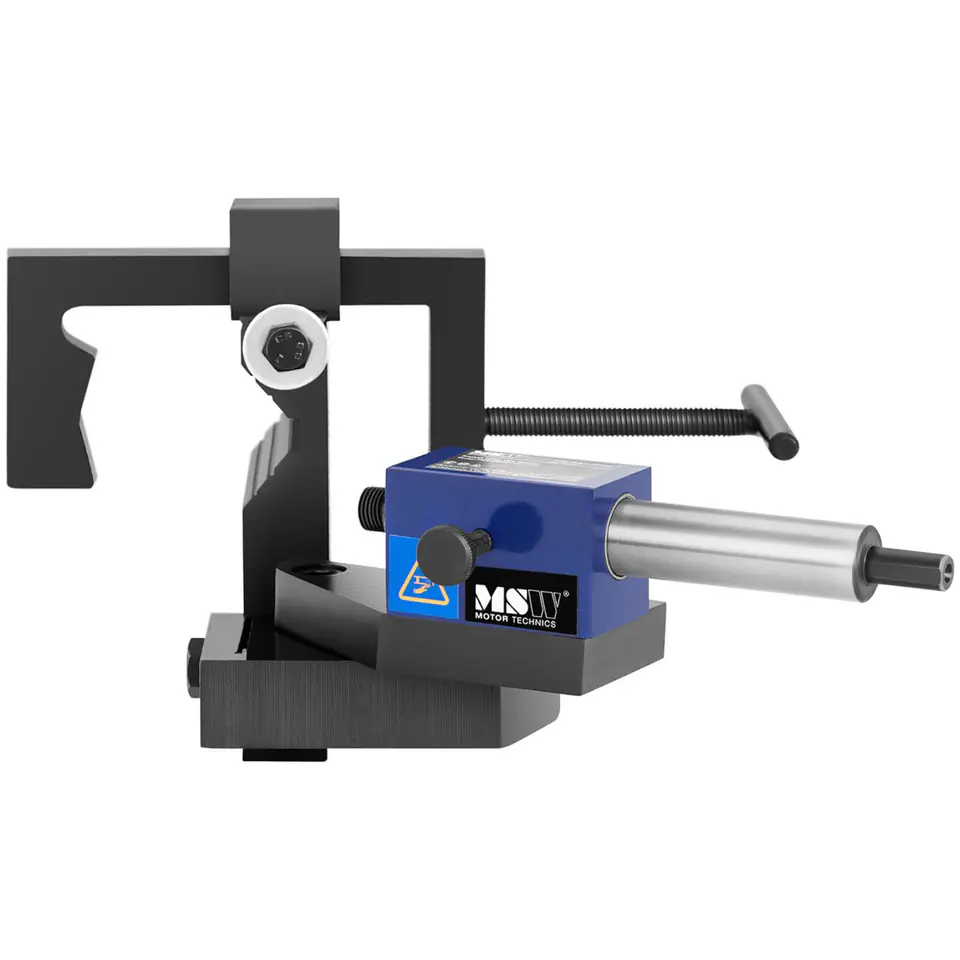

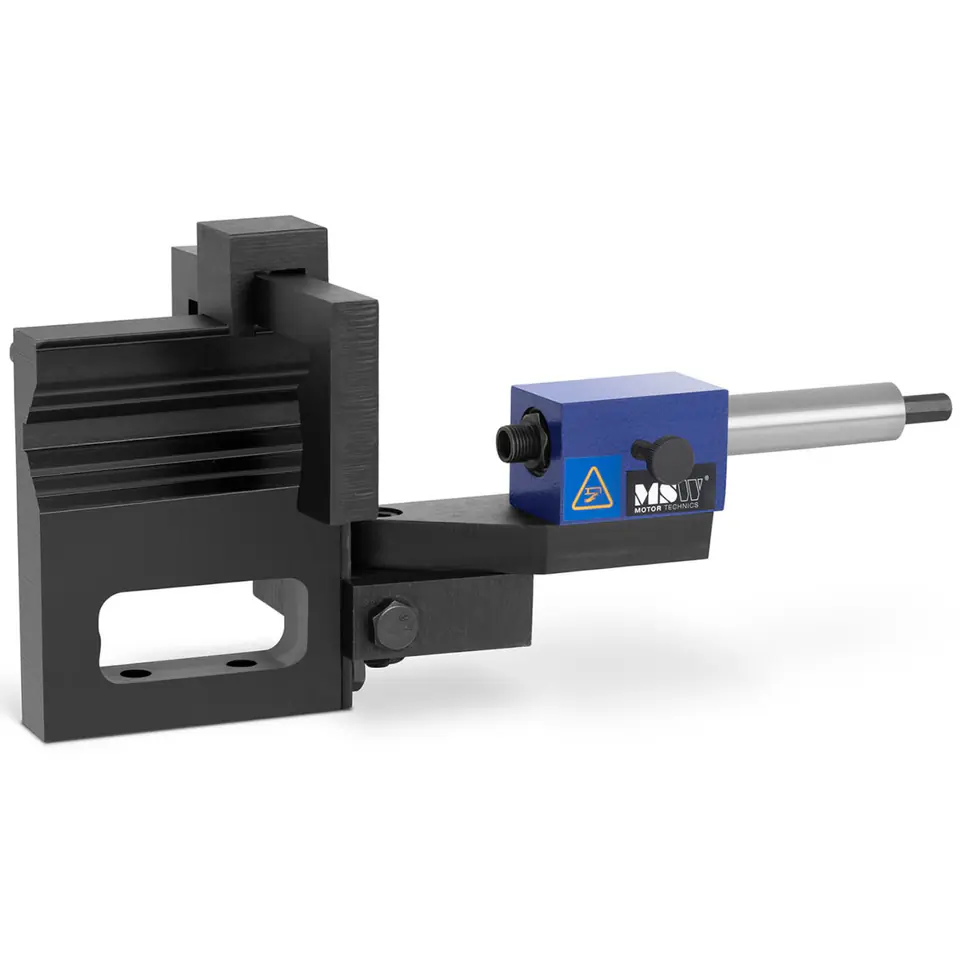

The MSW pipe foraminifera attachment will work well in factories, automotive plants, craft workshops for cutting copper, aluminum and steel pipes as well as motorcycle frames or handrails.
The device allows you to work at an angle of up to 50. Vertical adjustment of the platform with a mandrel to a height of 35 mm facilitates accurate execution of the hole. The two-axis clamp fits pipes with a diameter of 19 to 76 mm. The durable construction is made of steel and the mandrel is made of ground and polished stainless steel. The device can be screwed to the working surface or placed in a vice. The attachment works with a 1/2" hand drill and an electric drill (tools are not included) and allows you to make cuts in pipes of different diameters and shapes. The device fits a wide range of round knives, hole saws and cutters with M12 and M15 thread.
Product features:
- - Cutting at an angle of up to 50 with the possibility of adjusting every one step,
- - Two-axis clamp for pipes with a diameter of 19 to 76 mm,
- - Durable construction made of 1-1/4 steel,
- - Vertical adjustment of the platform with a mandrel (up to 35 mm),
- - Works with 1/2 hand or electric drill.
- - Model - MSW-PNM1-1/2
- - Catalogue number - 10060481
- - Article status - New
- - Mounting thread - 1/2 and 5/8
- - Workpiece diameter - (3/4-3) 19-76 mm

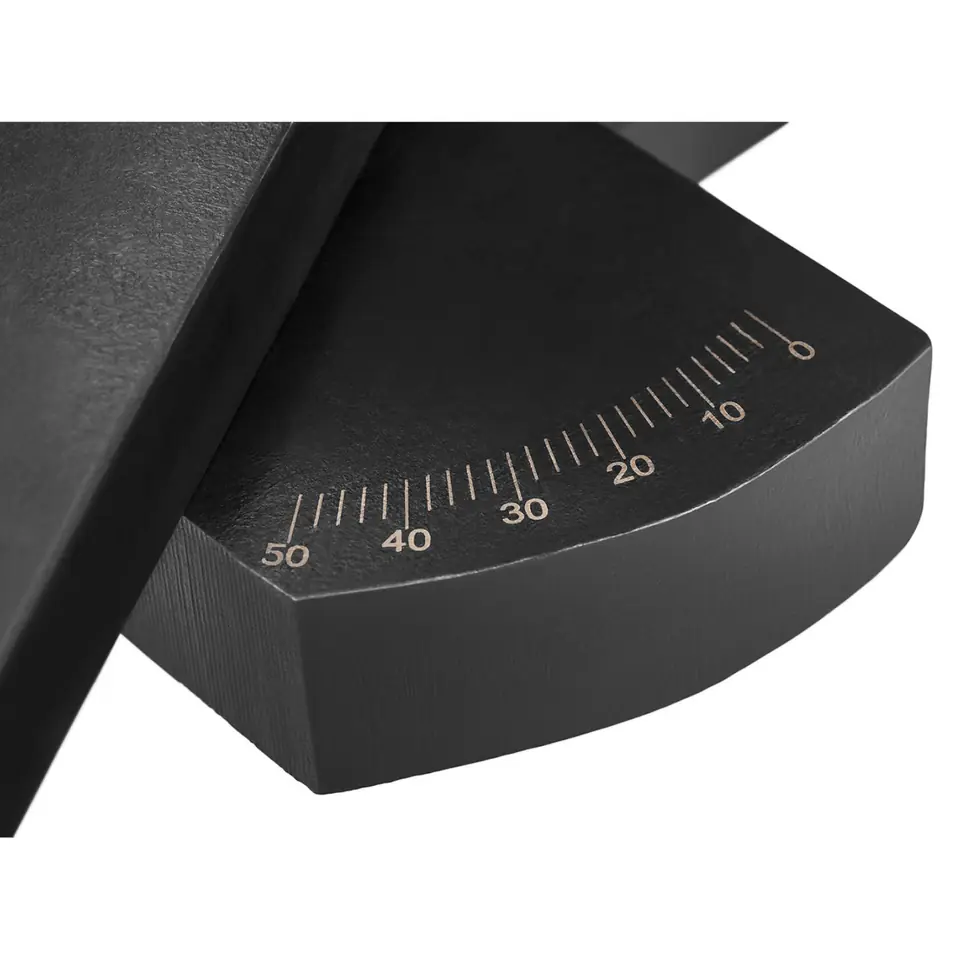

- - Machining angle - 0-50
- - Steel frame thickness - 1-1/4"
- - Vertical adjustment of the platform with mandrel - Up to 35 mm
- - Mandrel material - Ground and polished stainless steel
- - Mandrel diameter - 25 mm
- - Drill required - 1/2"
- - Thread - M12 and M15
- - M15 thread fits drill bits - 32-150 mm
- - Dimensions (LxWxH) - 39 x 19.5 x 27.5 cm
- - Weight - 9.7 kg
- - Shipping dimensions (LxWxH) - 28 x 24.5 x 26 cm
- - Shipping weight - 12 kg
- - Foraminifera attachment
- - User Manual
