Small, handy KVM switch. The CS-692 is a dual-port switch designed for systems equipped with HDMI ports. Switching ports can be done from the keyboard through the appropriate key combination, using the included remote control or through the button on the switch housing. The CS-692 is perfect for your home or office. The externally powered device has two integrated sets of KVM - PC cables.

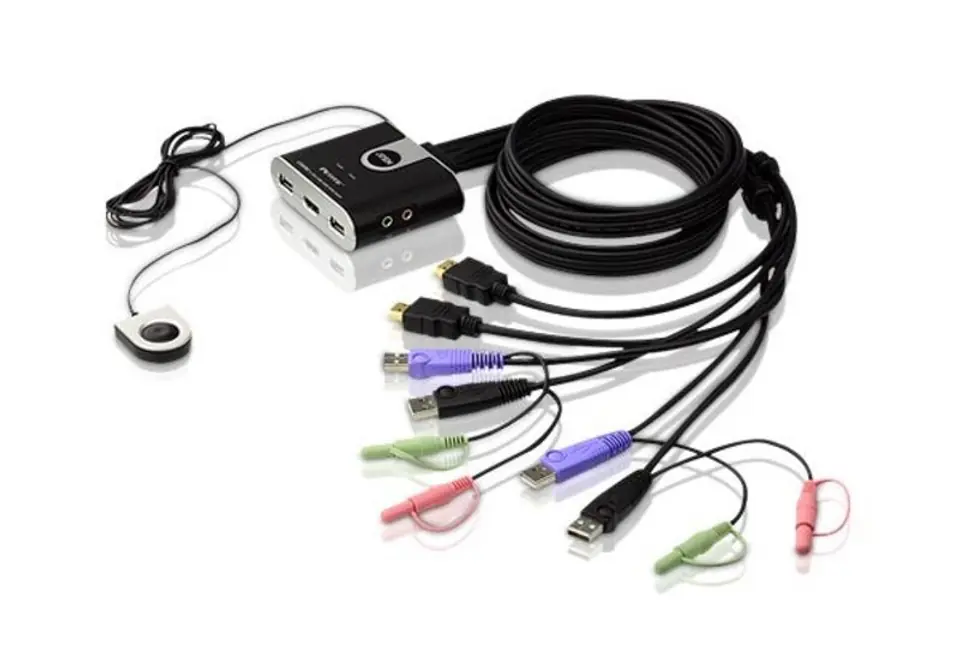

ATEN CS-692 KVM Switch
€66.53
Shipping from warehouse: A3
Estimated shipping: Mon, Dec 30 - Wed, Jan 1
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ATEN
- Product code:
- CS-692 / 4710423776814
Share this product:
Specification
| Audio connections: | Yes |
|---|---|
| Audio connector: | Yes |
| Built-in display: | No |
| Bulk box width (external): | 395 mm |
| Button: | Yes |
| Cable type: | Integrated |
| Cascading support: | No |
| Colour: | Black & Silver |
| Console connectors: | 1 x Speakers, 1 x Microphone, 1 x HDMI port, 1 x USB keyboard port, 1 x USB mouse port |
| Console ports: | HDMI, 3.5mm headphone, 3.5mm mic, USB A |
| Console usb ports quantity: | 2 |
| Dc input voltage: | 5 V |
| Depth: | 66.5 mm |
| Depth (mm): | 82 |
| Destiny: | Desk |
| Equipment: | Does not have |
| Gross weight of main (external) enclosure: | 6.13 kg |
| Harmonized system (hs) code: | 85176200 |
| Hd type: | WUXGA |
| Hdmi ports quantity: | 2 |
| Headphone outputs: | 3 |
| Height: | 25.2 mm |
| Height (mm): | 26.5 |
| Height of reference box (external): | 182 mm |
| Hot keys: | Yes |
| Housing material: | Plastic |
| In bulk packaging net weight: | 4.09 kg |
| Interval between scans: | 10, 5, 20 sec, 3 |
| Keyboard port type: | USB |
| Led indicators: | Yes |
| Leds: | Yes |
| Main box length (outer): | 405 mm |
| Manual: | Yes |
| Master (outer) case gross weight: | 6.13 kg |
| Master (outer) case height: | 182 mm |
| Master (outer) case length: | 405 mm |
| Master (outer) case net weight: | 4.09 kg |
| Master (outer) case width: | 395 mm |
| Material of manufacture: | Plastic |
| Maximum image resolution: | 1920 x 1200 |
| Maximum resolution: | 1920 x 1200 pixels |
| Mouse port type: | USB |
| Number of computers: | 2 |
| Number of computers controlled: | 2 |
| Number of console usb ports: | 2 |
| Number of hdmi ports: | 2 |
| Number of microphone inputs: | 3 |
| Number of supported computers: | 2 |
| Operating humidity range (%): | 0 - 80 |
| Operating relative humidity (h-h): | 0 - 80% |
| Operating temperature (t-t): | 0 - 50 °C |
| Operating temperature range (deg. c): | 0-50 |
| Other parameters: | Support Auto Scan with 5 s interval, Support Power on detection - automatic switching to a computer with power on (when active computer is turned off), Remote control on 1.8 m cable, Working with the switch does not require any software installation, Integrated cables with a length of 1.2 m |
| Package depth: | 163 mm |
| Package height: | 235 mm |
| Package weight: | 550 g |
| Package width: | 70 mm |
| Pc connectors: | 2 x Speakers, 2 x Microphone, 2 x HDMI port, 2 x USB Type A keyboard port, 2 x USB Type A mouse port |
| Pc selection method: | Remote control, Button, Keyboard shortcut |
| Permissible relative humidity: | 0 - 80% |
| Power consumption: | 0.72 Watts |
| Power consumption (typical): | 0.72 W |
| Power source: | DC |
| Power source: | DC |
| Power type: | 5 volts DC |
| Product colour: | Black |
| Product depth: | 66.5 mm |
| Product height: | 25.2 mm |
| Product weight: | 409 g |
| Product width: | 82.4 mm |
| Products in the main (outer) case: | 10 pcs. |
| Products per master (outer) case: | 10 pc(s) |
| Push button: | Yes |
| Quick installation guide: | Yes |
| Quick start guide: | Yes |
| Rack mountable: | No |
| Rack mounting: | No |
| Relative humidity range: | 0 - 80% |
| Scan interval: | 3, 20, 5, 10 |
| Storage relative humidity (h-h): | 0 - 80% |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported operating systems: | DOS, Linux, Mac OS, Windows 2000, Windows 7, Windows Vista, Windows XP, Sun |
| Supported usb type: | USB Type-A |
| Technologies: | Video DynaSync |
| Temperature range (operation): | 0 - 50 °C |
| Temperature range (storage): | -20 - 60 °C |
| Type hd: | WUXGA |
| Usb 2.0 hub ports quantity: | 4 |
| Usb 2.0 type-a hub ports quantity: | 4 |
| Usb connector type: | USB Type-A |
| User's guide: | Yes |
| Video bandwidth: | 60 Hz |
| Video port type: | HDMI |
| Video port type: | HDMI |
| Warranty: | 2 years |
| Weight: | 409 g |
| Weight (g): | 412 |
| Weight with packaging: | 550 g |
| Width: | 82.4 mm |
| Width (mm): | 67 |
