The switch allows you to select one of the signal sources and connect it to the output
Manual operation with buttonsThe device does not require an external power supply

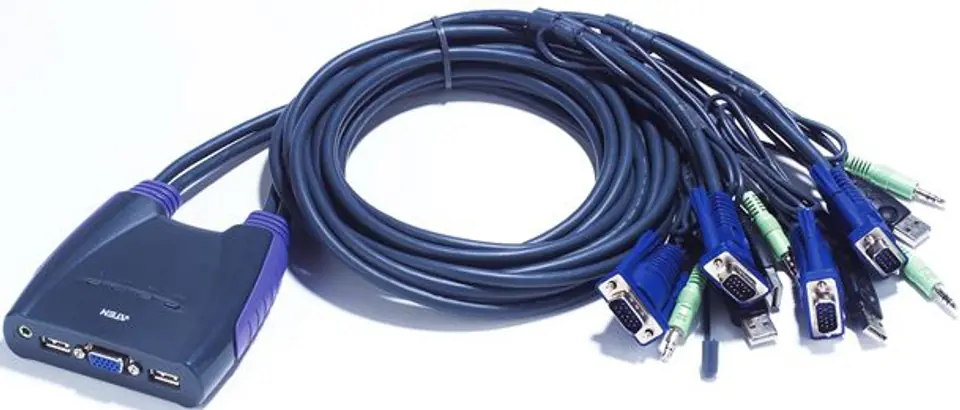

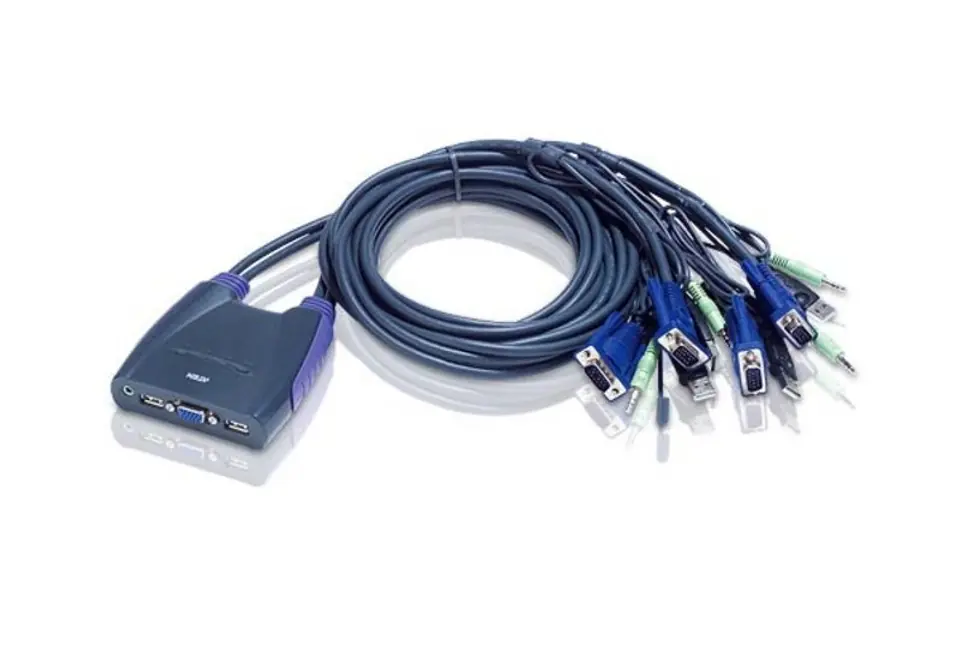

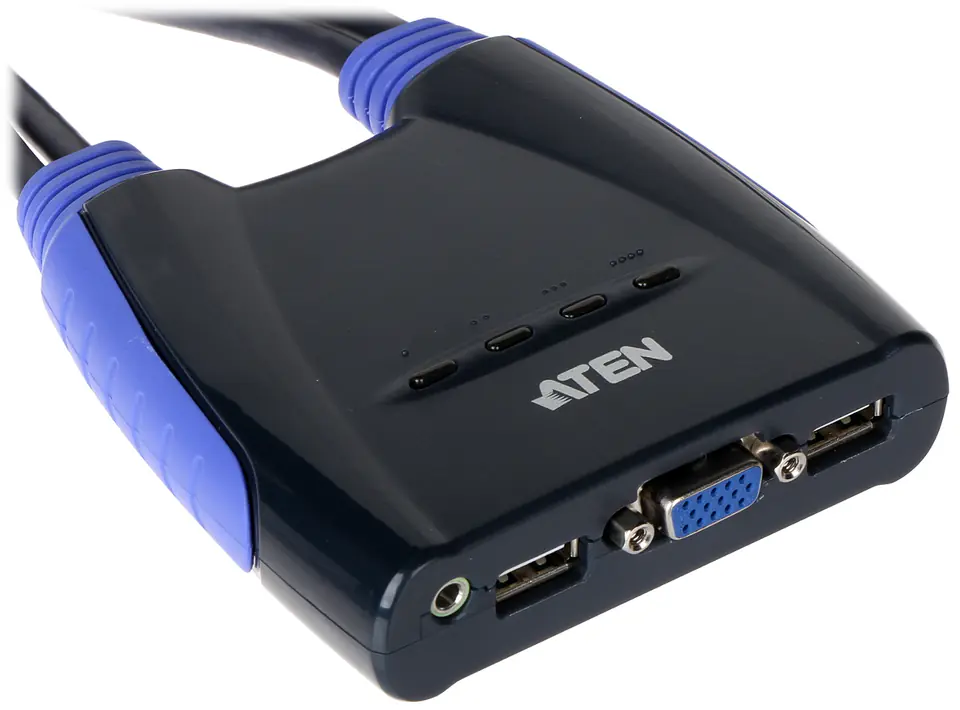

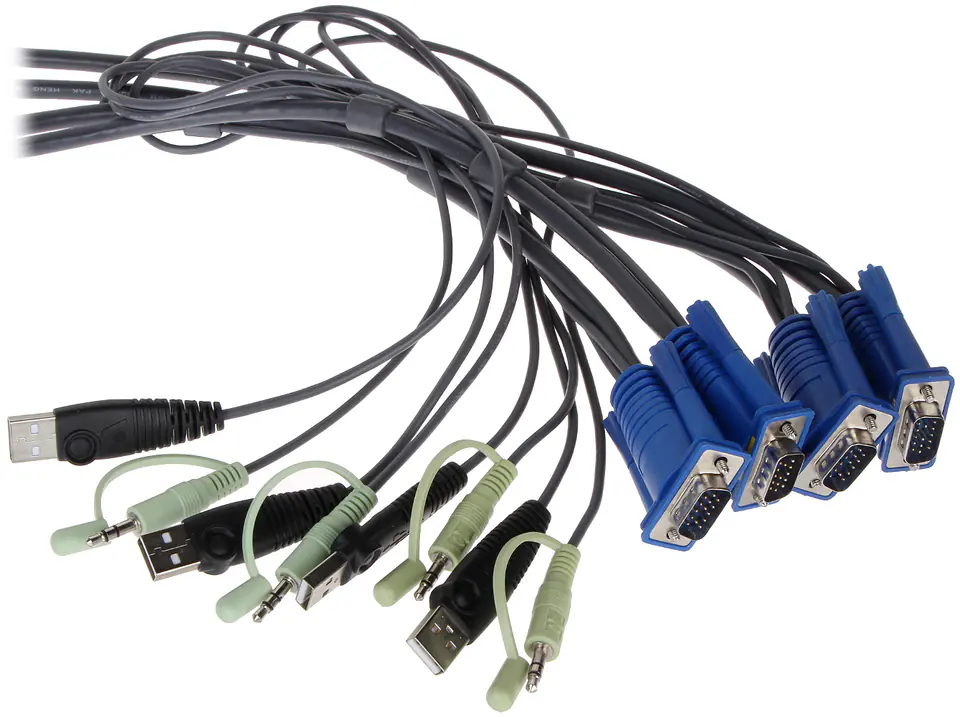

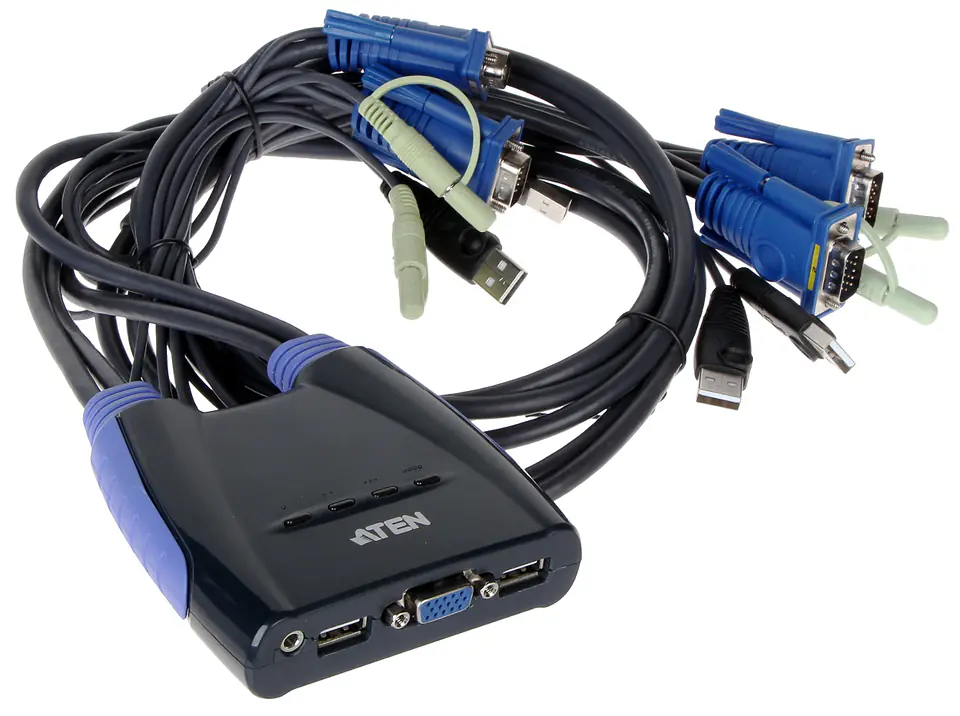

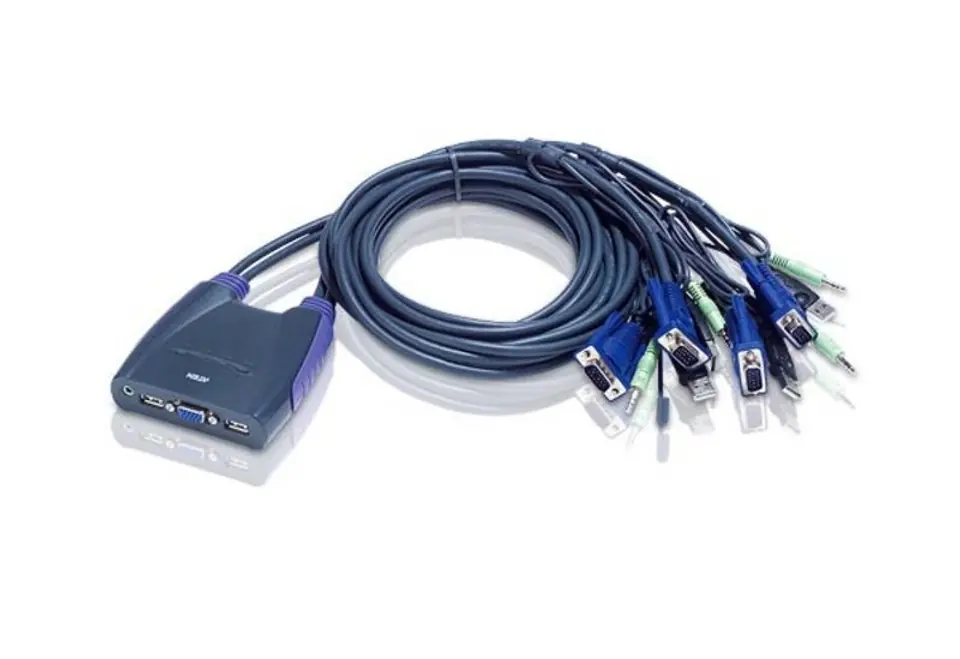

ATEN CS-64US KVM Switch
€60.66
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ATEN
- Product code:
- CS-64US / 4710423776456
Share this product:
Specification
| Audio connections: | Yes |
|---|---|
| Audio connector: | Yes |
| Built-in display: | No |
| Bulk box width (external): | 232 mm |
| Cable type: | Integrated |
| Cascading support: | No |
| Colour: | Black |
| Console connectors: | 1 x Microphone, 1 x USB keyboard port, 1 x USB mouse port, 1 x VGA port |
| Console ports: | VGA (D-Sub), USB A, 3.5mm headphone |
| Console usb ports quantity: | 2 |
| Dc input voltage: | 5 V |
| Ddc2b support: | Yes |
| Ddc2b support: | Yes |
| Depth: | 97.2 mm |
| Depth (mm): | 97.2 |
| Destiny: | Desktop |
| Dimensions: | 108 x 97 x 27 mm |
| Egress: | 1 pc VGA + 2 pcs. USB + 1 pc JACK |
| Entrance: | 4 pcs. VGA + 4 pcs. USB + 4 pcs. JACK |
| Equipment: | Does not have |
| Gross weight of main (external) enclosure: | 4.24 kg |
| Harmonized system (hs) code: | 85176200 |
| Hd type: | QXGA |
| Height: | 26 mm |
| Height (mm): | 25.4 |
| Height of reference box (external): | 283 mm |
| Hot keys: | Yes |
| Housing material: | Plastic |
| In bulk packaging net weight: | 2.9 kg |
| Input voltage: | 5 V |
| Interval between scans: | 1, 5, 99 sec |
| Keyboard port type: | USB |
| Led indicators: | Yes |
| Leds: | Yes |
| Main box length (outer): | 500 mm |
| Manual: | Yes |
| Master (outer) case gross weight: | 4.24 kg |
| Master (outer) case height: | 283 mm |
| Master (outer) case length: | 500 mm |
| Master (outer) case net weight: | 2.9 kg |
| Master (outer) case width: | 232 mm |
| Material of manufacture: | Plastic |
| Maximum image resolution: | 2048 x 1536 |
| Maximum resolution: | 2048 x 1536 pixels |
| Mouse port type: | USB |
| Number of computers: | 4 |
| Number of computers controlled: | 4 |
| Number of console usb ports: | 2 |
| Number of supported computers: | 4 |
| Operating humidity range (%): | 0 - 80 |
| Operating relative humidity (h-h): | 0 - 80% |
| Operating temperature (t-t): | 0 - 50 °C |
| Operating temperature range (deg. c): | 0-50 |
| Other connectors: | USB ATEN ASIC chip for advanced error correction |
| Other parameters: | Software upgradeable, Display Emulation Technology to automatically recognize the console monitor and optimize the resolution used, 0.9/1.8 m cables, Auto Scan support from 1 to 99 s with 5 sec interval |
| Package depth: | 265 mm |
| Package height: | 220 mm |
| Package weight: | 765 g |
| Package width: | 95 mm |
| Pc connectors: | 4 x Microphone, 4 x USB Type A port, 4 x VGA port |
| Pc selection method: | Button, Keyboard shortcut |
| Permissible relative humidity: | 0 - 80% |
| Possible input signal standards: | VGA, SVGA, XGA, SXGA, Multi-Sync Monitors |
| Power consumption: | 0.9 W |
| Power consumption (typical): | 0.9 W |
| Power source: | DC |
| Power source: | DC |
| Power type: | Via the interface |
| Producer / brand: | ATHENS |
| Product colour: | Blue |
| Product depth: | 97.2 mm |
| Product height: | 26 mm |
| Product weight: | 580 g |
| Product width: | 94.1 mm |
| Products in the main (outer) case: | 5 pcs. |
| Products per master (outer) case: | 5 pc(s) |
| Quick installation guide: | Yes |
| Quick start guide: | Yes |
| Relative humidity range: | 0 - 80% |
| Scales: | 0.57 kg |
| Scan interval: | 1, 5, 99 s |
| Storage relative humidity (h-h): | 0 - 80% |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported operating systems: | Linux, Mac OS, Windows, Windows 7, Sun |
| Supported resolutions: | .max. 2048 x 1536 px |
| Technologies: | Video DynaSync |
| Temperature range (operation): | 0 - 50 °C |
| Temperature range (storage): | -20 - 60 °C |
| Type hd: | QXGA |
| Usb 2.0 hub ports quantity: | 4 |
| Usb 2.0 type-a hub ports quantity: | 4 |
| User's guide: | Yes |
| Vga (d-sub) ports quantity: | 4 |
| Vga ports quantity (d-sub): | 4 |
| Video port type: | VGA |
| Video port type: | VGA |
| Warranty: | 2 years |
| Weight: | 580 g |
| Weight (g): | 770 |
| Weight with packaging: | 765 g |
| Width: | 94.1 mm |
| Width (mm): | 109 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
