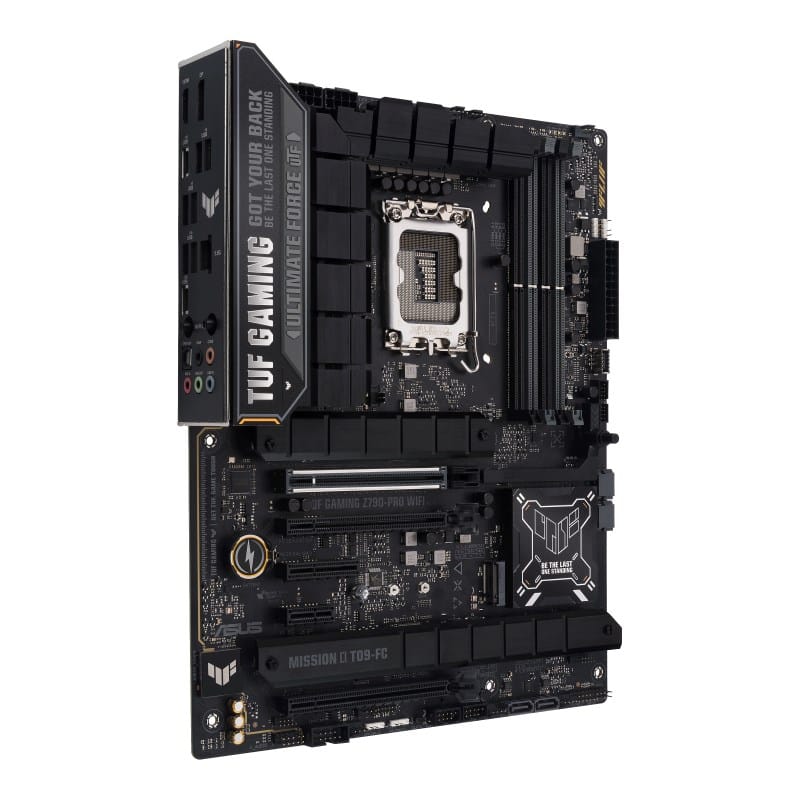

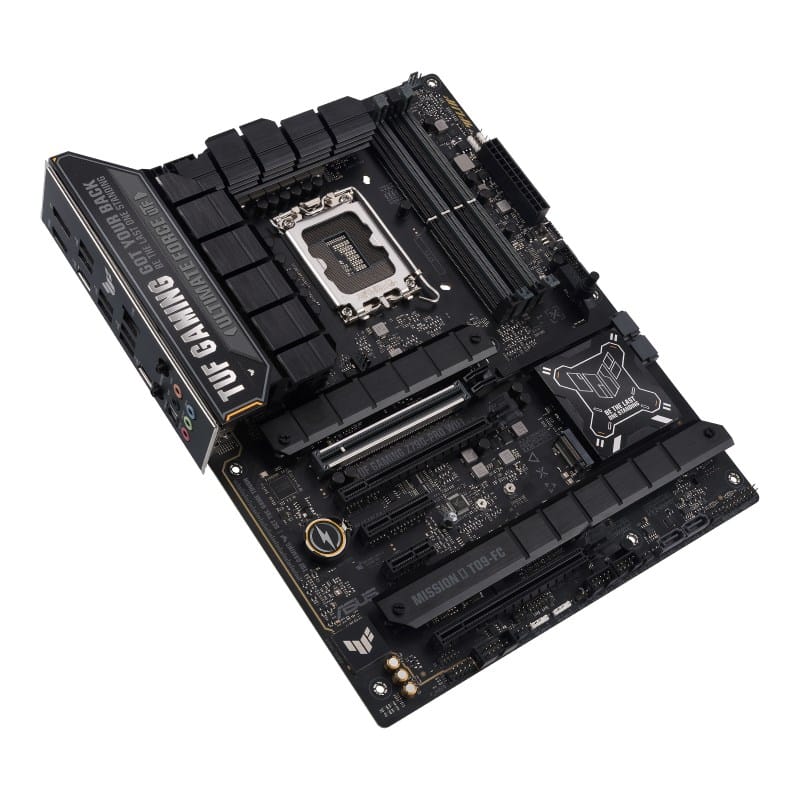

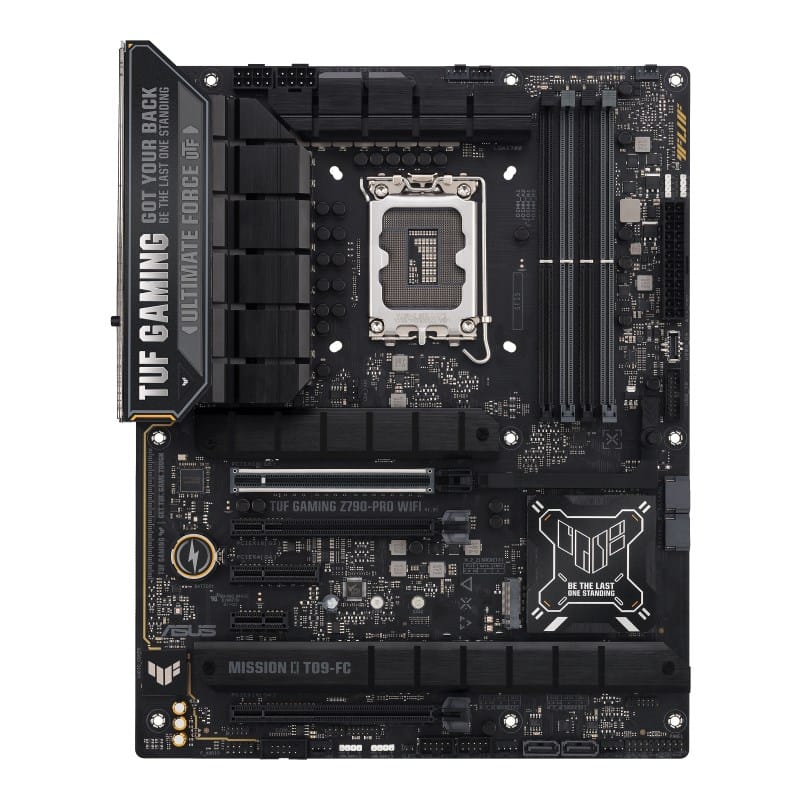

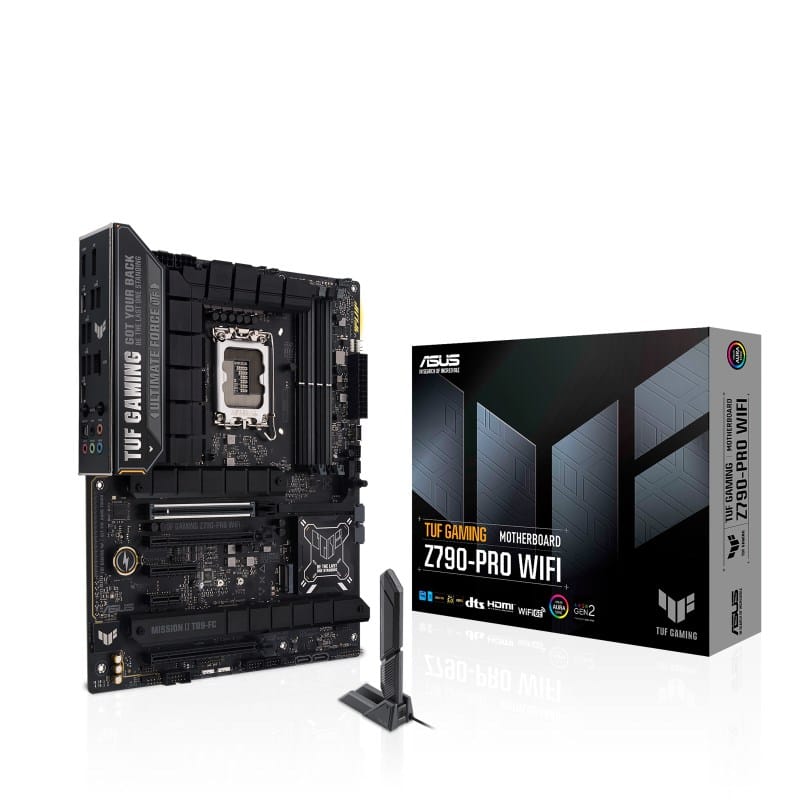

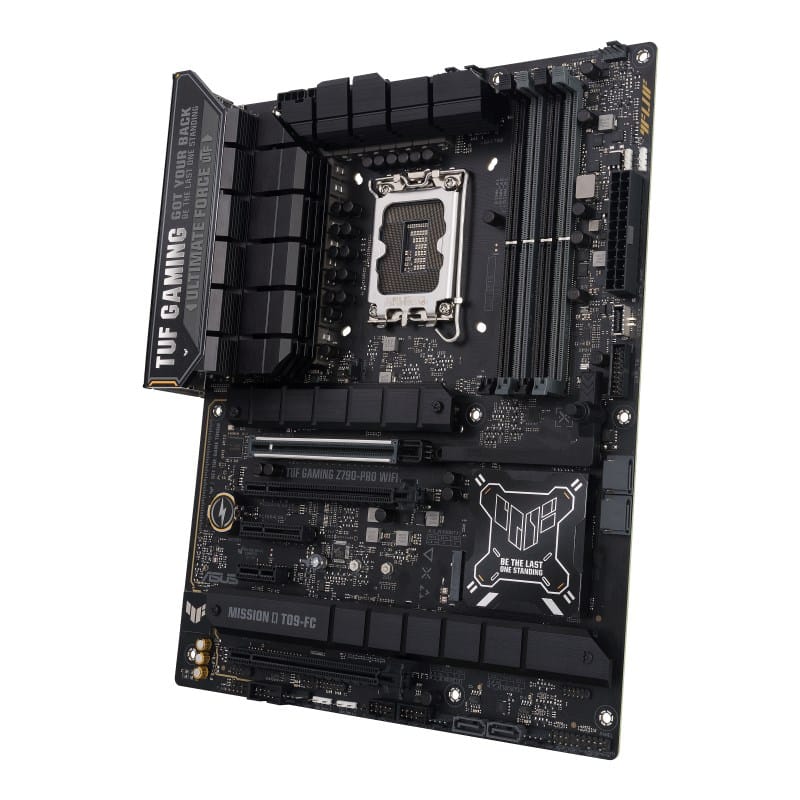

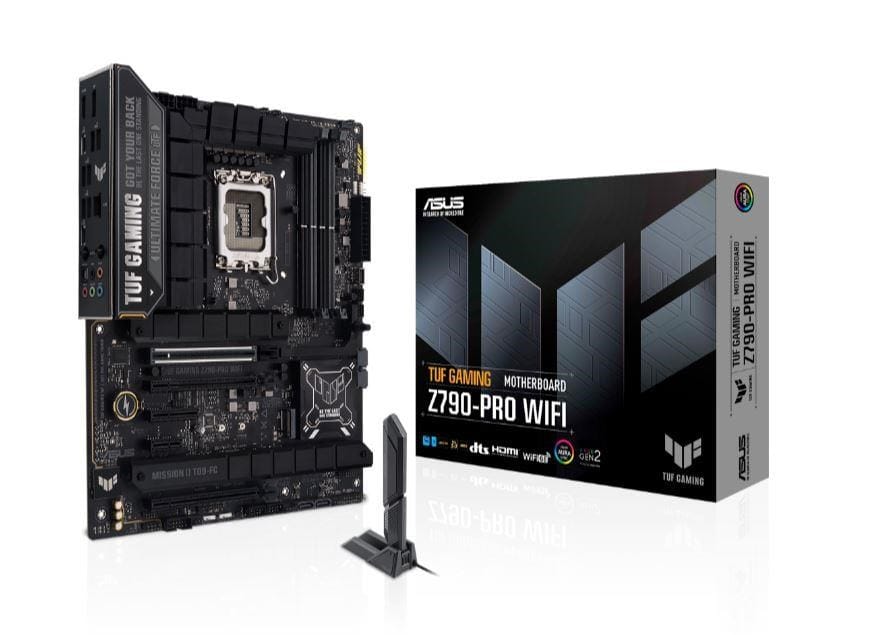

ASUS TUF Gaming Z790-PRO Intel Z790 LGA 1700 ATX
€402.20
Shipping from warehouse: M7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- 90MB1FJ0-M0EAY0 / 4711387340844
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek S1220A |
| Audio output channels: | 7.1 channels |
| Bios memory size: | 192 Mbit |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.2 |
| Cables included: | SATA |
| Clear cmos button: | Yes |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron® |
| Component for: | PC |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Maximum internal memory: | 192 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel Z790 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Non-ecc: | Non-ECC |
| Number of chassis fan connectors: | 4 |
| Number of m.2 (m) slots: | 4 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Package depth: | 275 mm |
| Package height: | 70 mm |
| Package weight: | 2.14 kg |
| Package width: | 340 mm |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 3.x) slots: | 2 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Pci express x16 (gen 5.x) slots: | 1 |
| Pci express x4 (gen 4.x) slots: | 1 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | LGA 1700 |
| Raid levels: | 10, 1, 5, 0 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Supported memory clock speed (max): | 7800 MHz |
| Supported memory clock speeds: | 4500, 2933, 3600, 5133, 3333, 4600, 3200 MHz, 2666, 4266, 3400, 3866, 3466, 2400, 2800, 4700, 5066, 3733, 4400 MHz, 5000, 2133, 3000, 5333, 4133, 4000, 4800 MHz |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| User guide: | Yes |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g |
| Width: | 305 mm |
| Wifi-ap antenna jack: | 2 |
| Windows operating systems supported: | Windows 11, Windows 10 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
