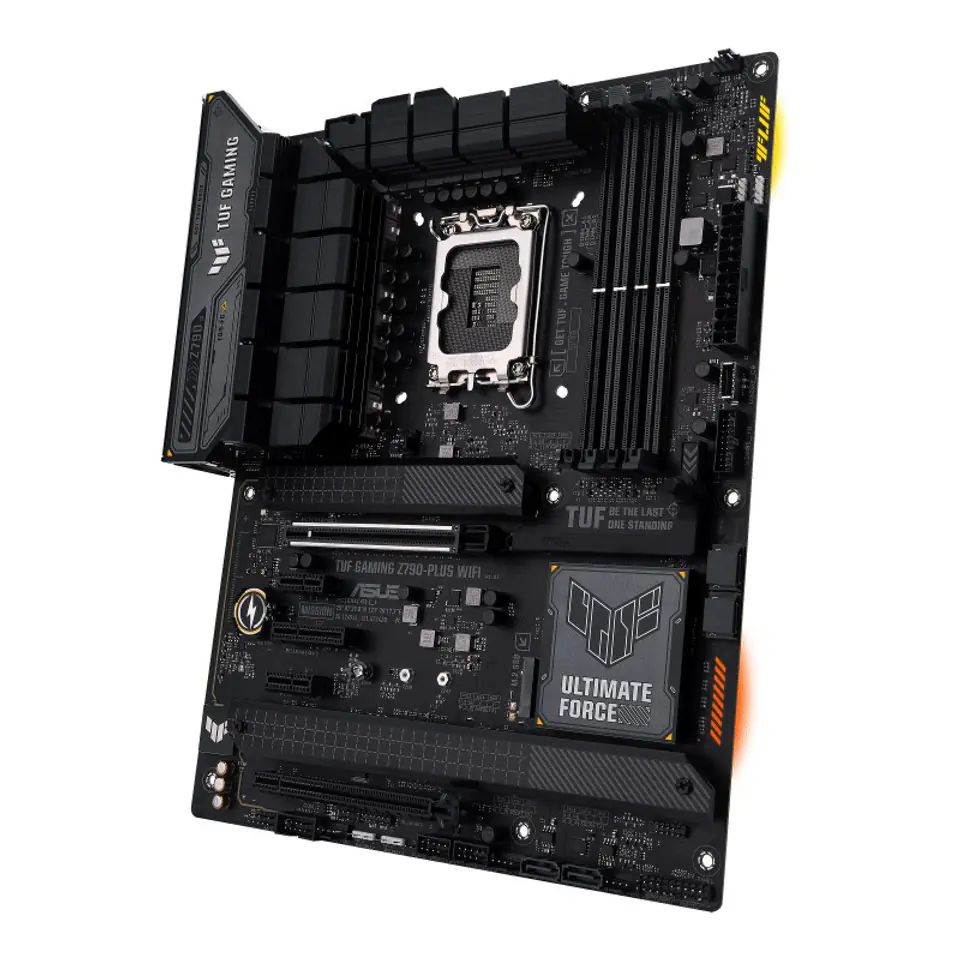

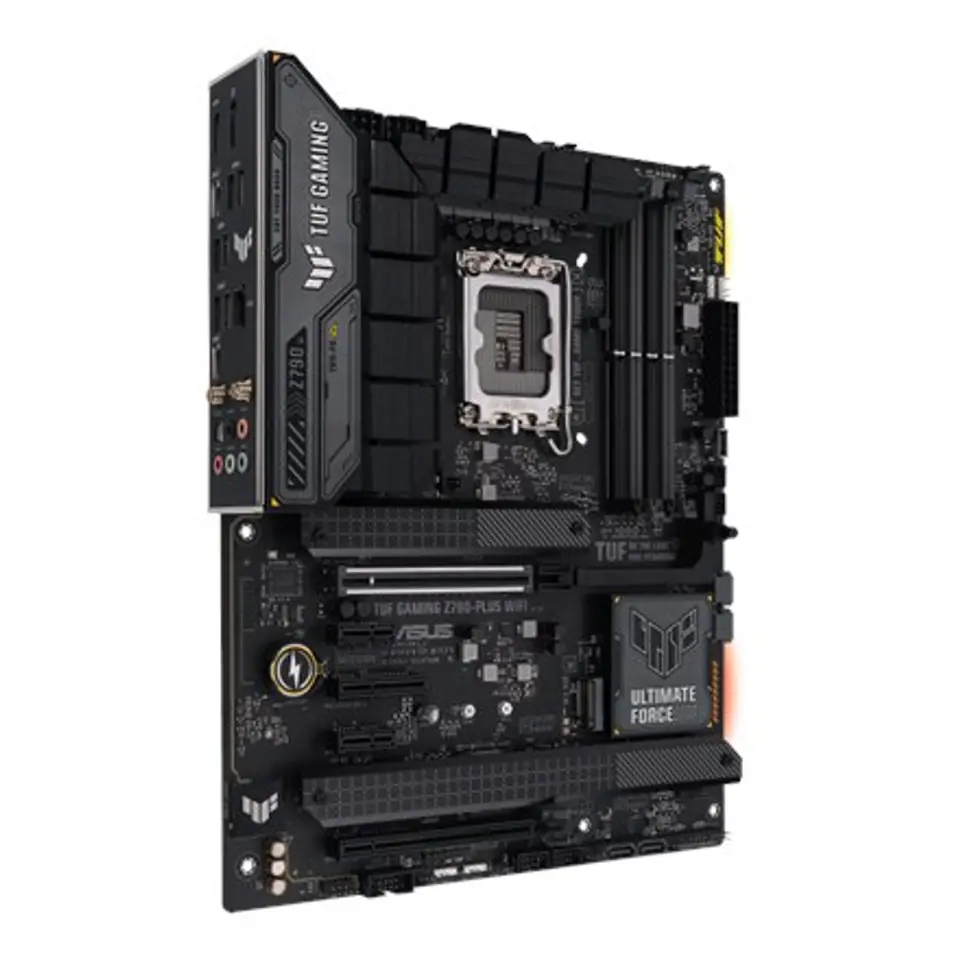

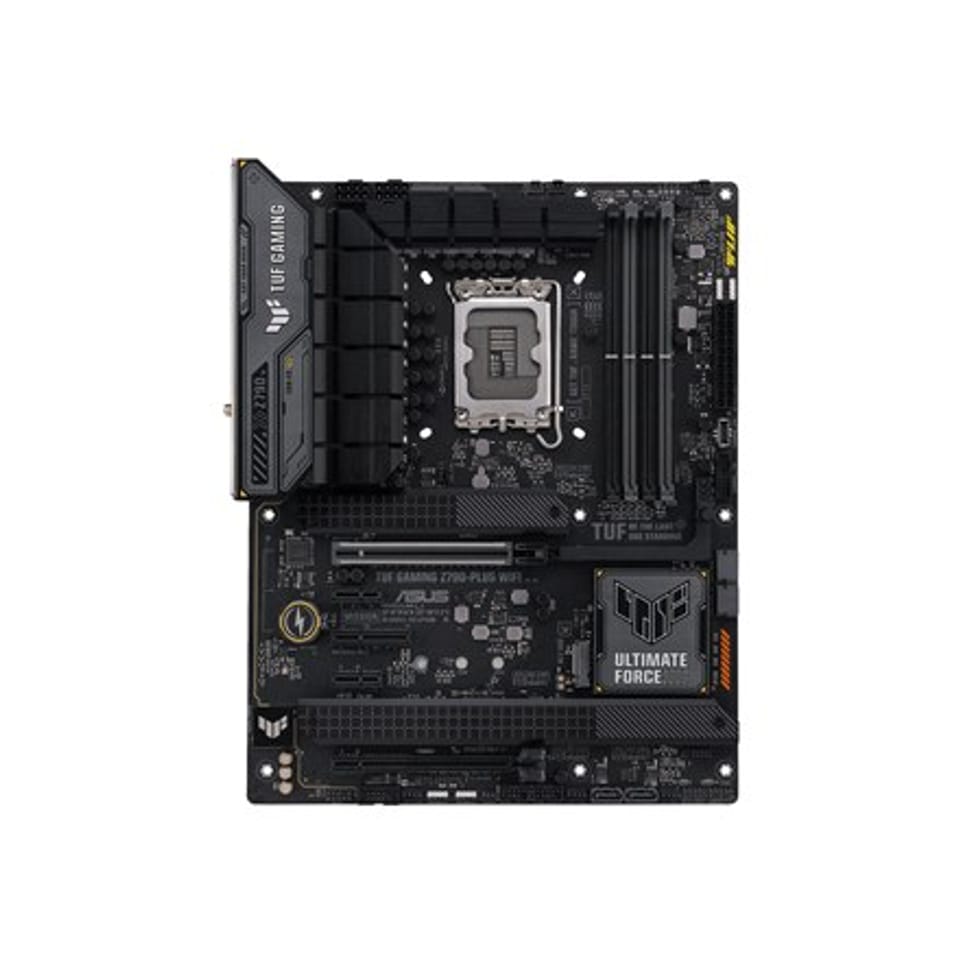

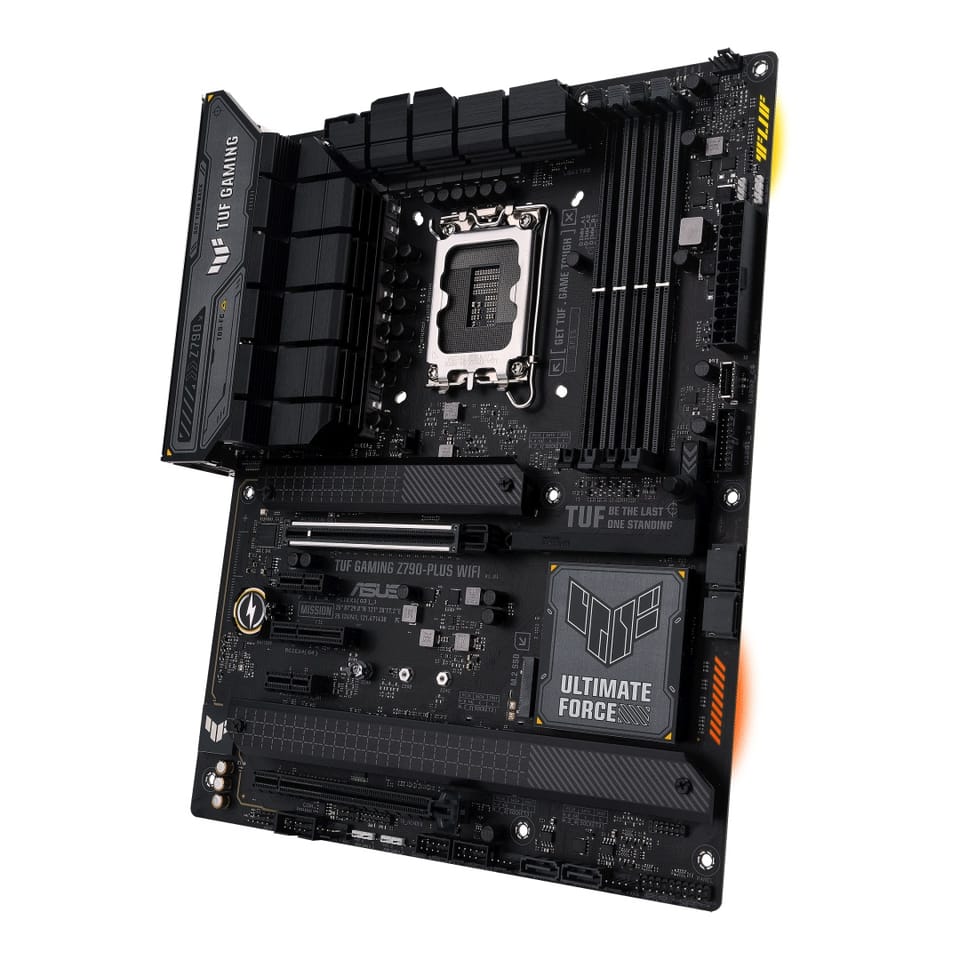

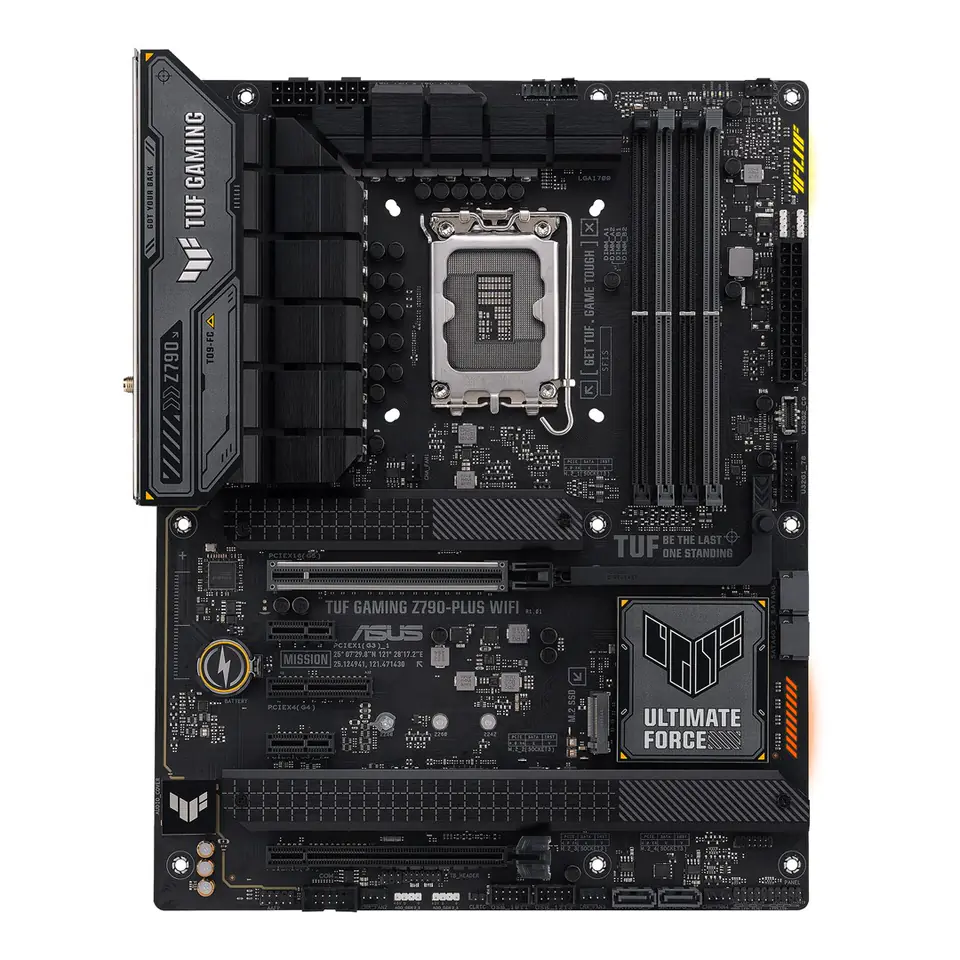

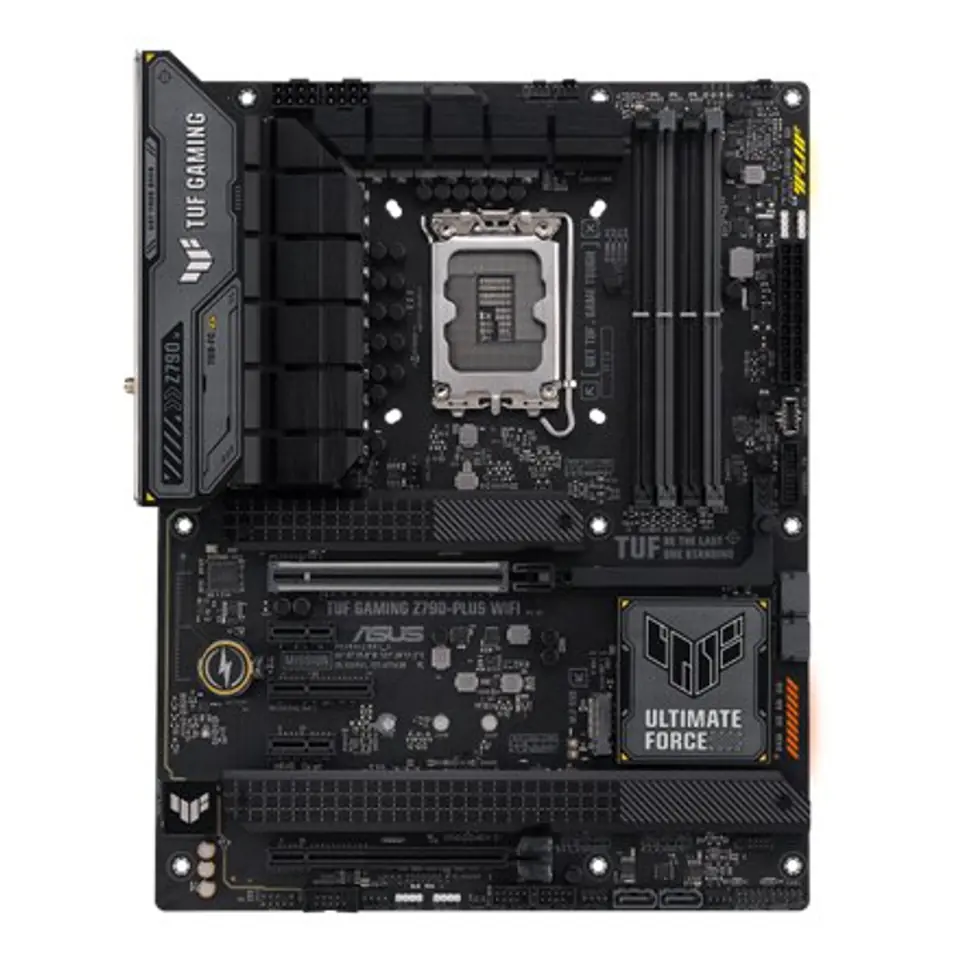

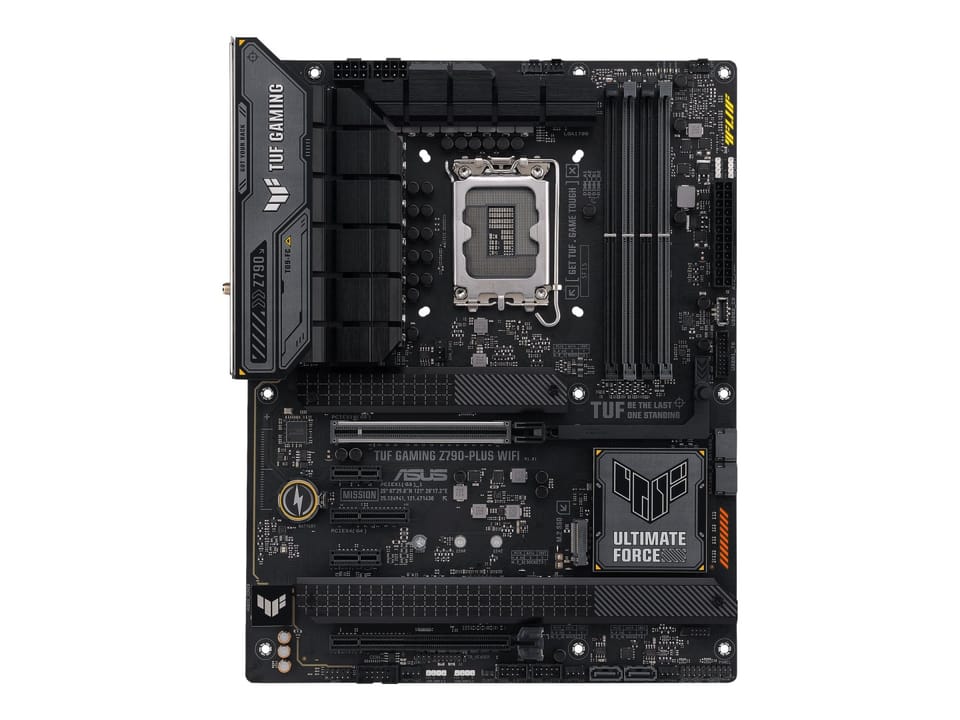

ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX

€356.00
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
running out
Brand:
Asus
Product code:
90MB1D80-M0EAY0 / 4711387014509

Specification

12v power connector:Yes
Atx power connector (24-pin):Yes
Audio chip:Realtek S1220A
Audio output channels:7.1 channels
Bios memory size:192 Mbit
Bios type:UEFI AMI
Bluetooth:Yes
Bluetooth version:5.3
Cables included:SATA
Compatible processor series:Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Component for:PC
Cpu fan connector:Yes
Depth:244 mm
Displayport version:1.4
Displayports quantity:1
Eps power connector (8-pin):Yes
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Hdmi ports quantity:1
Hdmi version:2.1
Headphone outputs:1
Line-in:Yes
Maximum internal memory:128 GB
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset:Intel Z790
Motherboard chipset family:Intel
Motherboard form factor:ATX
Non-ecc:Non-ECC
Number of chassis fan connectors:4
Number of com connectors:1
Number of m.2 (m) slots:4
Number of memory slots:4
Number of sata iii connectors:4
On-board graphics card:No
Parallel processing technology support:Not supported
Pci express x1 (gen 3.x) slots:2
Pci express x16 (gen 4.x) slots:1
Pci express x16 (gen 5.x) slots:1
Pci express x4 (gen 4.x) slots:1
Power source type:ATX
Processor manufacturer:Intel
Processor socket:LGA 1700
Product colour:Black
Raid levels:5, 10, 0, 1
Raid support:Yes
Rgb led pin header:Yes
S/pdif out port:Yes
Supported memory clock speed (max):7200 MHz
Supported memory clock speeds:6000, 5000, 4800, 6600, 6800, 6200, 5800, 5400, 6400, 5200, 7000, 5600, 7200
Supported memory types:DDR5-SDRAM
Supported processor sockets:LGA 1700
Supported storage drive interfaces:M.2, SATA III
Supported storage drive types:HDD & SSD
Thunderbolt headers:1
Top wi-fi standard:Wi-Fi 6 (802.11ax)
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:4
Usb 3.2 gen 2 (3.1 gen 2) connectors:1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:2
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:1
Usb 3.2 gen 2x2 type-c ports quantity:1
User guide:Yes
Wi-fi:Yes
Wi-fi standards:802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac)
Width:305 mm
Wifi-ap antenna jack:2
Windows operating systems supported:Windows 10, Windows 11

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
