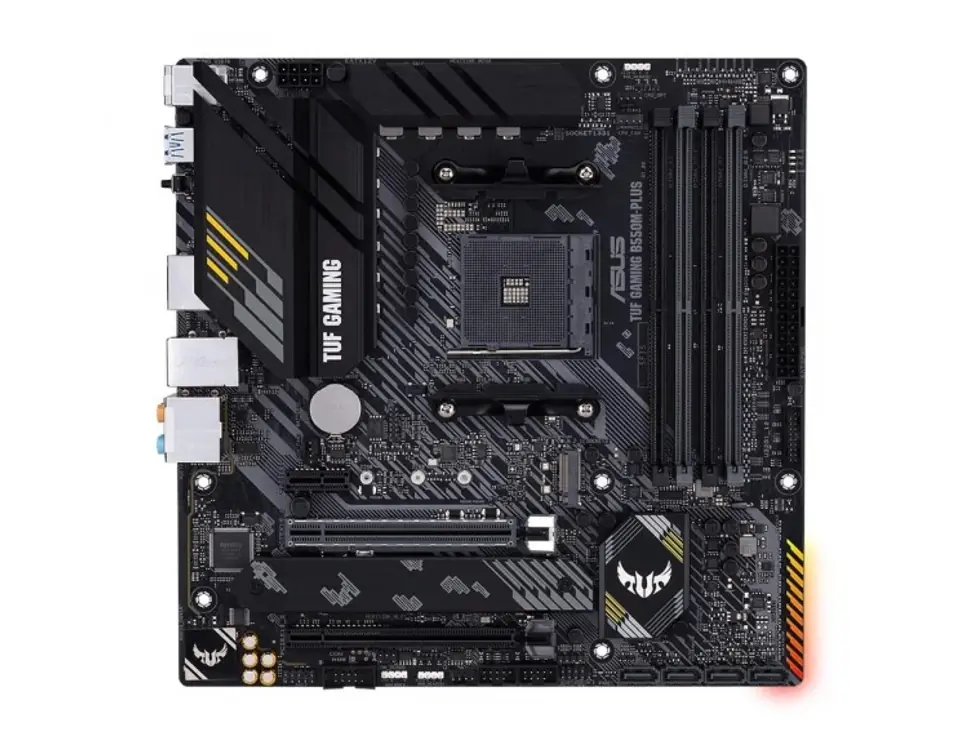

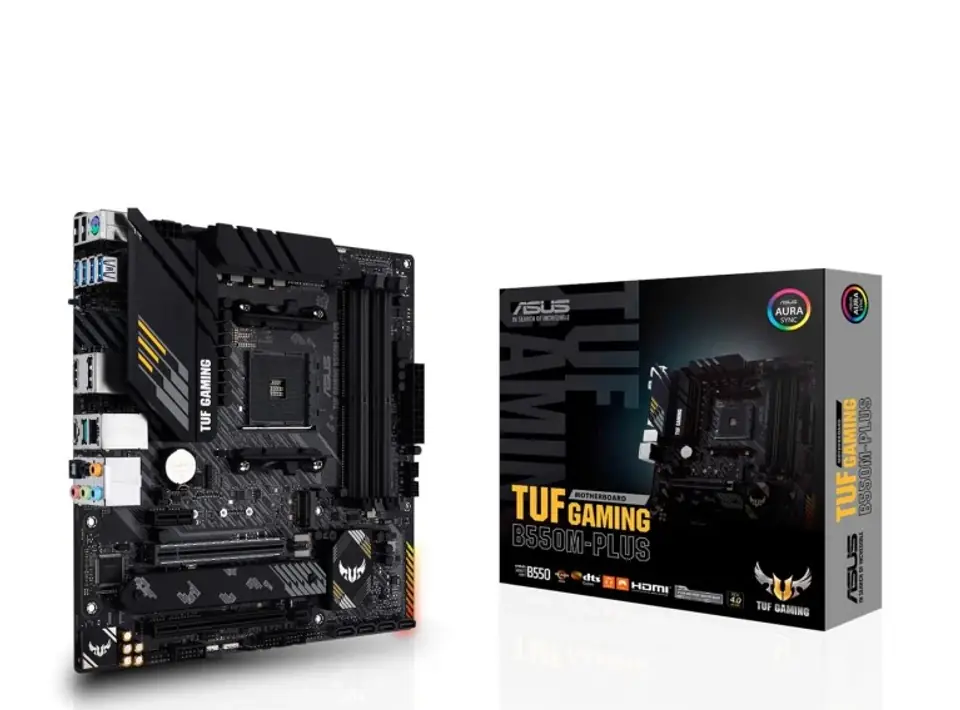

ASUS TUF GAMING B550M-PLUS Socket AM4 mATX
€192.14
Shipping from warehouse: M7
Estimated shipping: Mon, Dec 30 - Tue, Dec 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- 4718017603652
Share this product:
Specification
| Audio chipset: | Realtek ALC S1200A |
|---|---|
| Back panel connectors: | 1x DisplayPort, 1x RJ-45, 1x HDMI, 1x S/PDIF, 2x USB 2.0, 1x USB BIOS Flashback, 4x USB 3.2 |
| Bios: | AMI UEFI |
| Bios rom (mb): | 256 |
| Built-in raid controller: | RAID 0, RAID 1, RAID 10 |
| Card linking support: | 2-Way CrossFireX |
| Chipset type: | AMD B550 |
| Compatibility: | The current list of supported processors and memory can be found on the manufacturer's website (CPU/Memory Support list) |
| Depth (mm): | 244 |
| Drive connectors: | 6x SATA III, 2x M.2 Slot |
| Equipment: | Software |
| Expansion slots: | 1x PCI Express 3.0 x16 (x4), 3x PCI Express 3.0 x1, 1x PCIe 4.0 x16 |
| External audio connectors: | 5x Audio |
| Graphics chipset: | CPU dependent |
| Graphics memory: | Shared with RAM |
| Integrated graphics: | CPU dependent |
| Integrated network adapter: | 10/100/1000/2500 |
| Internal connectors: | 2x USB 2.0, 2x Chassis Fan, EATX 24P, COM Port, CPU Fan, CPU OPT Fan, AAFP, Clear CMOS, EATX 12 8P, 1x Panel System, 1x Speaker Connector, 2x Aura RGB Strip Headers, 1x USB 3.2, 1x SPI TPM Header |
| Line: | TUFF |
| Maximum memory (gb): | 128 |
| Maximum number of processors: | 1 |
| Memory bus frequencies (mhz): | 2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4400, 4266, 4133, 4600 |
| Modem: | no |
| Multi-channel memory support: | Dual-Chanel |
| Network adapter chipset: | Realtek 8125B |
| Number of memory slots: | 4 |
| Other parameters: | Support High Definition Audio, WOL by PXE |
| Plate standard: | MATX |
| Processor manufacturer: | AMD |
| Socket type: | Socket AM4 |
| Sound technologies: | HD Audio |
| Supported channels: | 7.1 |
| Supported memory: | DDR4 |
| Supported processors: | Ryzen 3rd Generation |
| Technologies: | SATA |
| Type of packaging: | BOX |
| Warranty: | 3 years |
| Width (mm): | 244 |
| Wireless support: | no |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
