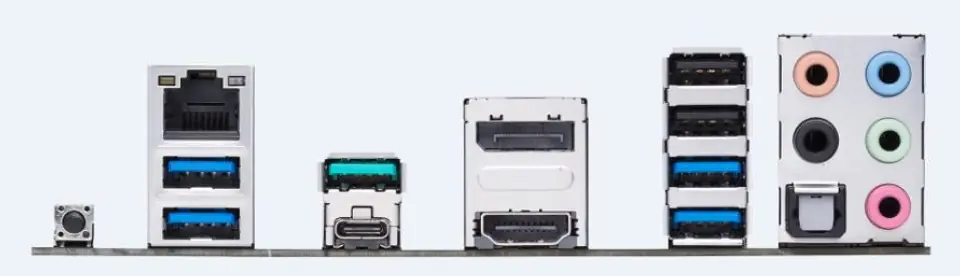

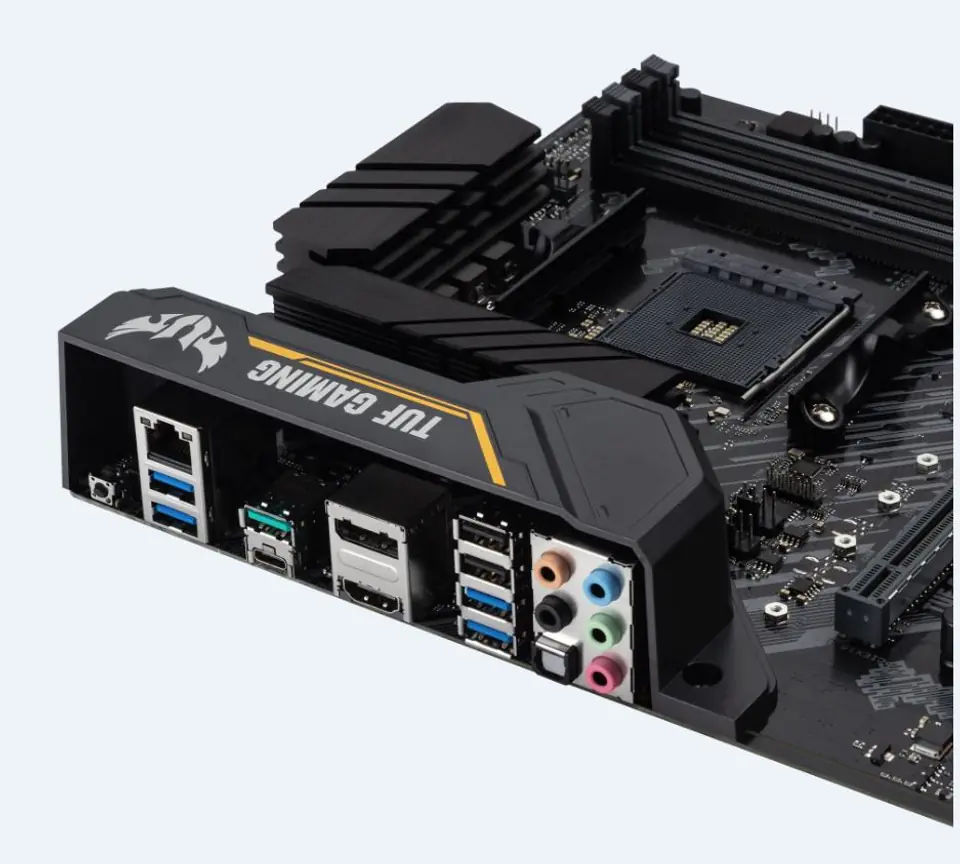

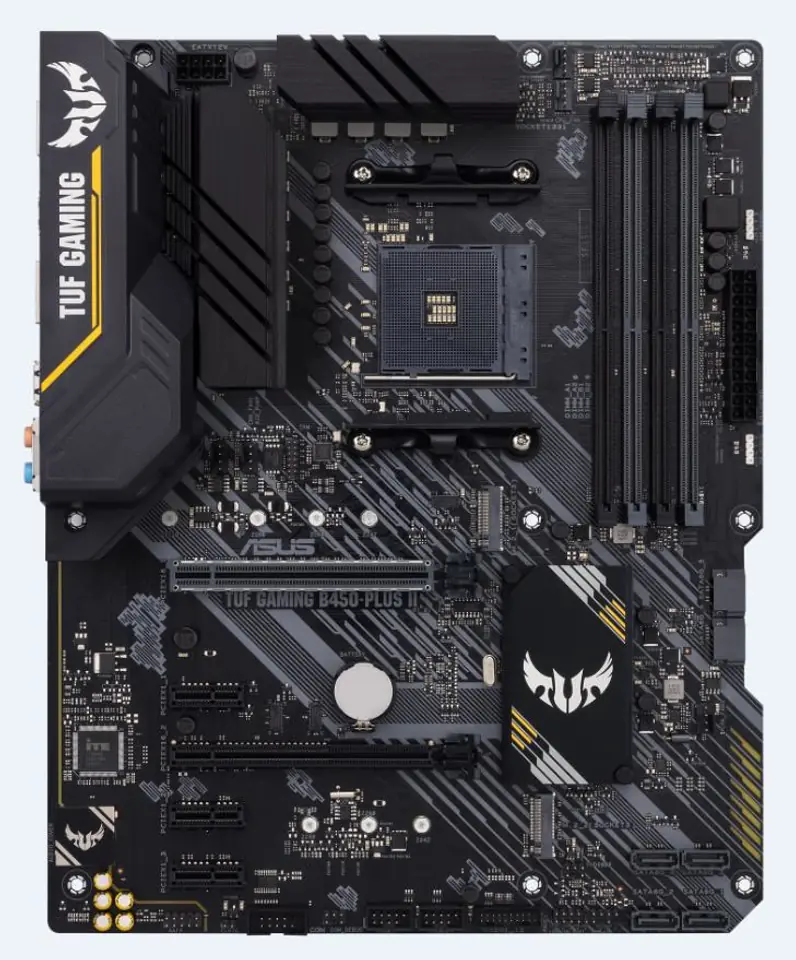

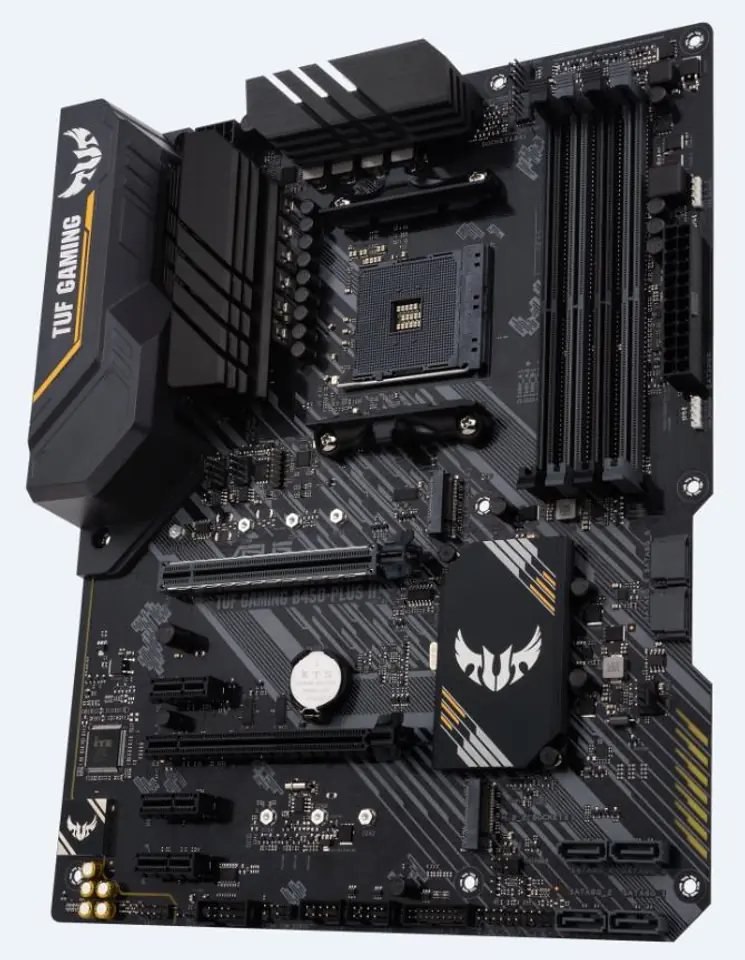

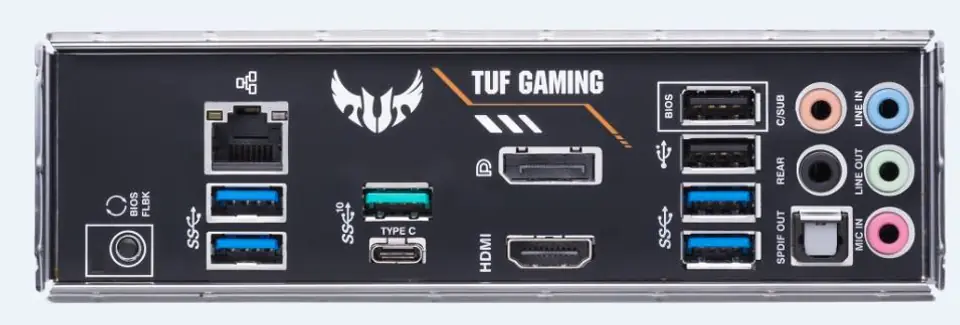

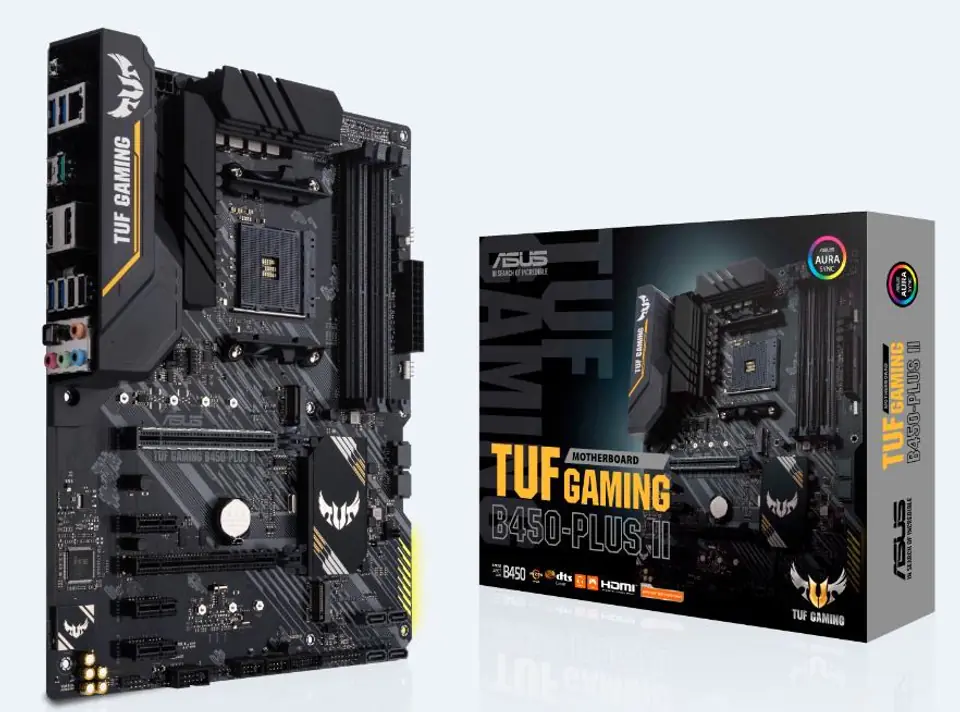

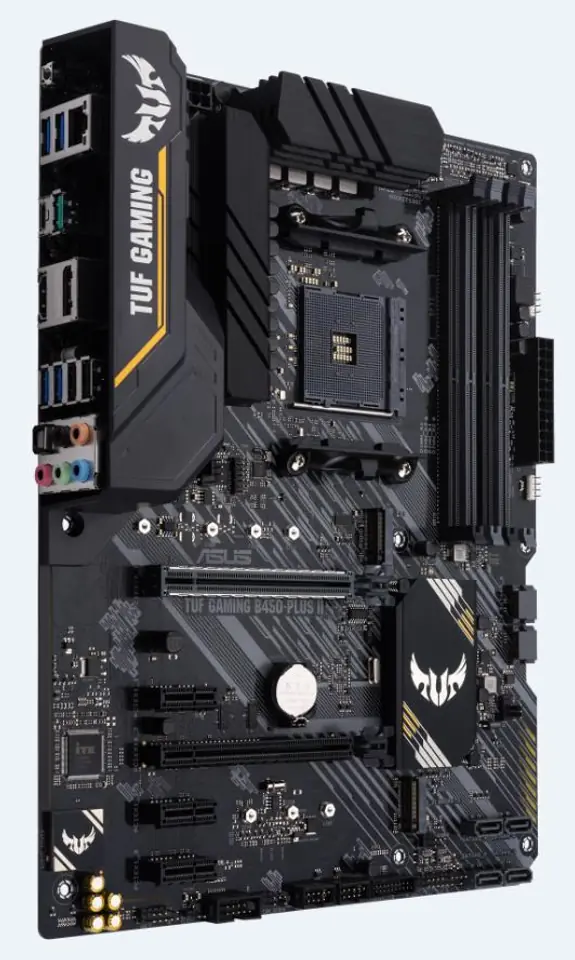

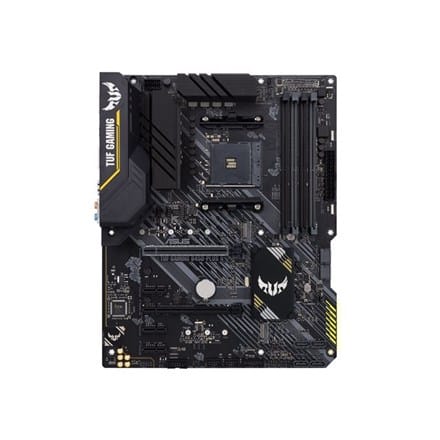

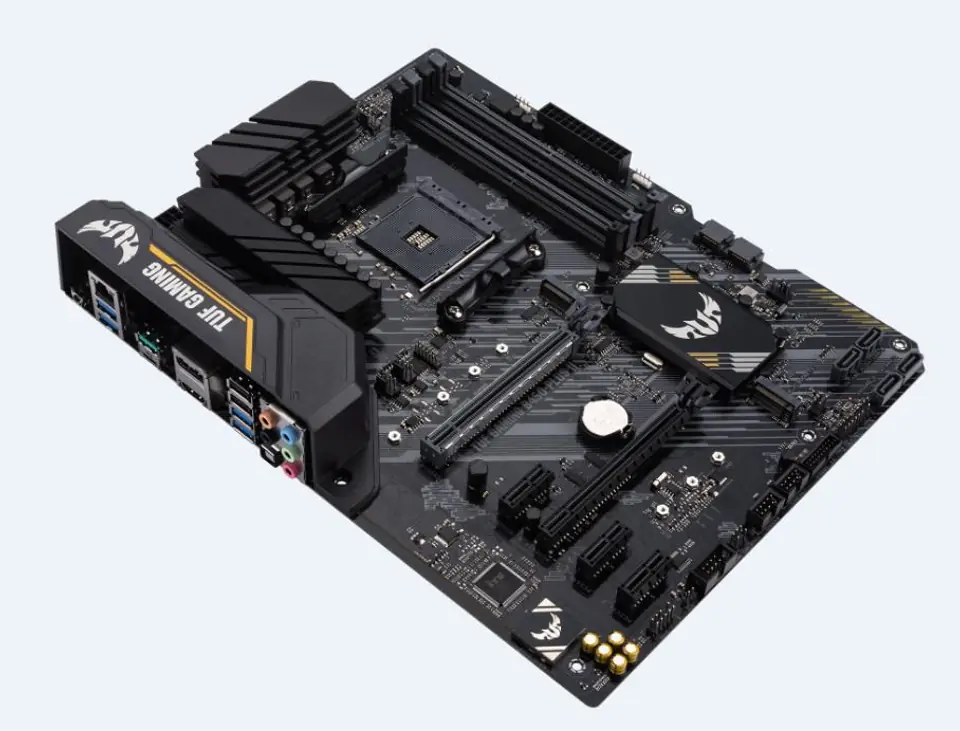

ASUS TUF GAMING B450-PLUS II AMD B450 Socket AM4 ATX
€125.68
Shipping from warehouse: A3
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90MB1650-M0EAY0 / 4718017957489
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC S1200A |
| Audio connector: | Yes |
| Audio output channels: | 8 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Clear cmos jumper: | Yes |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen 5 |
| Cooling type: | Active |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.2 |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.0b |
| Lan controller: | Realtek L8200A |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD B450 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 2 |
| Number of com connectors: | 1 |
| Number of eatx power connectors: | 1 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 4 |
| Number of mounting holes: | 8 |
| Number of sata iii connectors: | 6 |
| Parallel processing technology support: | CrossFireX |
| Pci express x1 (gen 2.x) slots: | 3 |
| Pci express x16 (gen 3.x) slots: | 1 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Raid levels: | 1, 0, 10 |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speeds: | 2133, 3733, 4400 MHz, 3000, 3200 MHz, 2666, 3466, 3533 MHz, 3400, 3866, 4000, 3600, 2400, 2800 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, Serial ATA |
| Supported storage drive types: | HDD & SSD |
| Total number of sata connectors: | 6 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb connector type: | USB Type-C, USB Type-A |
| Wi-fi: | No |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 7 x64 |
