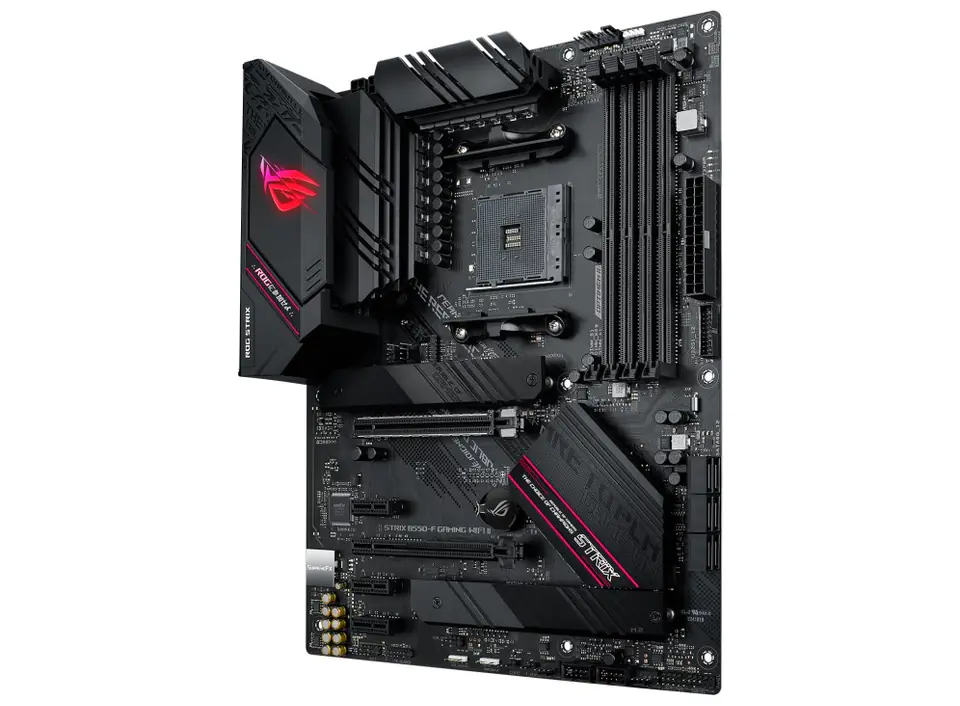

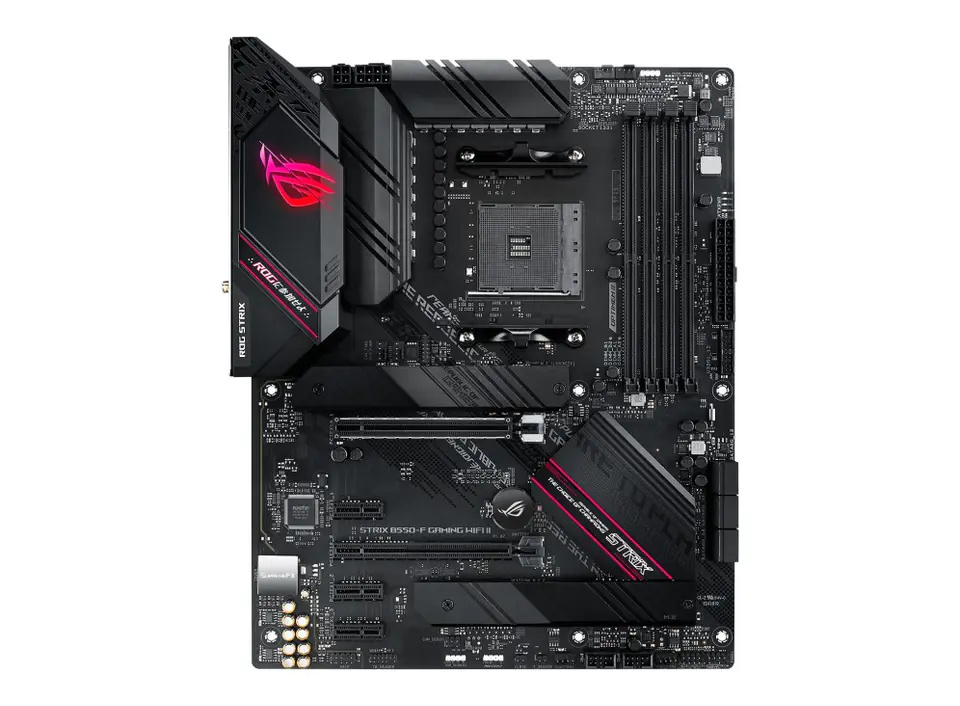

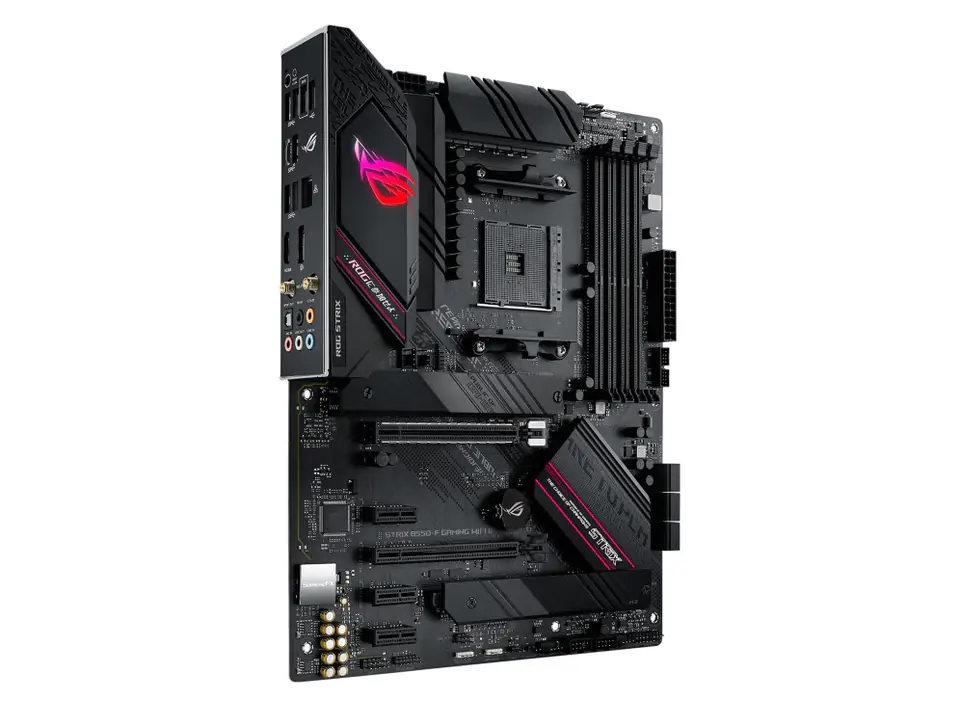

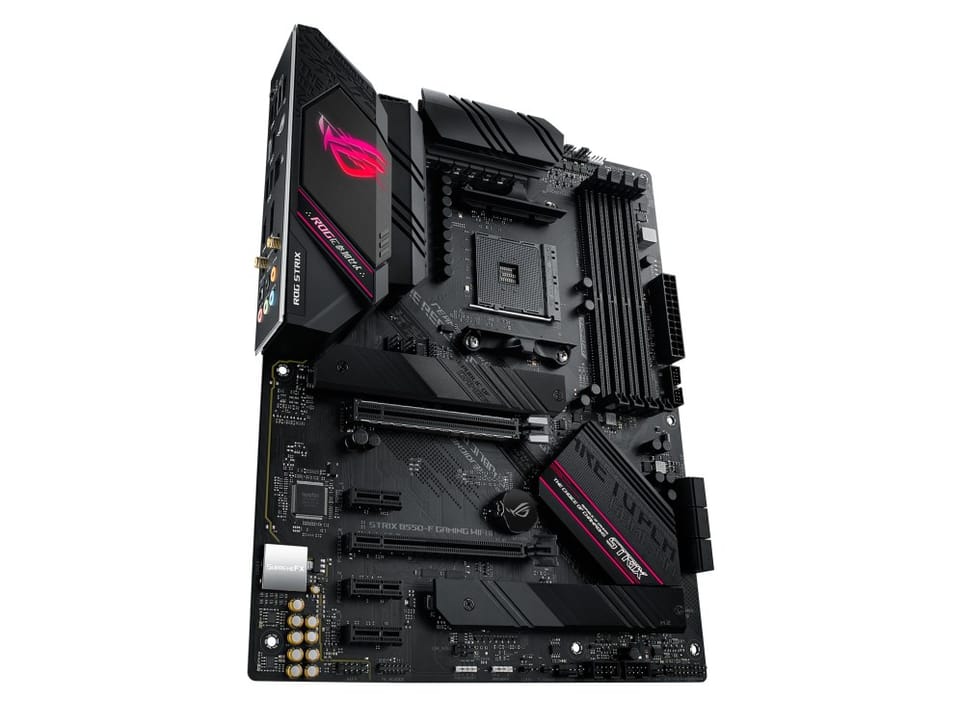

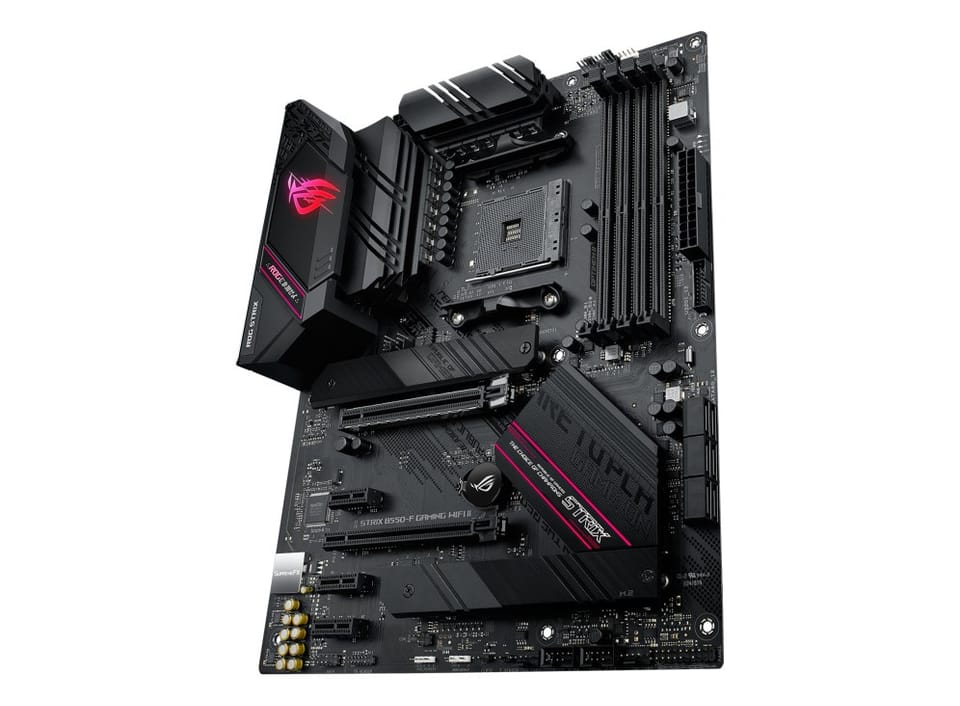

ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Socket AM4 ATX
€241.64
Shipping from warehouse: M7
Estimated shipping: Mon, Jul 8 - Thu, Jul 11
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- 90MB19V0-M0EAY0 / 4711081453314
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.2 |
| Cables included: | SATA |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 7 |
| Cooling type: | Active |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.2 |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Height: | 68 mm |
| Lan controller: | Intel I225-V |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD B550 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 3 |
| Number of eatx power connectors: | 1 |
| Number of hdds supported: | 6 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 6 |
| On-board graphics card: | No |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 3.x) slots: | 3 |
| Pci express x16 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Product colour: | Black |
| Raid levels: | 0, 10, 1 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Supported memory clock speeds: | 4600, 3600, 4400, 3200, 2666, 3866, 3000, 2400, 2800, 4133, 4000, 2133, 3466 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | Socket AM4 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Top wi-fi standard: | Wi-Fi 6 (802.11ax) |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Wake-on-lan ready: | Yes |
| Weight: | 945 g |
| Wi-fi: | Yes |
| Wi-fi standards: | Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), 802.11b |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 10 Home, Windows 10 Education x64, Windows 10, Windows 10 Pro, Windows 10 IoT Enterprise, Windows 10 Home x64, Windows 10 Enterprise, Windows 10 IOT Core, Windows 10 Pro x64, Windows 10 Enterprise x64, Windows 10 x64, Windows 10 Education |
