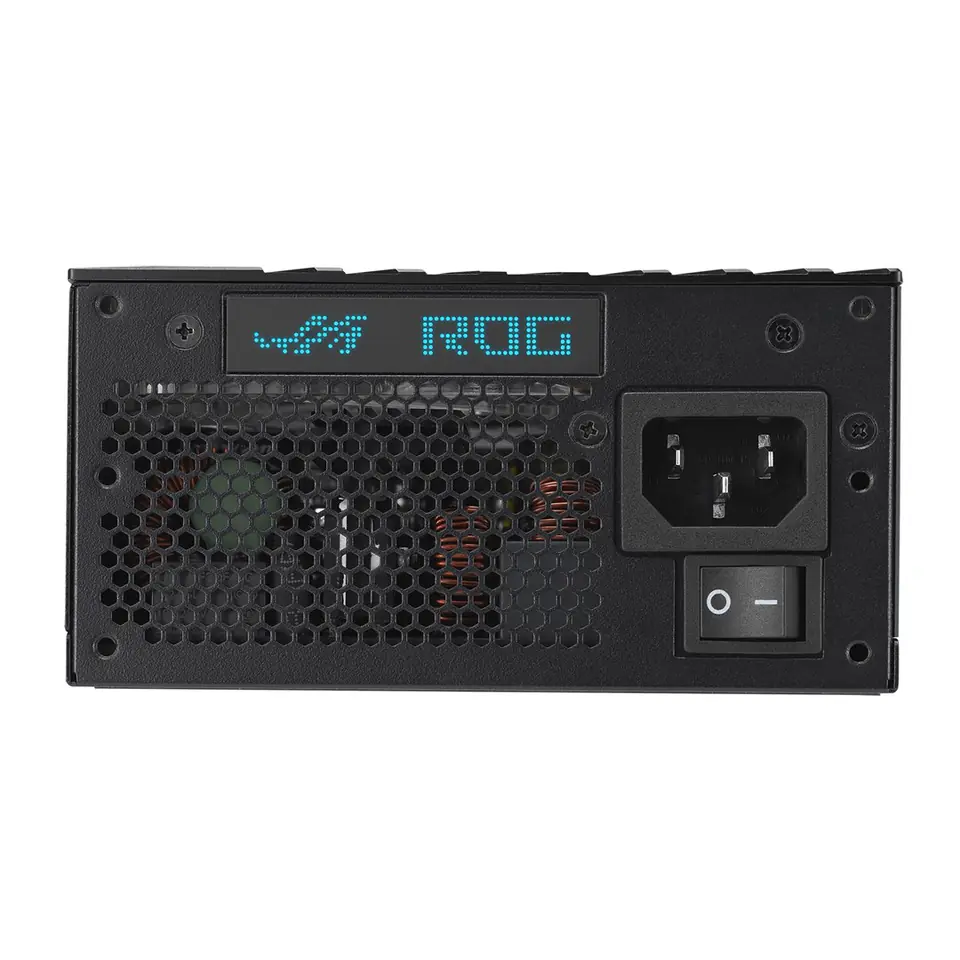

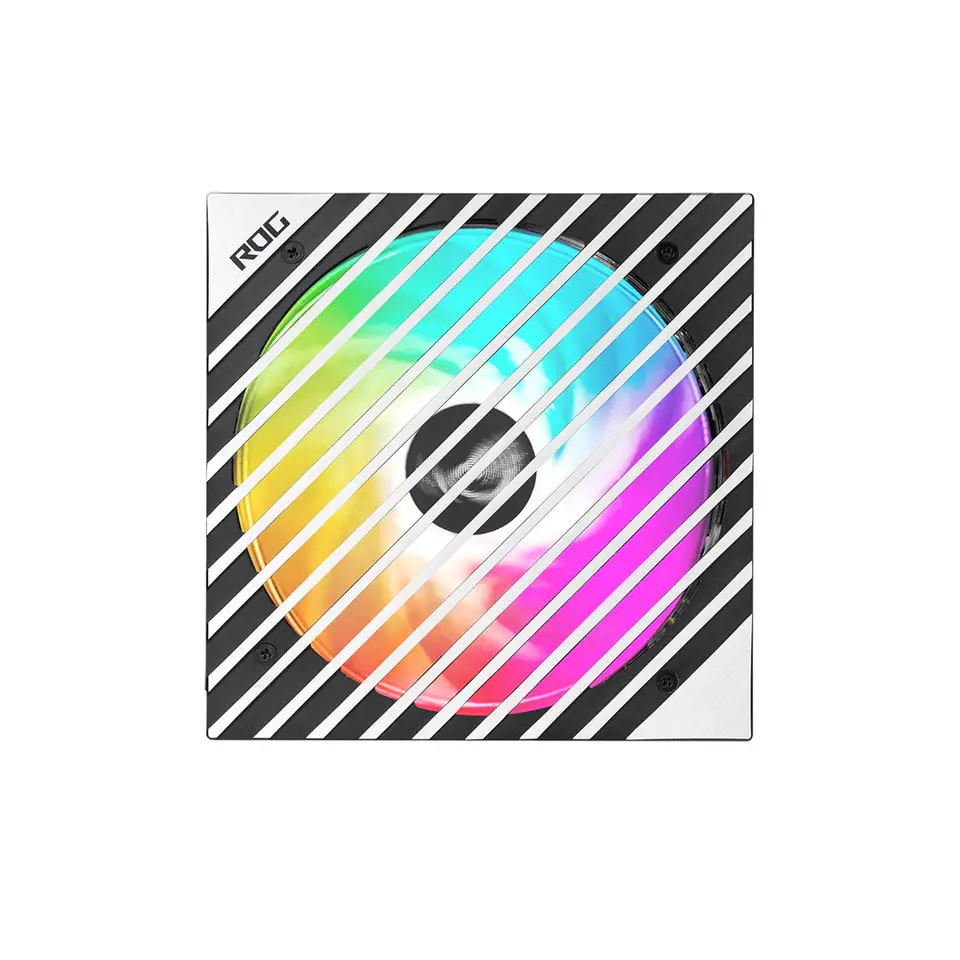

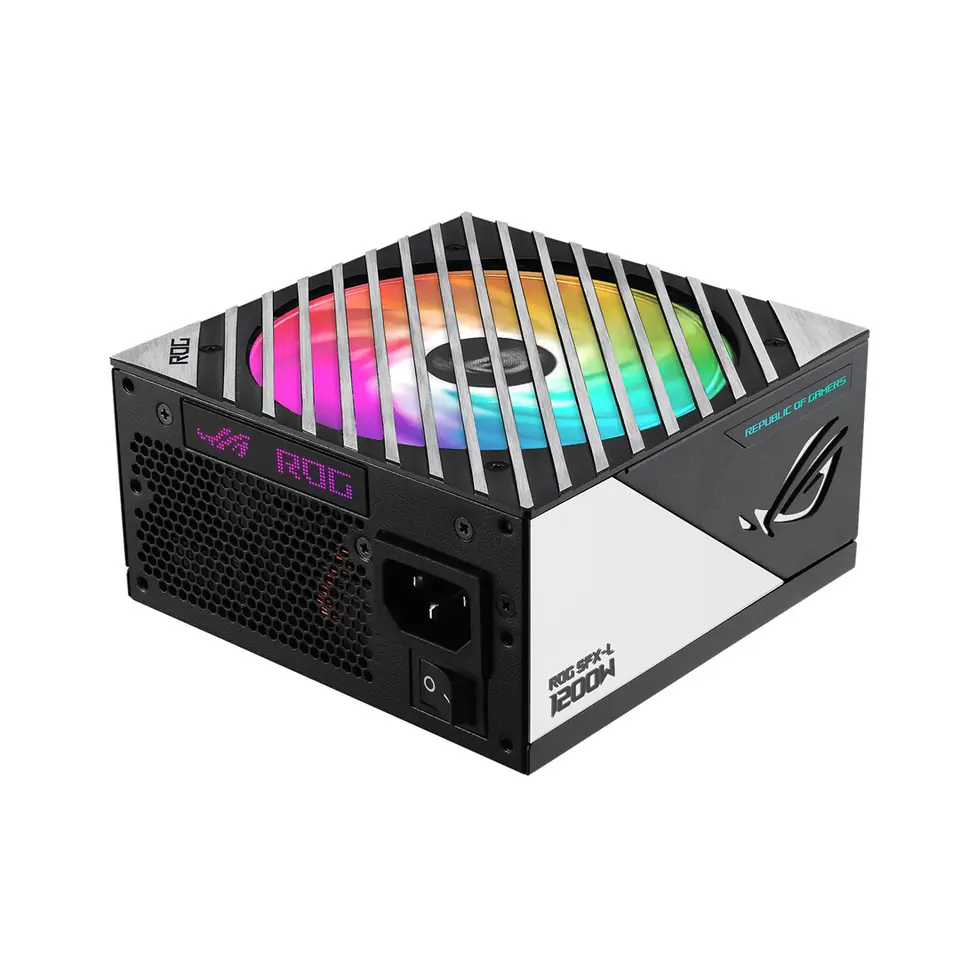

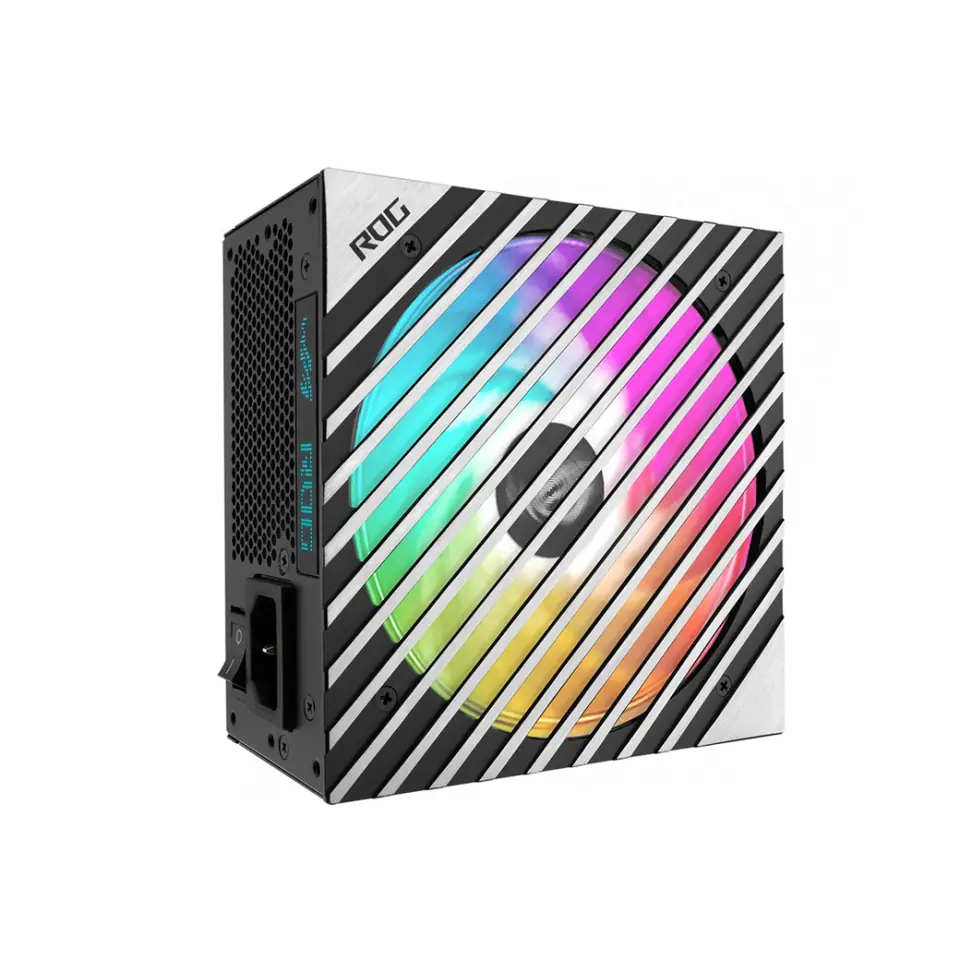

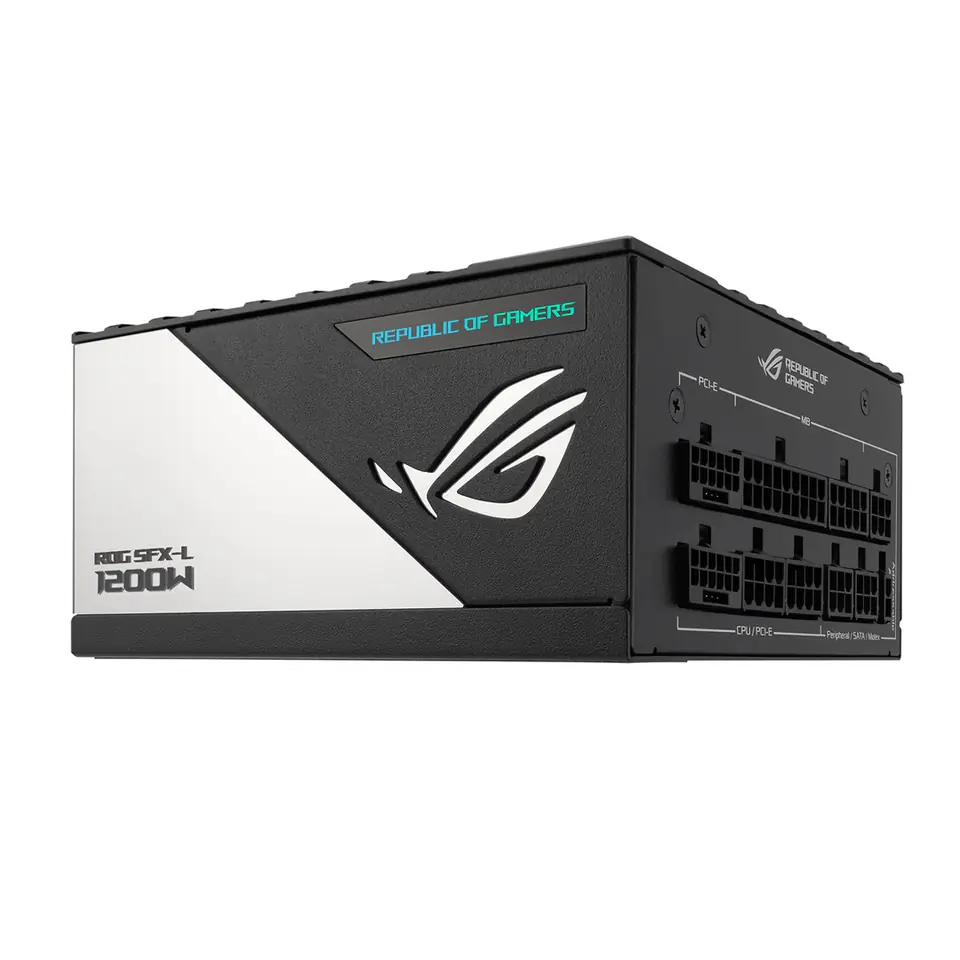

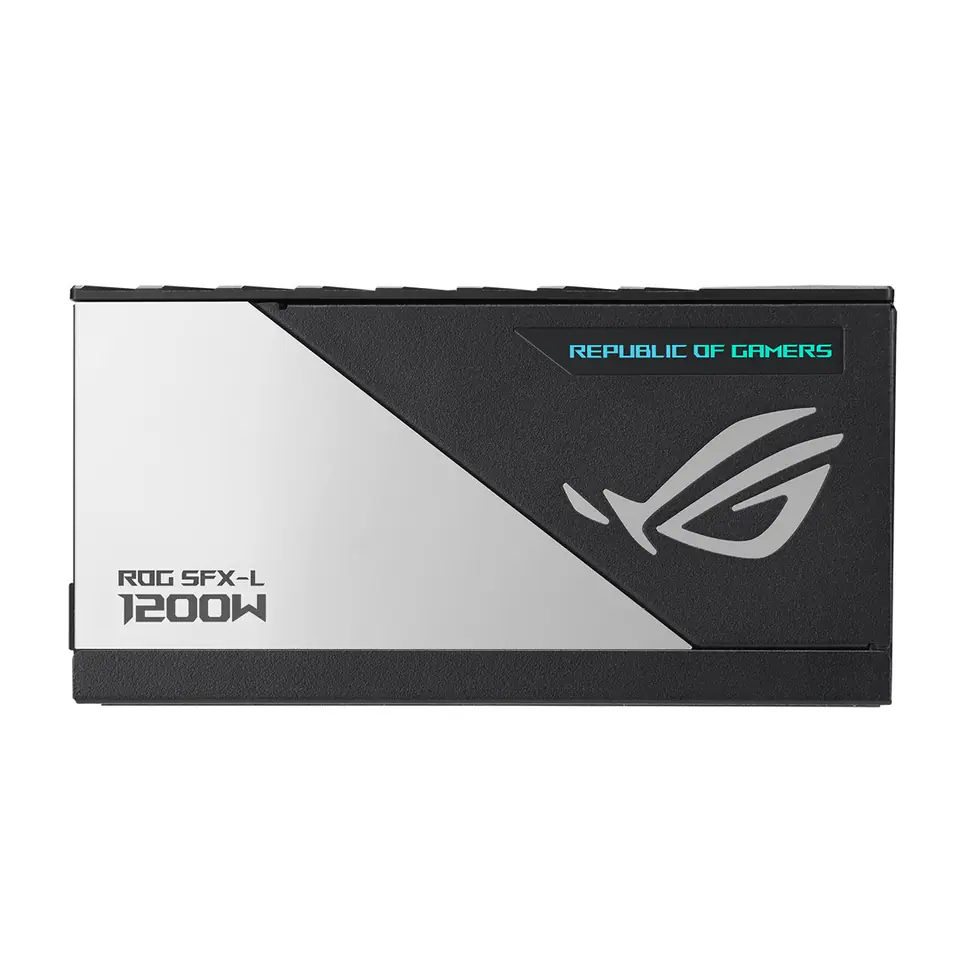

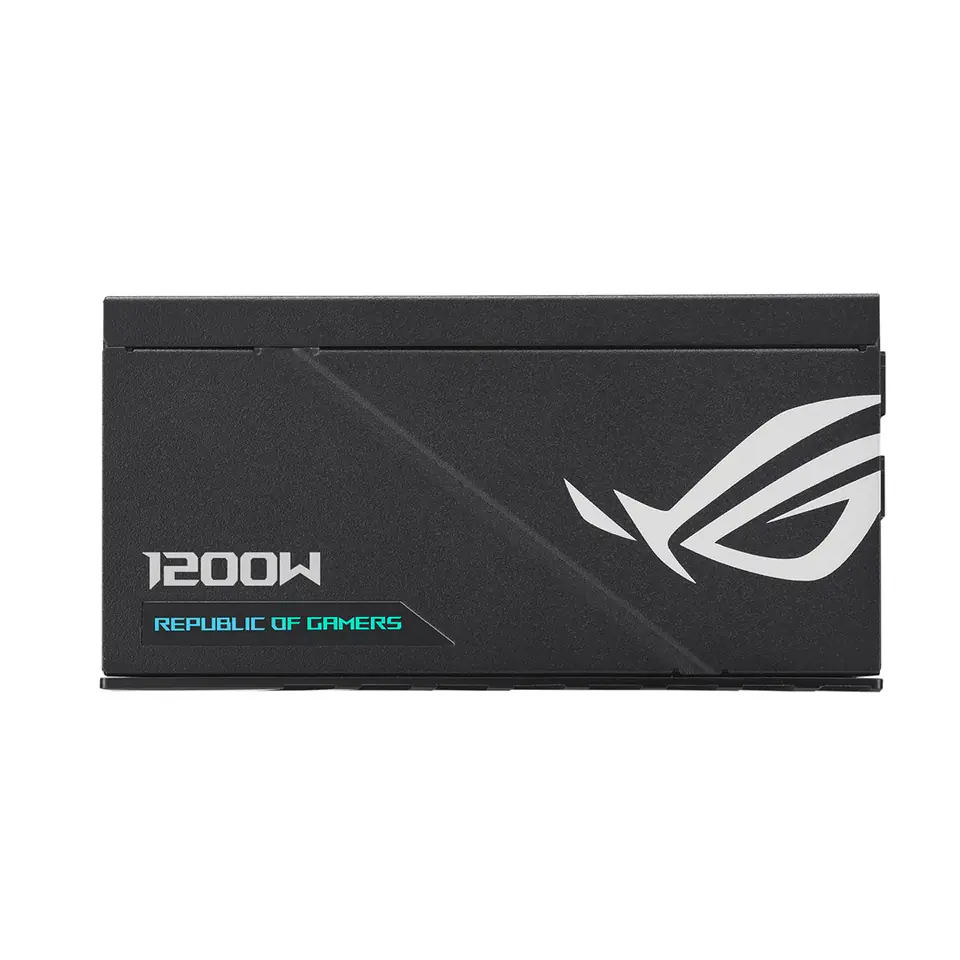

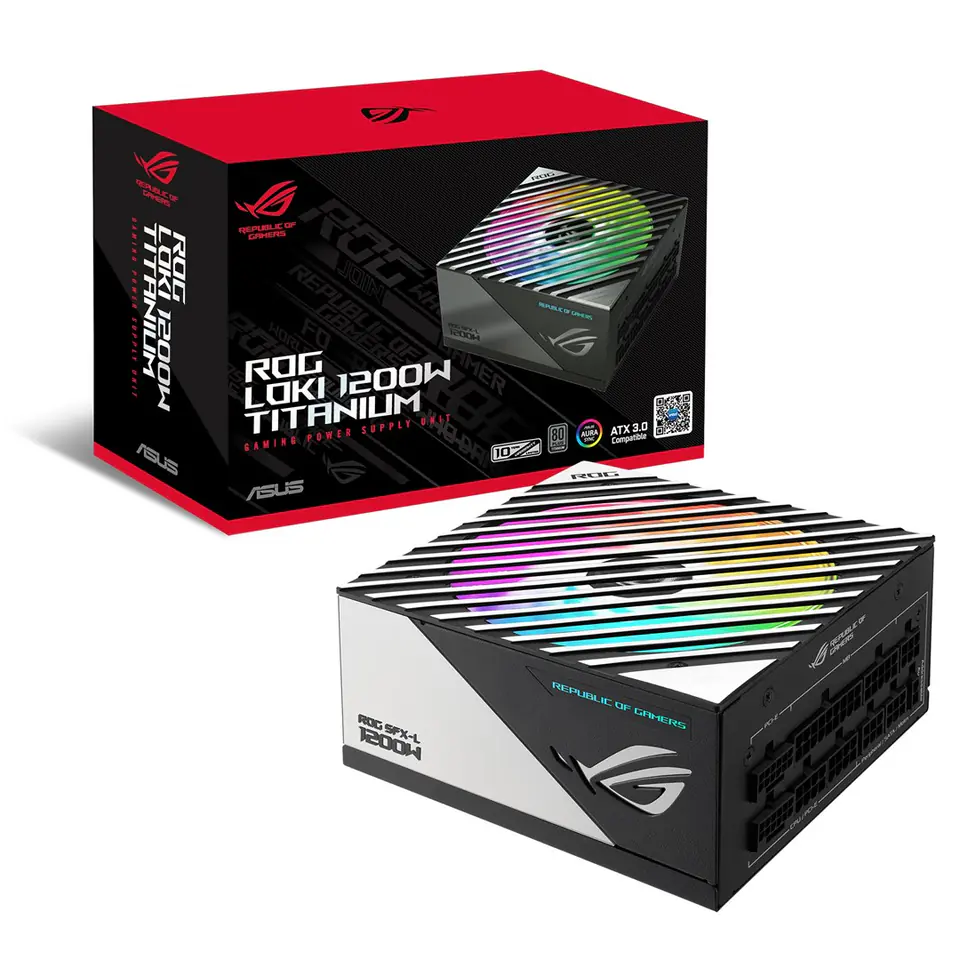

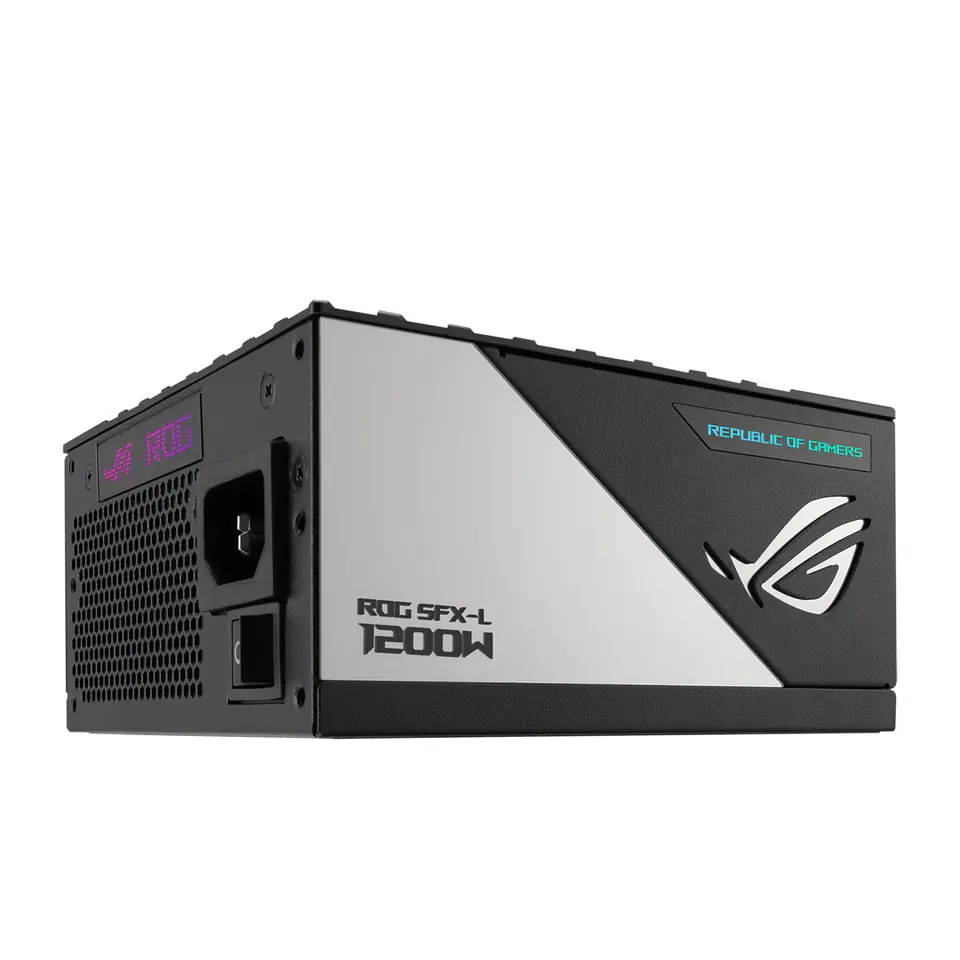

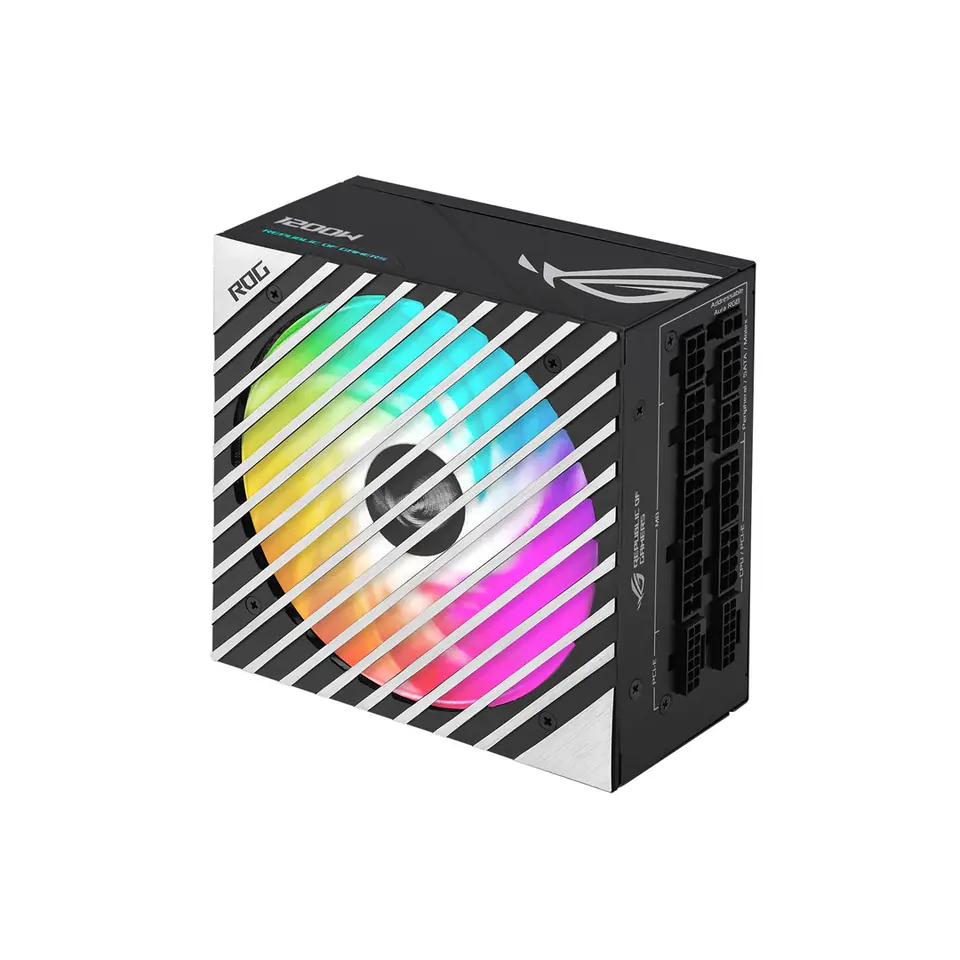

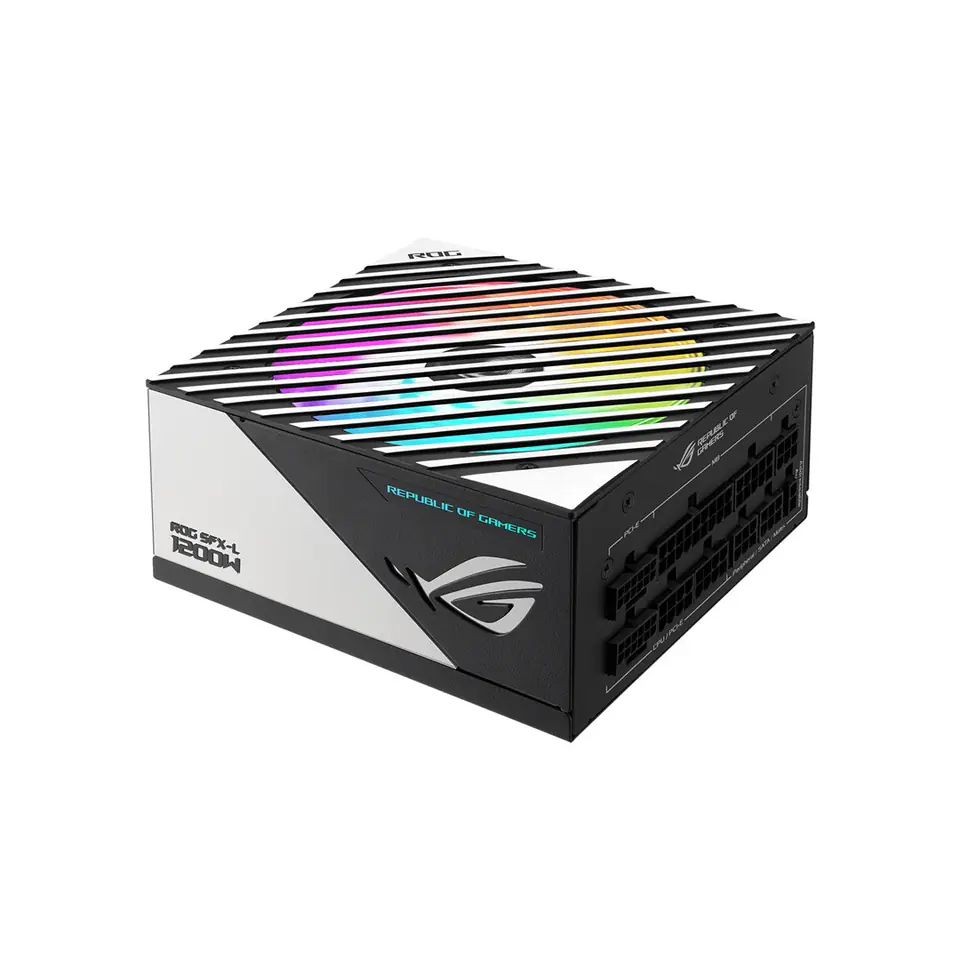

ASUS ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- 90YE00N0-B0NA00 / 4711081721574
Share this product:
Specification
| 80 plus certification: | 80 PLUS Platinum |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 3.0 |
| Bearing technology: | Ball bearing |
| Cables included: | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Cabling type: | Fully-Modular |
| Combined power (-12v): | 9.6 W |
| Combined power (+12v): | 1200 W |
| Combined power (+3.3v): | 110 W |
| Combined power (+5v): | 110 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Cpu power cable length: | 55 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 125 mm |
| Fan diameter: | 12 cm |
| Height: | 63.5 mm |
| Illumination: | Yes |
| Manual: | Yes |
| Max output current (-12v): | 0.8 A |
| Max output current (+12v): | 100 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Motherboard power cable length: | 45 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 6 |
| On/off switch: | Yes |
| Package depth: | 190 mm |
| Package height: | 100 mm |
| Package type: | Box |
| Package weight: | 2.84 kg |
| Package width: | 285 mm |
| Pci express power connectors (16-pin): | 2 |
| Pci express power connectors (8-pin): | 4 |
| Peak power: | 1200 W |
| Peripheral (molex) power cable length: | 100, 300 mm |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Short circuit, Over voltage, Over power, Overheating, Overcharge, Under voltage |
| Power supply unit (psu) form factor: | SFX-L |
| Product colour: | Black, Silver |
| Purpose: | PC |
| Sata power cable length: | 100, 300 mm, 200 |
| Sustainability certificates: | RoHS |
| Sustainability compliance: | Yes |
| Total power: | 1200 W |
| Warranty period: | 10 year(s) |
| Weight: | 2.15 kg |
| Width: | 125 mm |
