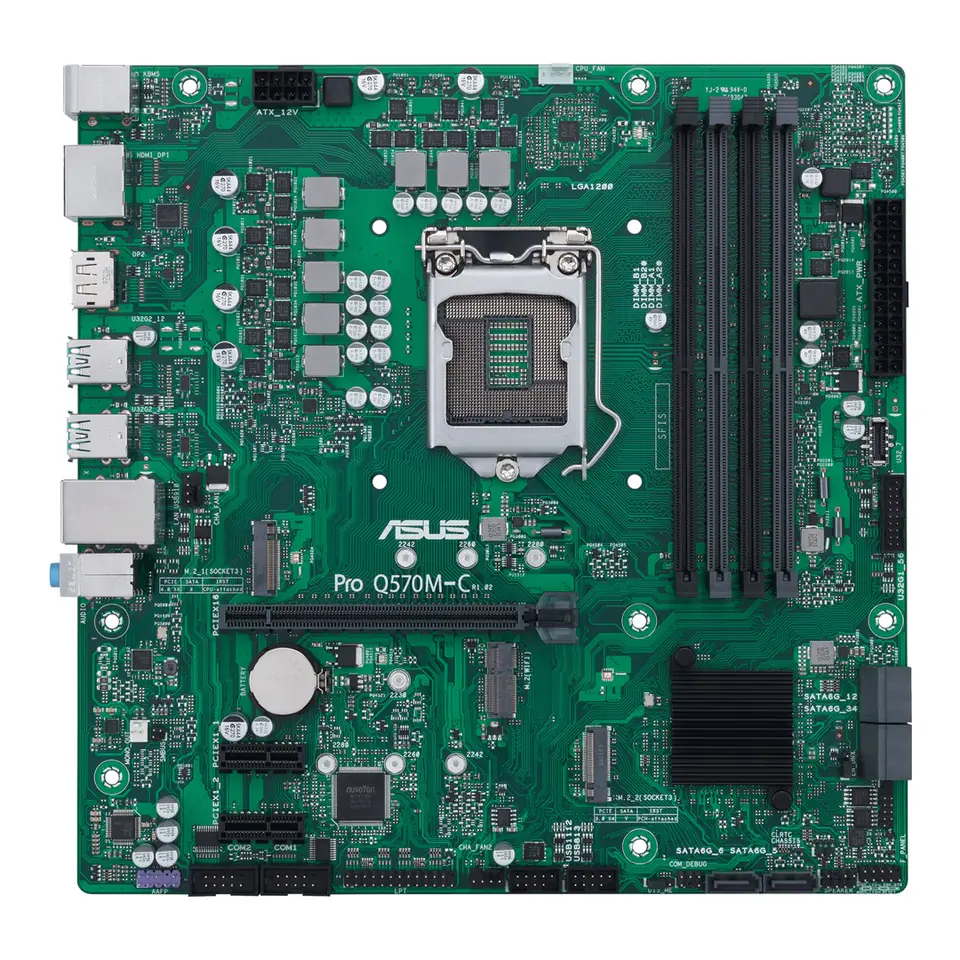

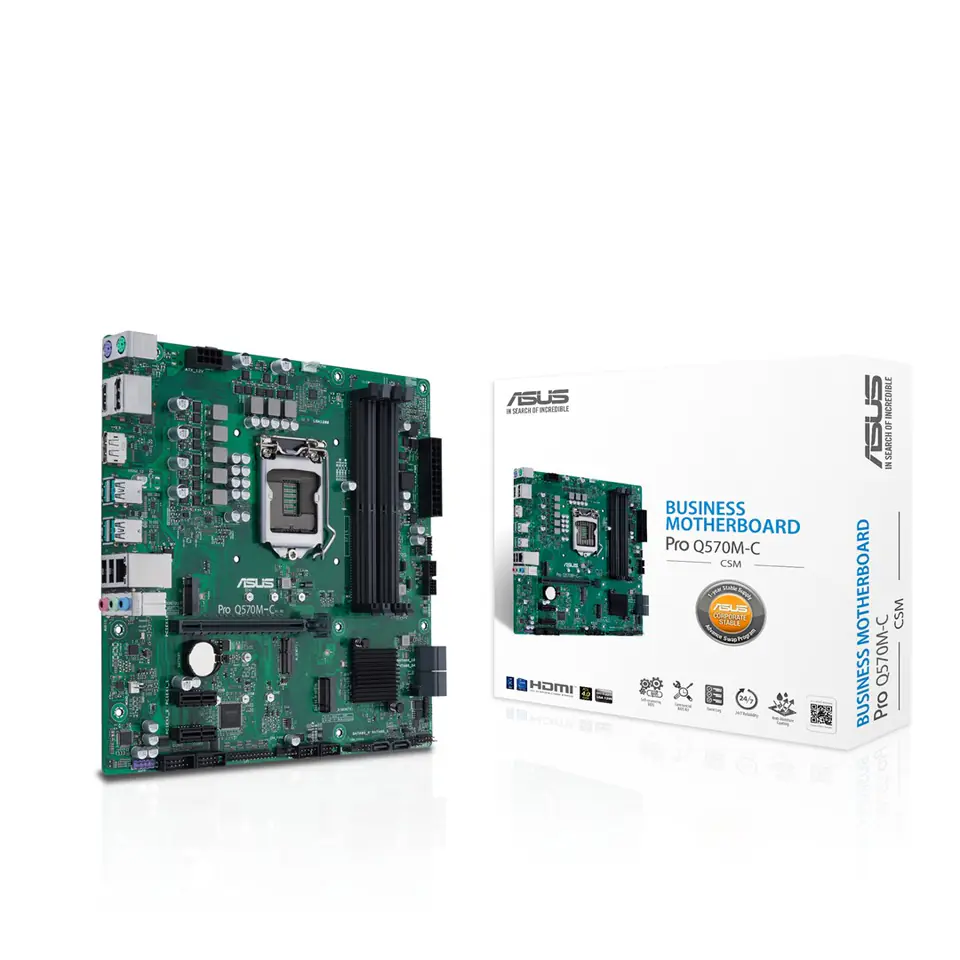

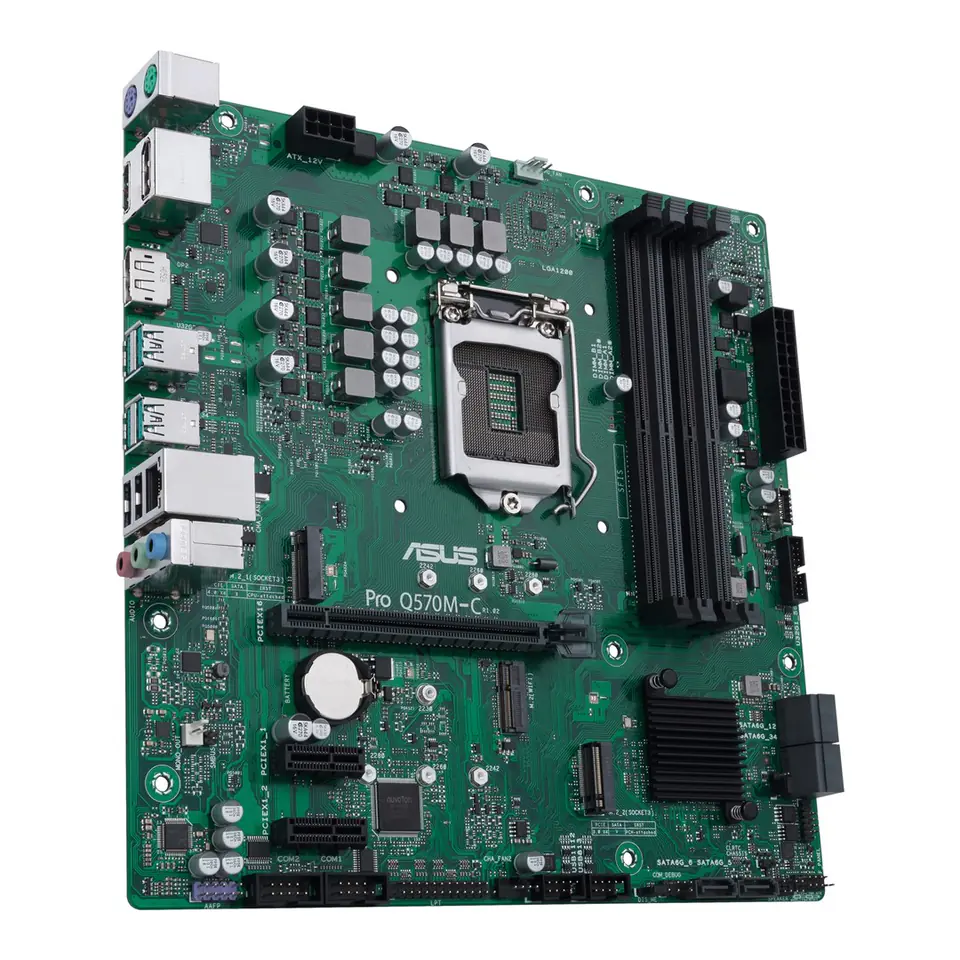

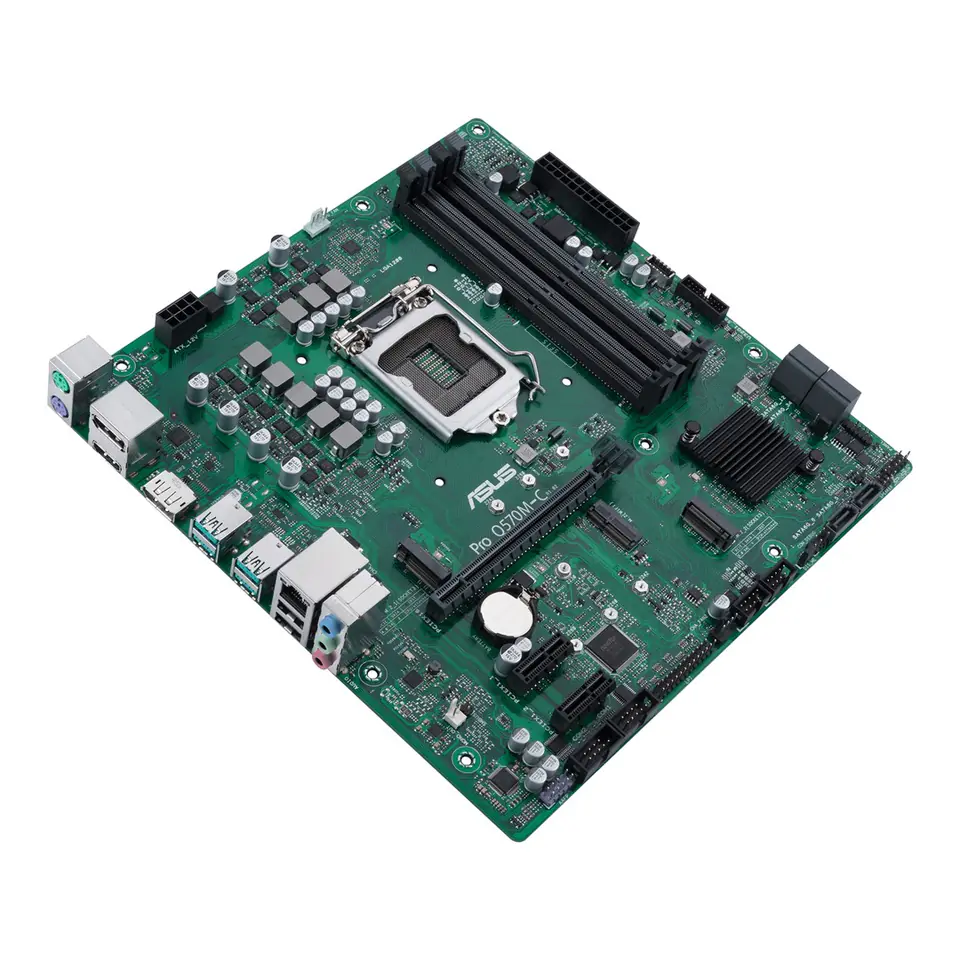

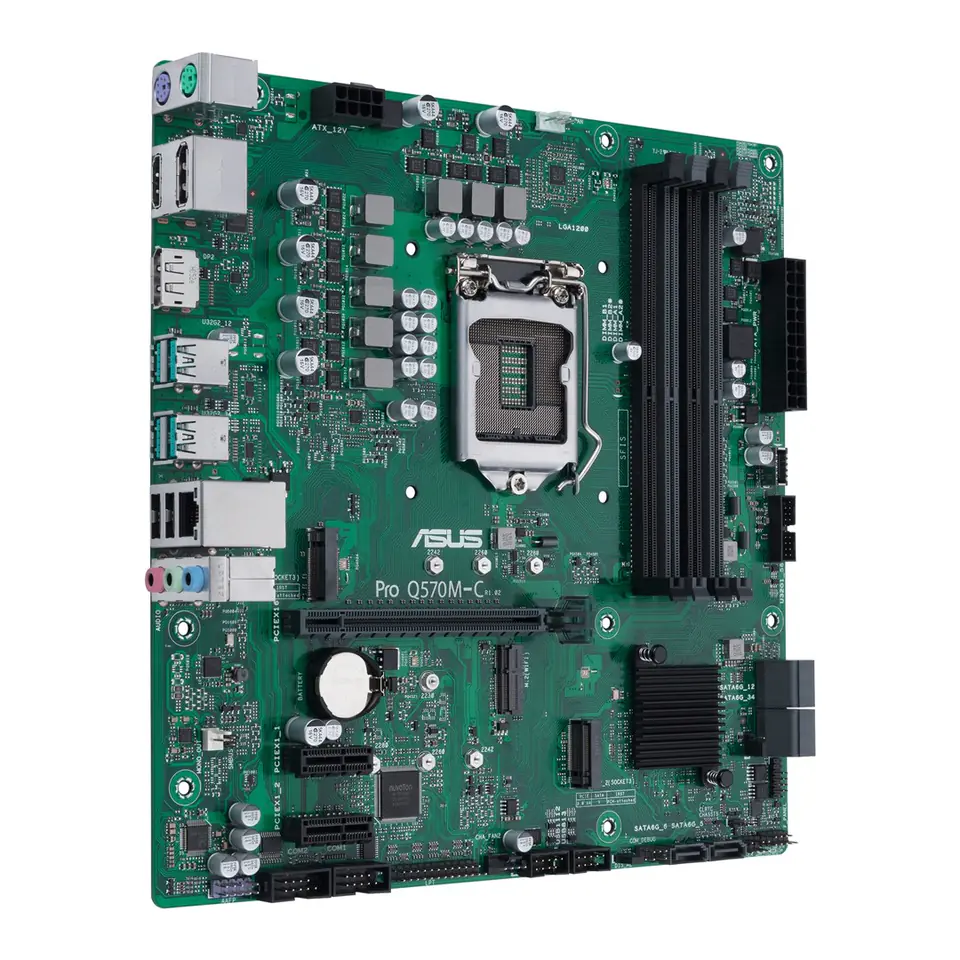

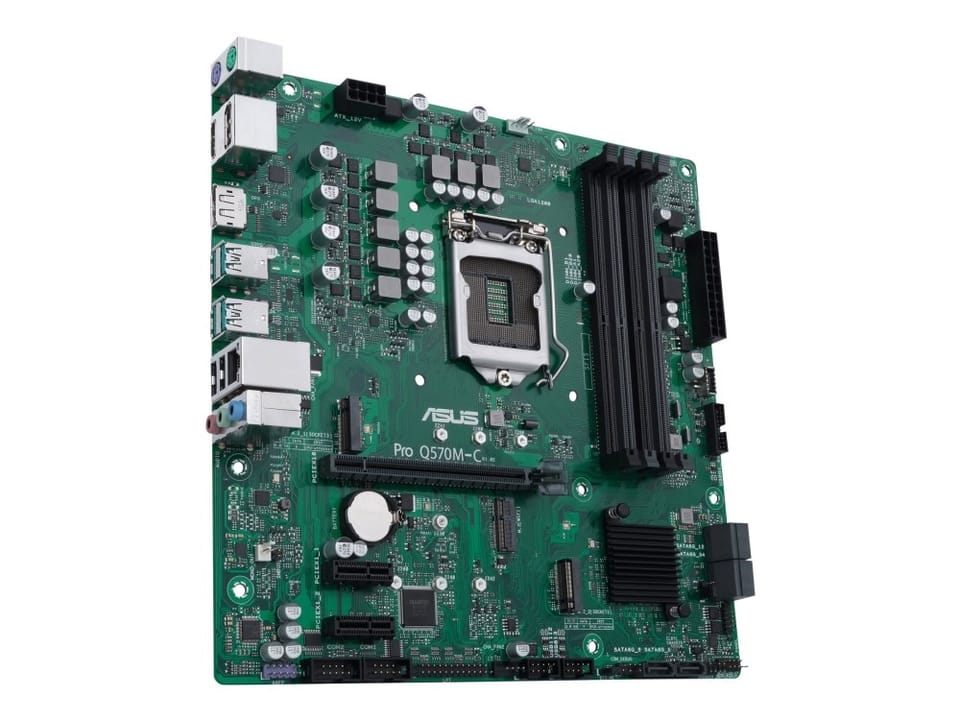

ASUS PRO Q570M-C/CSM Intel Q570 LGA 1200 (Socket H5) micro ATX
€222.13
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90MB1700-M0EAYC / 4711081165248
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC897 |
| Audio connector: | Yes |
| Audio output channels: | 7.1 channels |
| Cables included: | SATA |
| Chassis intrusion connector: | Yes |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Core™ i5, Intel® Celeron® |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 2 |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4/2.0 |
| Height: | 51 mm |
| Lan controller: | Intel® I219-V |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Maximum resolution: | 4096 x 2304 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel Q570 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of com connectors: | 2 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 6 |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 3.x) slots: | 2 |
| Pci express x16 slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1200 (Socket H5) |
| Ps/2 ports quantity: | 2 |
| Supported memory clock speeds: | 3200 MHz, 2666, 2133, 2400, 2800, 2933 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 4 |
| Wake-on-lan ready: | Yes |
| Weight: | 634 g |
| Wi-fi: | No |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 10 x64 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
