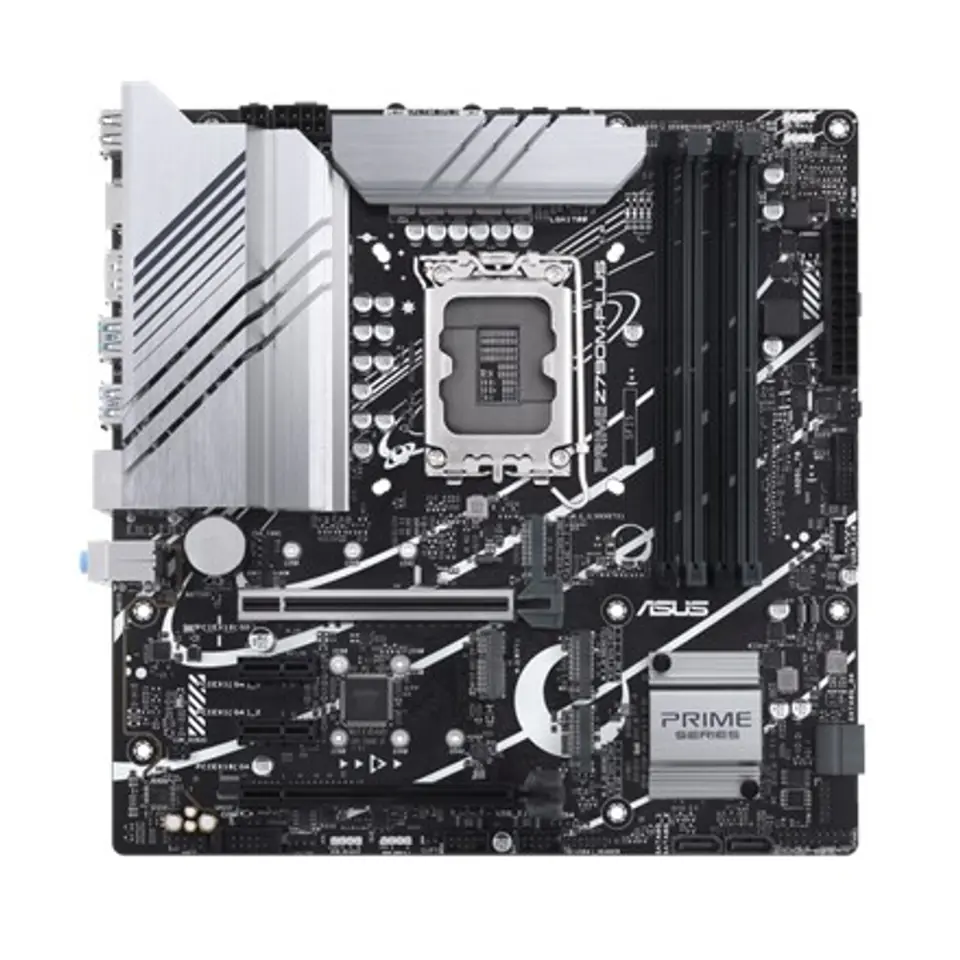

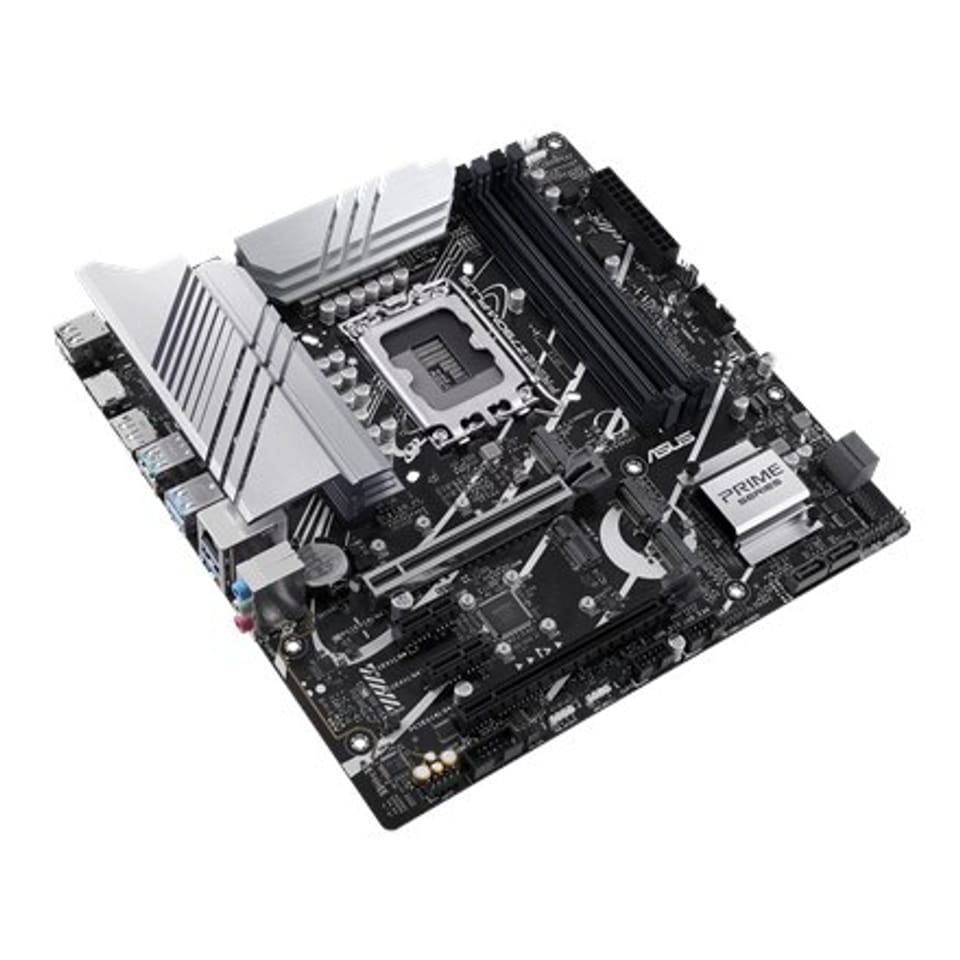

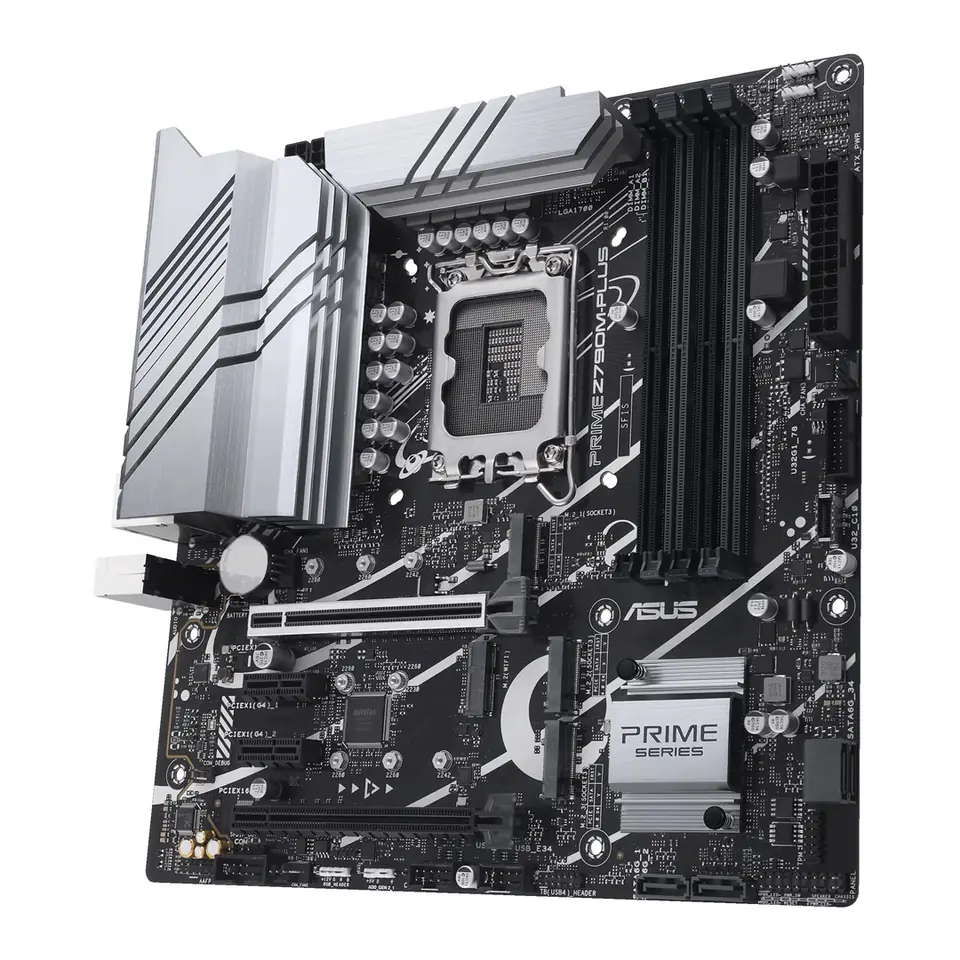

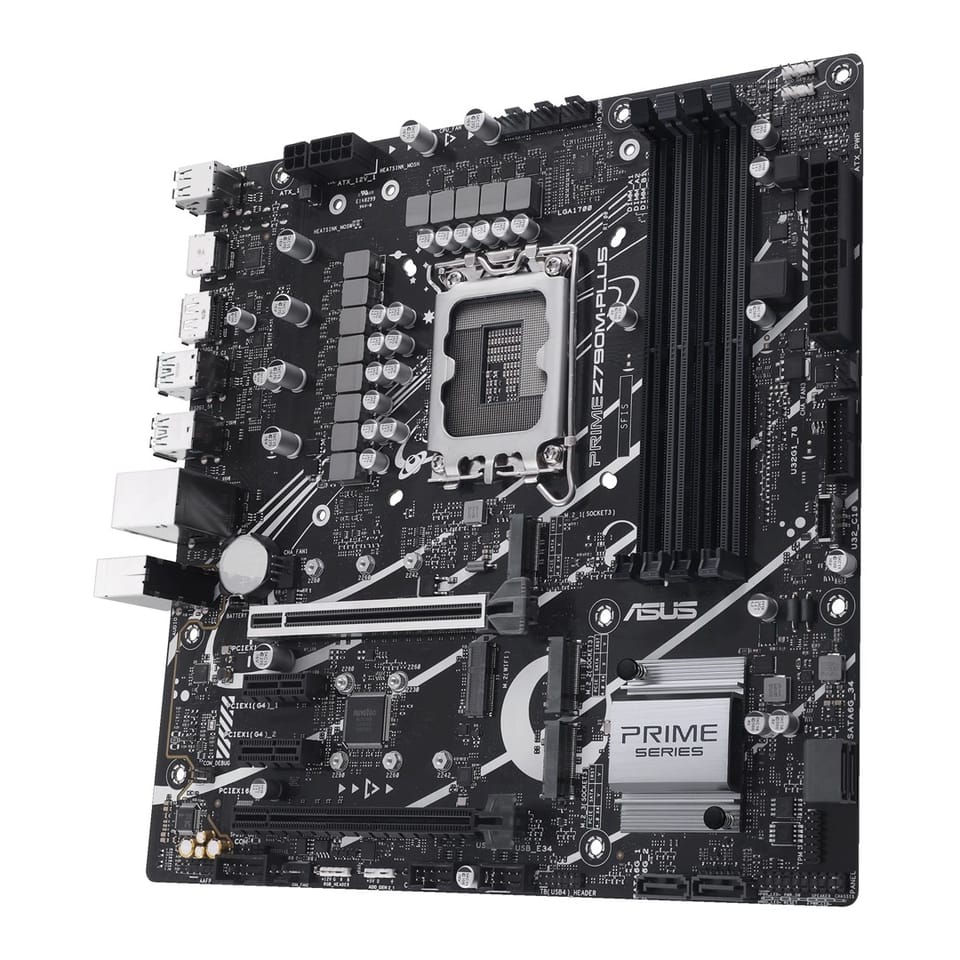

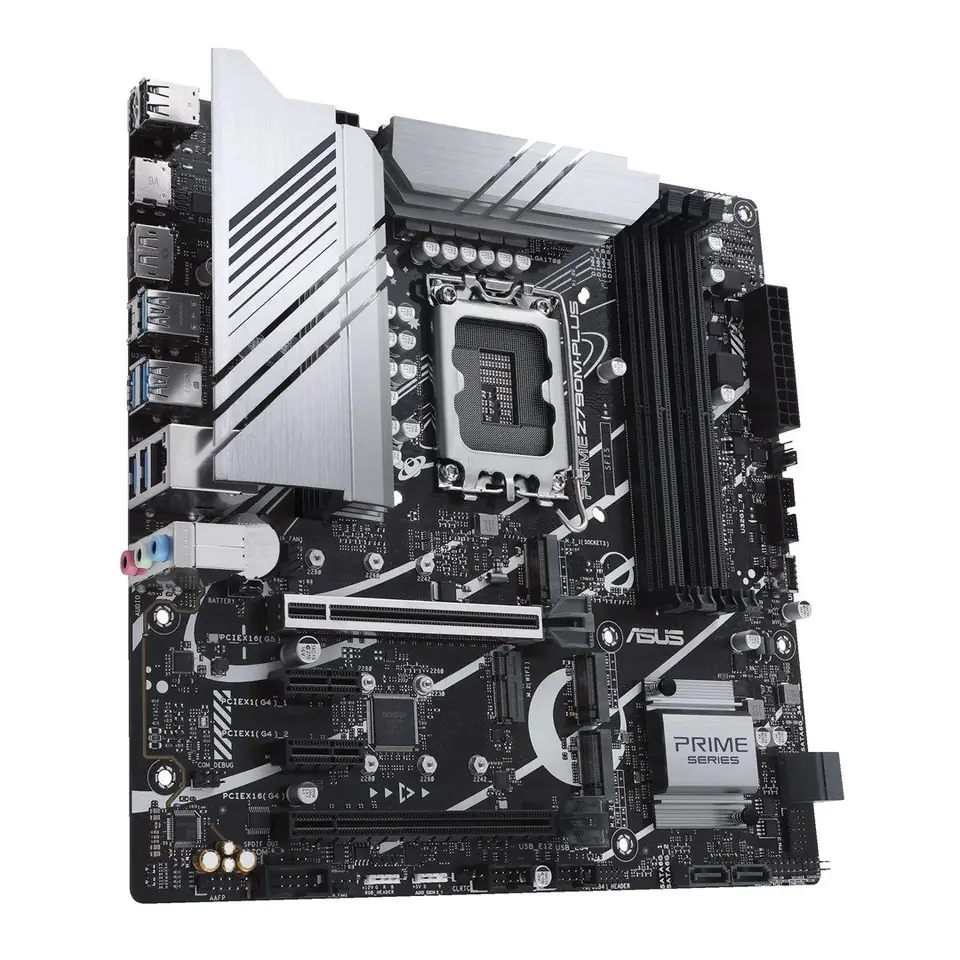

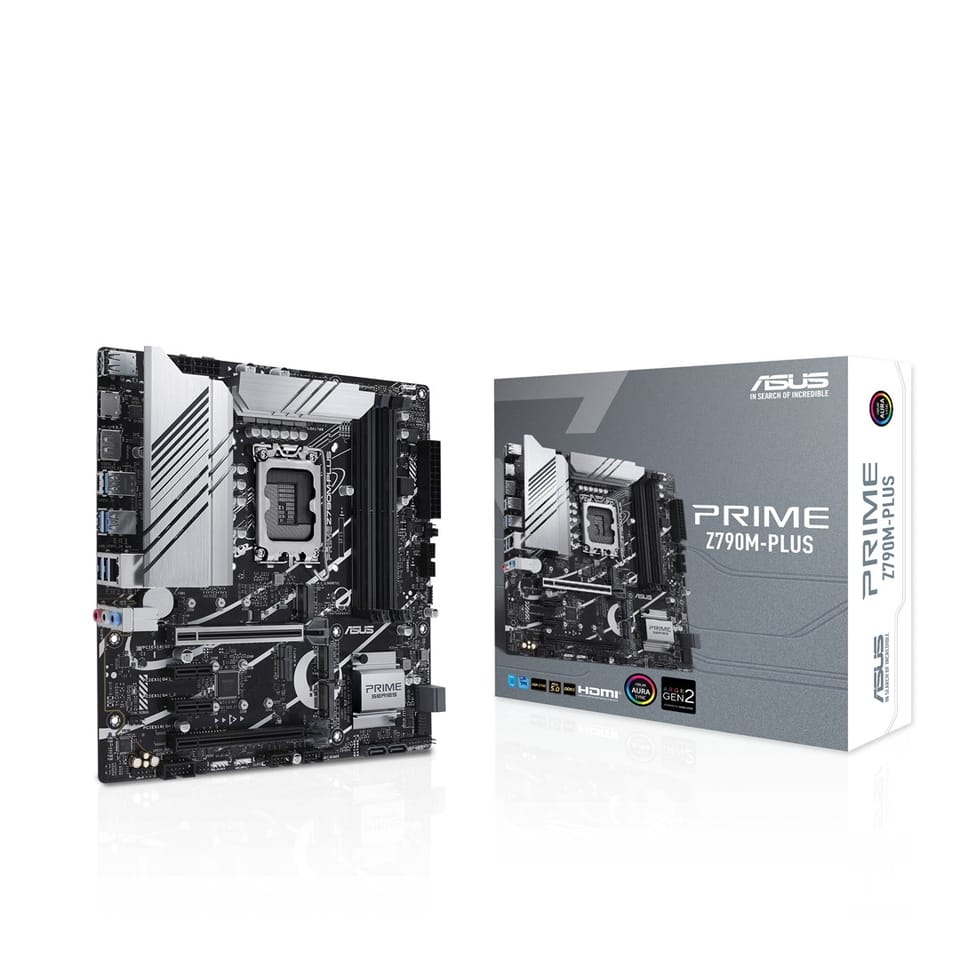

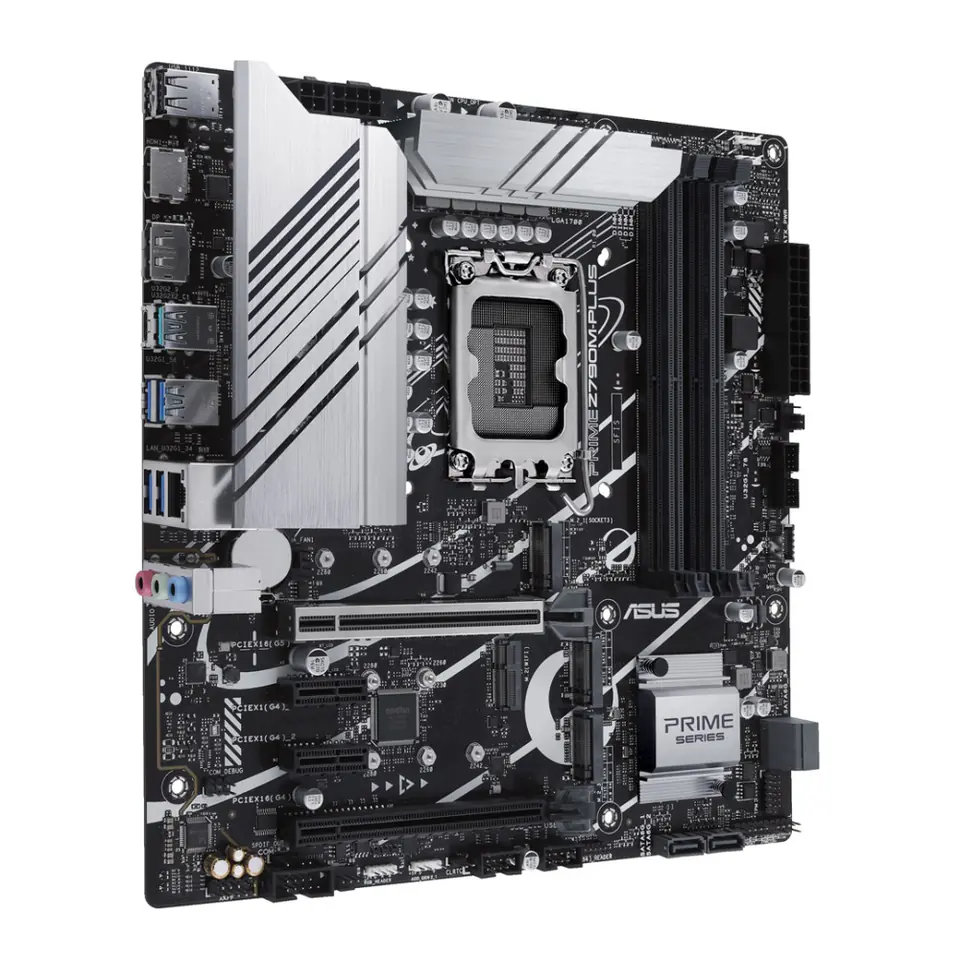

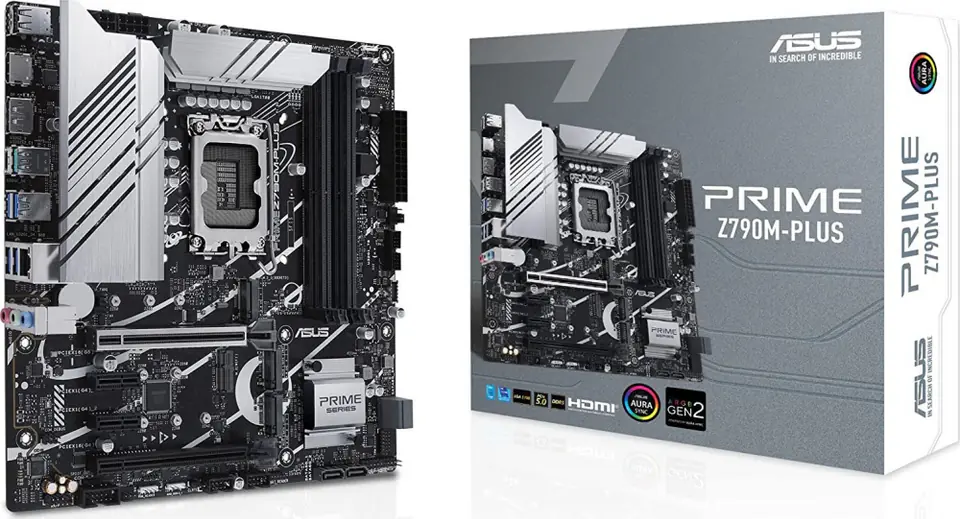

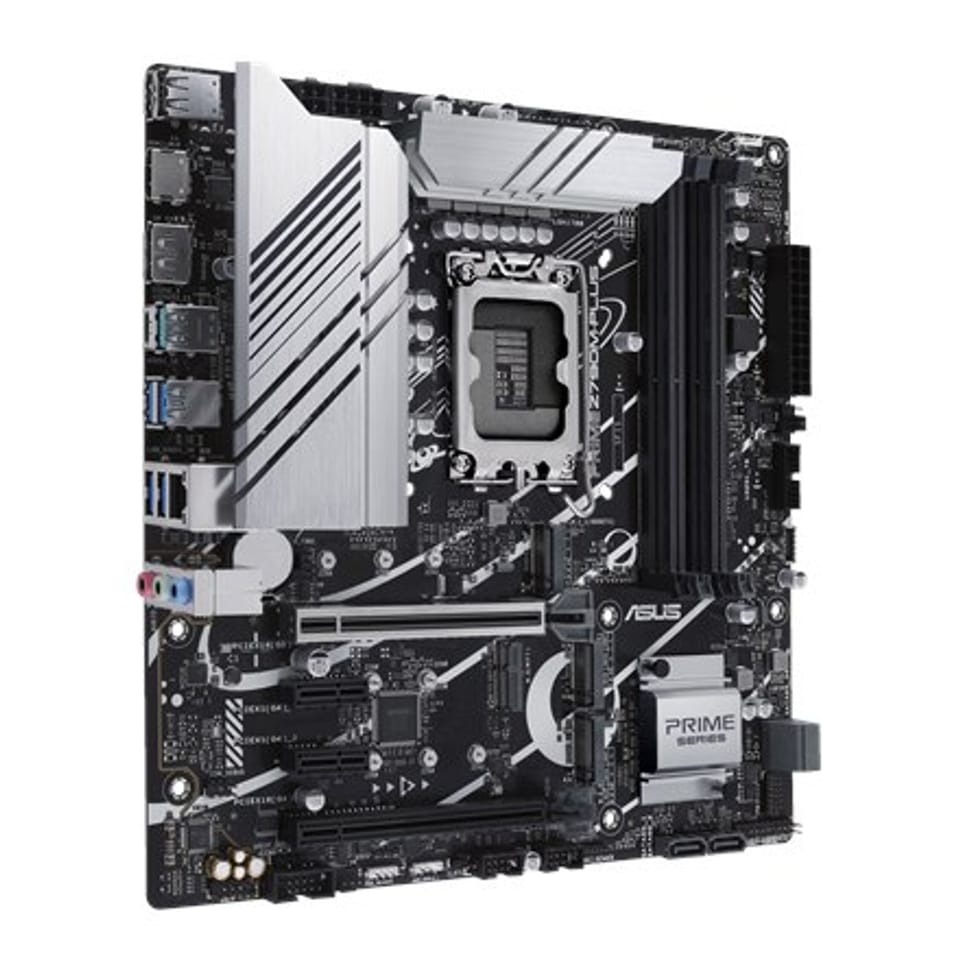

ASUS PRIME Z790M-PLUS Intel Z790 LGA 1700 micro ATX
€253.90
Shipping from warehouse: M7
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- 90MB1E70-M0EAY0 / 4711387025741
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio connector: | Yes |
| Audio output channels: | 7.1 channels |
| Bios memory size: | 192 Mbit |
| Bios type: | UEFI AMI |

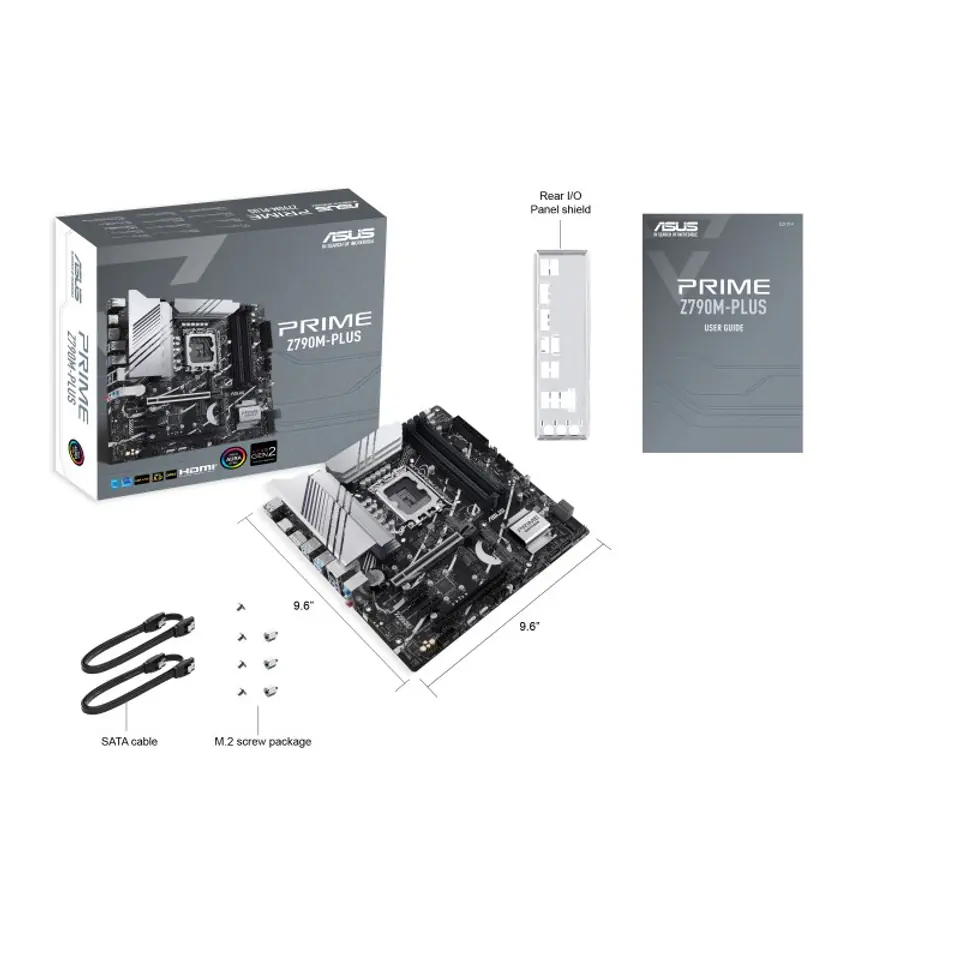

| Cables included: | SATA |
| Com ports quantity: | 1 |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Component for: | PC |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Fast Ethernet, Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.0 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Maximum internal memory: | 192 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel Z790 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Non-ecc: | Non-ECC |
| Number of chassis fan connectors: | 3 |
| Number of com connectors: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 3 |
| Number of memory slots: | 4 |
| Number of sata connectors: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 7 |
| On-board graphics card: | No |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 4.x) slots: | 2 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Pci express x16 (gen 5.x) slots: | 1 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power fan connector: | Yes |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Product colour: | Black, Aluminium |
| Raid levels: | 5, 10, 0, 1 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speed (max): | 7200 MHz |
| Supported memory clock speeds: | 6000, 7000, 6600, 6800, 6200, 6400, 5000, 5200, 4800, 5600, 7200, 5800, 5400 |
| Supported memory types: | DDR5-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| Usb connector type: | USB Type-A |
| Wi-fi: | No |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 11 |
