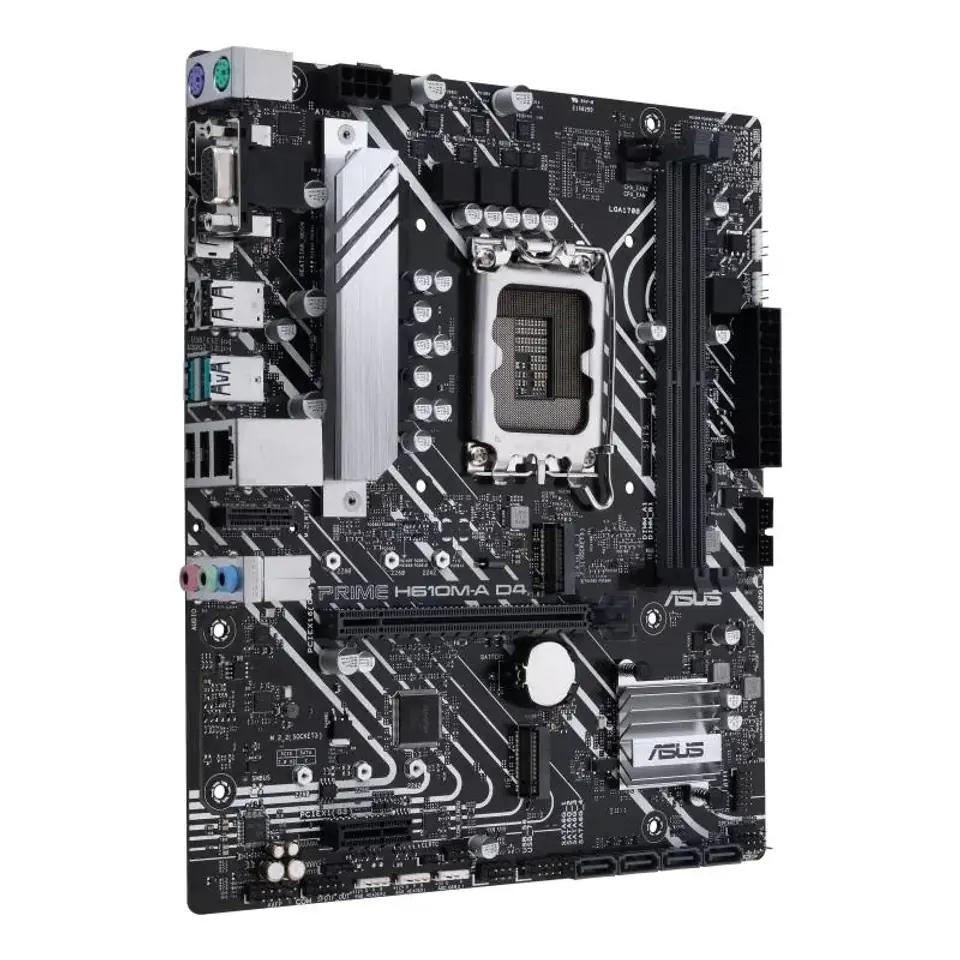

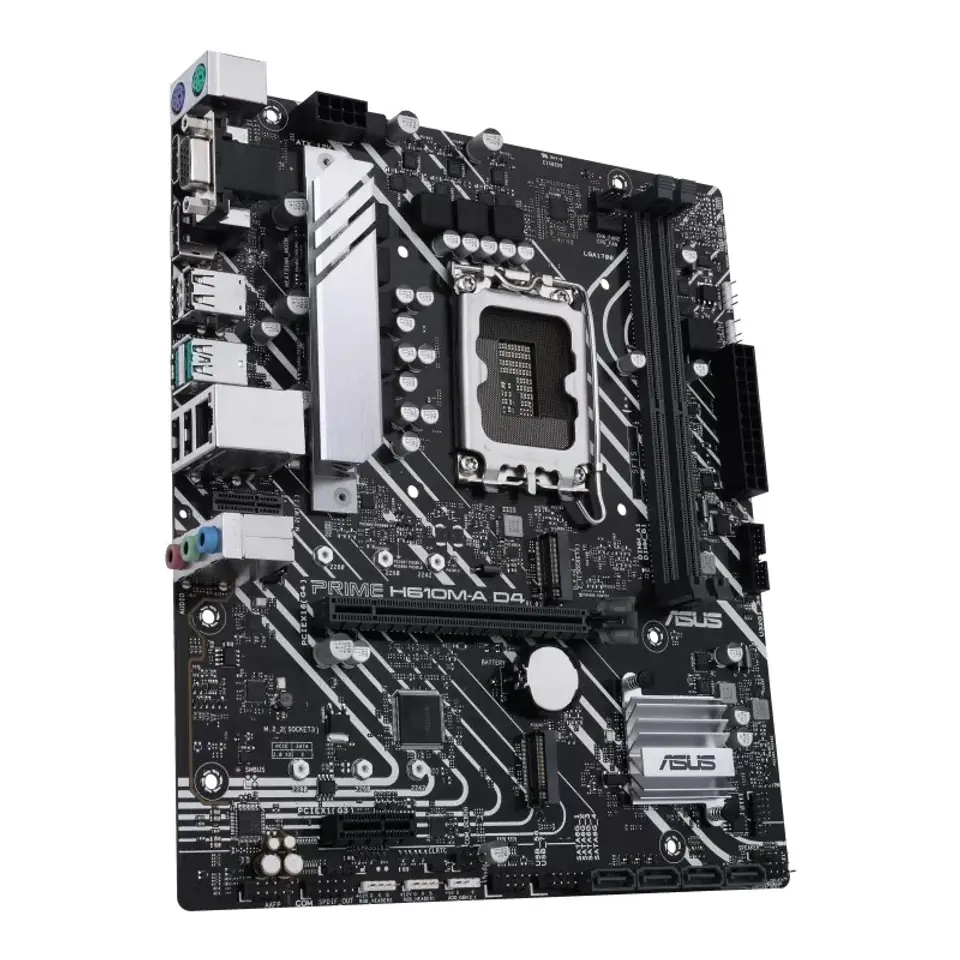

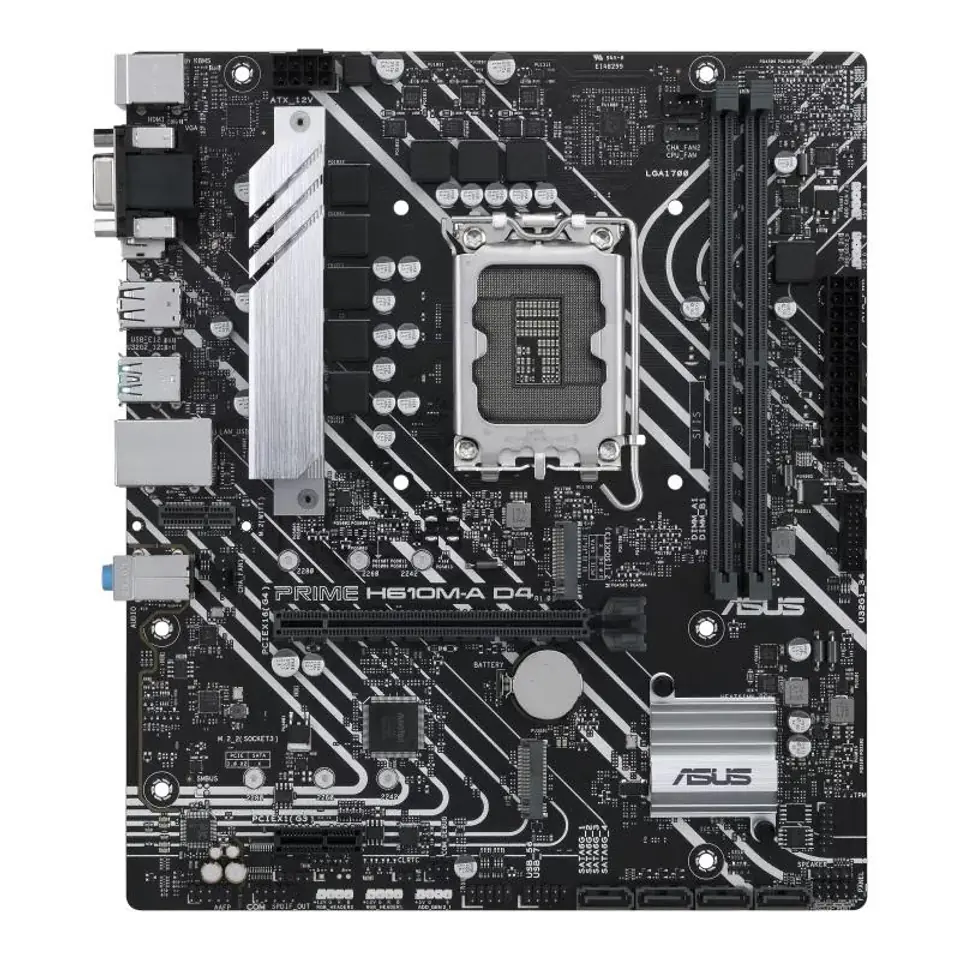

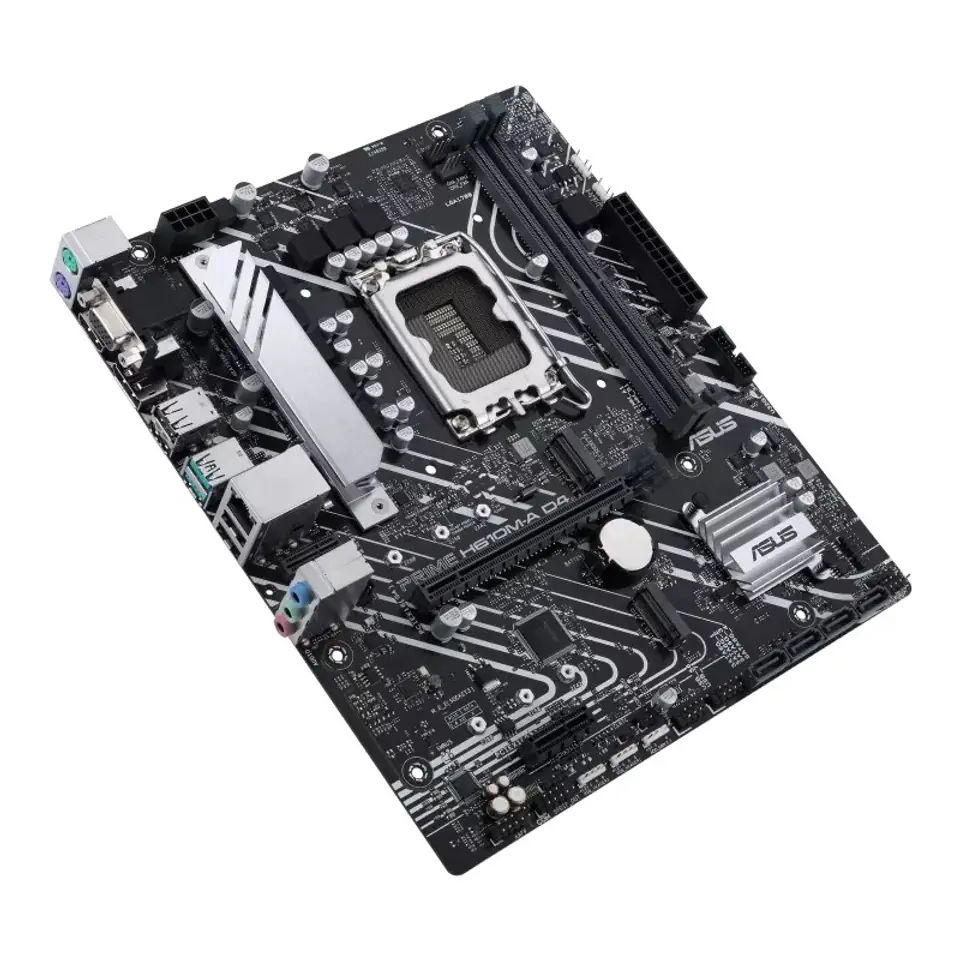

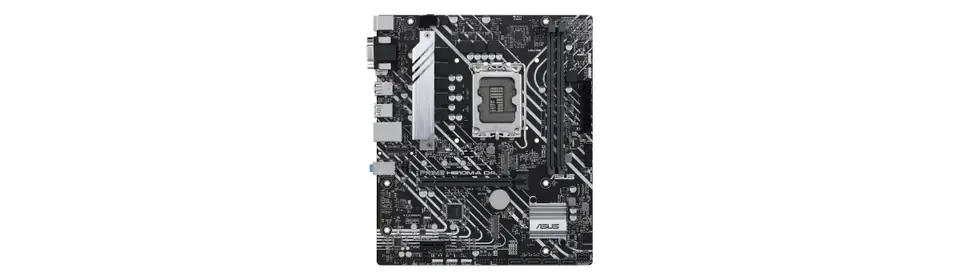

ASUS PRIME H610M-A D4-CSM Intel H610 LGA 1700 micro ATX
€136.16
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- PRIME H610M-A D4-CSM / 4711081514442
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |

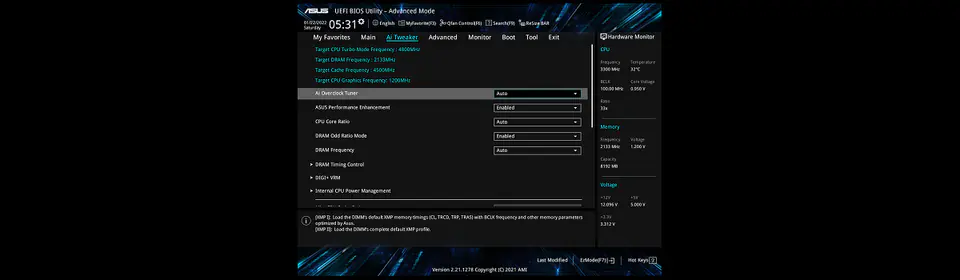

| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Pentium®, Intel® Core™ i5, Intel® Celeron® |
| Cpu fan connector: | Yes |
| Depth: | 211 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ecc сompatibility: | Non-ECC |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Height: | 221 mm |
| Maximum internal memory: | 64 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel H610 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of com connectors: | 1 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Ps/2 ports quantity: | 2 |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speeds: | 2133, 2933, 3000, 2400, 2800, 3200 MHz, 2666 |
| Supported memory types: | DDR4-SDRAM, LPDDR3-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 1 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Vga (d-sub) ports quantity: | 1 |
| Wake-on-lan ready: | Yes |
| Weight: | 382 g |
| Wi-fi: | No |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
