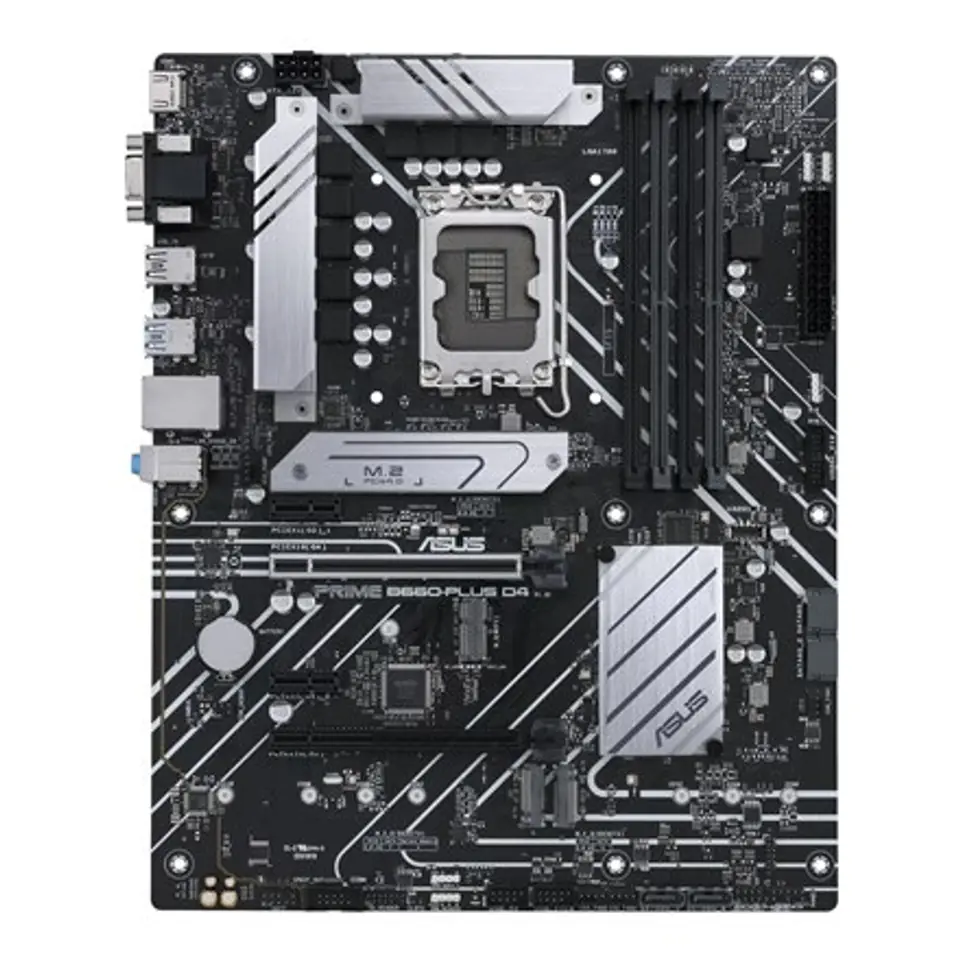

Asus PRIME B660-PLUS D4 Processor family Intel, Processor socket LGA1700, DDR4 DIMM, Memory slots 4, Supported hard disk drive

Name: Asus PRIME B660-PLUS D4 Processor family Intel, Processor socket LGA1700, DDR4 DIMM, Memory slots 4, Supported hard disk drive
Brand: Asus
SKU: 385097
Price: 159.98 EUR
Availability: InStock

€159.98

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Fri, Nov 15 - Mon, Nov 18

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: 90MB18X0-M0EAY0 / 4711081523017

Specification

Atx power connector (24-pin):	Yes
Audio output channels:	7.1 channels
Bios type:	UEFI AMI
Cables included:	SATA
Chassis intrusion connector:	Yes
Clear cmos jumper:	Yes
Compatible processor series:	Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Cpu fan connector:	Yes
Depth:	244 mm
Displayport version:	1.4
Displayports quantity:	1
Ecc сompatibility:	Non-ECC
Eps power connector (8-pin):	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Harmonized system (hs) code:	84733020
Hdmi ports quantity:	1
Hdmi version:	2.1
Headphone outputs:	3
Height:	53 mm
Maximum internal memory:	128 GB
Memory channels:	Dual-channel
Memory slots type:	DIMM
Motherboard chipset:	Intel B660
Motherboard chipset family:	Intel
Motherboard form factor:	ATX
Number of chassis fan connectors:	3
Number of com connectors:	1
Number of hdds supported:	4
Number of m.2 (m) slots:	3
Number of memory slots:	4
Number of sata iii connectors:	4
Number of storage drives supported:	7
Pci express x1 (gen 3.x) slots:	2
Pci express x16 (gen 3.x) slots:	1
Pci express x16 (gen 4.x) slots:	1
Power source type:	ATX
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Raid levels:	10, 5, 1, 0
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out connector:	Yes
Supported memory clock speeds:	3466, 4000, 3400, 3866, 3733, 4400, 4600 MHz, 3000, 3333, 2800, 2666, 4266, 5000, 4800, 5066, 2933, 3600 MHz, 2133, 2400
Supported memory types:	DDR4-SDRAM
Supported processor sockets:	LGA 1700
Supported storage drive interfaces:	M.2, PCI Express 4.0, SATA III
Supported storage drive types:	HDD & SSD
Thunderbolt headers:	1
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 2.0 ports quantity:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	2
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:	1
Usb connector type:	USB Type-C, USB Type-A
Vga (d-sub) ports quantity:	1
Weight:	891 g
Wi-fi:	No
Width:	305 mm
Windows operating systems supported:	Windows 10 x64, Windows 11 x64

Warranty: 36 months. Description:

Intel B660 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, triple M.2, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, D-Sub, rear USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Aura Sync.

Model:

PRIME B660-PLUS D4

Chipset:

Intel B660 Chipset

Details of disk/drive interfaces:

RAID 0/1/5/10.

Special features:

ASUS 5X PROTECTION III
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
ASUS 5X PROTECTION III
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

Dimensions:

30.5cm x 24.4cm
