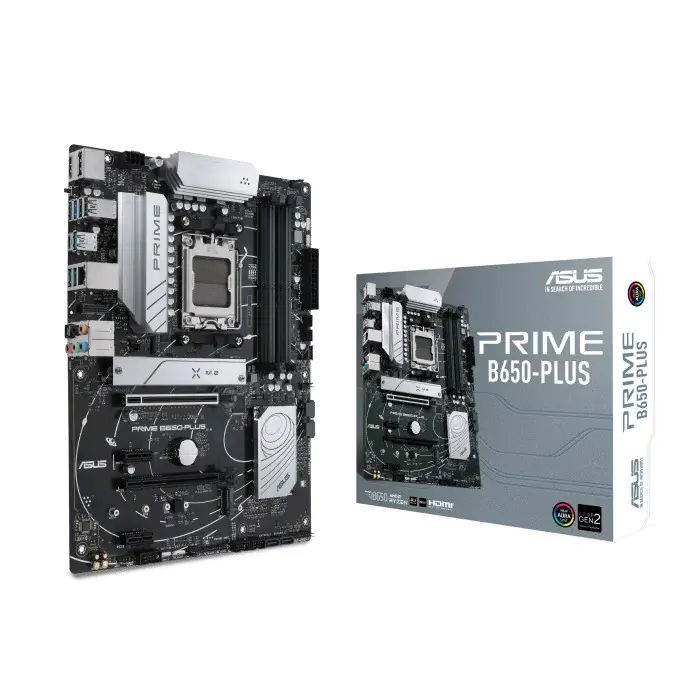

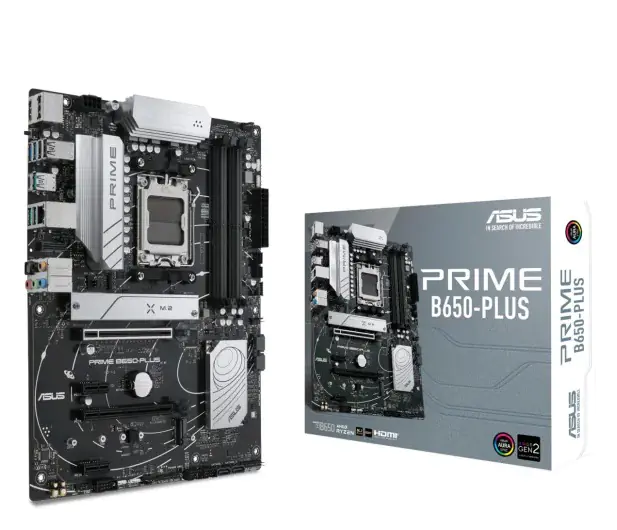

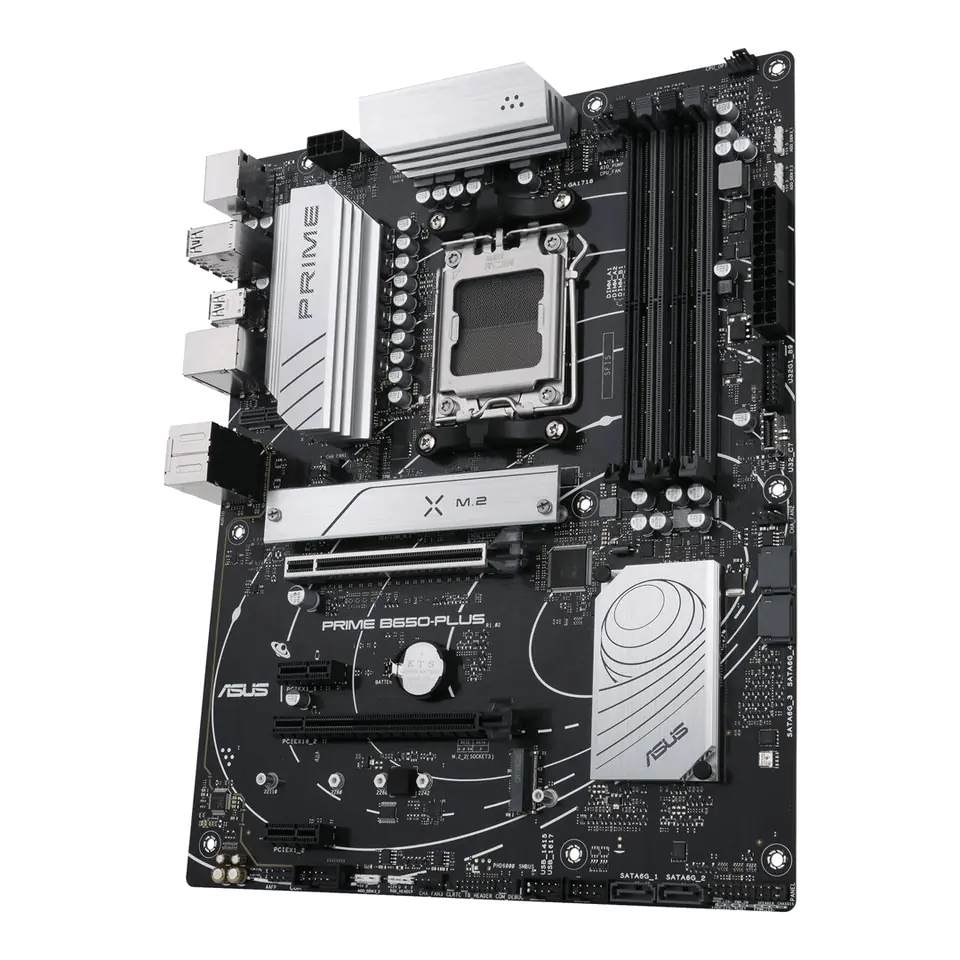

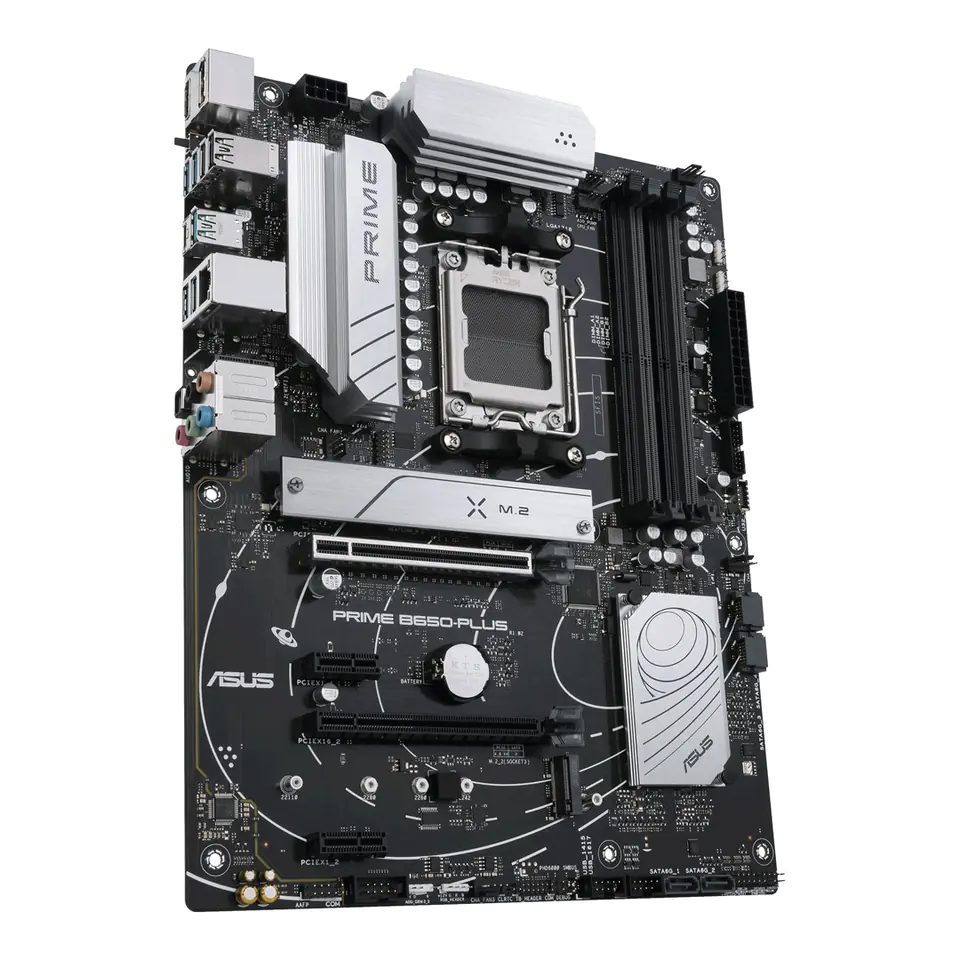

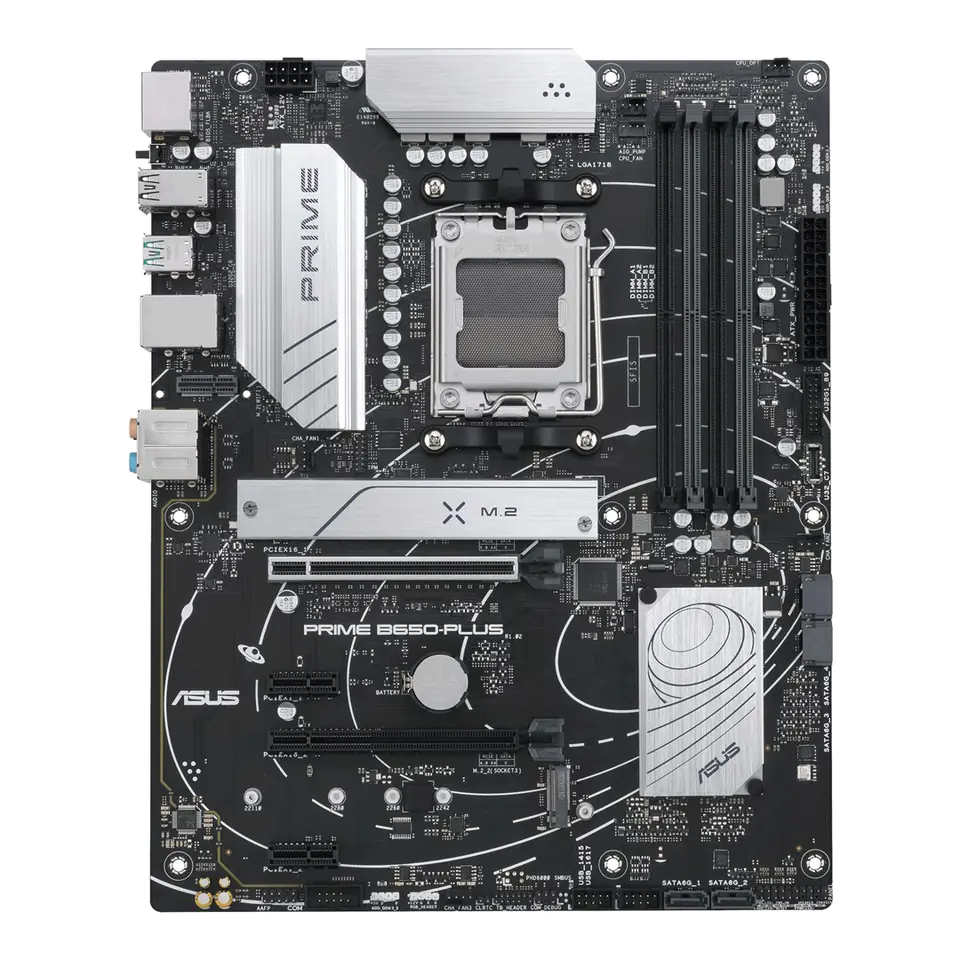

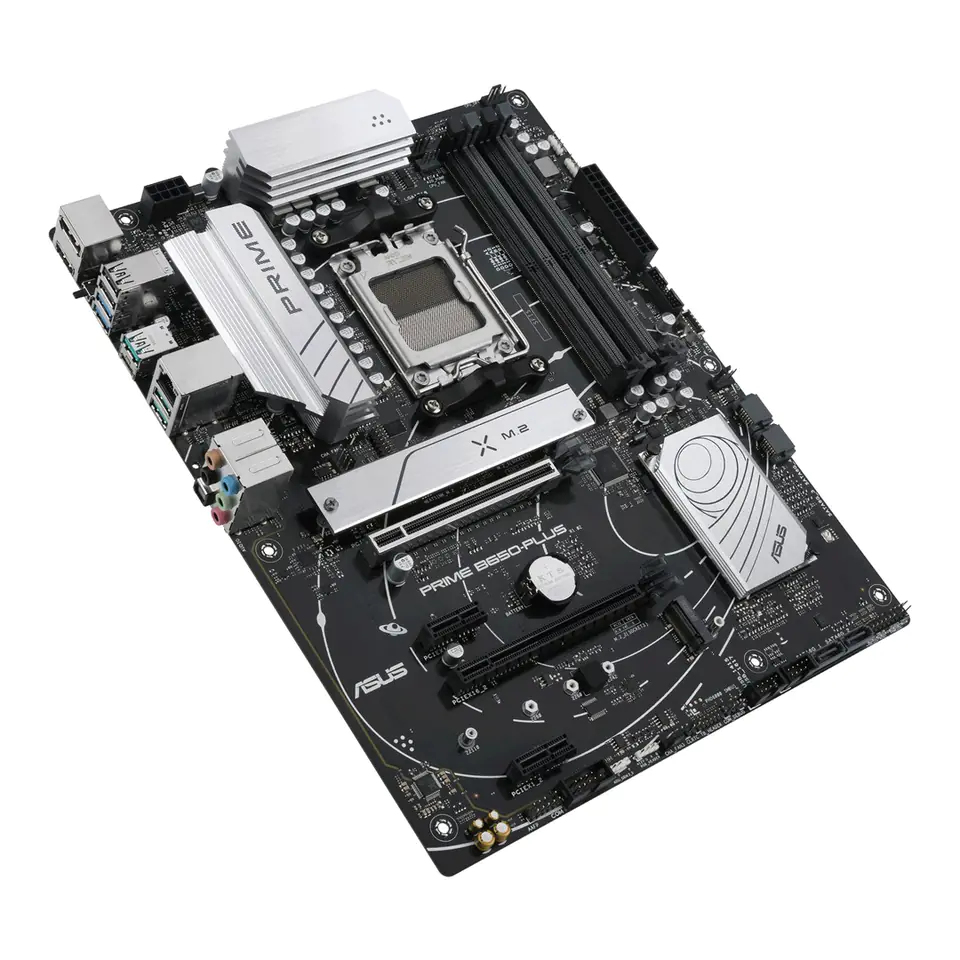

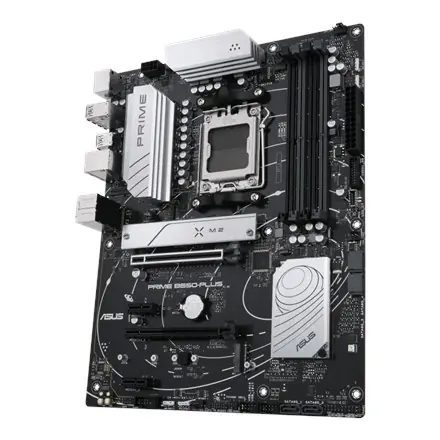

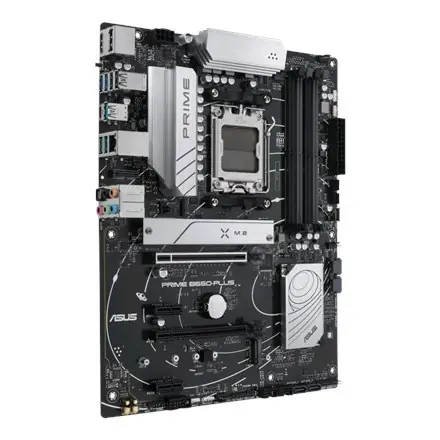

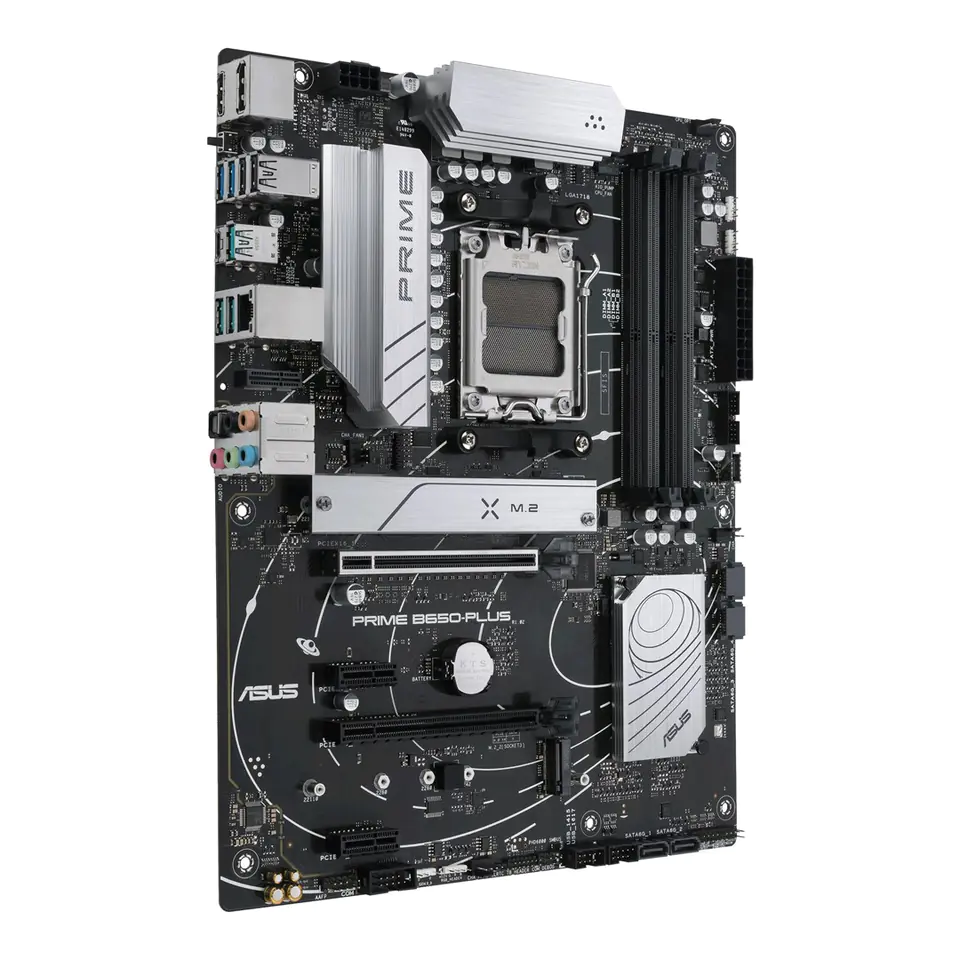

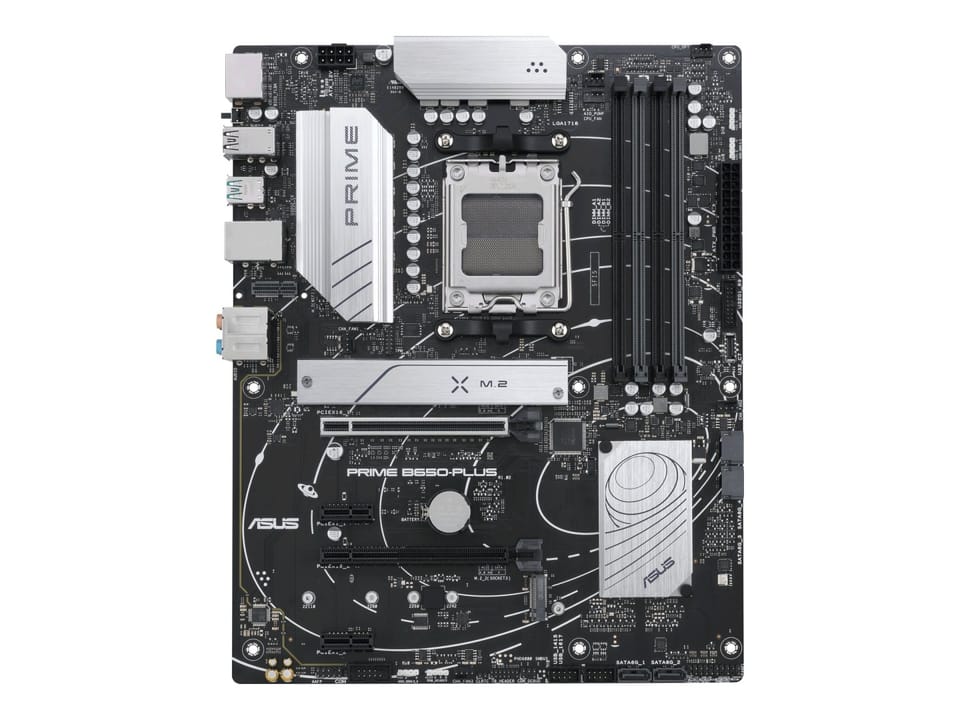

ASUS PRIME B650-PLUS AMD B650 Socket AM5 ATX
€192.00
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90MB1BS0-M0EAY0 / 4711081923381
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Back-to-bios button: | Yes |
| Bios memory size: | 256 Mbit |
| Bios type: | UEFI AMI |

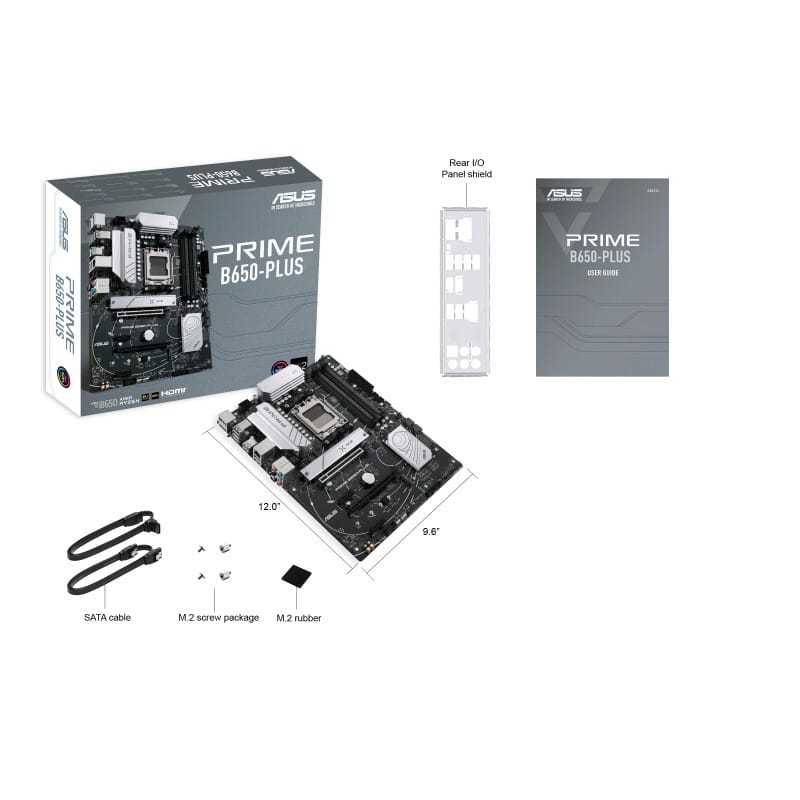

| Cables included: | SATA |
| Compatible processor series: | AMD Ryzen 7000 Series |
| Component for: | PC |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ecc: | Y |
| Ecc сompatibility: | ECC & Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Maximum internal memory: | 128 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD B650 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Non-ecc: | Y |
| Number of chassis fan connectors: | 3 |
| Number of com connectors: | 1 |
| Number of m.2 (e) slots: | 1 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| On-board graphics card: | No |
| Package depth: | 373 mm |
| Package height: | 68 mm |
| Package weight: | 1.35 kg |
| Package width: | 338 mm |
| Parallel processing technology support: | Not supported |
| Pci express x16 (gen 4.x) slots: | 2 |
| Pci express x4 (gen 1.x) slots: | 2 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Product colour: | Multicolour |
| Raid levels: | 1, 10, 0 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Supported memory clock speed (max): | 6400 MHz |
| Supported memory clock speeds: | 6000, 4800, 6200, 5800, 5400, 6400, 5200, 5600, 5000 |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| User guide: | Yes |
| Wi-fi: | No |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 10, Windows 11 x64 |
