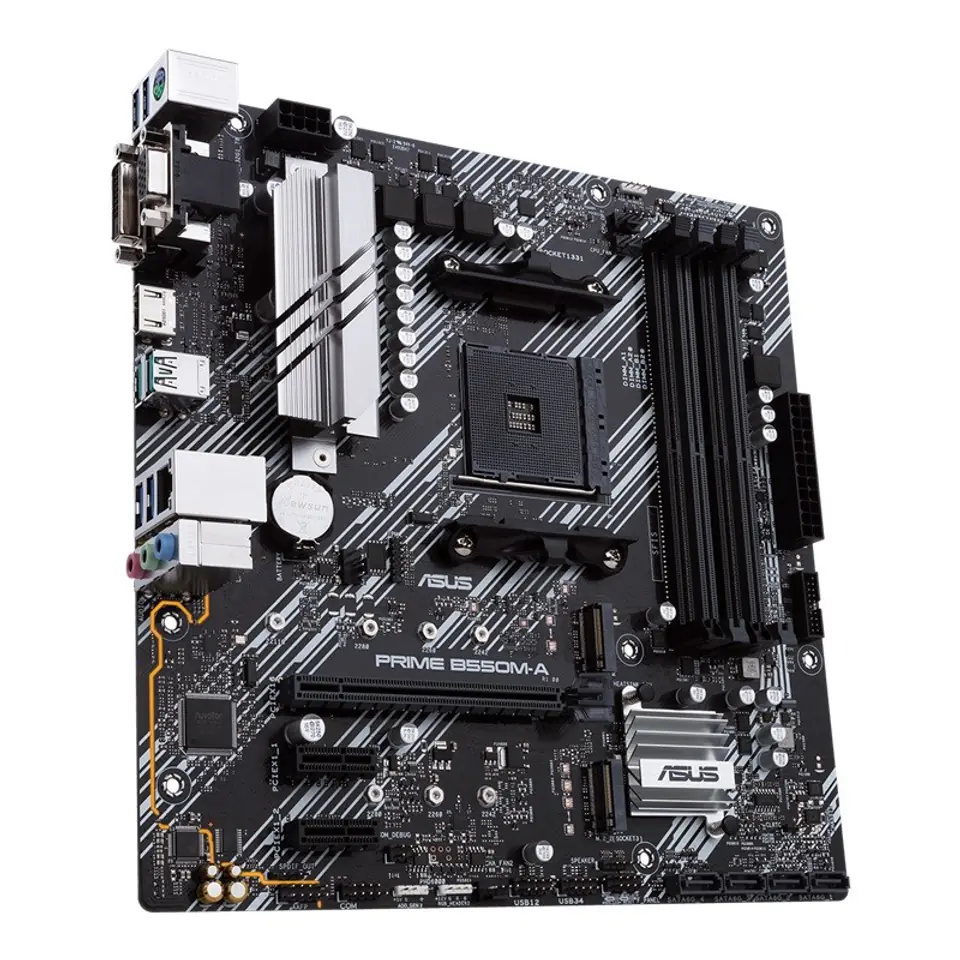

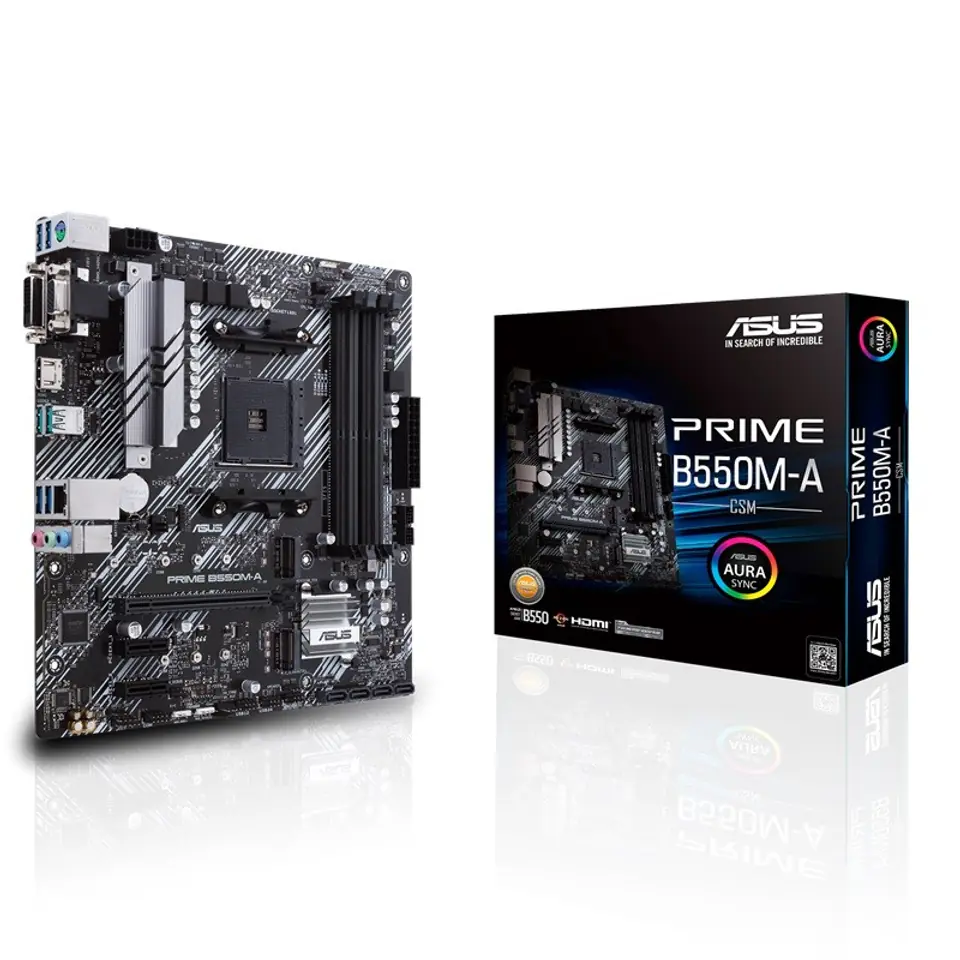

ASUS Prime B550M-A/CSM AMD B550 Socket AM4 micro ATX

Name: ASUS Prime B550M-A/CSM AMD B550 Socket AM4 micro ATX
Brand: Asus
SKU: 1730682
Price: 445.3 PLN
Availability: InStock

PLN 445.30

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Mon, Apr 7 - Thu, Apr 10

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: 90MB14I0-M0EAYC / 4718017755535

Specification

Atx power connector (24-pin):	Yes
Audio chip:	Realtek ALC887
Audio output channels:	7.1 channels
Bios type:	UEFI AMI
Clear cmos jumper:	Yes
Compatible processor series:	3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3
Cpu fan connector:	Yes
Depth:	244 mm
Dvi-d ports quantity:	1
Eps power connector (8-pin):	Yes
Ethernet interface type:	Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Harmonized system (hs) code:	84733020
Hdmi ports quantity:	1
Headphone outputs:	1
Height:	51 mm
Lan controller:	Realtek RTL8111H
Maximum internal memory:	128 GB
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	AMD B550
Motherboard chipset family:	AMD
Motherboard form factor:	micro ATX
Number of chassis fan connectors:	2
Number of memory slots:	4
Number of sata iii connectors:	4
Pci express x1 (gen 3.x) slots:	2
Pci express x16 (gen 4.x) slots:	1
Processor manufacturer:	AMD
Processor socket:	Socket AM4
Ps/2 ports quantity:	1
Supported memory clock speeds:	3200 MHz, 2666 MHz, 4266, 2400, 2800, 3733, 4400, 3866, 4133, 4000, 3466, 4600, 3600, 3000, 3333, 2133
Supported memory types:	DDR4-SDRAM
Supported storage drive interfaces:	M.2, SATA III
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	4
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	2
Vga (d-sub) ports quantity:	1
Weight:	845 g
Wi-fi:	No
Width:	244 mm
Windows operating systems supported:	Windows 10 x64

AMD B550 (Ryzen AM4) motherboard in micro ATX format with two M.2 slots, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gb/s, USB 3.2 Gen 2 Type-A and header support Aura Sync RGB

AMD AM4 Socket: Ready for Ryzen 5000/4000 G-Series/3000 Desktop Processors
Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
Ultrafast connectivity: dual M.2, PCIe 4.0, 1Gb Ethernet, USB 3.2 Gen 2 Type-A
Aura Sync RGB: Built-in addressable Gen 2 header for RGB LED strips, easily syncs with Aura Sync-enabled hardware

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
