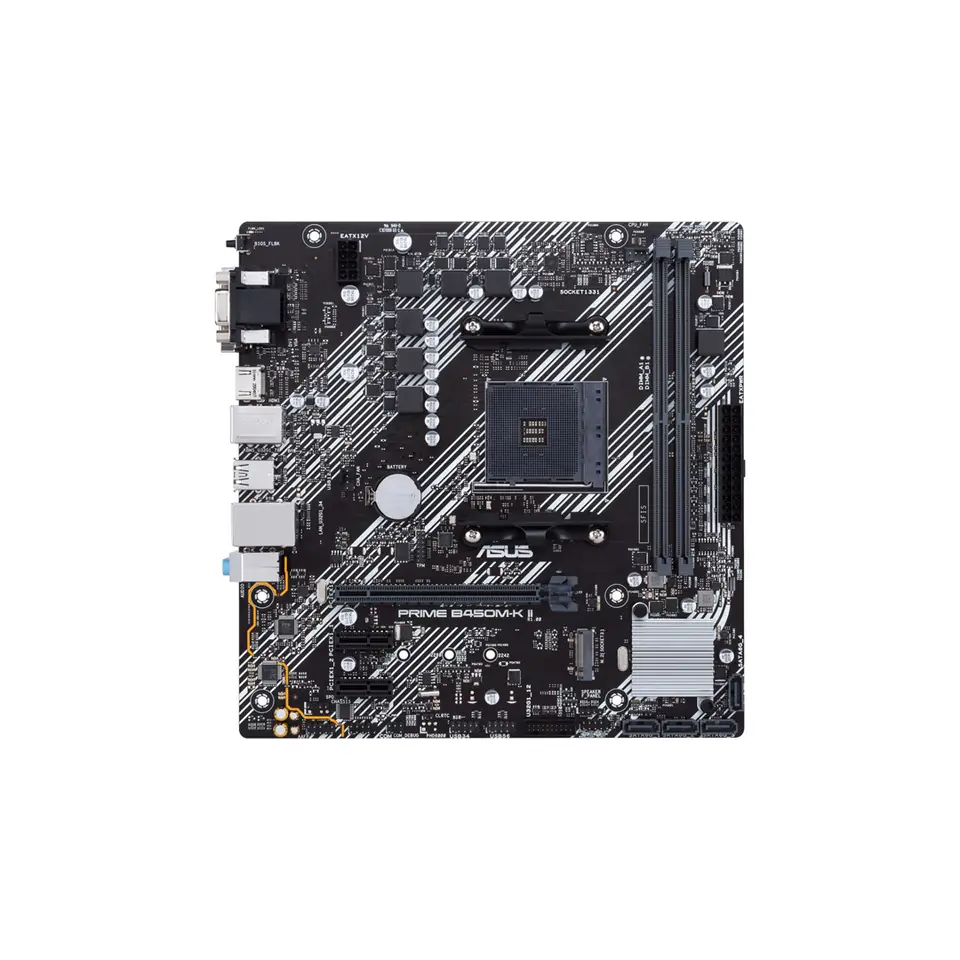

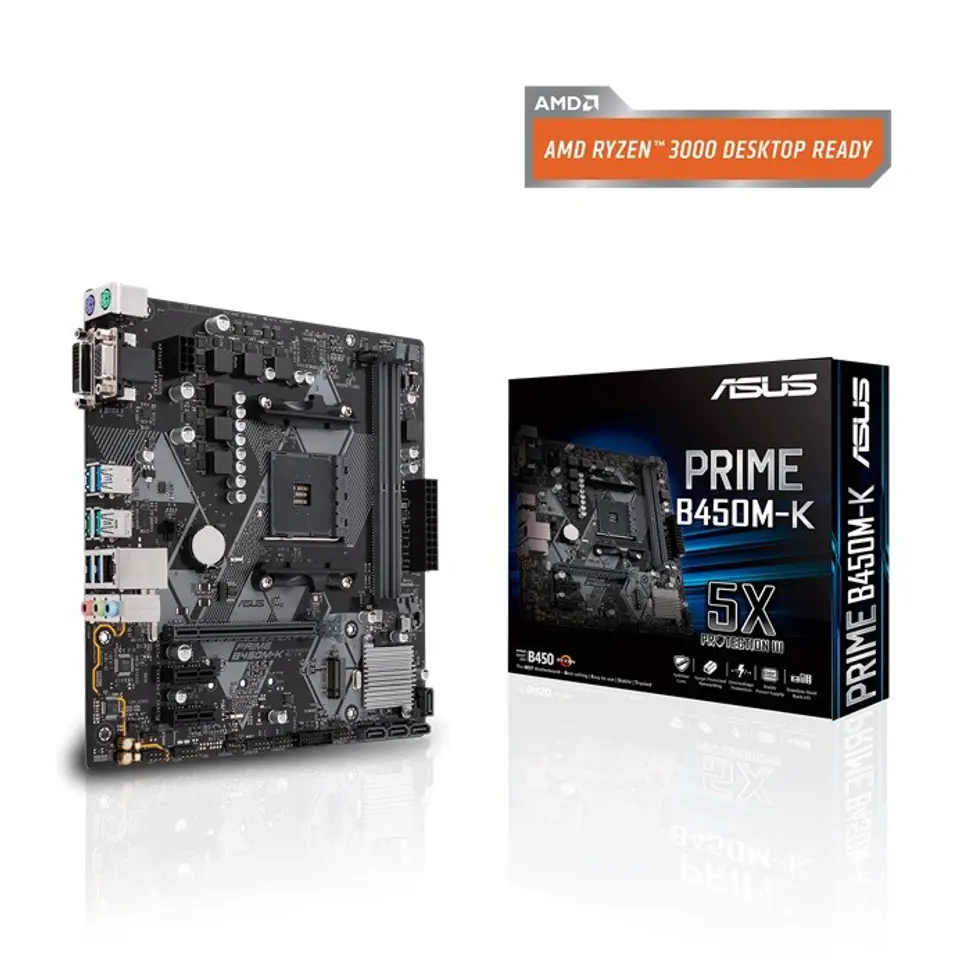

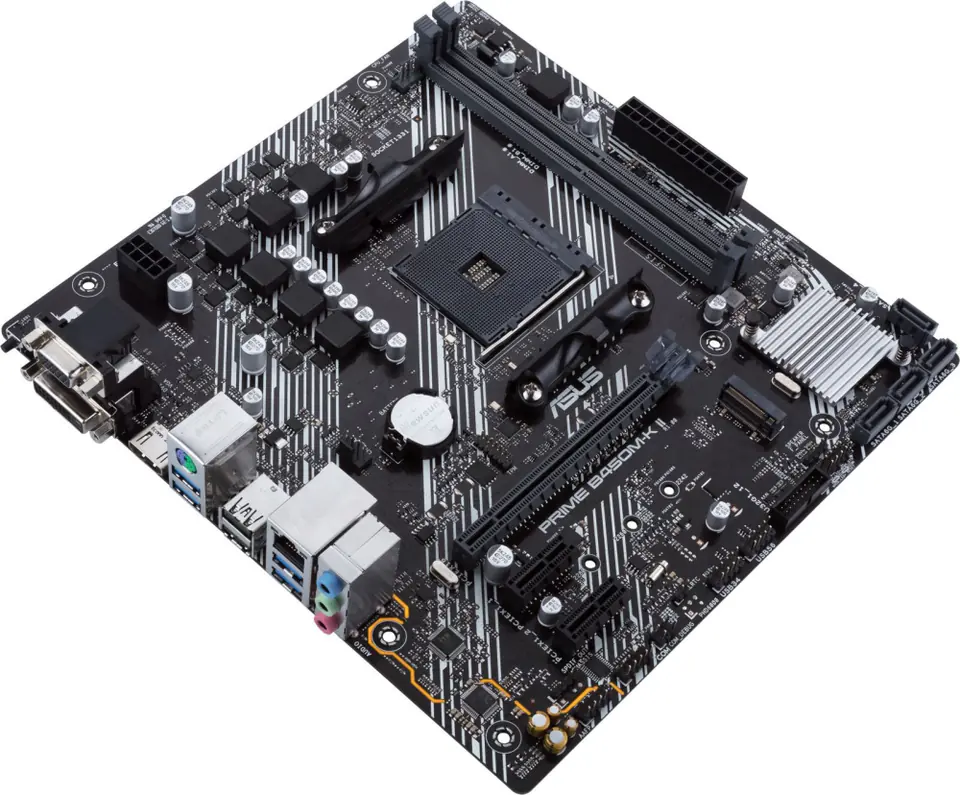

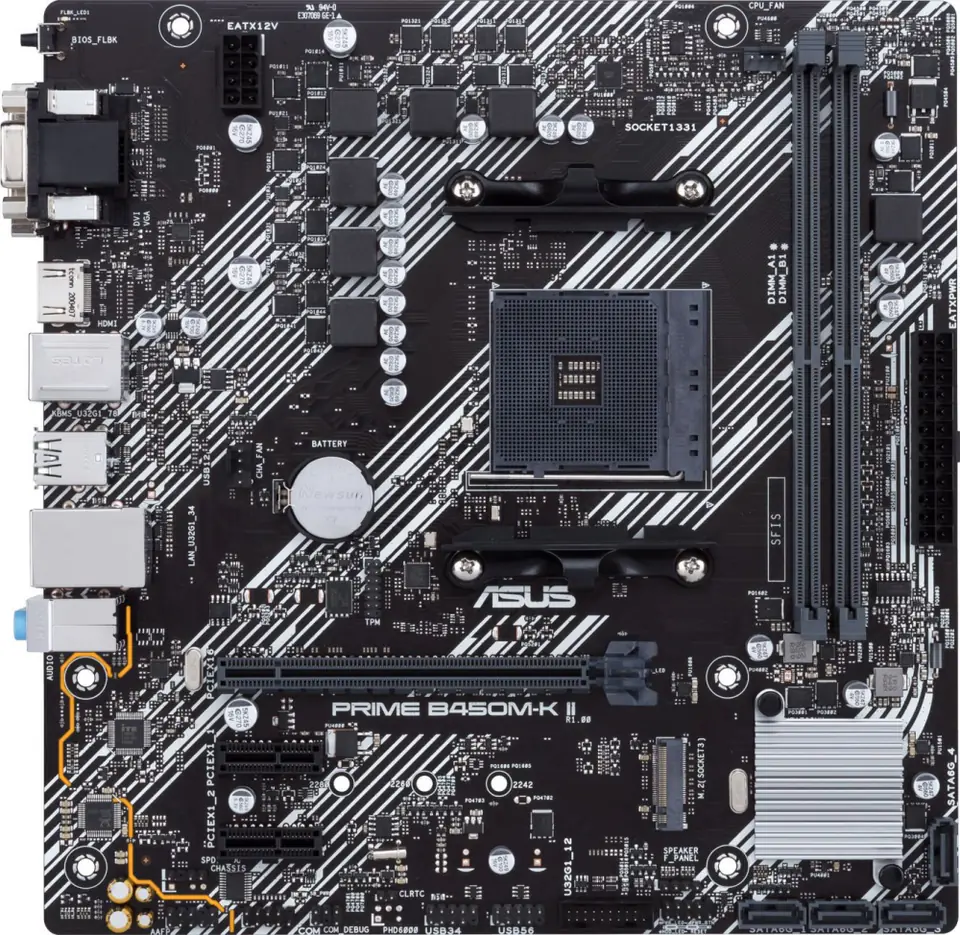

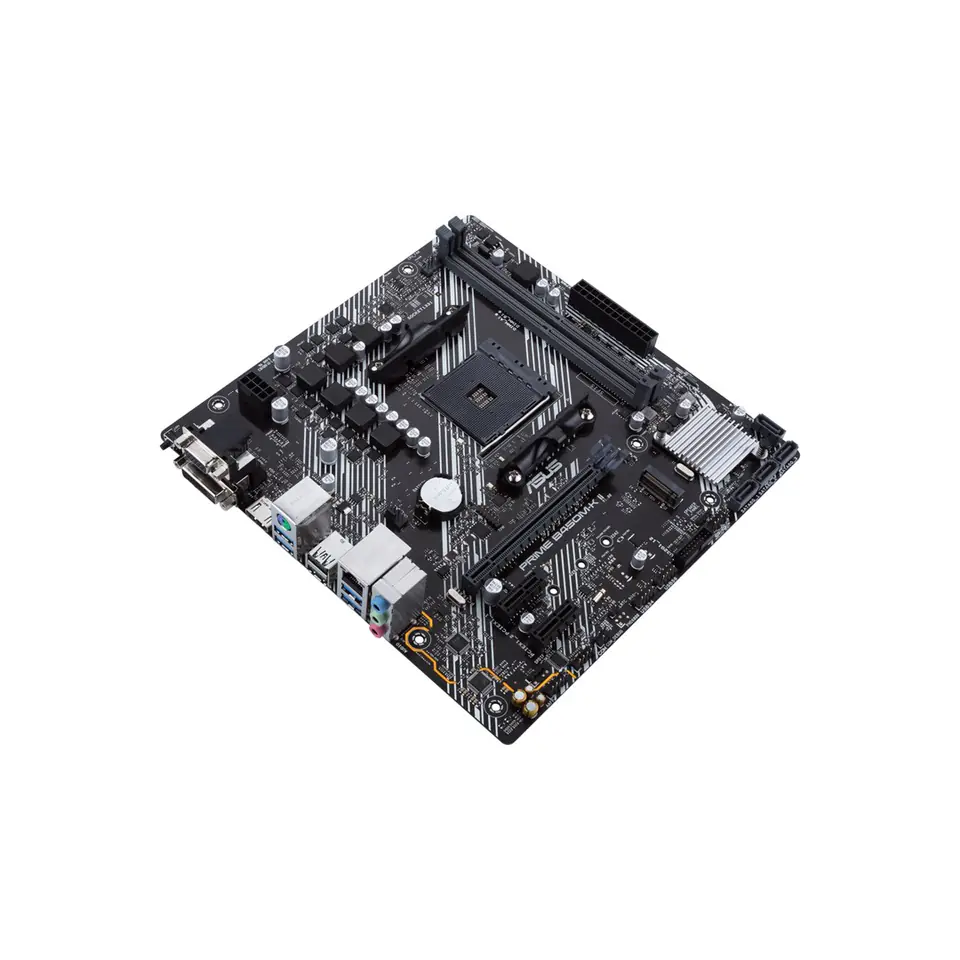

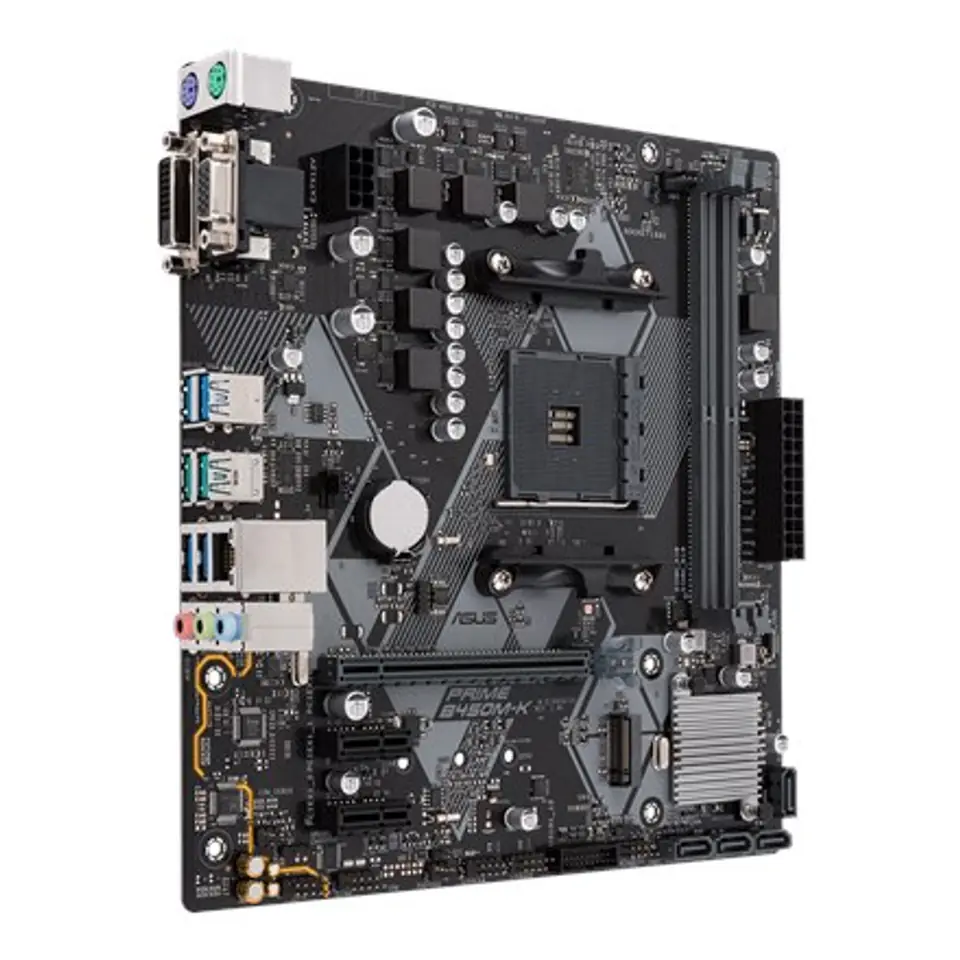

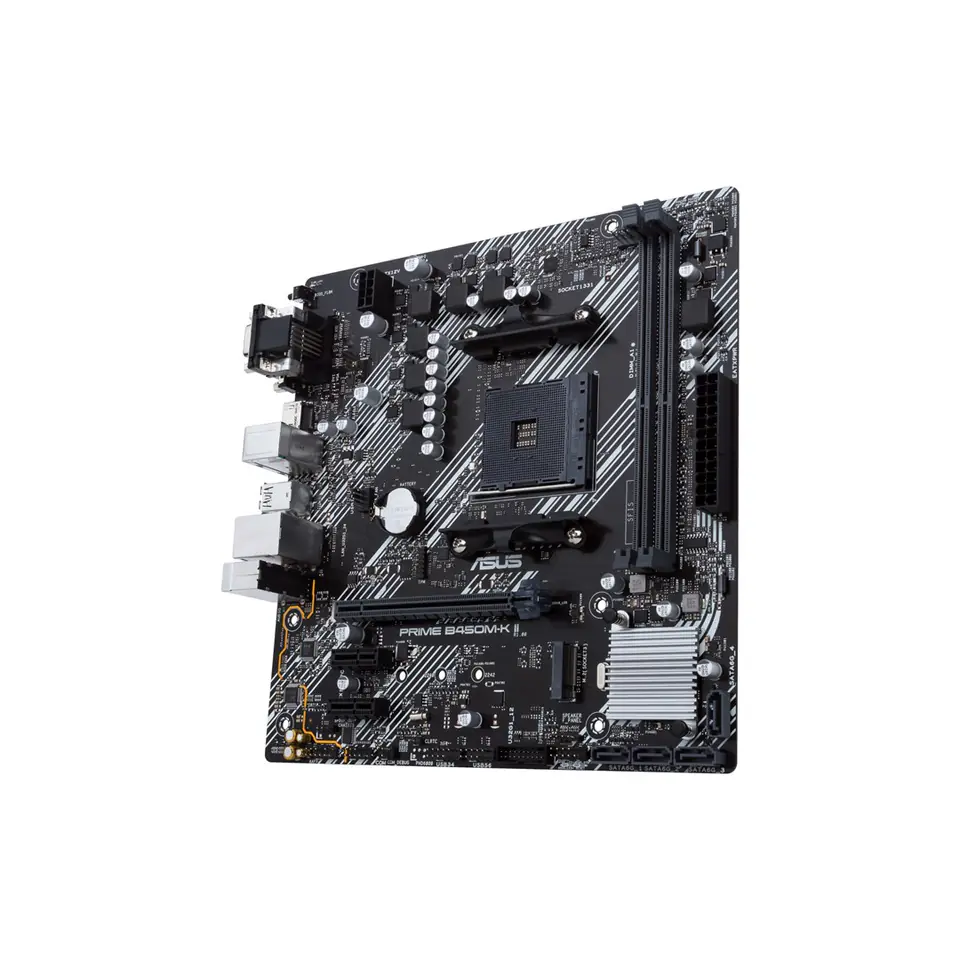

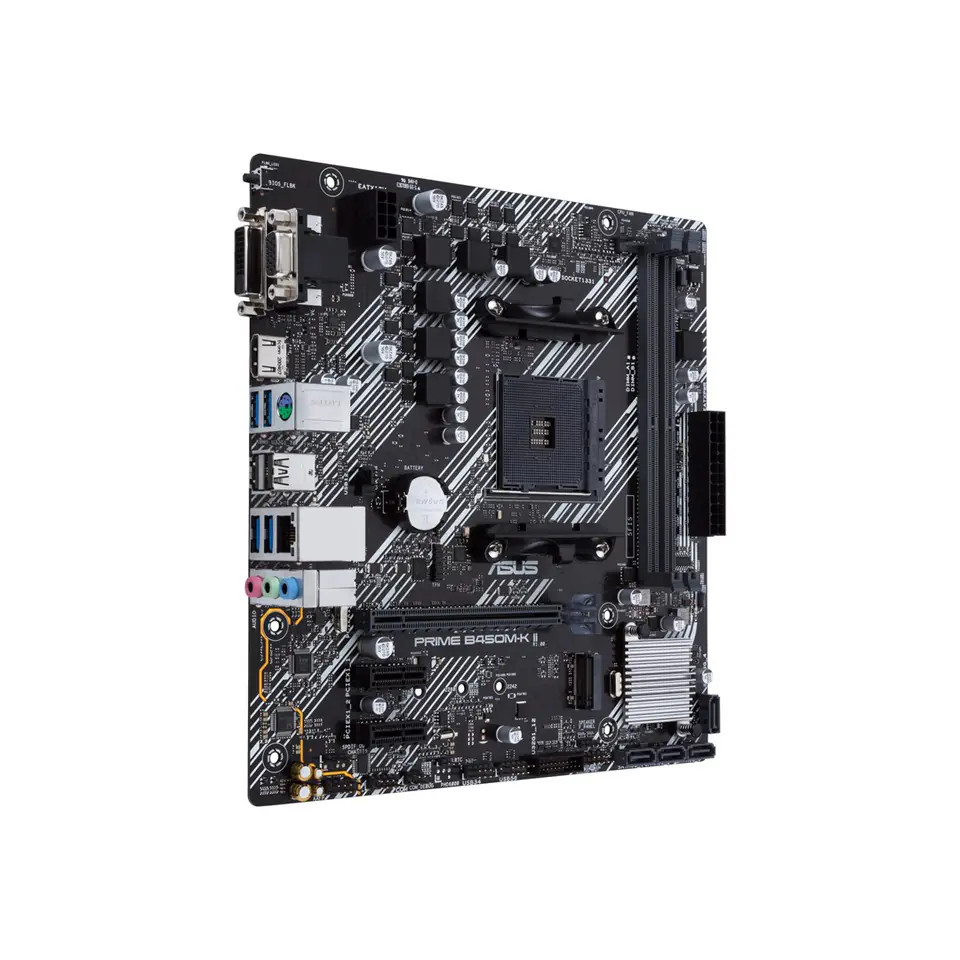

ASUS Prime B450M-K II AMD B450 Socket AM4 micro ATX

€80.75
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Asus
Product code:
90MB1600-M0EAY0 / 4718017932387

Specification

Atx power connector (24-pin):Yes
Audio chip:Realtek ALC887-VD2
Audio connector:Yes
Audio output channels:7.1 channels
Bios type:UEFI AMI

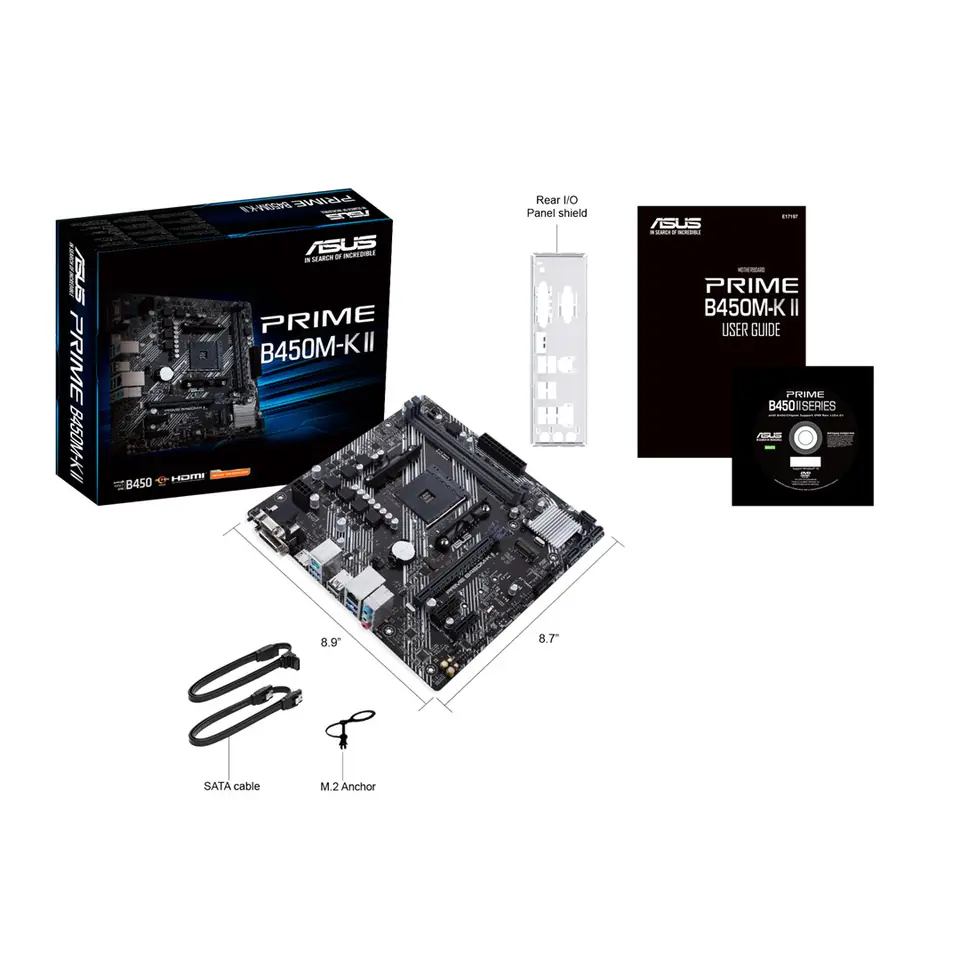

Cables included:SATA
Compatible processor series:AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, AMD Ryzen™ Threadripper™: The Second Generation, 2nd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, AMD Ryzen™ 7, AMD Ryzen™ 3
Cpu fan connector:Yes
Depth:244 mm
Dvi-d ports quantity:1
Ethernet interface type:Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Headphone outputs:1
Maximum internal memory:64 GB
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset:AMD B450
Motherboard chipset family:AMD
Motherboard form factor:micro ATX
Number of chassis fan connectors:2
Number of memory slots:2
Number of sata iii connectors:4
Pci express x1 (gen 2.x) slots:2
Pci express x16 (gen 3.x) slots:2
Processor manufacturer:AMD
Processor socket:Socket AM4
Ps/2 ports quantity:2
Raid levels:1, 10, 0
S/pdif out connector:Yes
Supported memory clock speeds:3200, 2666, 2133, 2400, 2800, 3000, 2933
Supported memory types:DDR4-SDRAM
Supported storage drive interfaces:M.2, PCI Express 3.0, Serial ATA III
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:4
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:3
Vga (d-sub) ports quantity:1
Wi-fi:No
Width:244 mm
Windows operating systems supported:Windows 10 x64, Windows 7 x64

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
