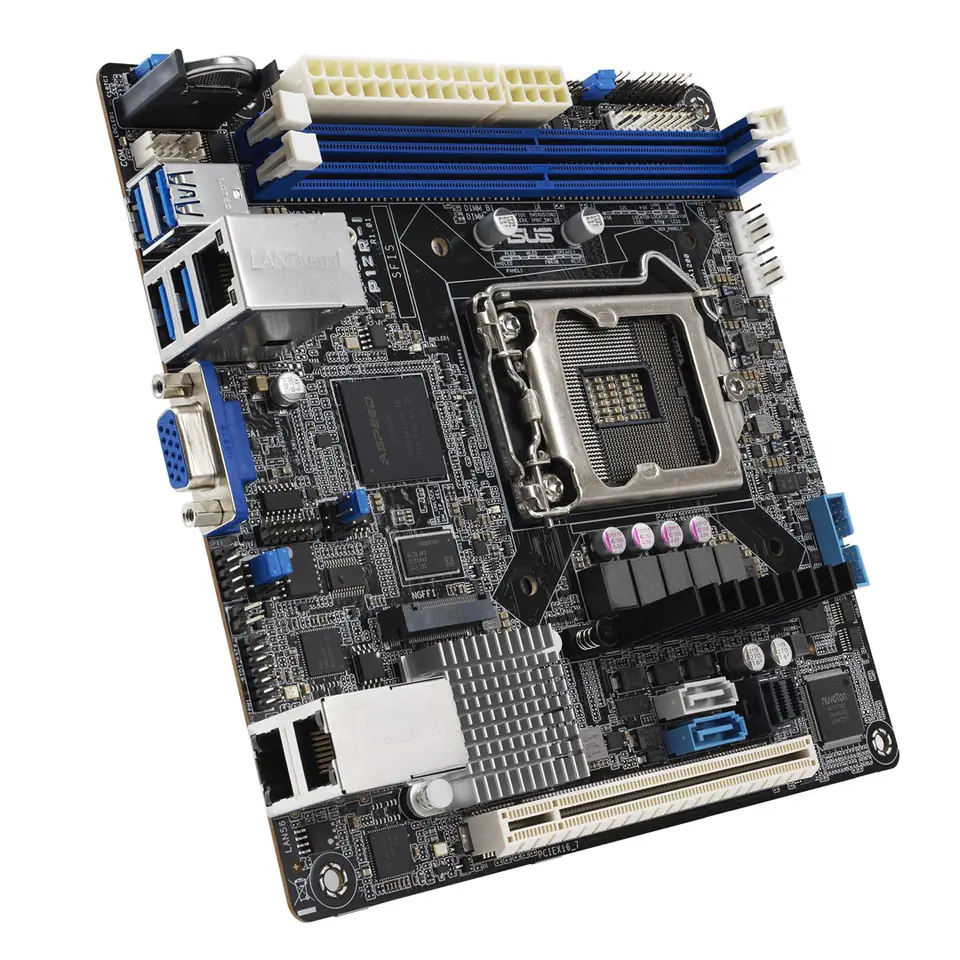

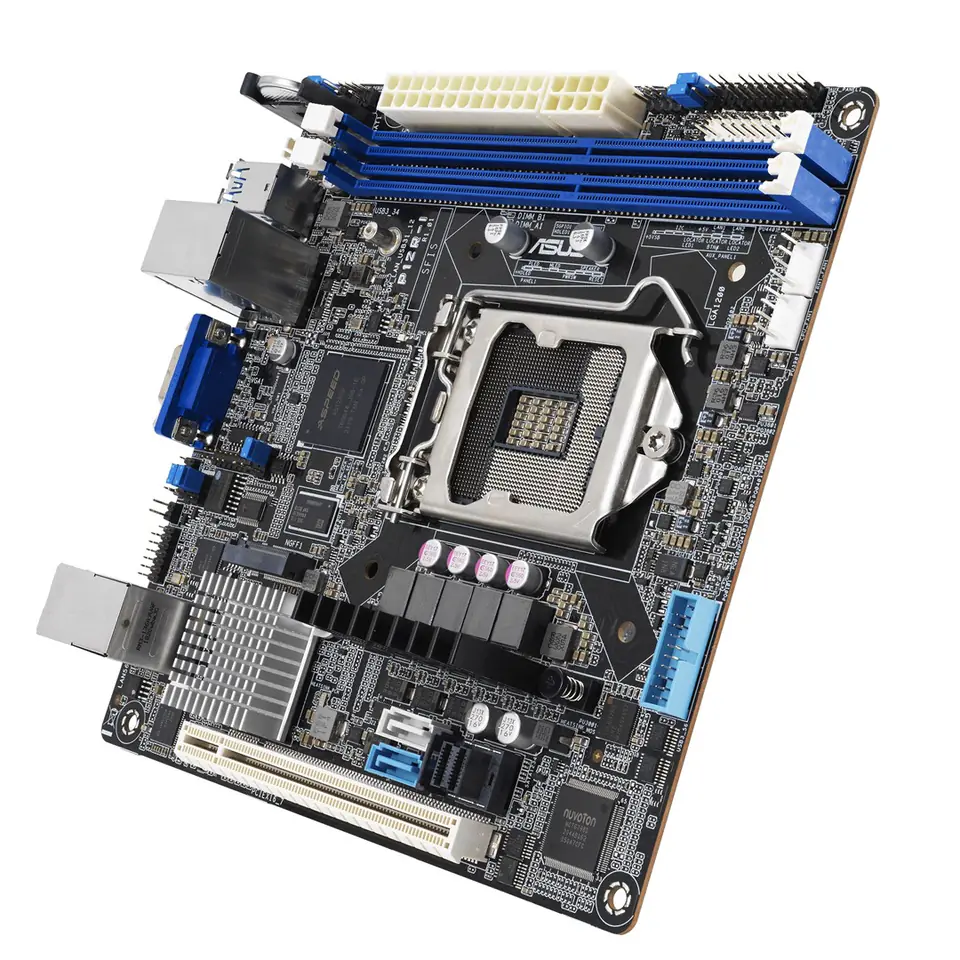

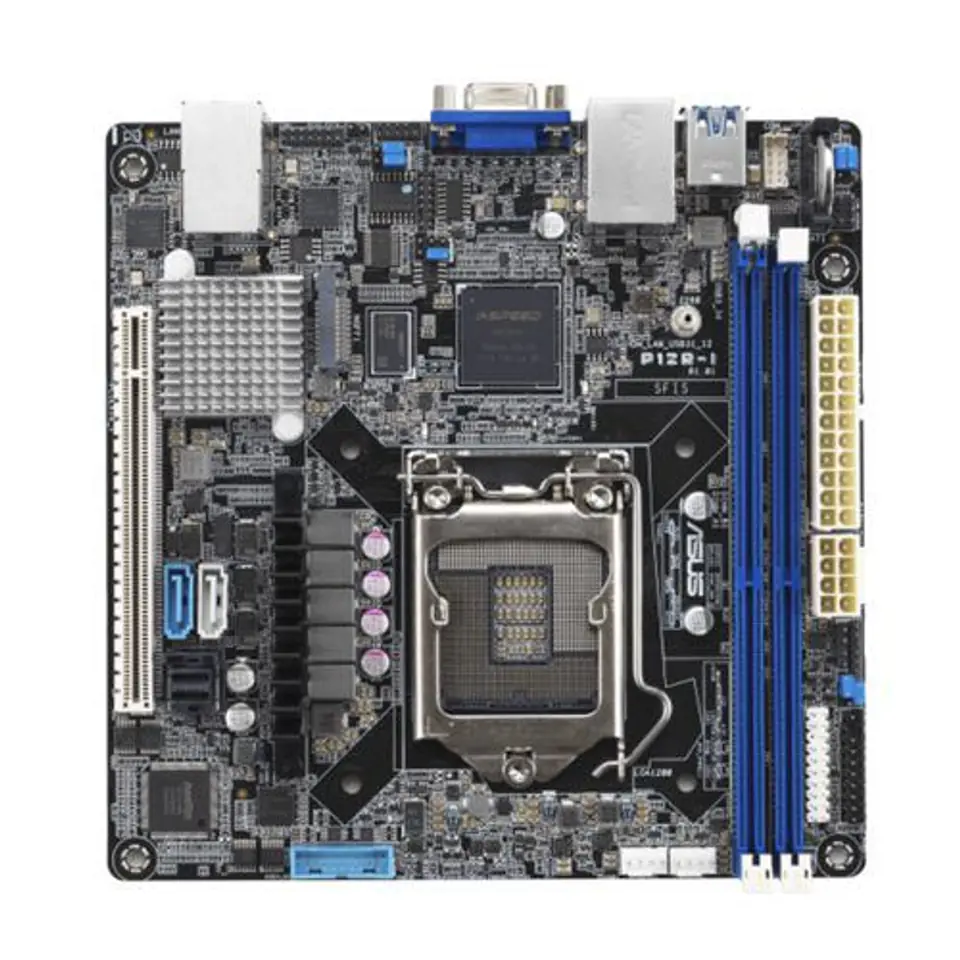

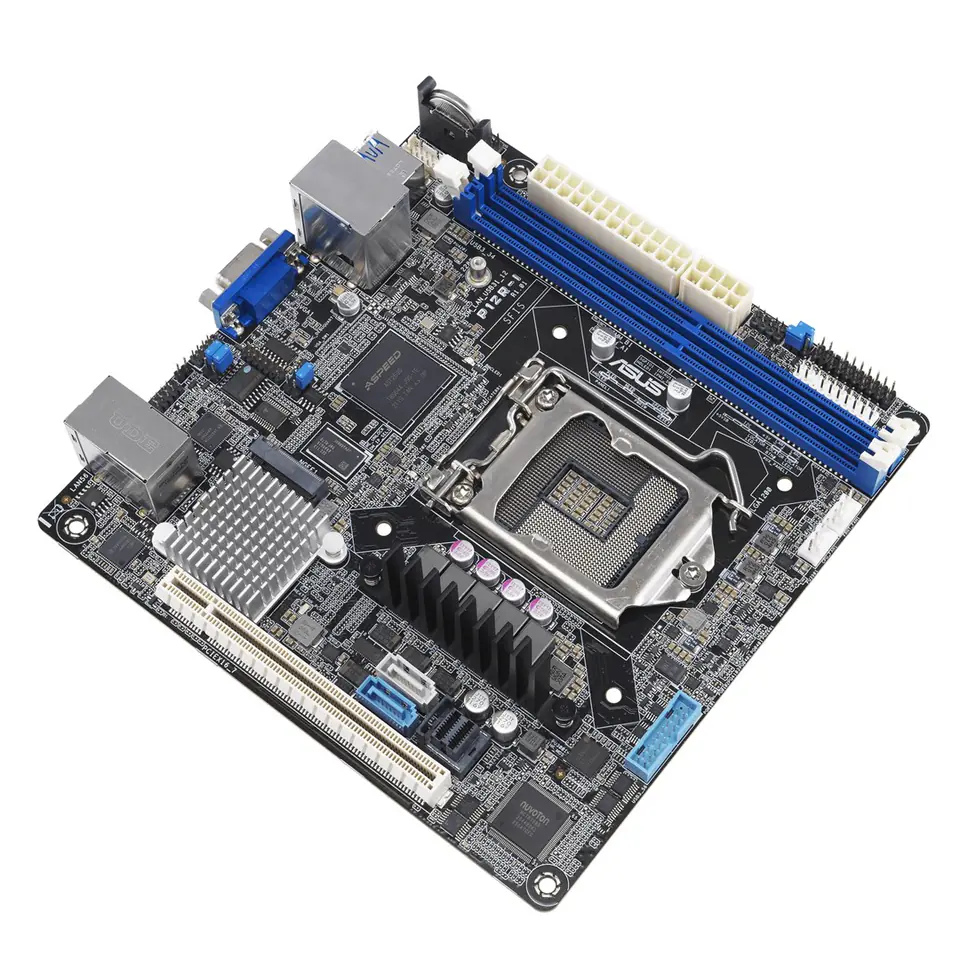

ASUS P12R-I ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
€360.87
Shipping from warehouse: A3
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90SB0A70-M0UAY0 / 4711081507604
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Chassis intrusion connector: | Yes |
| Compatible processor series: | Intel Xeon E, Intel® Pentium® |
| Component for: | Server |
| Depth: | 170 mm |
| Eps power connector (8-pin): | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 3 |
| Graphics card: | AST2600 |
| Graphics card family: | ASPEED |
| Harmonized system (hs) code: | 84733020 |
| Lan controller: | Intel® I210-AT |
| Maximum internal memory: | 64 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel C252 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 2 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 2 |
| Number of sas ports: | 2 |
| Number of sata iii connectors: | 6 |
| On-board graphics card memory: | 64 MB |
| Operating temperature (t-t): | 10 - 50 °C |
| Package weight: | 1.1 kg |
| Pci express x16 slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1200 (Socket H5) |
| Serial port headers: | 1 |
| Storage relative humidity (h-h): | 20 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Supported memory clock speeds: | 3200 MHz, 2666, 2933 |
| Supported memory module capacities: | 8GB, 16GB, 32GB, 4GB |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Tpm connector: | Yes |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 170 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
