Shrink range of 220 parts
Made of: cross-linked polyolefin (PEX), black, self-extinguishing. Shrinkage ratio 3:1.
Insulating material class according to VDE 0530, puncture strength according to ASTM D 2671.
They do not contain silicone, do not react with copper, resistant to UV radiation, solvents, acids and alkalis. Delivery in a plastic suitcase.
Application: ideal for insulation, color marking and as protection against refraction in electronics and cable packaging.
Tip: To protect properly, contractile hoses must be contracted from at least 20% to at most 80% of their maximum shrinkage capacity.
Kit Contents:
100pcs Ø 1.5mm, length 35mm, wall thickness 0.45mm
50pcs Ø 3.0 mm, length 35 mm, wall thickness 0.55 mm
60pcs Ø 6.0mm, length 35mm, wall thickness 0.70mm
5 pieces Ø 12.0 mm, length 80 mm, wall thickness 0.70 mm
5 pieces Ø 18.0 mm, length 80 mm, wall thickness 0.80 mm Kit contents:
100pcs Ø 1.5mm, length 35mm, wall thickness 0.45mm
50pcs Ø 3.0 mm, length 35 mm, wall thickness 0.55 mm
60pcs Ø 6.0mm, length 35mm, wall thickness 0.70mm
5 pieces Ø 12.0 mm, length 80 mm, wall thickness 0.70 mm
5 pieces Ø 18.0 mm, length 80 mm, wall thickness 0.80 mm

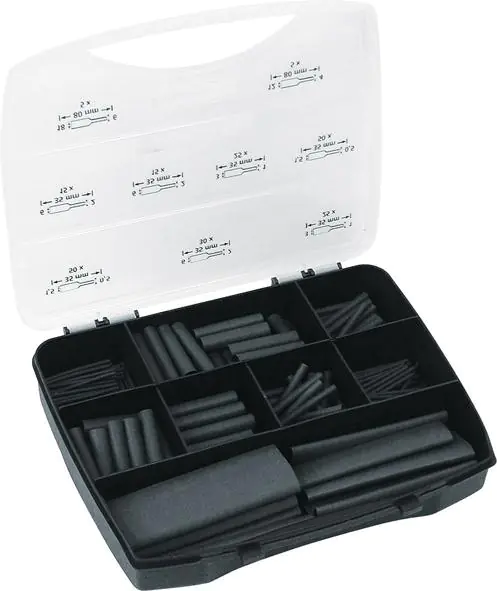

Assortment of heat-shrinkable hoses,
€38.21
Shipping from warehouse: B6
Estimated shipping: Wed, Nov 27 - Mon, Dec 2
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- HellermannTyton
- Product code:
- 485806 / 4031026270692
Share this product:
Specification
| Execution: | 220 pieces |
|---|---|
| Insulation class: | B |
| Max. longitudinal shrinkage: | +5/–10 % |
| Min. shrinkage temperature: | +90 °C |
| Operating temperature: | -55 to +135 °C |
| Puncture resistance kv/mm: | 20 |
