Asrock Z790 Steel Legend WiFi Intel Z790 LGA 1700 ATX

Name: Asrock Z790 Steel Legend WiFi Intel Z790 LGA 1700 ATX
Brand: ASRock
SKU: 955137
Price: 311.3 EUR
Availability: InStock

€311.30

Shipping from warehouse: ⁨A3⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: ASRock
Product code:: Z790 Steel Legend WiFi / 4710483940859

Specification

Atx power connector (24-pin):	Yes
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Bios type:	UEFI AMI
Bluetooth:	Yes
Compatible processor series:	Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5
Cpu fan connector:	Yes
Depth:	244 mm
Displayport version:	1.4
Displayports quantity:	1
Ecc сompatibility:	Non-ECC
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Hdmi ports quantity:	1
Headphone outputs:	1
Lan controller:	Dragon RTL8125BG
Maximum internal memory:	128 GB
Maximum number of smp processors:	1
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	Intel Z790
Motherboard chipset family:	Intel
Motherboard form factor:	ATX
Number of m.2 (m) slots:	1
Number of memory slots:	4
Number of sata iii connectors:	8
Pci express x16 (gen 3.x) slots:	1
Pci express x16 (gen 4.x) slots:	1
Pci express x16 (gen 5.x) slots:	1
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Raid levels:	5, 10, 1, 0
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out port:	Yes
Supported memory types:	DDR5-SDRAM
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
Thunderbolt headers:	1
Top wi-fi standard:	Wi-Fi 6E (802.11ax)
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	8
Usb 3.2 gen 2 (3.1 gen 2) connectors:	1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	1
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:	1
Wi-fi:	Yes
Wi-fi standards:	Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11a
Width:	305 mm
Windows operating systems supported:	Windows 11 x64, Windows 10 x64

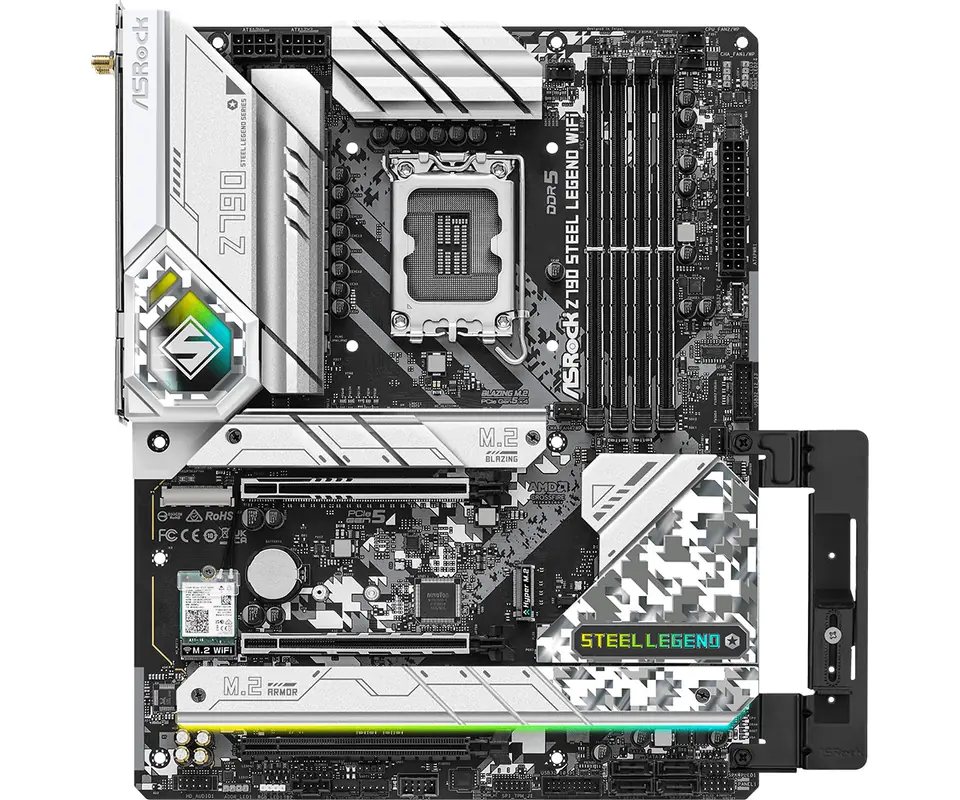

Z790 Steel Legend WiFi motherboard

Supports 13th and 12th generation Intel Core processors
16+1+1 phase power design, SPS for VCore+GT
4 x DDR5 DIMM, supports up to 6800+(OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for Wi-Fi
Graphics output options: 1 HDMI, 1 DisplayPort, eDP
7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio
1 Super M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
1 USB 3.2 Gen2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 12 USB 3.2 Gen1 (8 Rear, 4 Front), 3 USB 2.0 (3 Front)
Realtek 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
