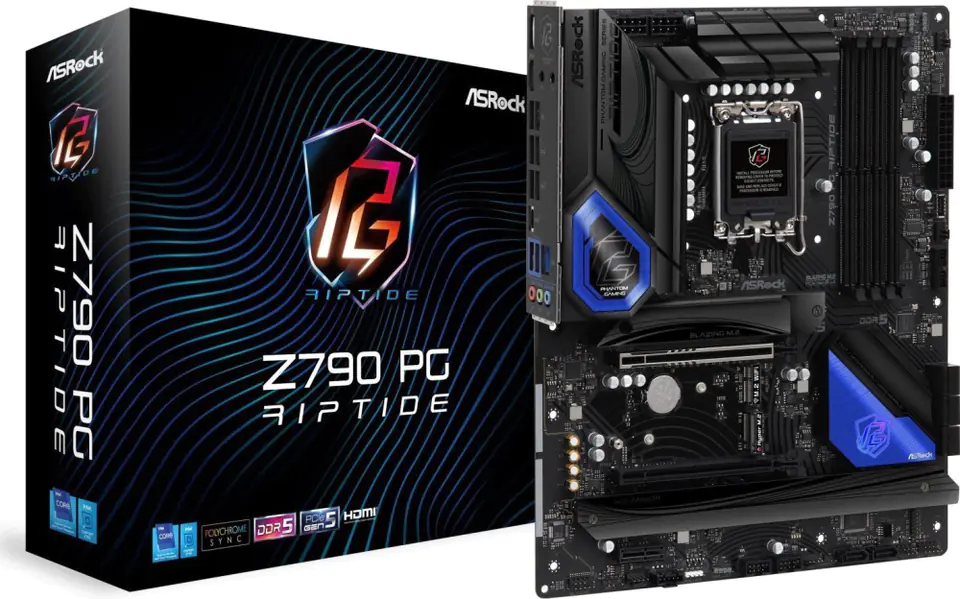

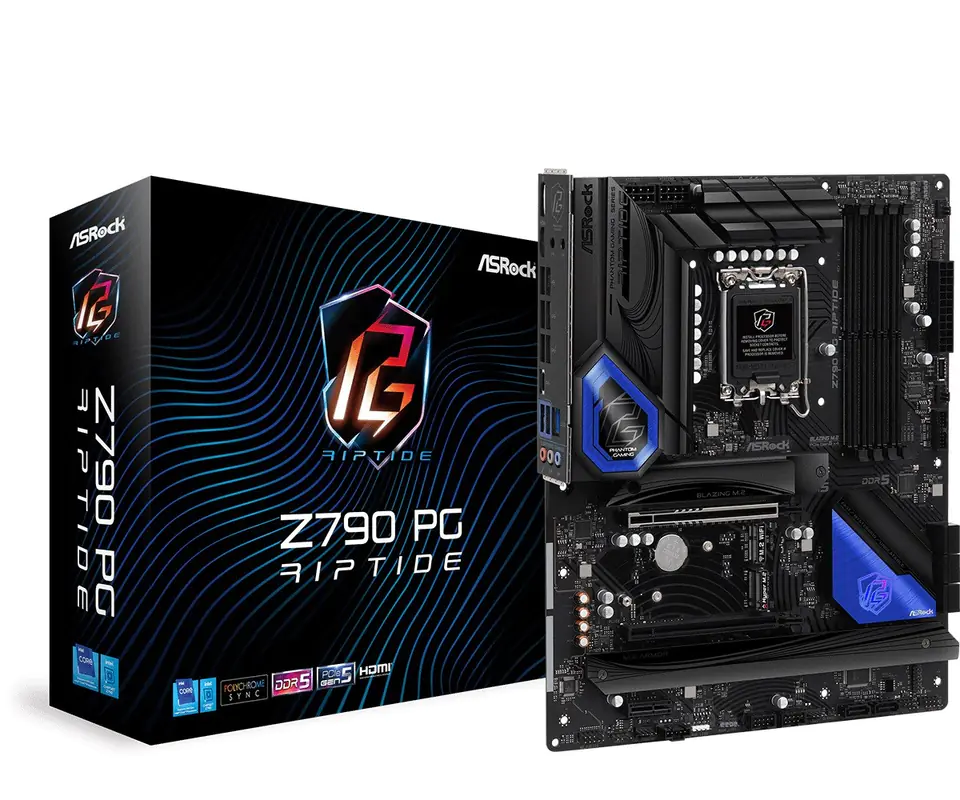

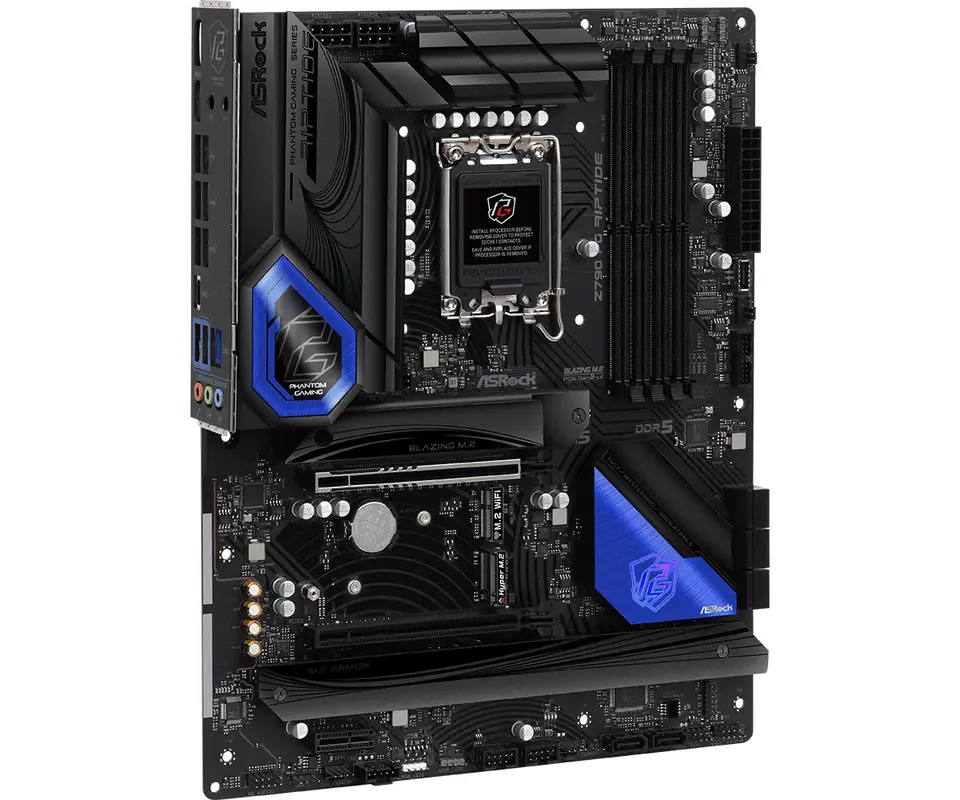

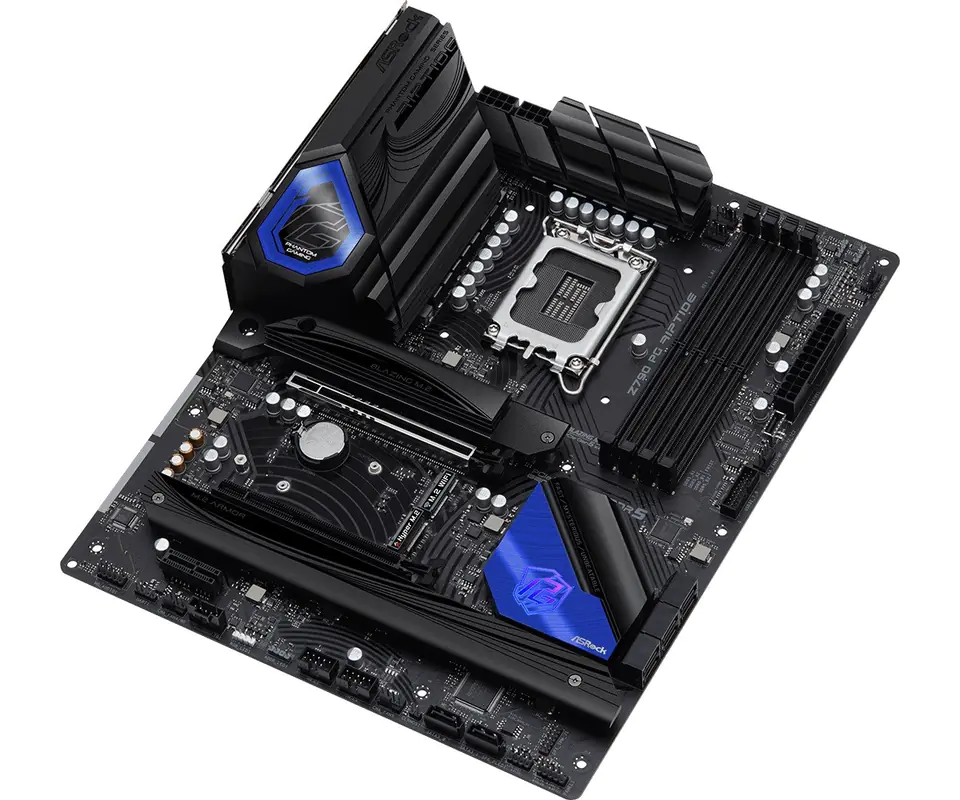

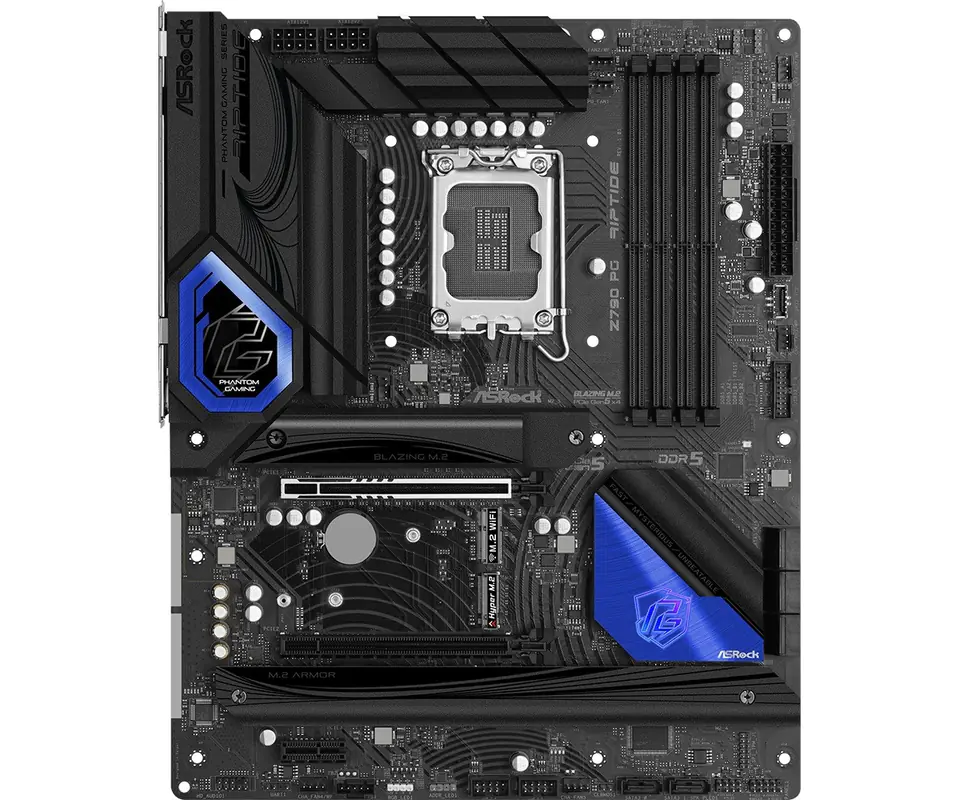

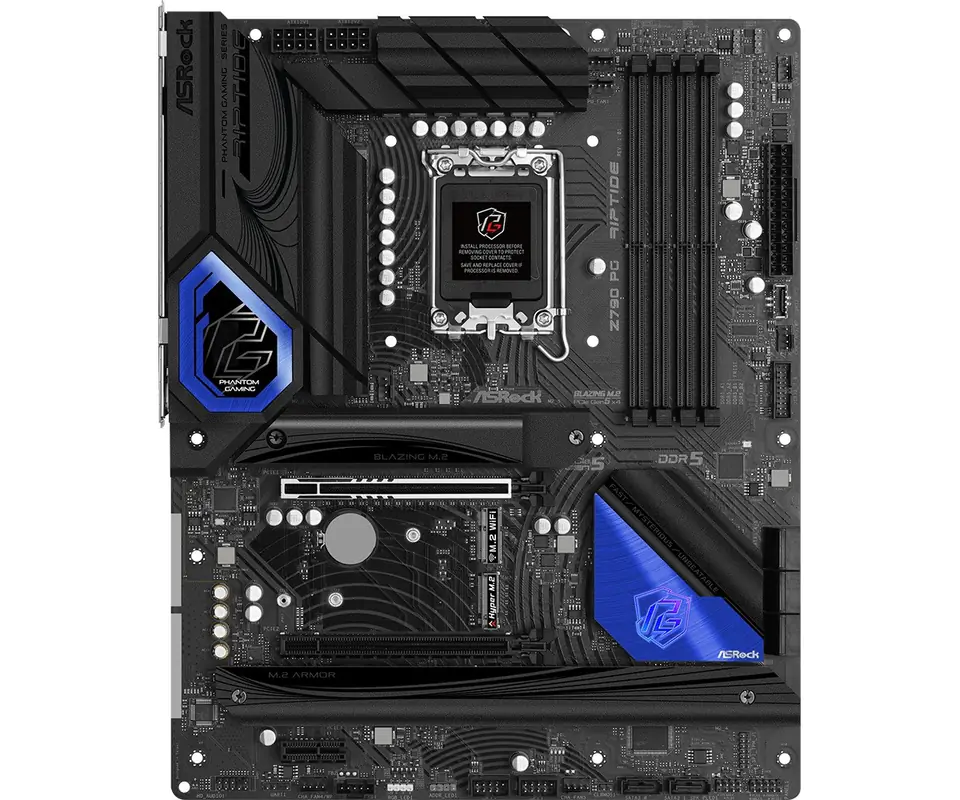

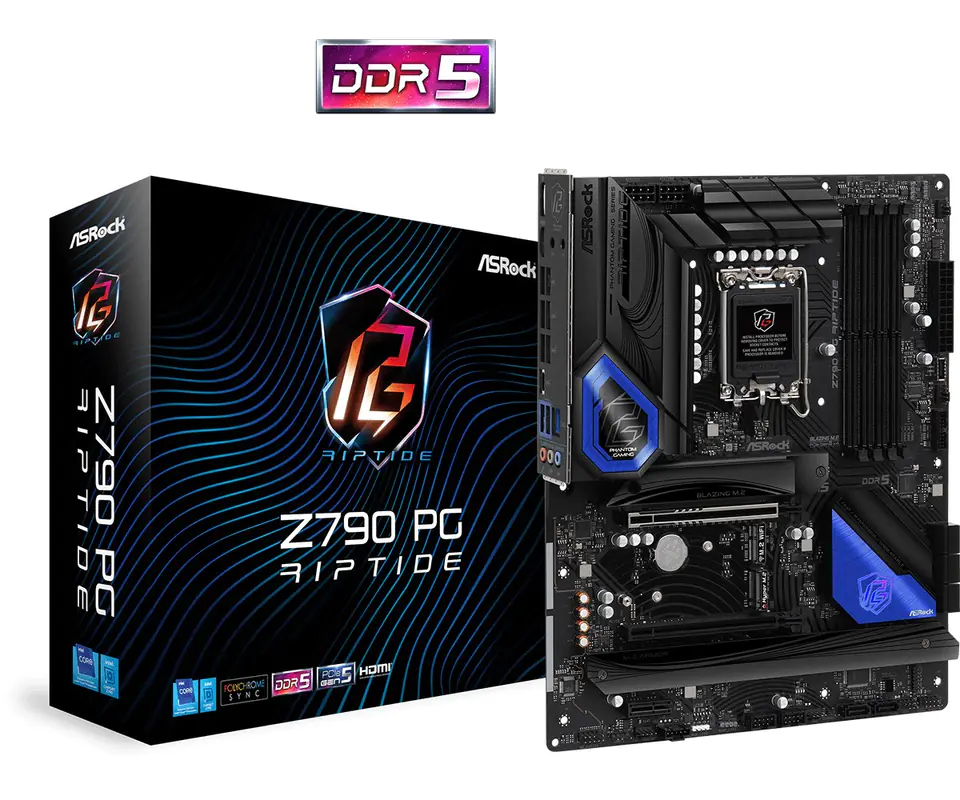

Asrock Z790 PG Riptide motherboard

Name: Asrock Z790 PG Riptide motherboard
Brand: ASRock
SKU: 845897
Price: 261.57 EUR
Availability: InStock

€261.57

Shipping from warehouse: ⁨A3⁩

Estimated shipping: Wed, Nov 13 - Mon, Nov 18

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: ASRock
Product code:: Z790 PG RIPTIDE / 4710483940989

Specification

Atx power connector (24-pin):	Yes
Atx power jack (24-pin):	Yes
Audio chip:	Realtek ALC897
Audio chipset:	Realtek ALC897
Audio output channels:	7.1 channels

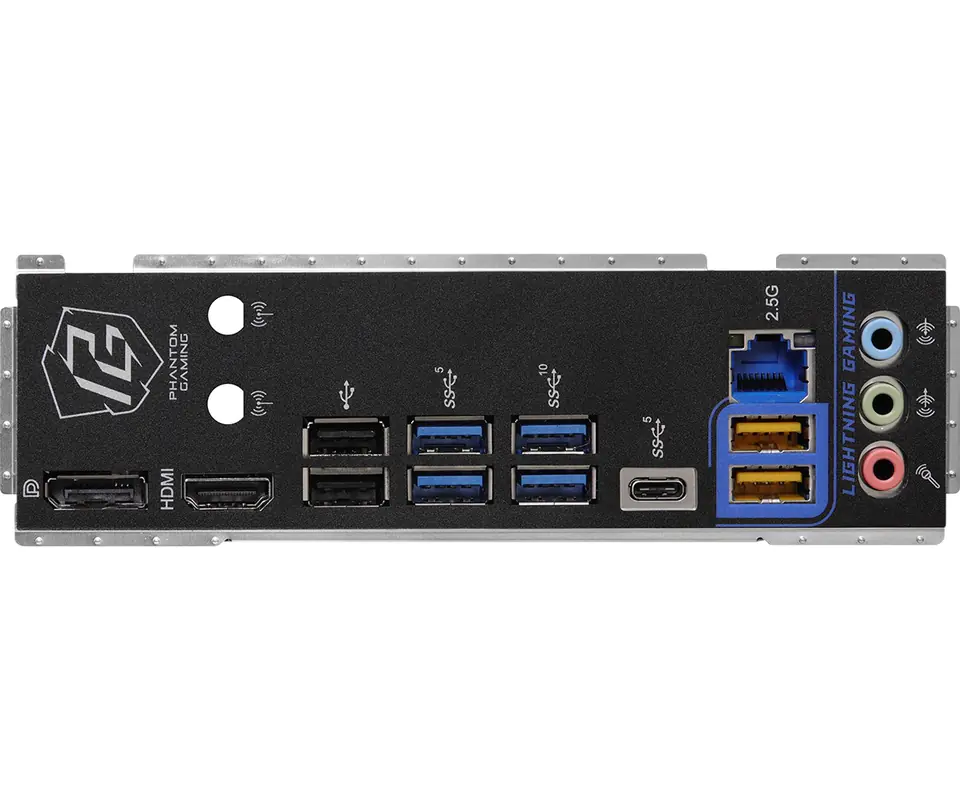

Back panel connectors:	1x DisplayPort, 1x RJ-45, 1x HDMI, 2x USB 2.0, 3x Audio connector(s), 1x USB Type C, 4x USB 3.2 Gen1, 2x USB 3.2 Gen 2
Bios:	Yes
Bios type:	UEFI AMI
Bios type:	UEFI AMI
Built-in raid controller:	RAID 0, RAID 1, RAID 10, RAID 5
Card linking support:	AMD CrossFire
Chipset board family:	Intel
Chipset type:	Intel Z790
Compatibility:	The current list of supported processors and memory can be found on the manufacturer's website (CPU/Memory Support list)
Compatible processor series:	Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5
Cpu fan connector:	Yes
Cpu socket:	LGA 1700
Depth:	244 mm
Depth (mm):	305
Displayport quantity:	1
Displayport version:	1.4
Displayport version:	1.4
Displayports quantity:	1
Drive connectors:	8x SATA III, 3x Hyper M.2
Ecc сompatibility:	Non-ECC
Equipment:	Software, Documentation
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Ethernet lan ports (rj-45) quantity:	1
Expansion slots:	1x PCIe 4.0 x16, 1x PCIe 3.0 x1
External audio connectors:	3x audio
Front panel audio connector:	Yes
Front-panel audio connector:	Yes
Graphics chipset:	Yes: depending on the processor
Hdmi ports quantity:	1
Headphone outputs:	1
Integrated graphics:	CPU dependent
Integrated network adapter:	10/100/1000/2500
Internal connectors:	1x Thunderbolt, 1x CPU fan, 1x ATX 24P, 1x USB Type C, 1x AIO_PUMP connector, 1x SPI TPM Header, 1x USB 3.2 Gen1, 2x 8-pin 12V
Lan controller:	Killer E3100G
Lan controller:	Killer E3100G
Led rgb:	Yes
Maximum internal memory:	128 GB
Maximum memory (gb):	128
Maximum memory capacity:	128 GB
Maximum number of processors:	1
Maximum number of smp processors:	1
Maximum number of smps:	1
Memory bus frequencies (mhz):	7200+
Memory channel support:	Dual-channel
Memory channels:	Dual-channel
Memory slots type:	DIMM
Memory slots type:	DIMM
Microphone:	Yes
Microphone in:	Yes
Modem:	No
Motherboard chipset:	Intel Z790
Motherboard chipset family:	Intel
Motherboard form factor:	ATX
Motherboard layout:	Intel Z790
Multi-channel memory support:	Dual-Chanel
Network adapter chipset:	Killer E3100G
Number of hdmi ports:	1
Number of m.2 (m) slots:	1
Number of m.2 slots (m):	1
Number of memory slots:	4
Number of sata iii connectors:	8
Pci express x1 (gen 3.x) slots:	1
Pci express x16 (gen 4.x) slots:	1
Pci express x16 (gen 5.x) slots:	1
Plate standard:	ATX
Plate type:	ATX
Processor:	Intel Core i5, Intel Core i9, Intel®®® Core™™™ i7
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Product depth:	244 mm
Product width:	305 mm
Raid levels:	0, 1, 10, 5
Raid service:	Yes
Raid support:	Yes
Rgb led pin header:	Yes
Socket type:	LGA1700
Sound technologies:	High Definition Audio
Supported channels:	7.1
Supported drive types:	HDD & SSD
Supported hard drive interfaces:	M.2, SATA III
Supported memory:	DDR5
Supported memory types:	DDR5-SDRAM
Supported processors:	12th and 13th Generation Intel Core
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
Supported windows operating systems:	Windows 11 x64, Windows 10 x64
Technologies:	USB
Thunderbolt headers:	1
Thunderbolt tips:	1
Tpm connector:	Yes
Type of packaging:	BOX
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 2.0 ports quantity:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) ports:	1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	4
Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity:	1
Usb 3.2 gen 2 (3.1 gen 2):	1
Usb 3.2 gen 2 (3.1 gen 2) connectors:	1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	2
Warranty:	2 years
Wi-fi:	No
Width:	305 mm
Width (mm):	244
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Wired lan:	Yes

Warranty:

Z790 PG Riptide motherboard

Supports 13th and 12th Generation Intel Core processors
14+1+1 Phase Power Design, Dr.MOS for VCore+GT
4 x DDR5 DIMM, supports up to 6800+(OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for Wi-Fi
Graphics output options: 1 HDMI, 1 DisplayPort
7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio
1 Super M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
1 USB 3.2 Gen2x2 Type-C (front), 2 USB 3.2 Gen2 Type-A (rear), 1 USB 3.2 Gen1 Type-C (rear), 6 USB 3.2 Gen1 Type-A (4 rear, 2 front), 6 USB 2.0 ports (2 rear, 4 front)
Killer 2.5G LAN

Z790 PG Riptide

Intel Z790

CPU:

1 x Hyper M.2 (M2_1, Key M), supports 2280 PCIe Gen4x4 (64Gbps) mode*
1 x Blazing M.2 (M2_5, Key M), supports 2280 PCIe Gen5x4 (128Gbps) mode*

Chipset:

1 x Hyper M.2 (M2_2, Key M), supports 2260/2280 PCIe Gen4x4 (64Gbps) mode*
1 x Hyper M.2 (M2_3, Key M), supports 2260/2280 PCIe Gen4x4 (64Gbps) mode*
1 x Hyper M.2 (M2_4, Key M), supports 2260/2280 PCIe Gen4x4 (64Gbps) mode*
8 x SATA3 6.0Gb/s connectors

* Supports Intel Volume Management Device (VMD). Supports NVMe SSD as boot drivesIf the M2_5 is busy, PCIE1 will go down to x8 mode. You can use M2_1 or M2_5 at the same time.

Intel Xe (Gen 12) Graphics Architecture

1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. Up to 4K 60Hz resolution
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. Resolution up to 8K 60Hz / 5K 120Hz

* Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors.

7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

128Mb AMI UEFI Legal BIOS with GUI support

30.5 x 24.4 cm

1 x User Manual
2 x SATA cables
5 x M.2 screws

Software

ASRock Motherboard Utility (Phantom Gaming Tuning)
Killer Control Center
ASRock Polychrome SYNC

UEFI

ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer
