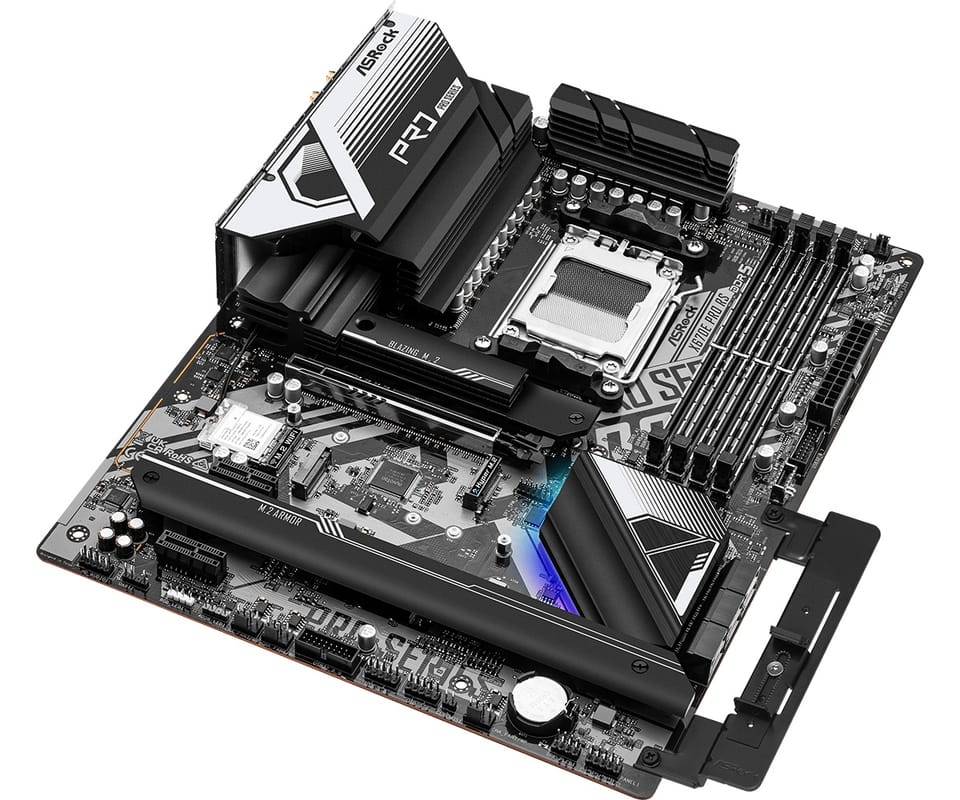

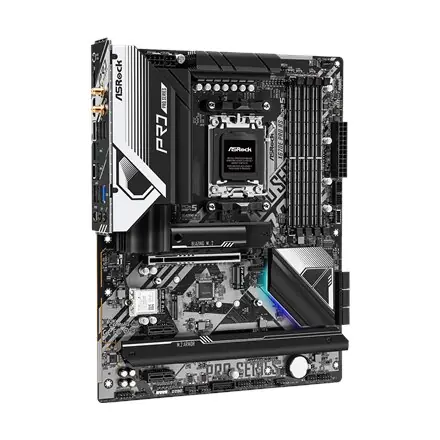

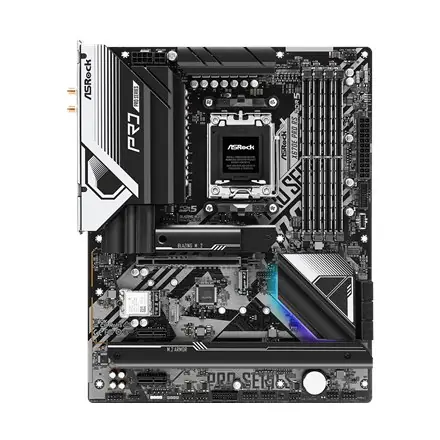

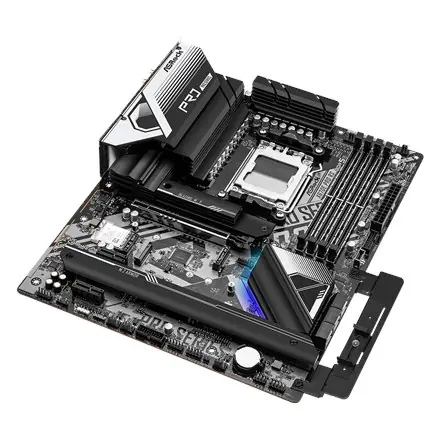

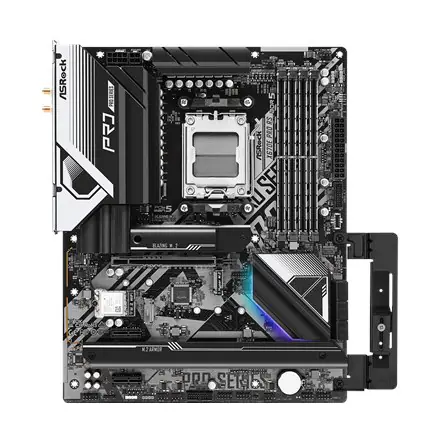

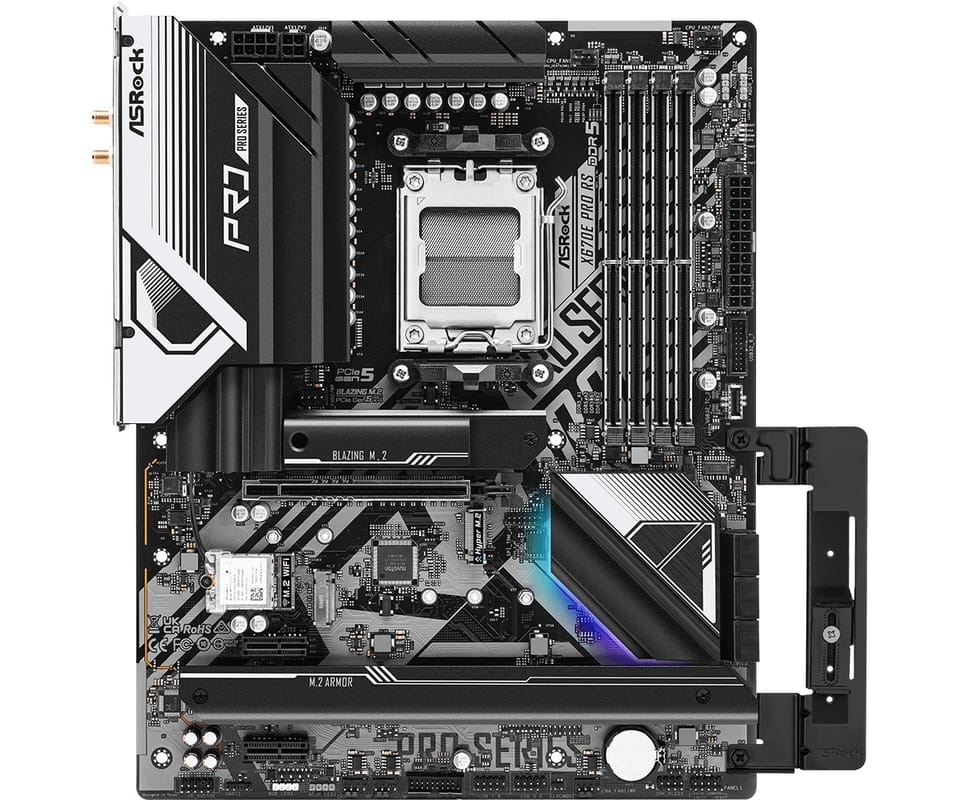

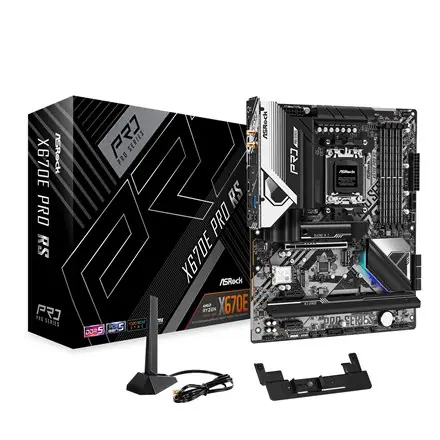

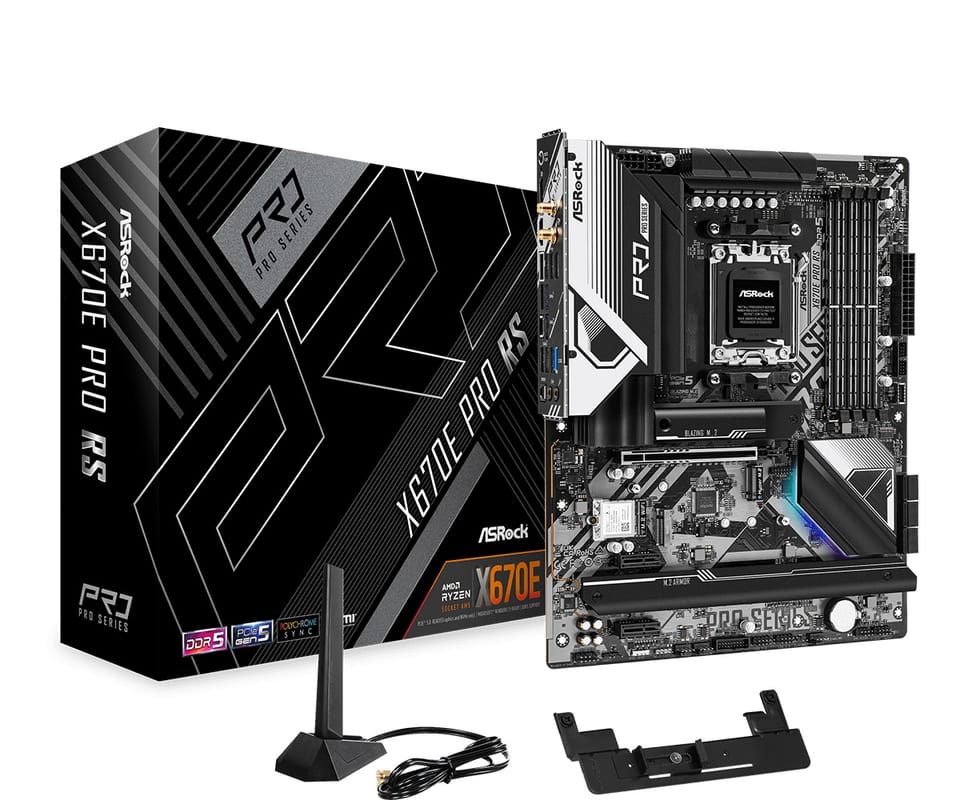

Asrock X670E Pro RS AMD X670 Socket AM5 ATX

Name: Asrock X670E Pro RS AMD X670 Socket AM5 ATX
Brand: ASRock
SKU: 975633
Price: 293.05 EUR
Availability: InStock

€293.05

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: ASRock
Product code:: X670E Pro RS / 4710483940330

Specification

Atx power connector (24-pin):	Yes
Audio chip:	Realtek ALC897
Audio output channels:	7.1 channels
Bios memory size:	256 Mbit
Bios type:	EFI AMI
Bluetooth:	Yes
Compatible processor series:	AMD Ryzen 9 7th Gen, AMD Ryzen 7 7th Gen
Component for:	PC
Cpu fan connector:	Yes
Depth:	244 mm
Displayport version:	1.4
Displayports quantity:	1
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Hdmi ports quantity:	1
Lan controller:	Dragon RTL8125BG
Maximum internal memory:	128 GB
Maximum number of smp processors:	1
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	AMD X670
Motherboard chipset family:	AMD
Motherboard form factor:	ATX
Non-ecc:	Non-ECC
Number of m.2 (m) slots:	1
Number of memory slots:	4
Number of sata iii connectors:	6
Pci express x1 (gen 4.x) slots:	2
Pci express x16 (gen 5.x) slots:	1
Processor manufacturer:	AMD
Processor socket:	Socket AM5
Raid levels:	0, 10, 1
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out port:	Yes
Supported memory types:	DDR5-SDRAM
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
Top wi-fi standard:	Wi-Fi 6E (802.11ax)
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 2.0 ports quantity:	4
Usb 3.2 gen 1 (3.1 gen 1) connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	4
Usb 3.2 gen 2 (3.1 gen 2) connectors:	1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	1
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:	1
Wi-fi:	Yes
Wi-fi standards:	Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11b, 802.11a
Width:	305 mm
Windows operating systems supported:	Windows 11 x64, Windows 10 x64

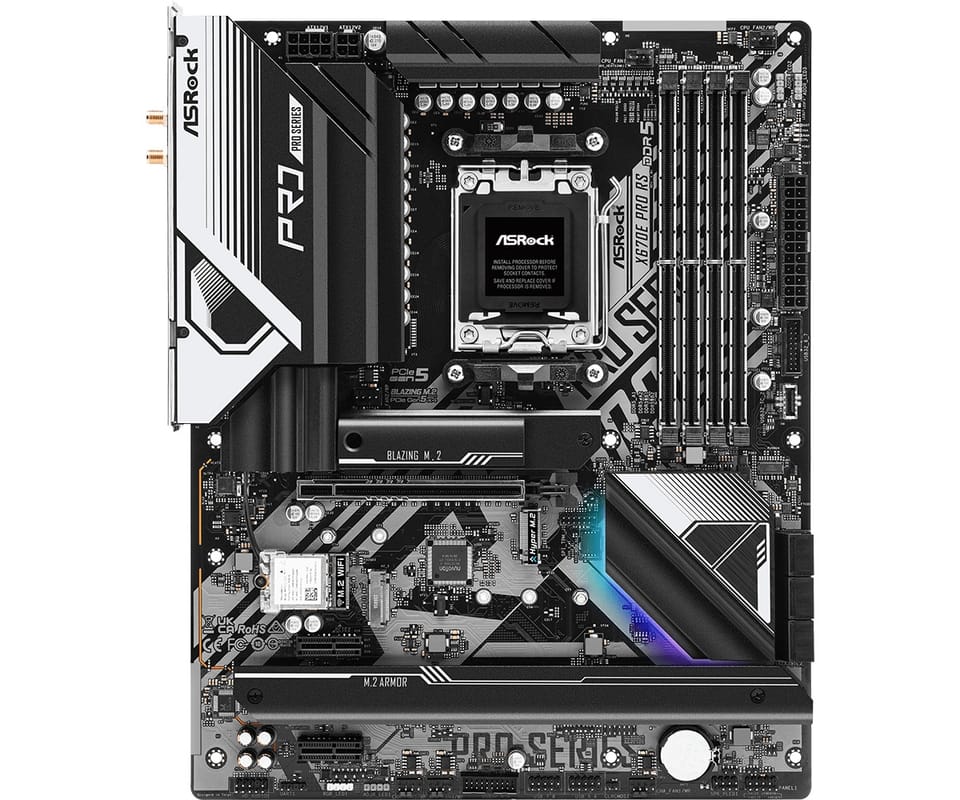

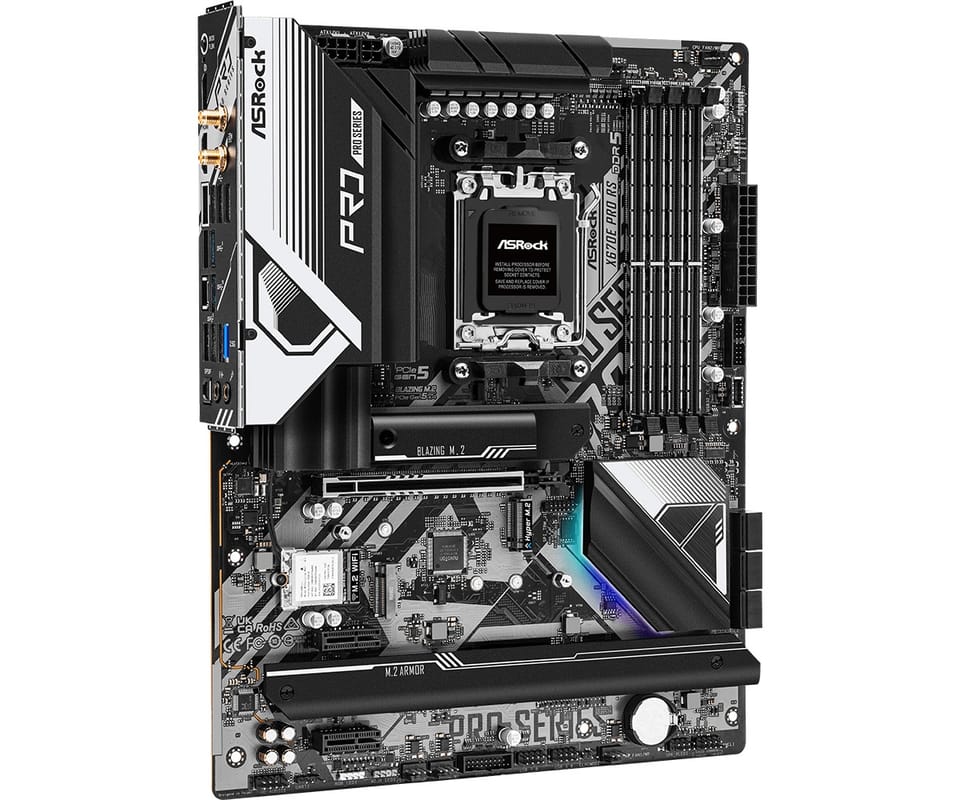

ASRock X670E Pro RS Motherboard

Supports AMD Ryzen 7000 series processors
14+2+1 phase power design, SPS
4 x DDR5 DIMM, supports up to 6600+(OC)
1 PCIe 5.0 x16
2 PCIe 4.0 x1
1 M.2 Key-E for Wi-Fi
Graphics output options: 1 HDMI, 1 DisplayPort
Realtek ALC897 7.1-channel HD Audio codec, Nahimic Audio
1 incredible M.2 card (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4)
1 M.2 connector (PCIe Gen3x2 and SATA3)
6 SATA3
1 USB 3.2 Gen2x2 Type-C port (front)
1 USB 3.2 Gen2 Type-C port (rear)
1 USB 3.2 Gen2 Type-A port (back)
8 USB 3.2 Gen1 ports (4 rear, 4 front)
Realtek 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth
