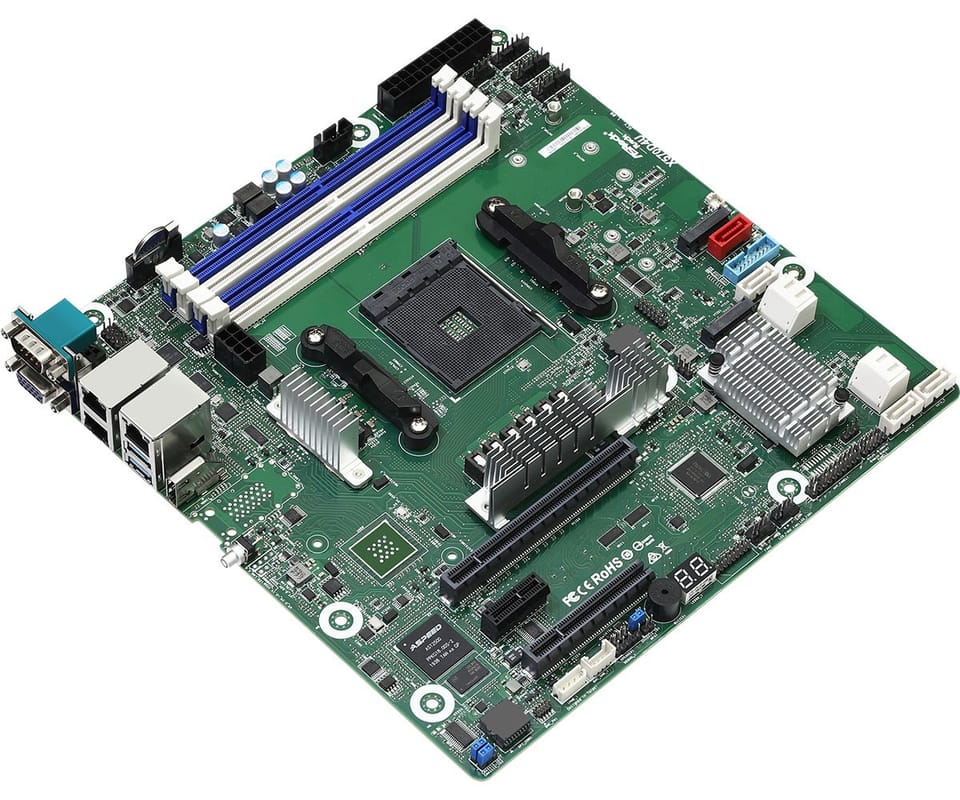

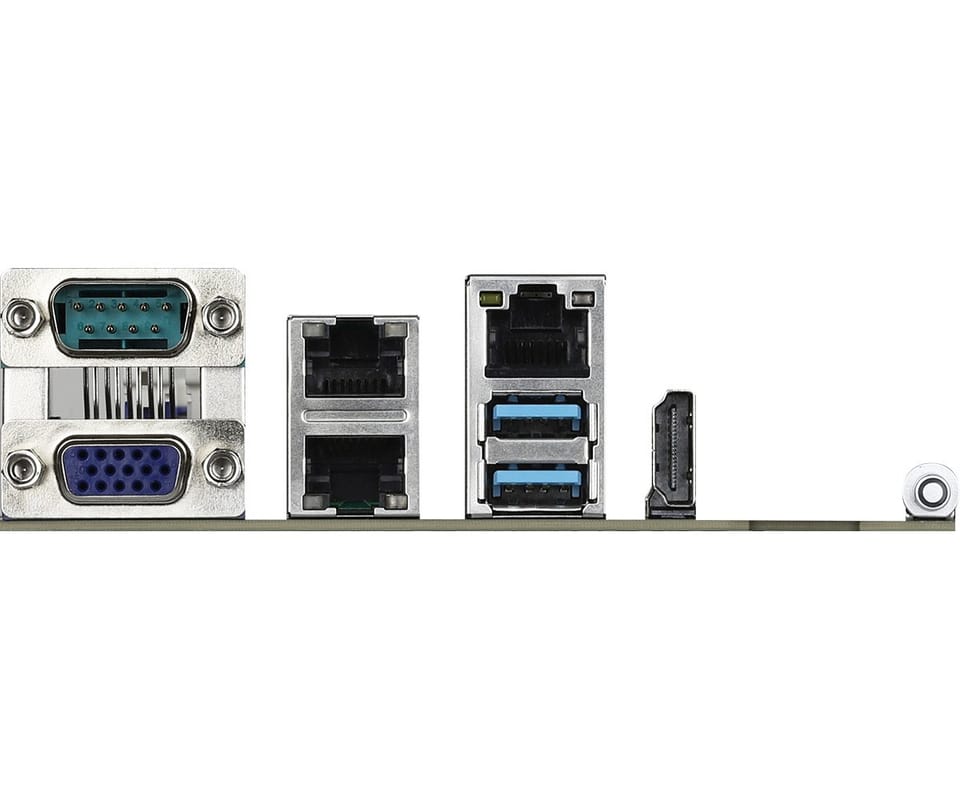

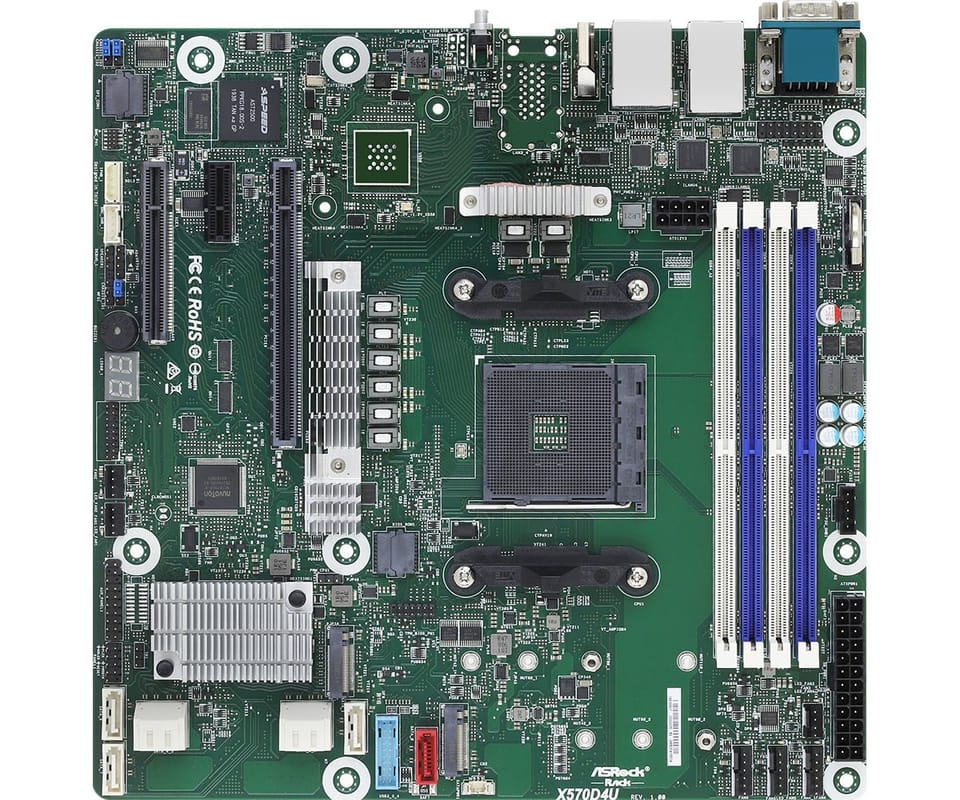

Asrock X570D4U motherboard AMD X570 Socket AM4 micro ATX
€472.49
Shipping from warehouse: A3
Estimated shipping: Wed, Nov 13 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ASRock
- Product code:
- X570D4U / 4710483932618
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Acpi version: | 2.0 |
| Atx power connector (24-pin): | Yes |
| Bios type: | UEFI AMI |
| Chassis intrusion connector: | Yes |
| Depth: | 244 mm |
| Ecc сompatibility: | Non-ECC |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 3 |
| Graphics card: | AST2500 |
| Graphics card family: | ASPEED |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Lan controller: | Intel I210, Realtek RTL8211E |
| Maximum internal memory: | 32 GB |
| Memory slots type: | DIMM |
| Memory voltage: | 1.2 V |
| Motherboard chipset: | AMD X570 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of memory slots: | 4 |
| Number of sata connectors: | 12 |
| Number of sata iii connectors: | 12 |
| Operating temperature (t-t): | 10 - 35 °C |
| Pci express x1 slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Pci express x8 slots: | 1 |
| Processor socket: | Socket AM4 |
| Raid levels: | 1, 10, 0 |
| Raid support: | Yes |
| Storage temperature (t-t): | -40 - 70 °C |
| Supported memory clock speeds: | 3200 MHz, 2666 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | Socket AM4 |
| Supported storage drive interfaces: | M.2, SATA III |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Vga (d-sub) ports quantity: | 1 |
| Width: | 244 mm |
