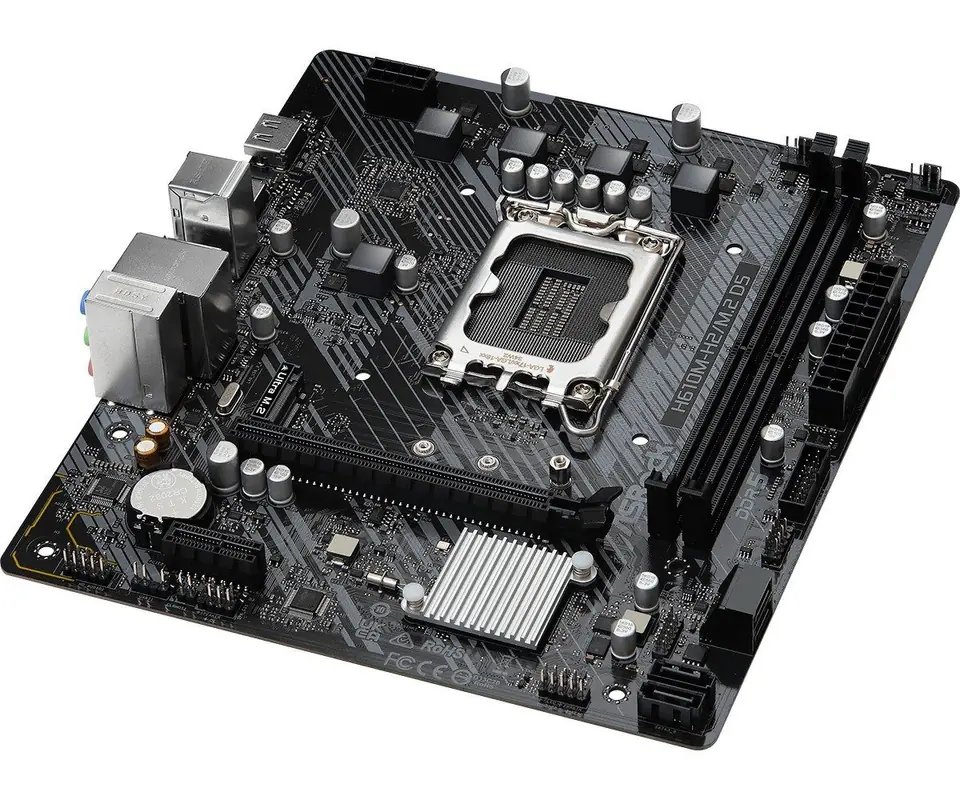

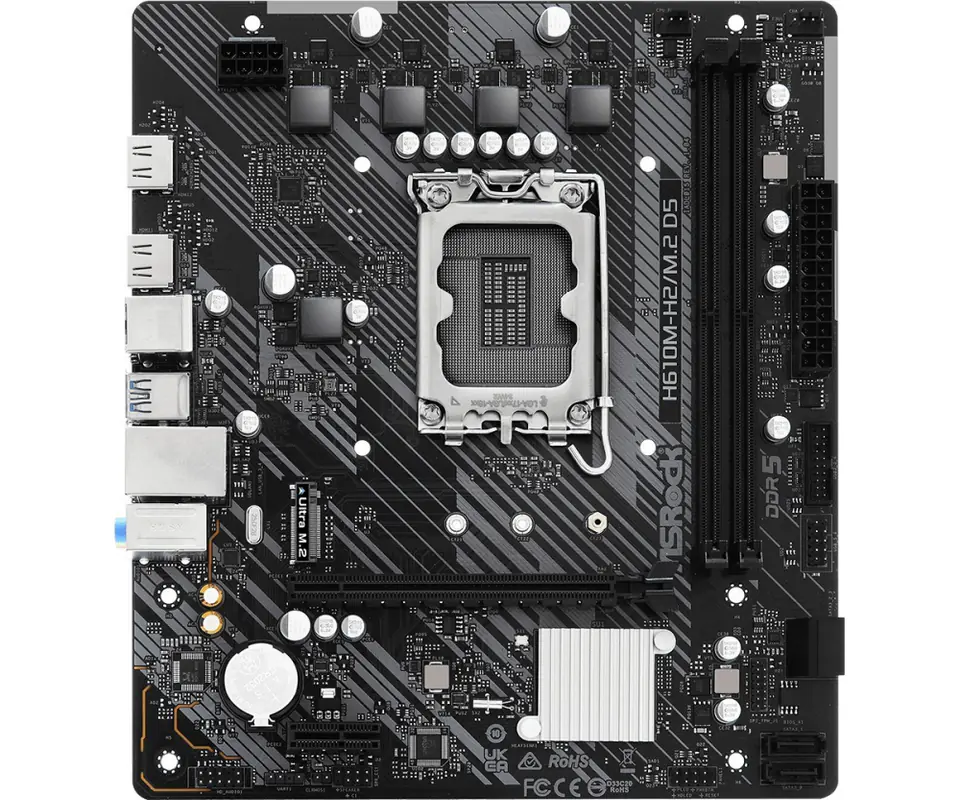

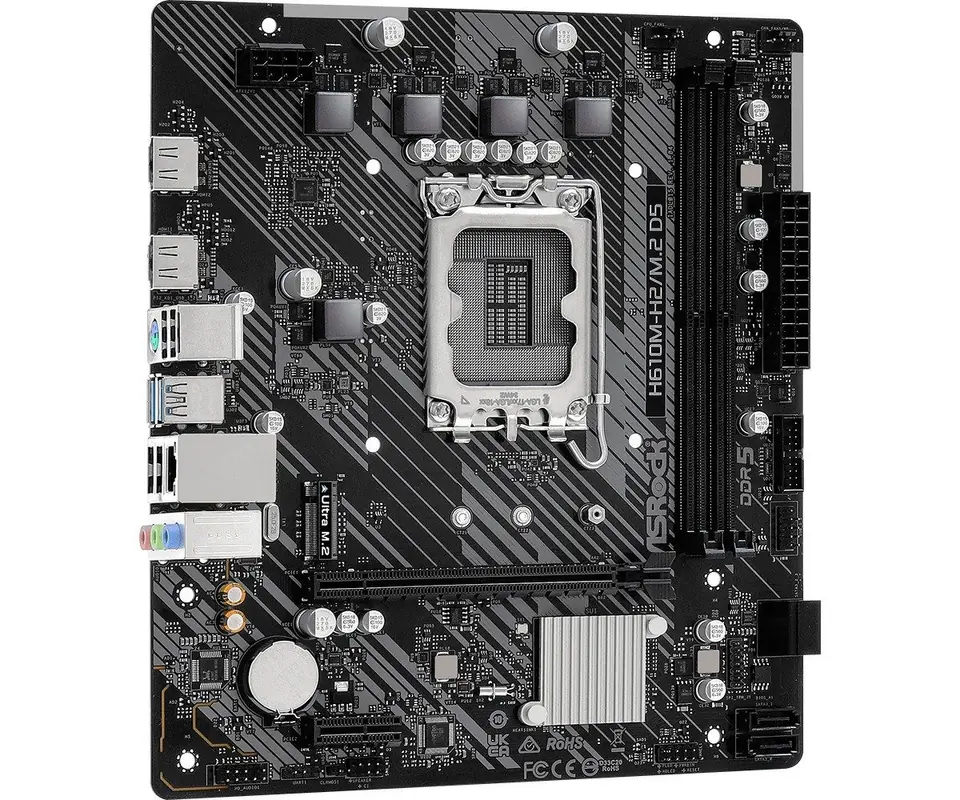

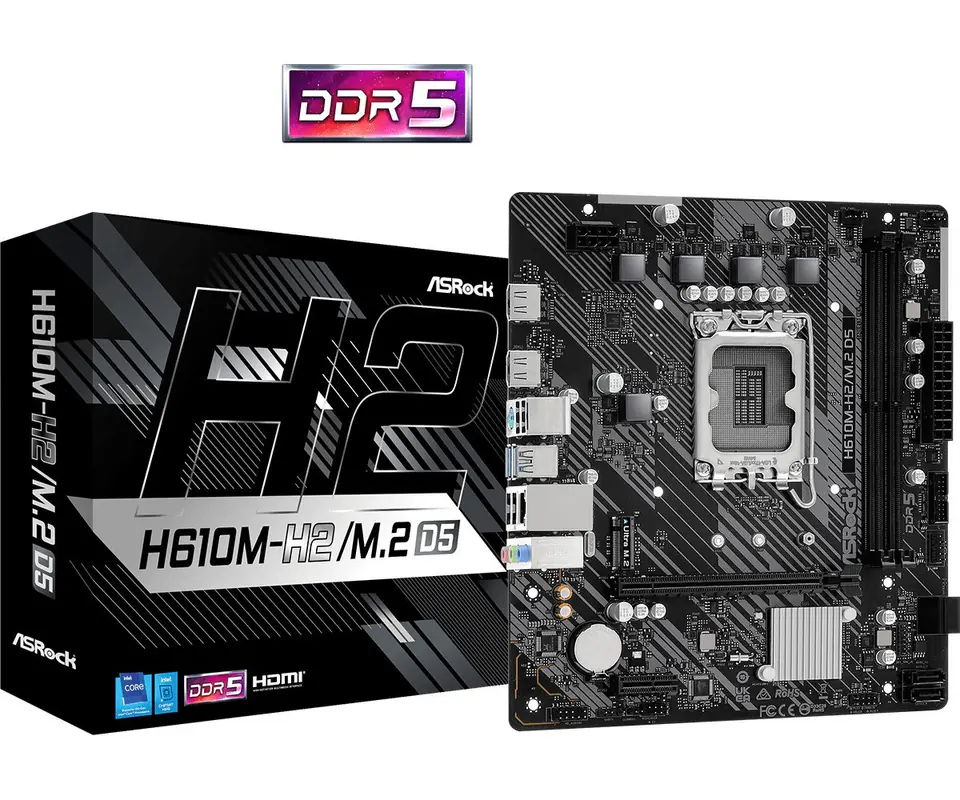

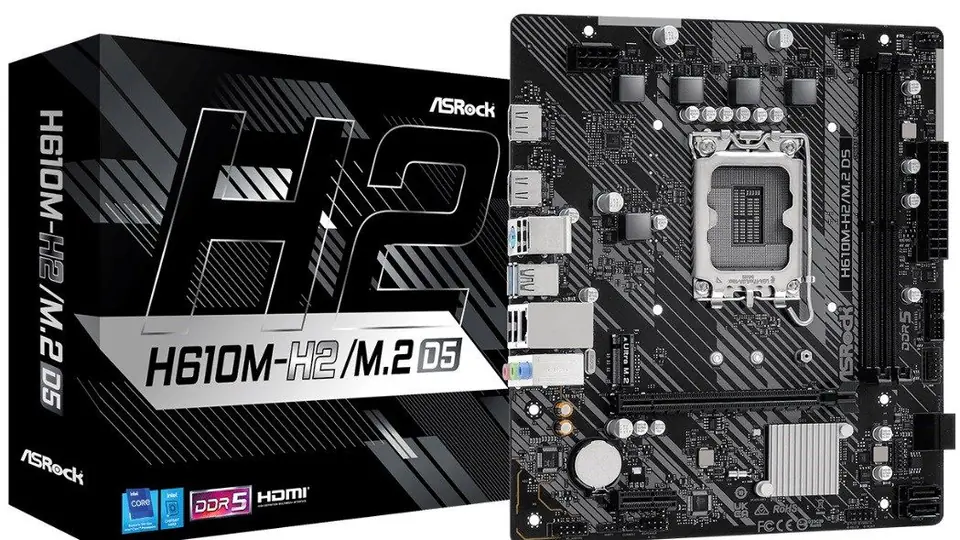

ASRock H610M-H2/M.2 D5 motherboard
€91.00
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ASRock
- Product code:
- H610M-H2/M.2 D5 / 4710483943775
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC897 |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Chassis intrusion connector: | Yes |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5 |
| Cpu fan connector: | Yes |
| Depth: | 193 mm |
| Drivers included: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 2 |
| Lan controller: | Realtek 8111H |
| Maximum internal memory: | 96 GB |
| Maximum number of smp processors: | 1 |
| Maximum resolution: | 7680 x 4320 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel H610 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Temperature, CPU, Voltage, Fan |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Ps/2 ports quantity: | 1 |
| Supported memory clock speeds: | 5600, 4800 MHz |
| Supported memory types: | DDR5-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 1 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Wi-fi: | No |
| Width: | 220 mm |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
