| 12v power connector (8-pin): | Y |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Compatible processor series: | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3 |
| Cpu fan connector: | Yes |
| Depth: | 198 mm |
| Dvi-d ports quantity: | 1 |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Lan controller: | Realtek 8111H |
| Maximum internal memory: | 64 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel H470 |
| Motherboard form factor: | micro ATX |
| Number of com connectors: | 1 |
| Number of hdds supported: | 4 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1200 |
| Ps/2 ports quantity: | 2 |
| Supported memory clock speeds: | 2933, 2133, 2666, 2400, 2800 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 231 mm |

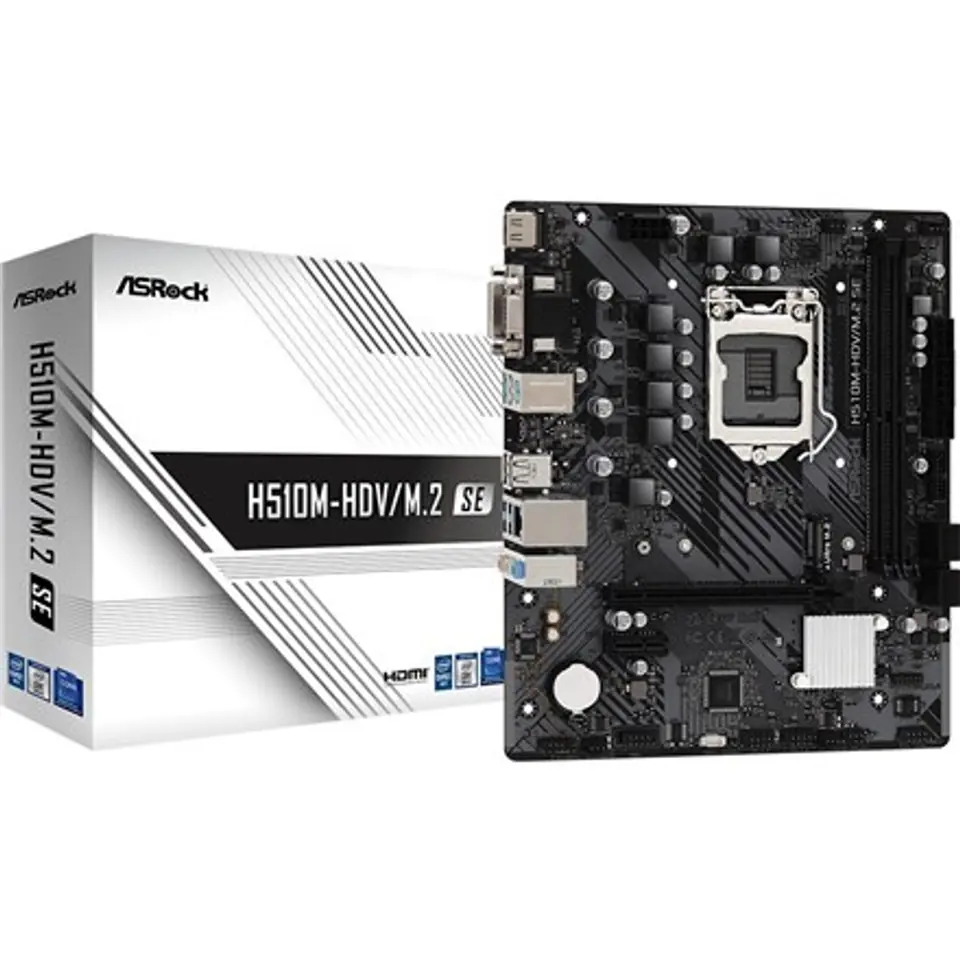

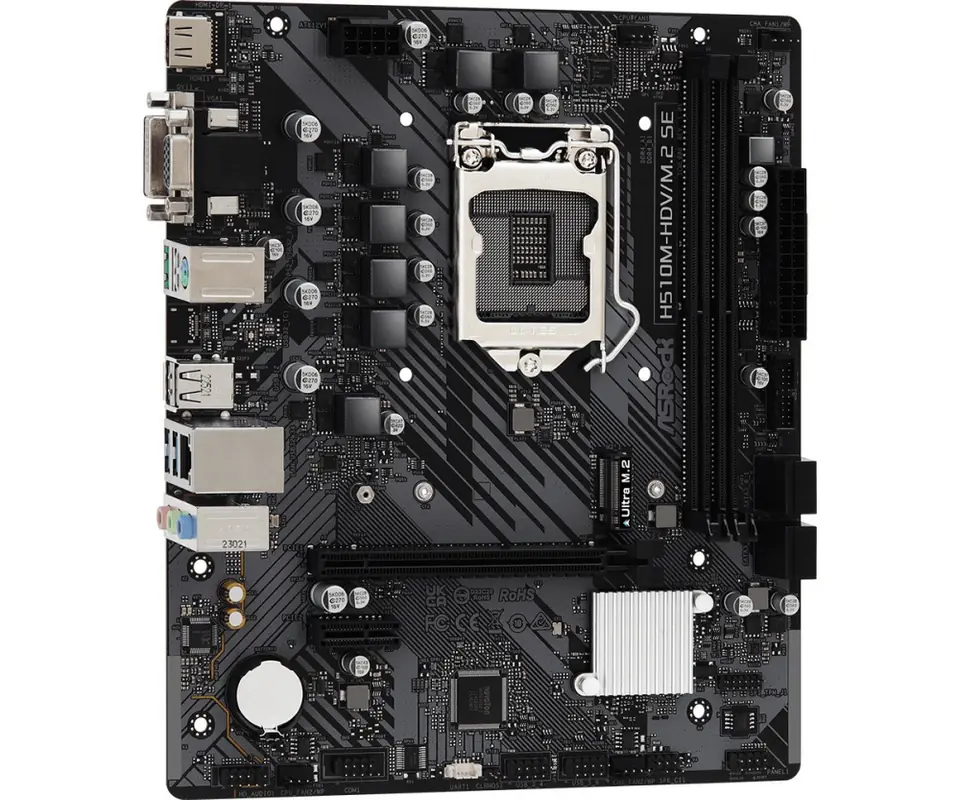

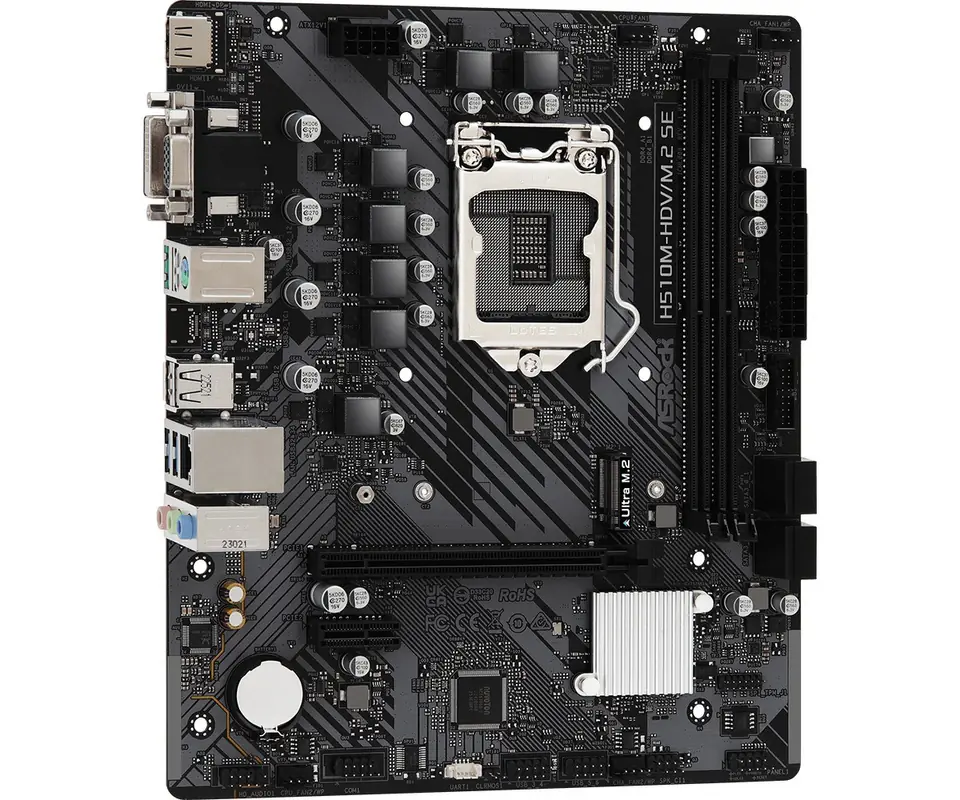

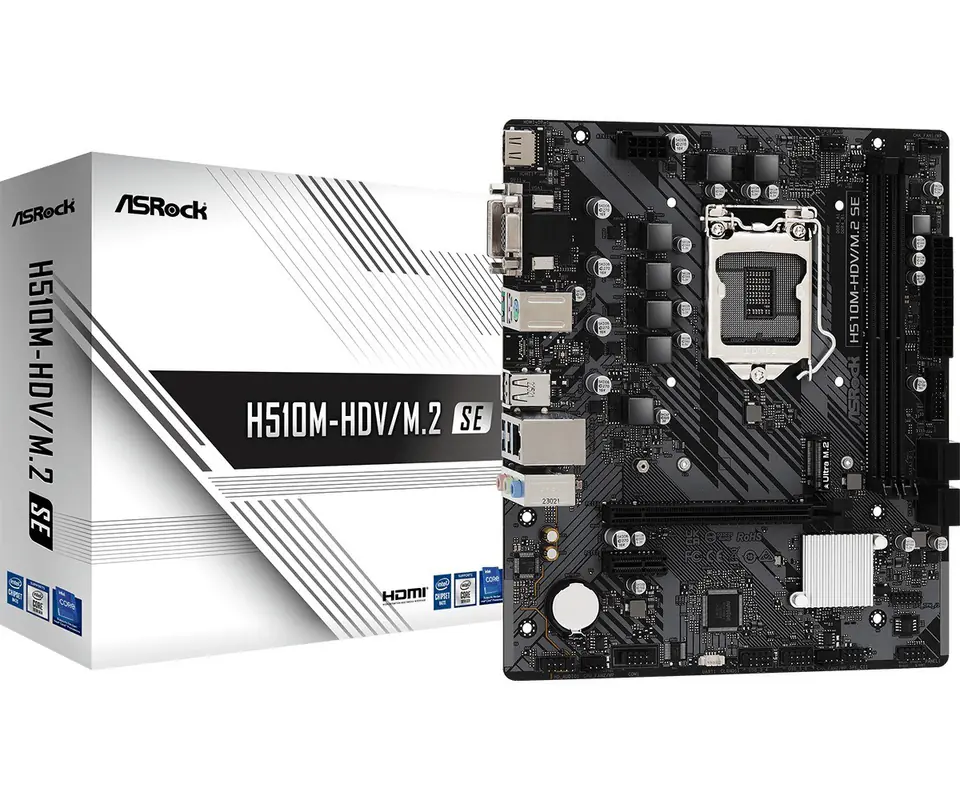

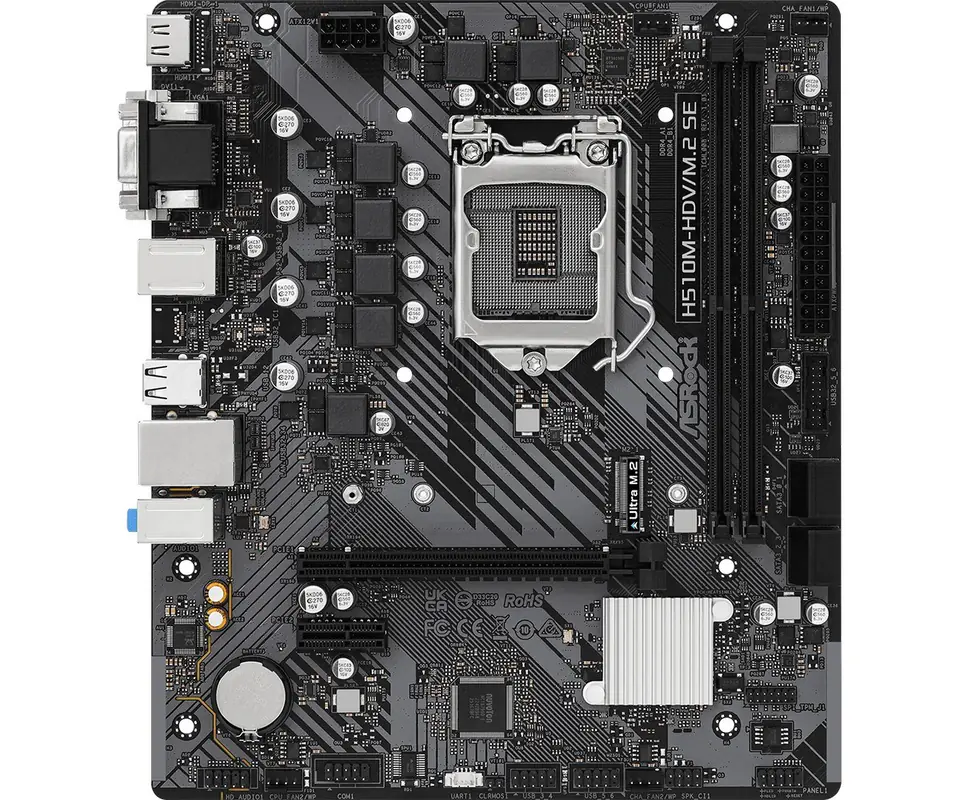

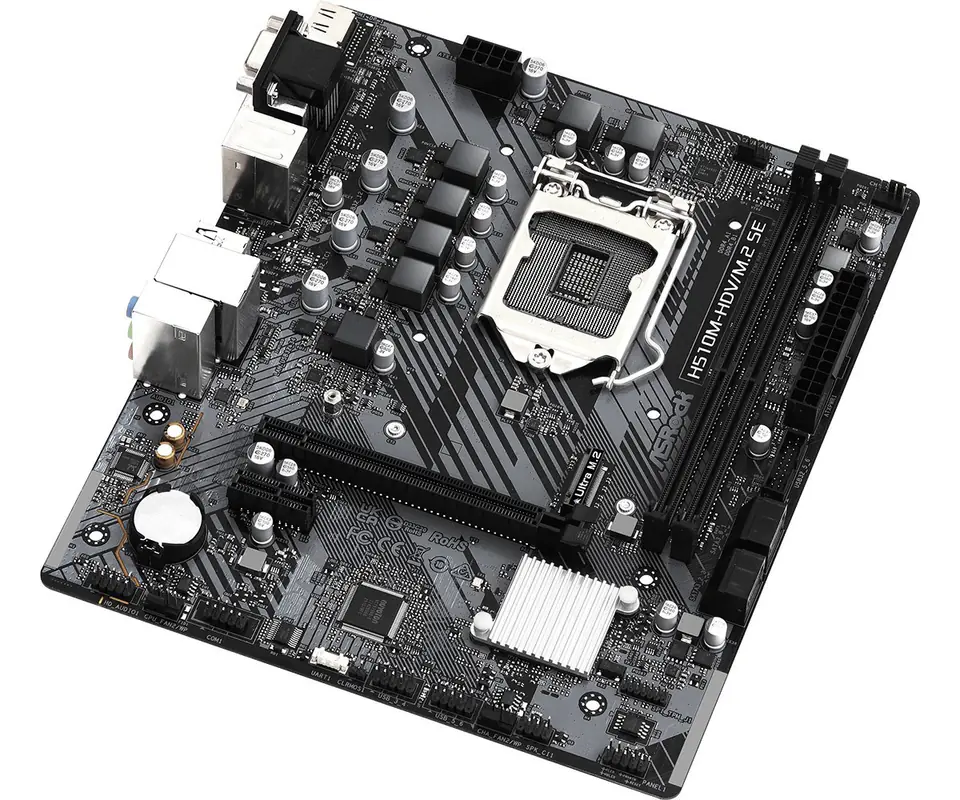

H510M-HDV/M.2 SE motherboard
