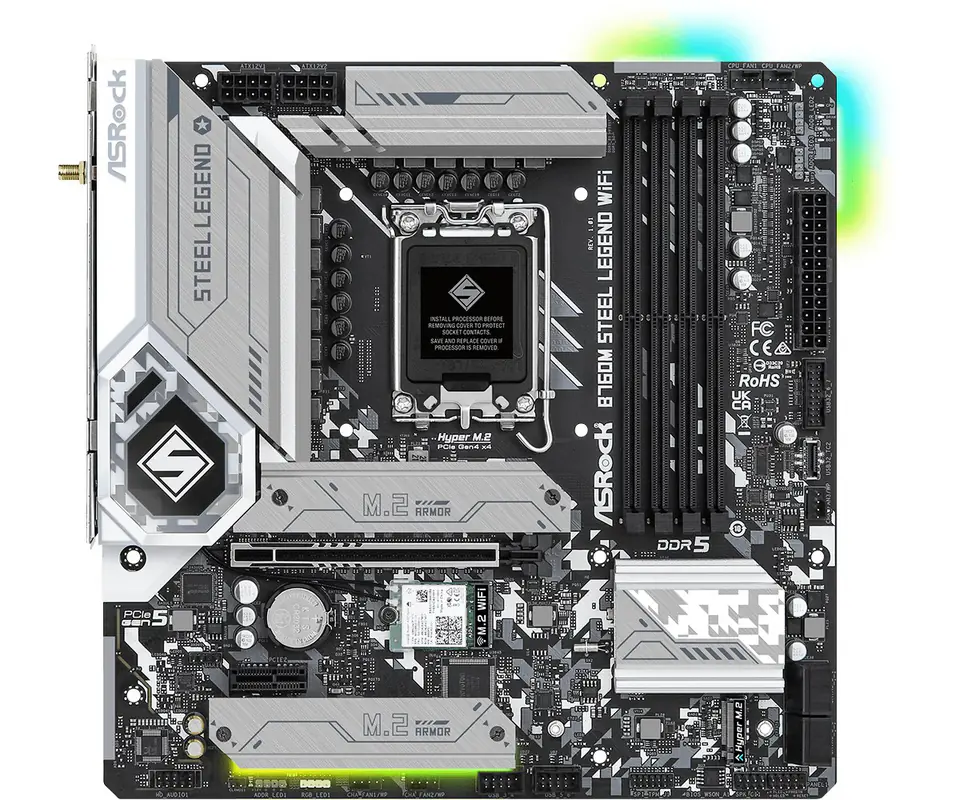

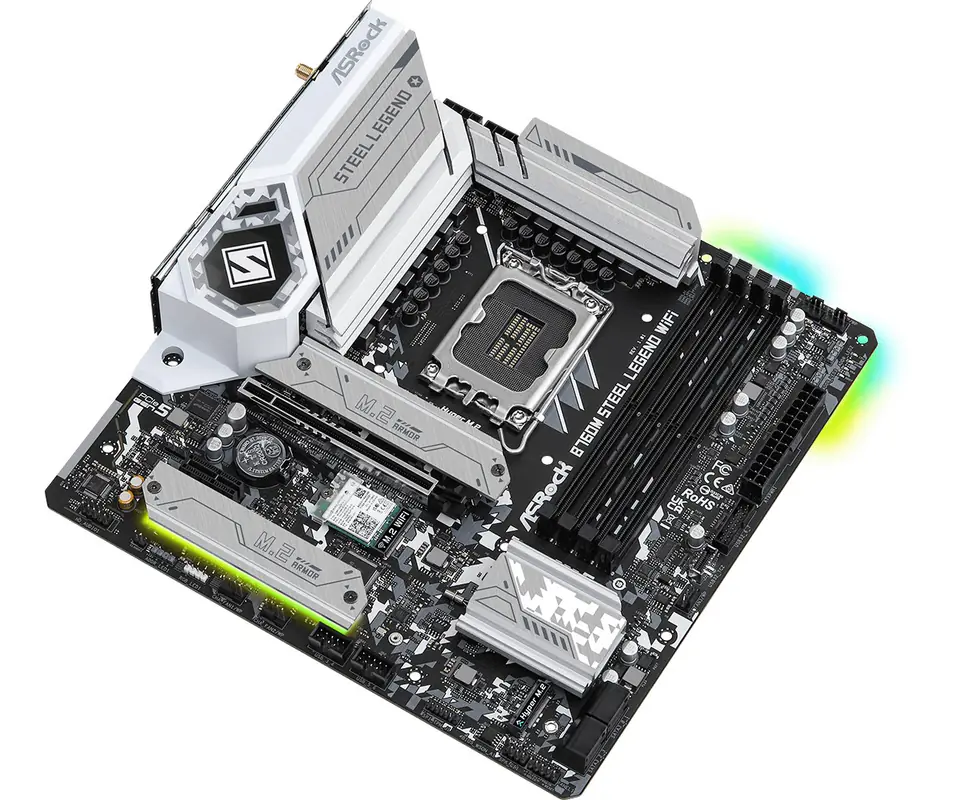

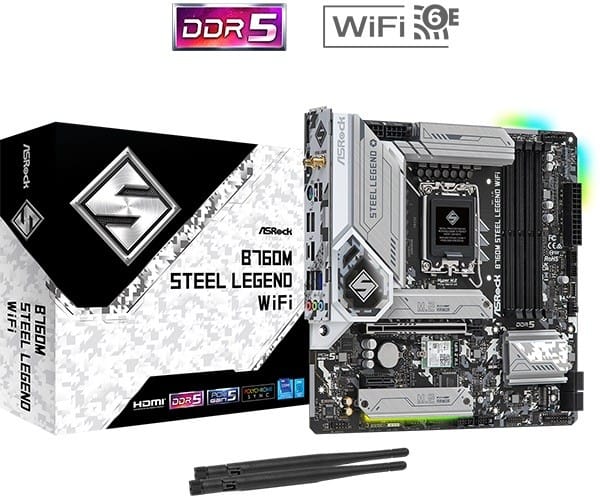

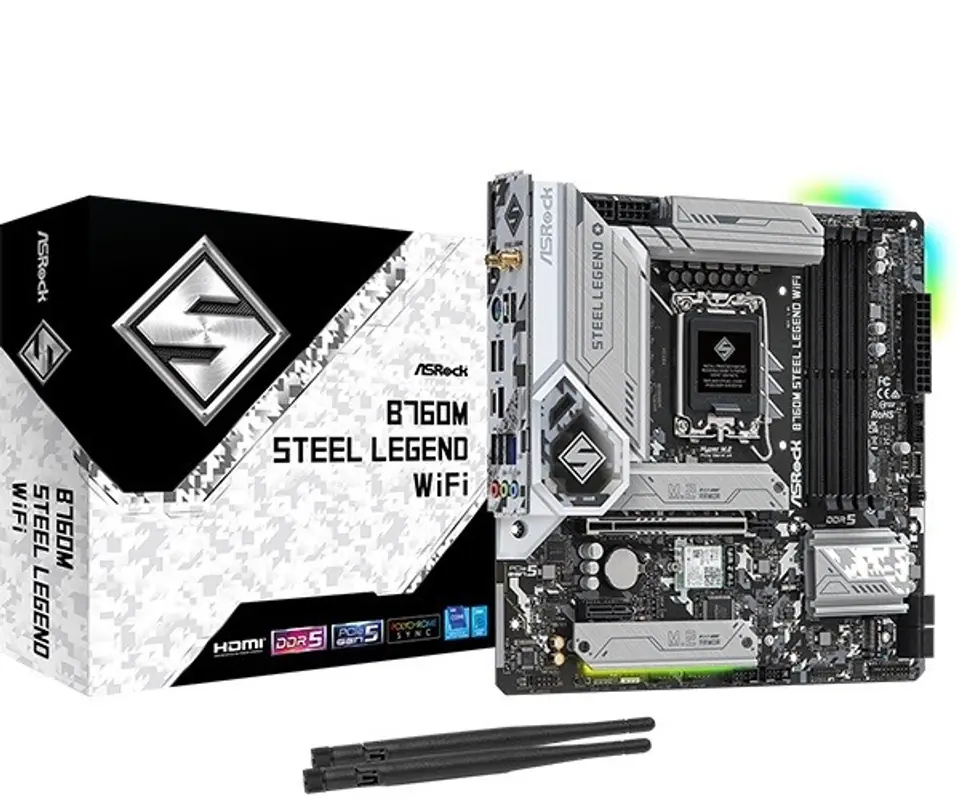

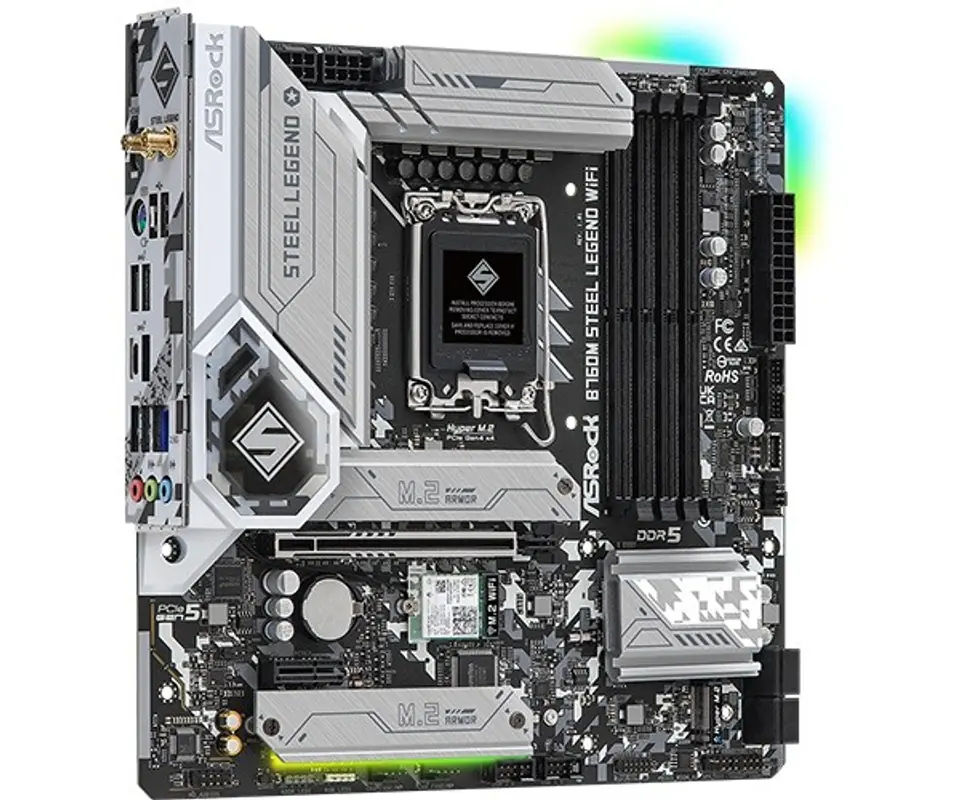

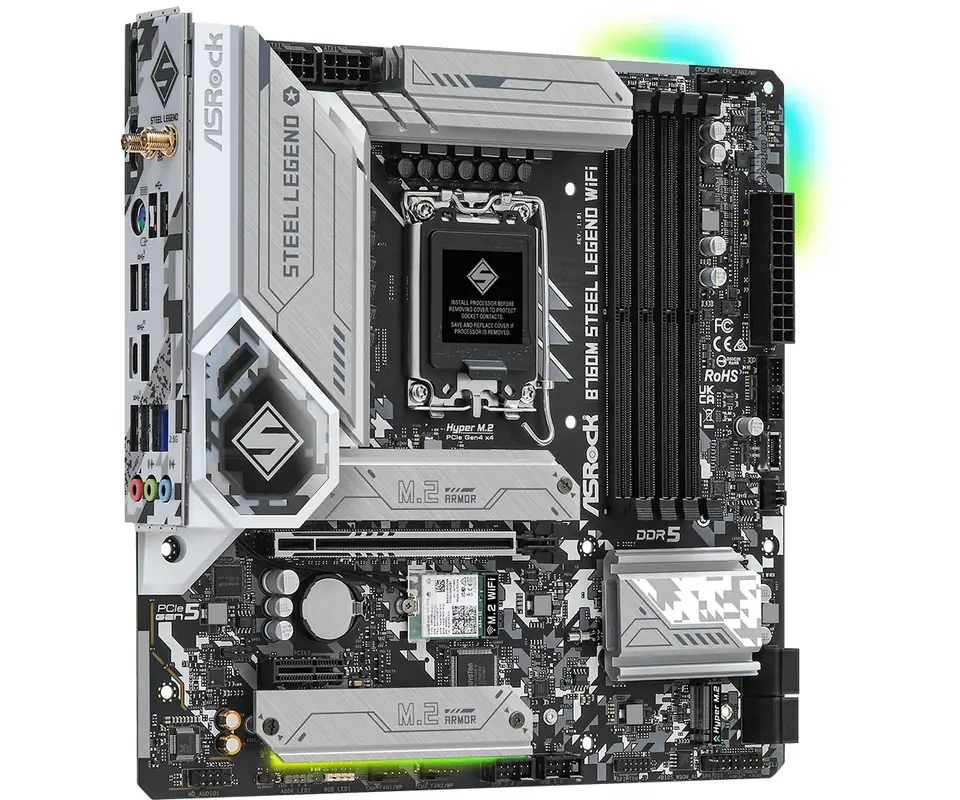

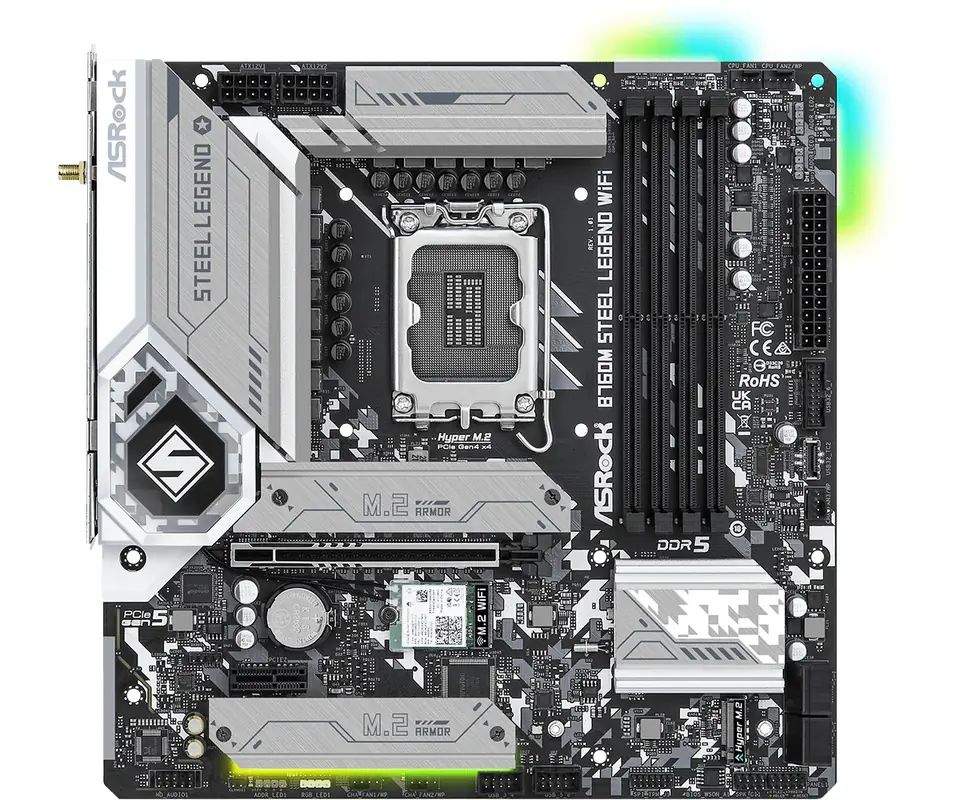

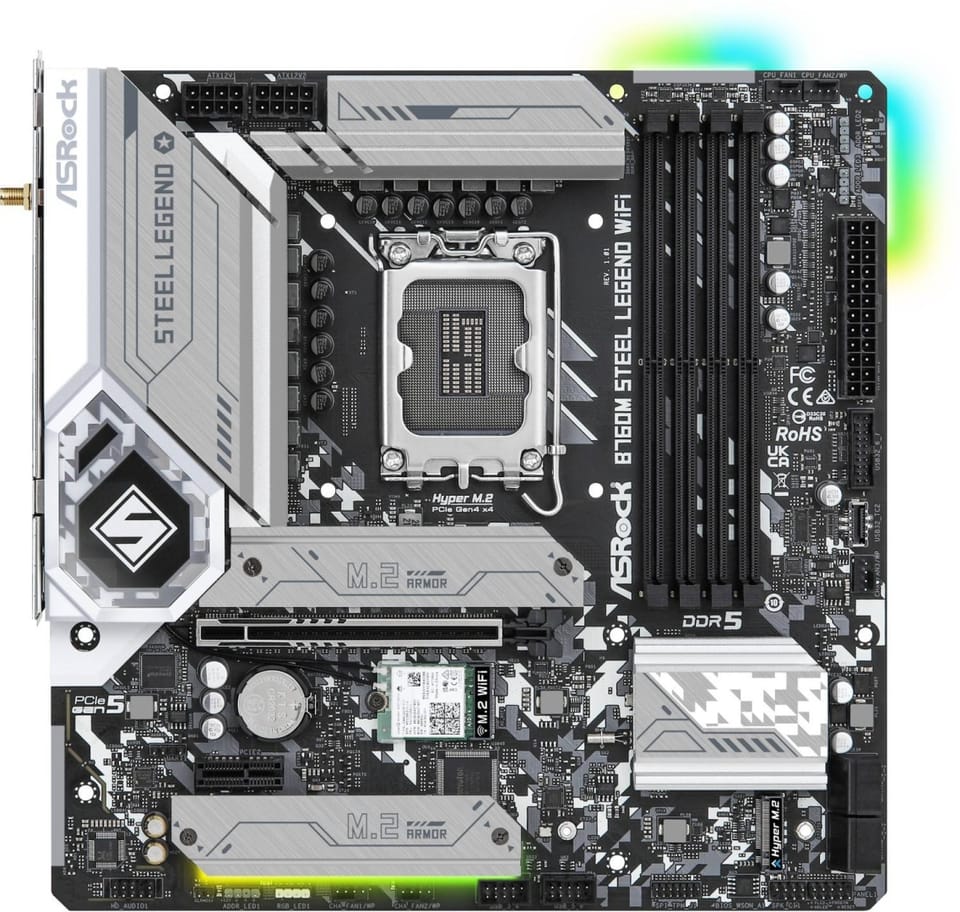

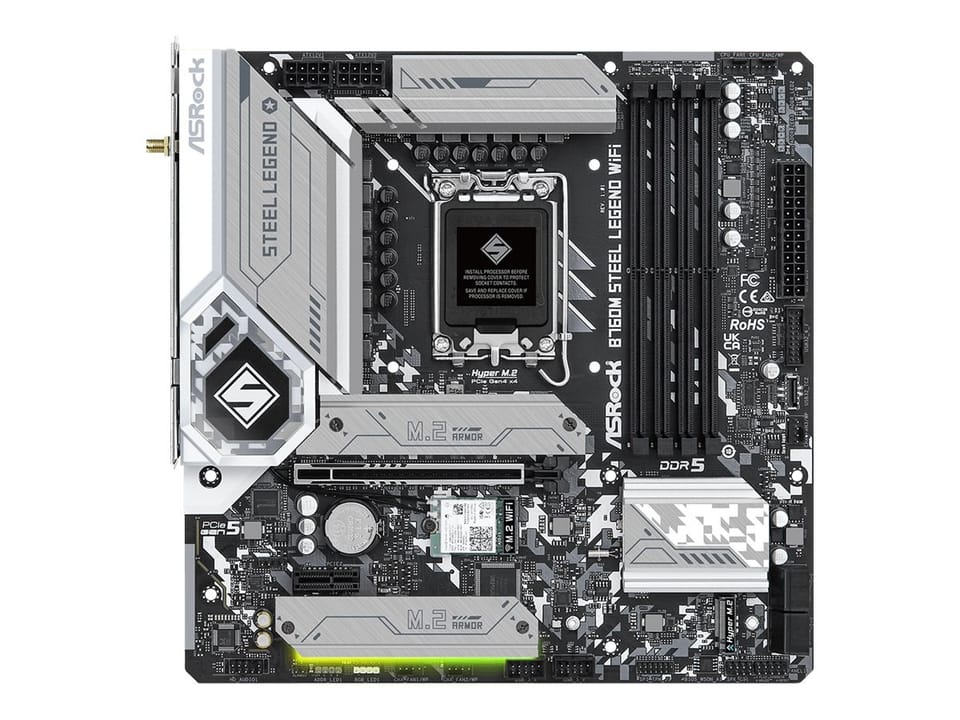

Asrock B760M Steel Legend WiFi Intel B760 LGA 1700 micro ATX

€195.59
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
ASRock
Product code:
B760M STEEL LEGEND WIFI / 4710483941795

Specification

Atx power connector (24-pin):Yes
Audio chip:Realtek ALC897
Audio output channels:7.1 channels
Bios type:UEFI AMI
Bluetooth:Yes
Bluetooth version:5.3
Cables included:SATA
Compatible processor series:Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5
Cpu fan connector:Yes
Depth:244 mm
Displayport version:1.4
Displayports quantity:1
Ecc сompatibility:Non-ECC
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Hdmi ports quantity:1
Lan controller:Dragon RTL8125BG
Line-in:Yes
Maximum internal memory:128 GB
Maximum number of smp processors:1
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset:Intel B760
Motherboard chipset family:Intel
Motherboard form factor:micro ATX
Number of m.2 (m) slots:1
Number of memory slots:4
Number of sata iii connectors:4
Pci express x1 (gen 4.x) slots:1
Pci express x16 (gen 5.x) slots:1
Pci express x4 (gen 1.x) slots:1
Processor manufacturer:Intel
Processor socket:LGA 1700
Ps/2 ports quantity:1
Rgb led pin header:Yes
Supported memory types:DDR5-SDRAM
Supported storage drive interfaces:M.2, SATA III
Supported storage drive types:HDD & SSD
Top wi-fi standard:Wi-Fi 6E (802.11ax)
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:2
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:4
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:1
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:1
Wi-fi:Yes
Wi-fi standards:802.11a, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 4 (802.11n), 802.11b
Width:244 mm
Windows operating systems supported:Windows 10 x64, Windows 11 x64

B760M STEEL LEGEND WIFI

  • Supports 13th and 12th generation Intel Core processors (LGA1700)
  • 12+1+1 Power Phase, Dr.MOS for VCore+GT
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
  • Graphics outputs: HDMI, DisplayPort, eDP
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
  • 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
  • 1 USB 3.2 Gen2 Type-A (Rear),
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front),
  • 6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
  • Supports ASRock Auto Driver Installer

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
