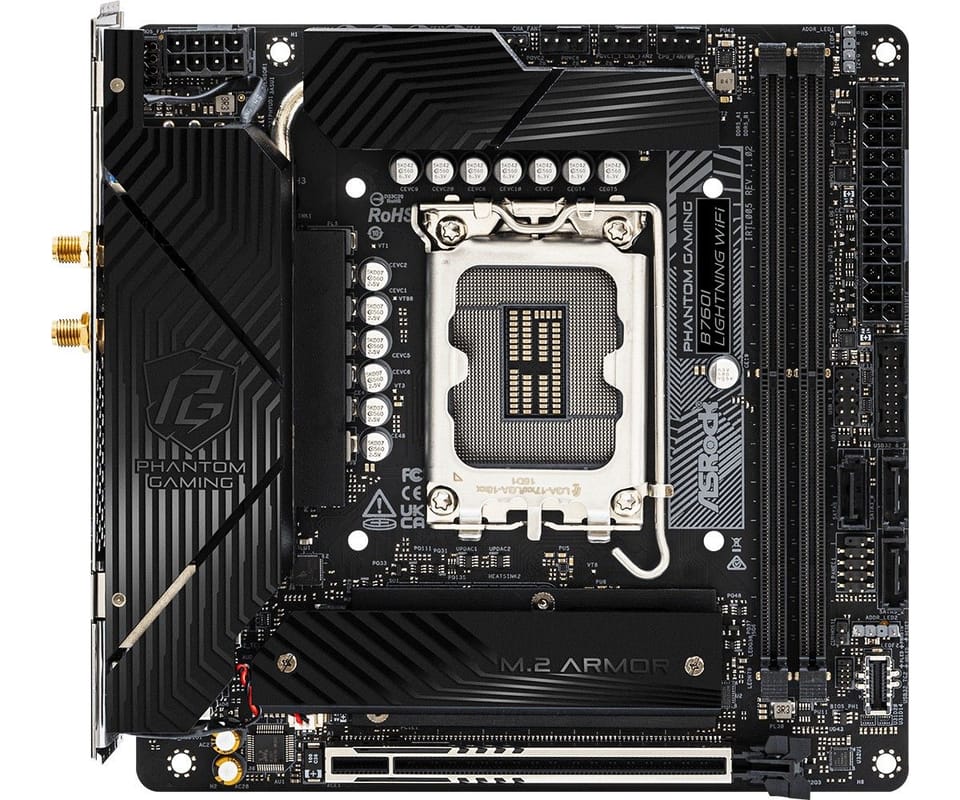

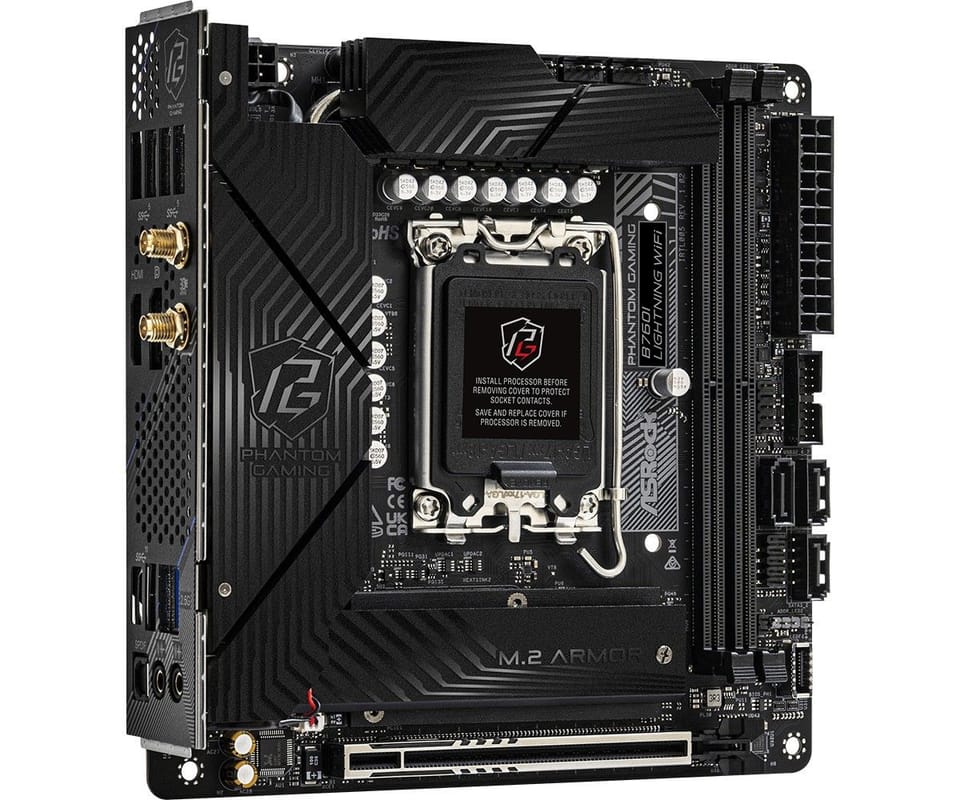

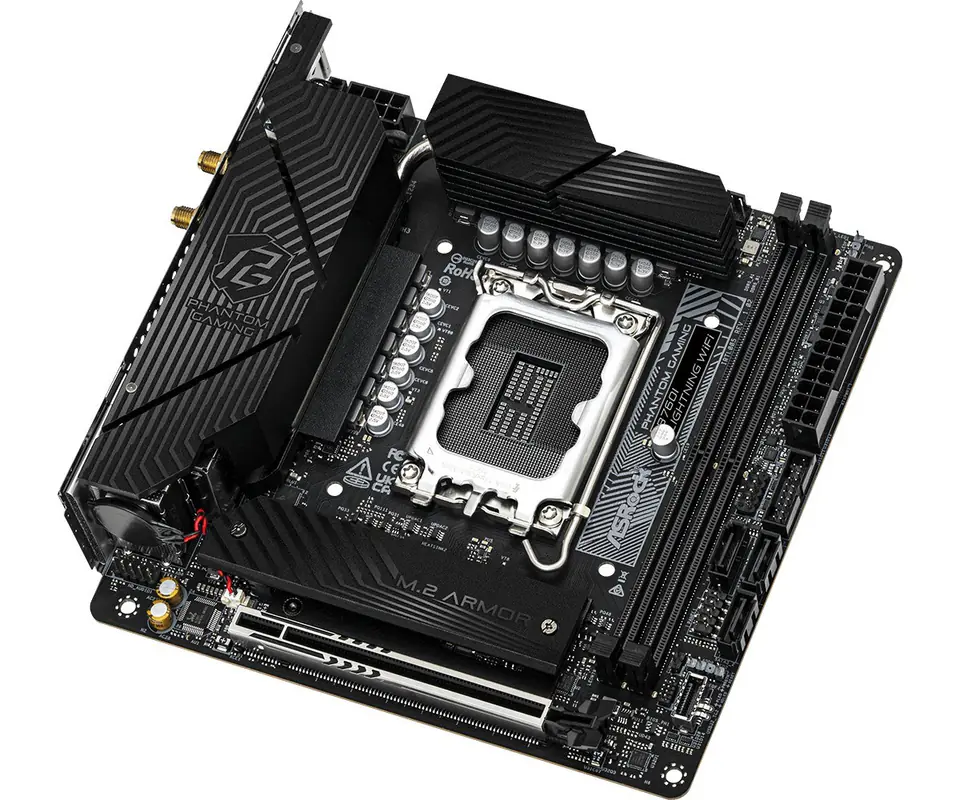

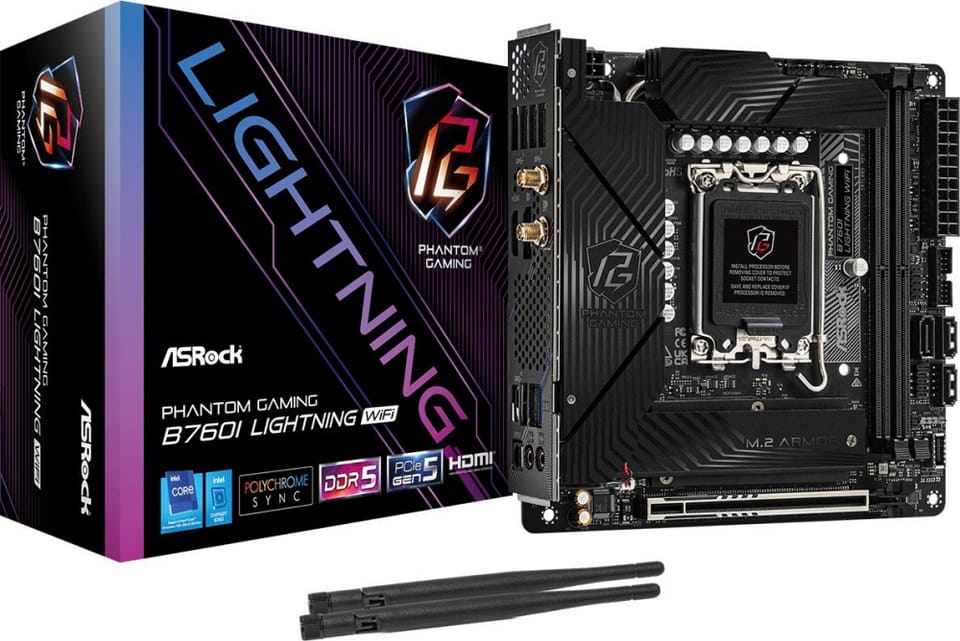

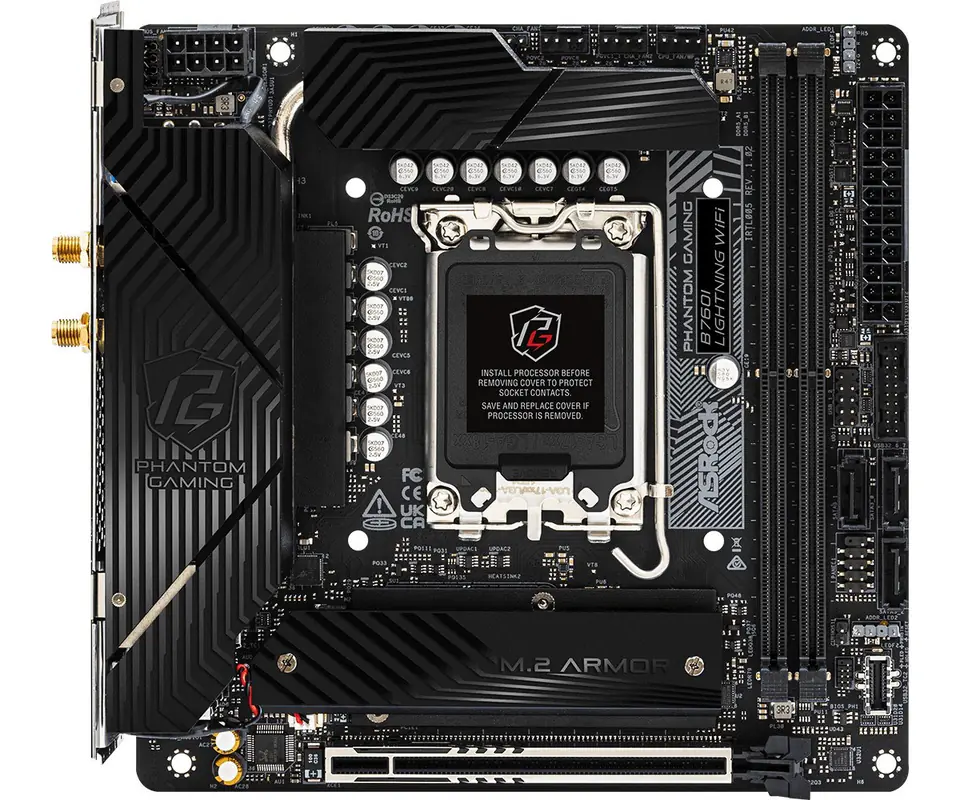

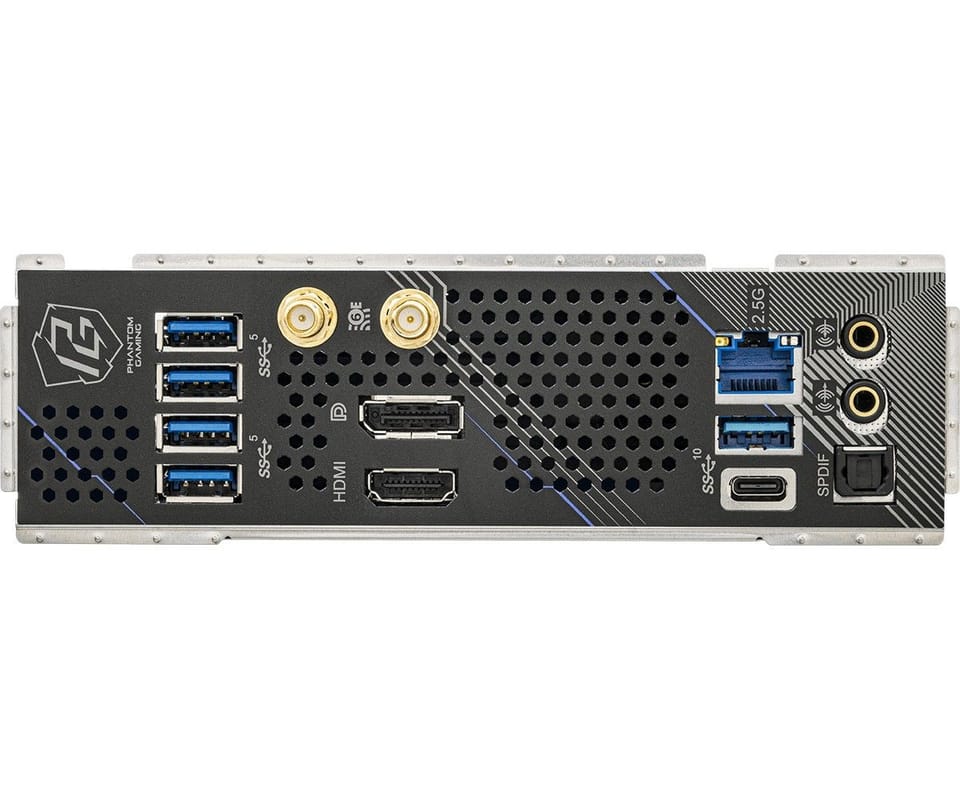

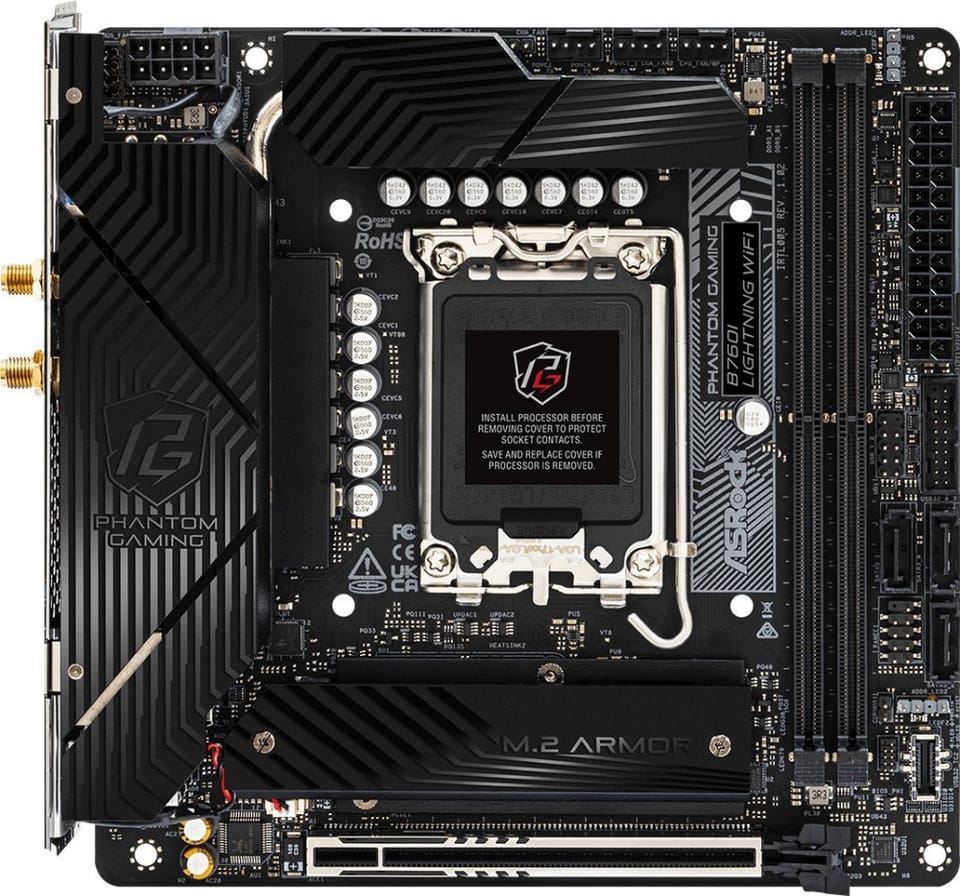

ASRock B760I LIGHTNING WIFI Motherboard
€234.01
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ASRock
- Product code:
- B760I LIGHTNING WIFI / 4710483946677
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Antenna included: | Yes |
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Cables included: | SATA |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Cpu fan connector: | Yes |
| Depth: | 170 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Lan controller: | Dragon RTL8125BG |
| Line-out: | Yes |
| Maximum internal memory: | 96 GB |
| Maximum resolution: | 7680 x 4320 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Mic input: | 1 |
| Motherboard chipset: | Intel B760 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | Mini-ITX |
| Number of chassis fan connectors: | 2 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 3 |
| Number of storage drives supported: | 5 |
| Number of usb 3.2 gen 2 type-a ports: | 1 |
| Pci express x16 (gen 5.x) slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Product colour: | Black |
| Raid levels: | 1, 5, 0 |
| Raid support: | Yes |
| Screws included: | Yes |
| Spdif optical output: | Y |
| Supported memory clock speed (max): | 8600 MHz |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| Top wi-fi standard: | Wi-Fi 6E (802.11axe) |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb connector type: | USB Type-C, USB Type-A |
| Usb type-c socket on the front panel: | Y |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11b, 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11 axe, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac) |
| Width: | 170 mm |
| Wifi-ap antenna jack: | 2 |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
