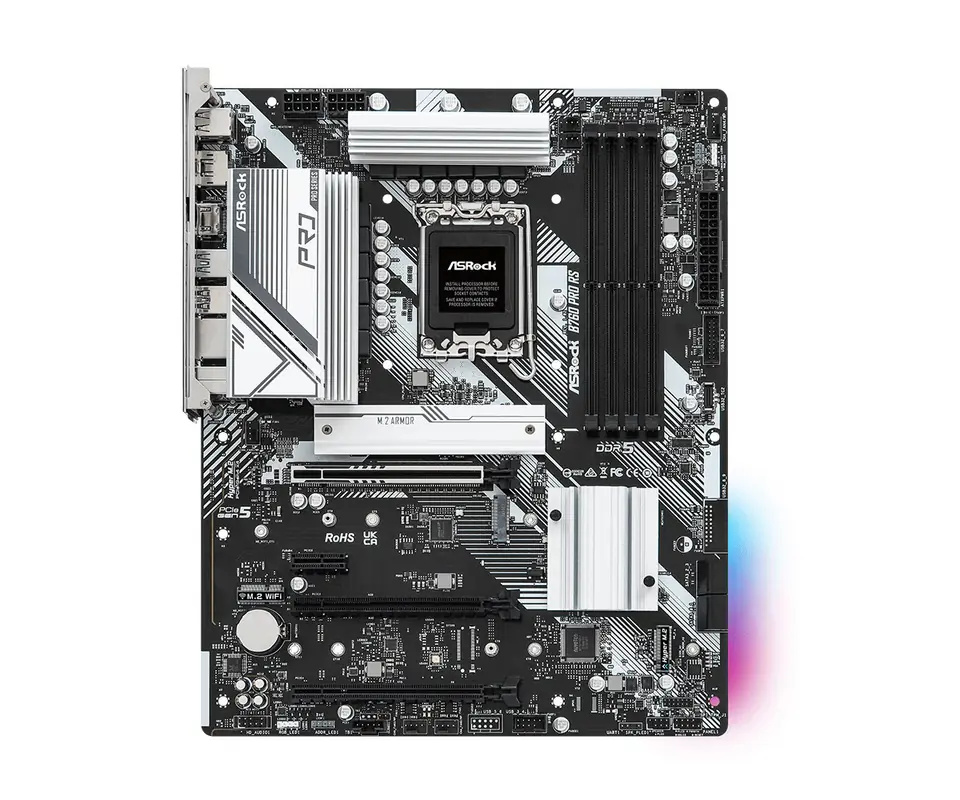

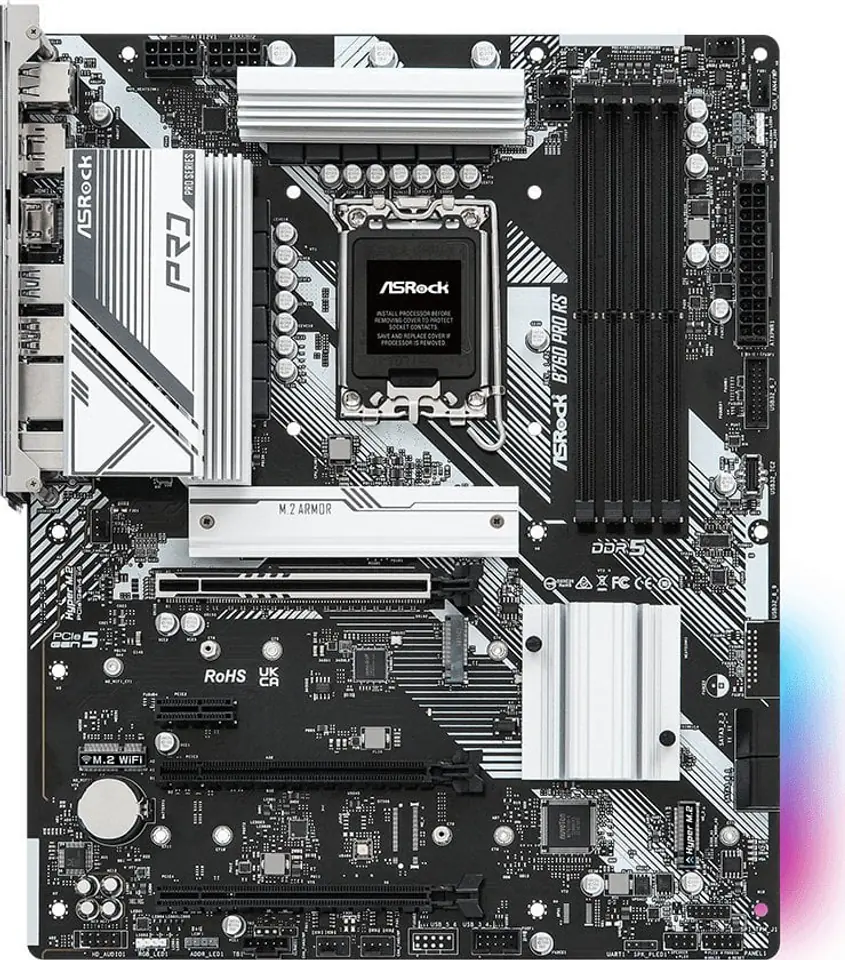

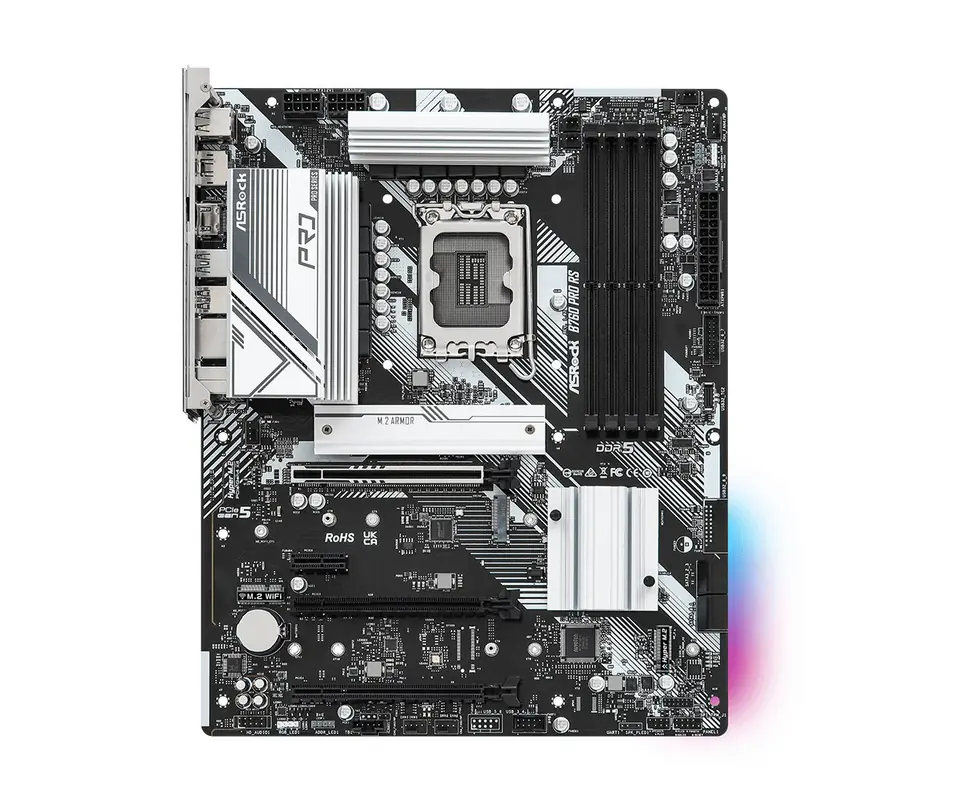

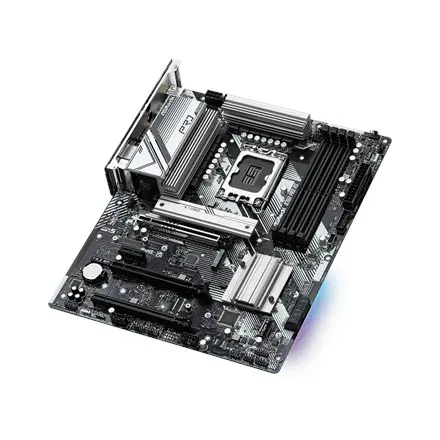

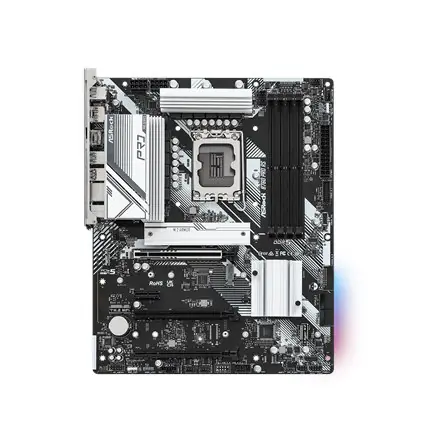

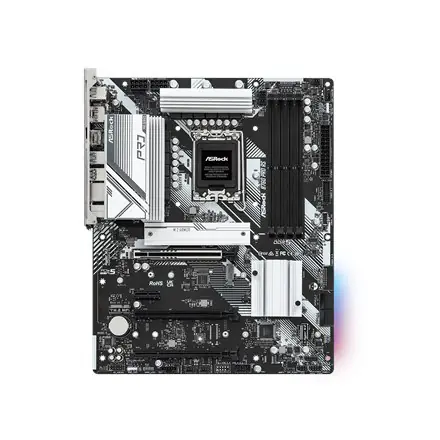

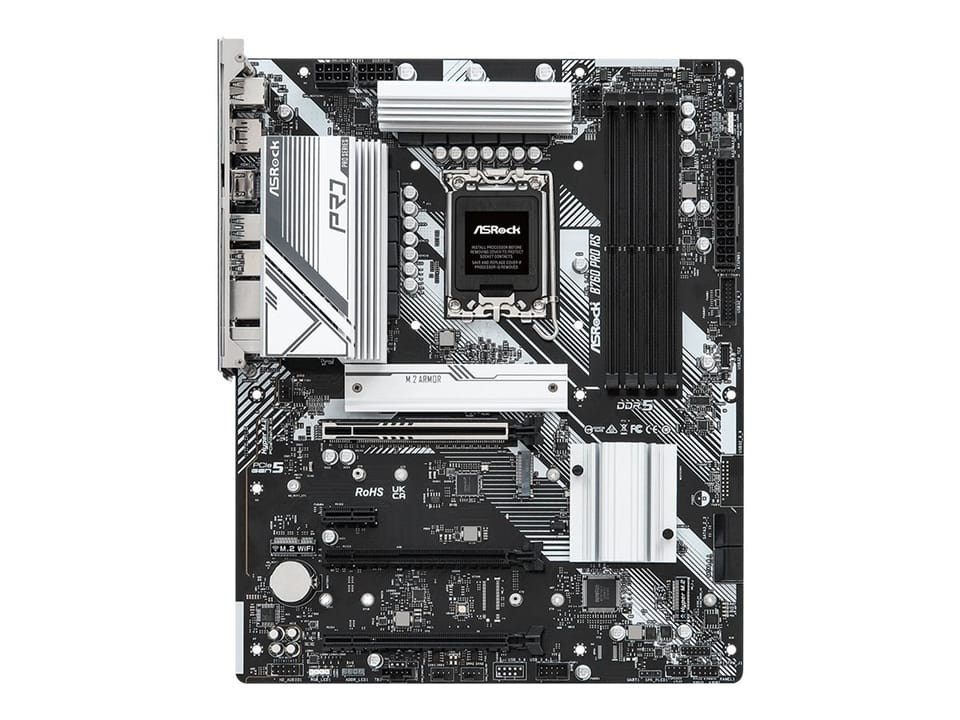

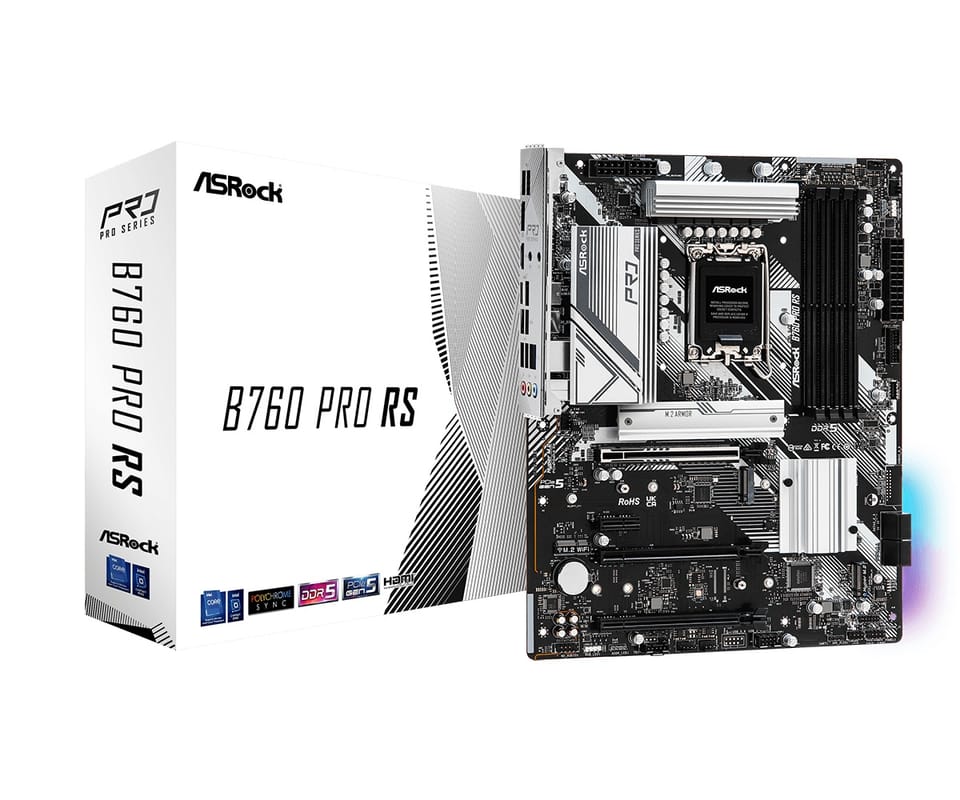

Asrock B760 PRO RS Intel® B360 LGA 1700 ATX

Name: Asrock B760 PRO RS Intel® B360 LGA 1700 ATX
Brand: ASRock
SKU: 1221727
Price: 163.38 EUR
Availability: InStock

€163.38

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: ASRock
Product code:: B760 PRO RS / 4710483942044

Specification

12v power connector:	Yes
Atx power connector (24-pin):	Yes
Audio chip:	Realtek ALC897
Audio connector:	Yes
Audio output channels:	7.1 channels
Bios type:	UEFI AMI
Compatible processor series:	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Compliance certificates:	Federal Communications Commission (FCC), CE
Cpu fan connector:	Yes
Depth:	244 mm
Displayport version:	1.4
Displayports quantity:	1
Ecc сompatibility:	Non-ECC
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Graphics card family:	Intel
Hdcp:	Yes
Hdmi ports quantity:	1
Lan controller:	Realtek RTL8125-BG
Line-in:	Yes
Maximum internal memory:	128 GB
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	Intel B760
Motherboard chipset family:	Intel
Motherboard form factor:	ATX
Number of displays supported:	1
Number of hdds supported:	1
Number of memory slots:	4
Number of sata iii connectors:	4
On-board graphics card:	Yes
On-board graphics card model:	Intel Iris Xe Graphics
Power fan connector:	Yes
Power source type:	ATX
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Rack-friendly board:	Yes
Raid levels:	10, 1, 5, 0
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out connector:	Yes
Supported memory clock speed (max):	7200 MHz
Supported memory clock speeds:	6000, 5600, 7200, 4000, 4800, 3600, 4400
Supported memory types:	DDR5-SDRAM
Supported processor sockets:	LGA 1700
Supported storage drive interfaces:	M.2, PCI Express 4.0, SATA III
Supported storage drive types:	SSD
Sustainability certificates:	CE, ErP, Federal Communications Commission (FCC)
Thunderbolt headers:	1
Usb 2.0 connectors:	4
Usb 2.0 ports quantity:	4
Usb 3.2 gen 1 (3.1 gen 1) connectors:	6
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	6
Usb 3.2 gen 2 (3.1 gen 2) connectors:	3
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	1
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:	2
Wi-fi:	No
Width:	305 mm
Wifi-ap antenna jack:	2
Windows operating systems supported:	Windows 10 x64, Windows 11 x64

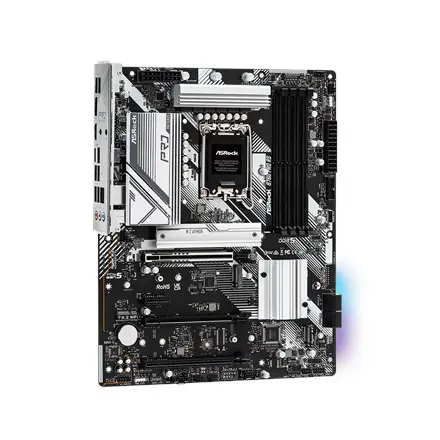

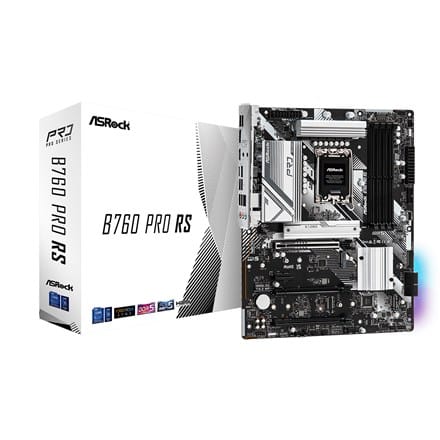

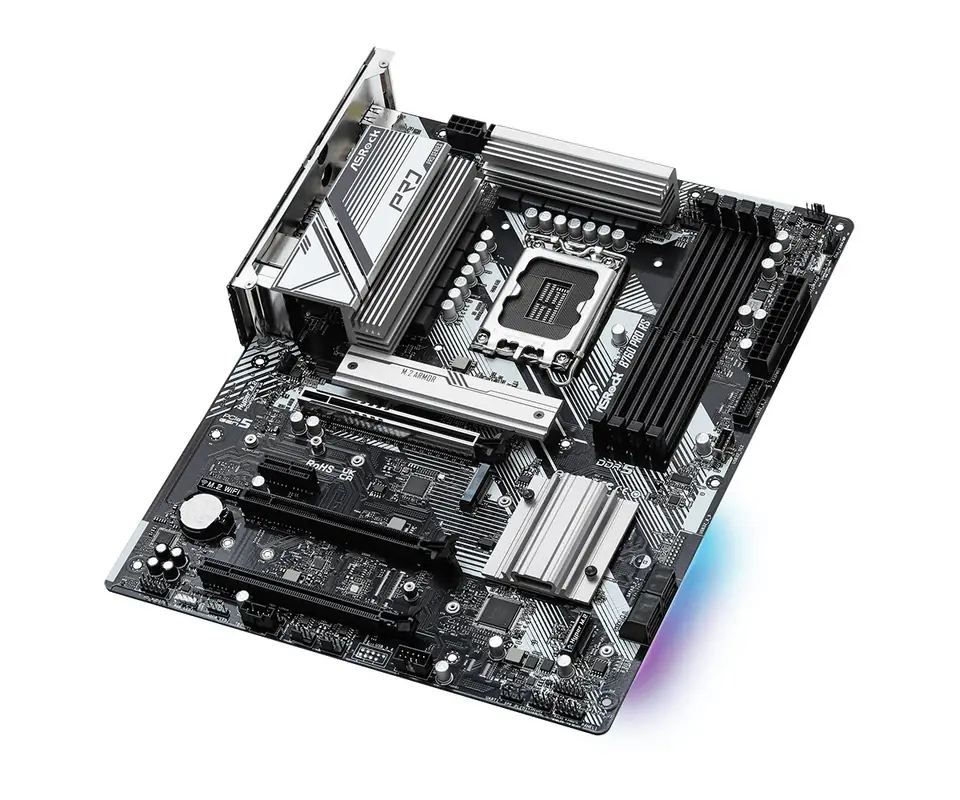

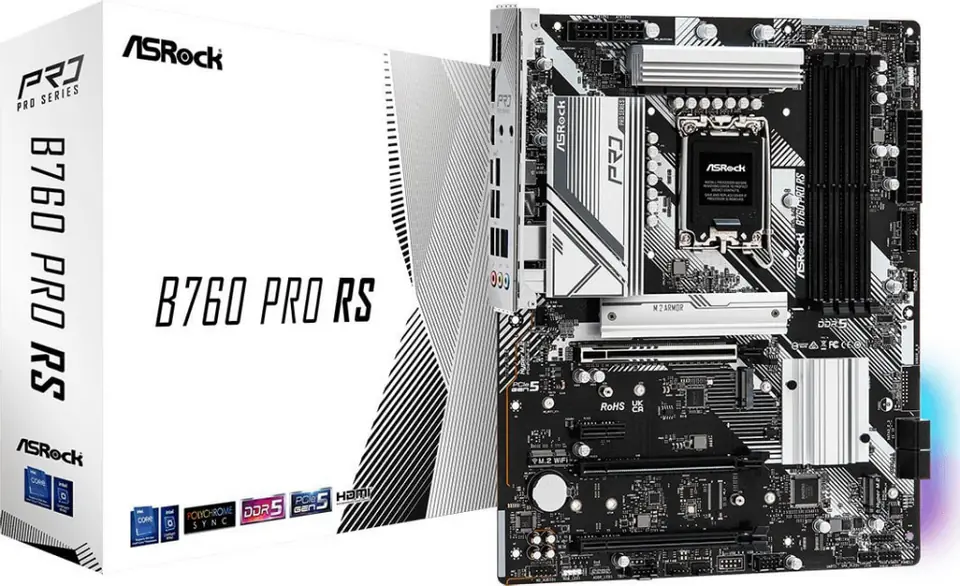

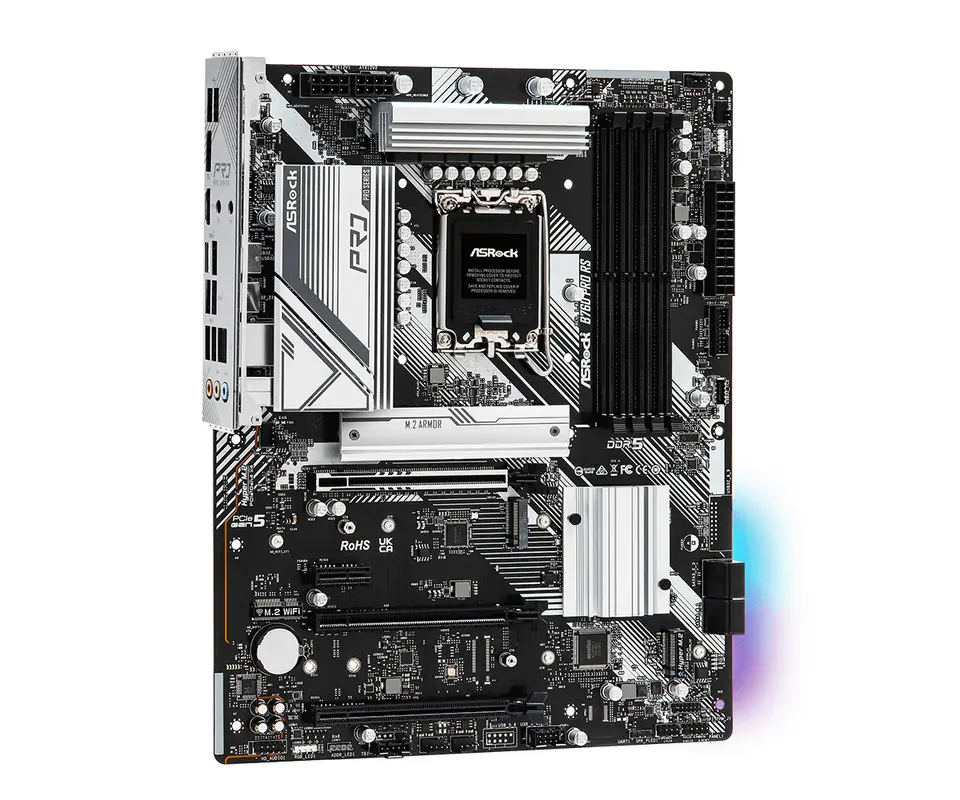

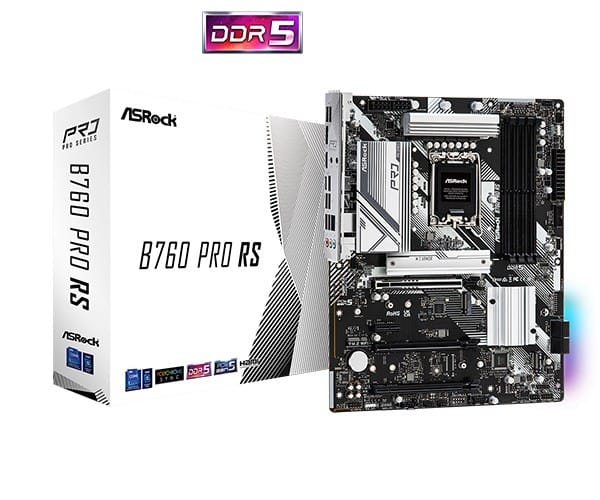

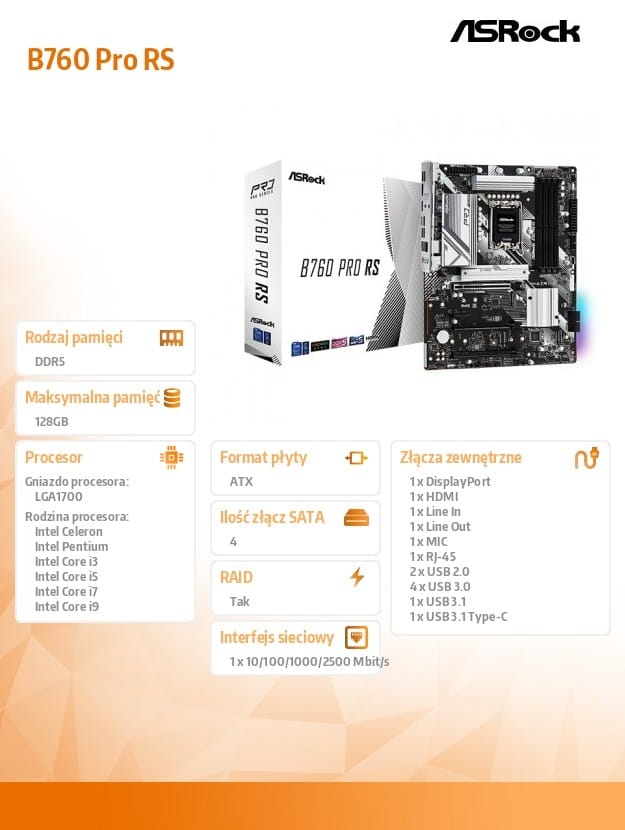

B760 Pro RS motherboard

Supports 13th and 12th generation Intel Core processors (LGA1700)
10+1+1 Power Phase, Dr.MOS for VCore+GT
Supports DDR5 7200MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Graphics outputs: HDMI, DisplayPort, eDP
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen4x2)

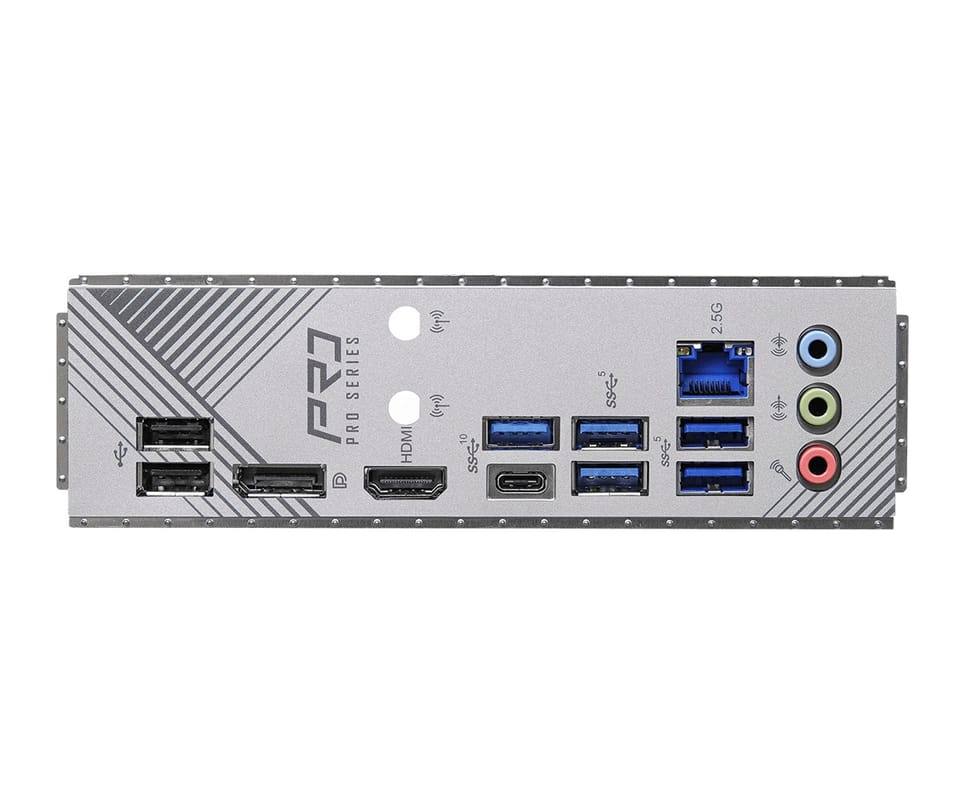

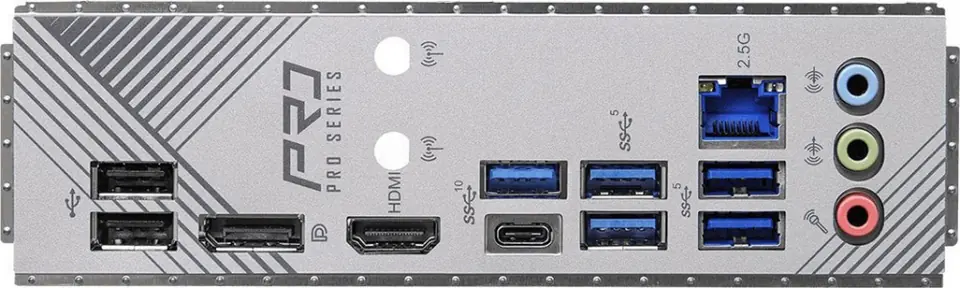

2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (4 Rear, 2 Front),
4 USB 2.0 (2 Rear, 2 Front)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
