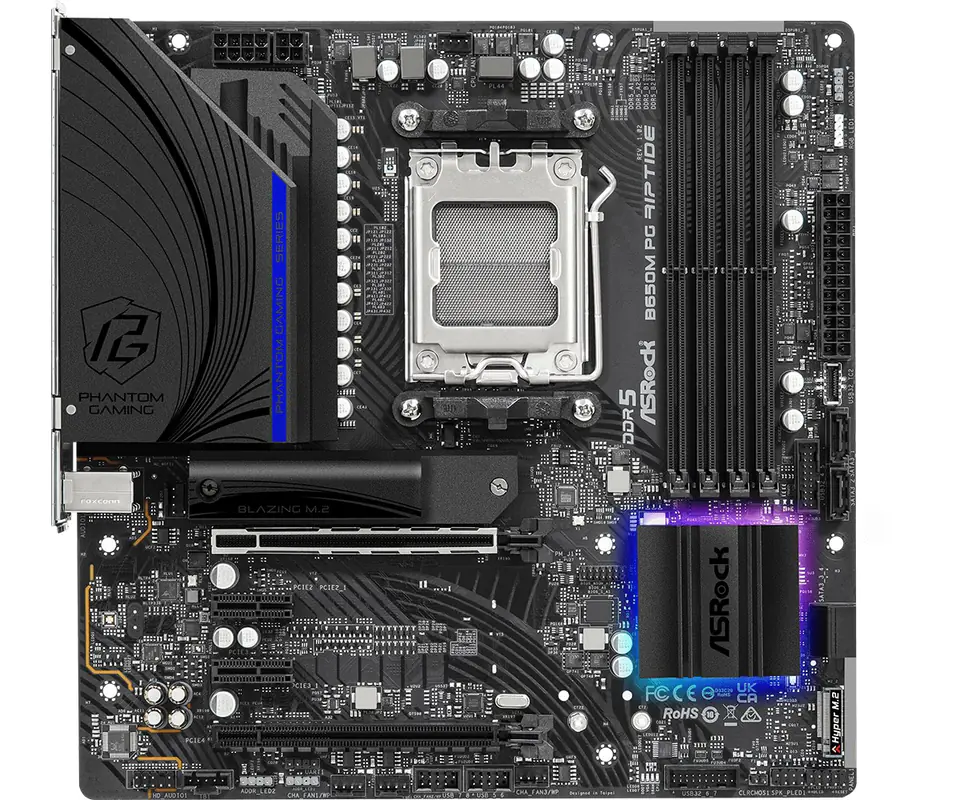

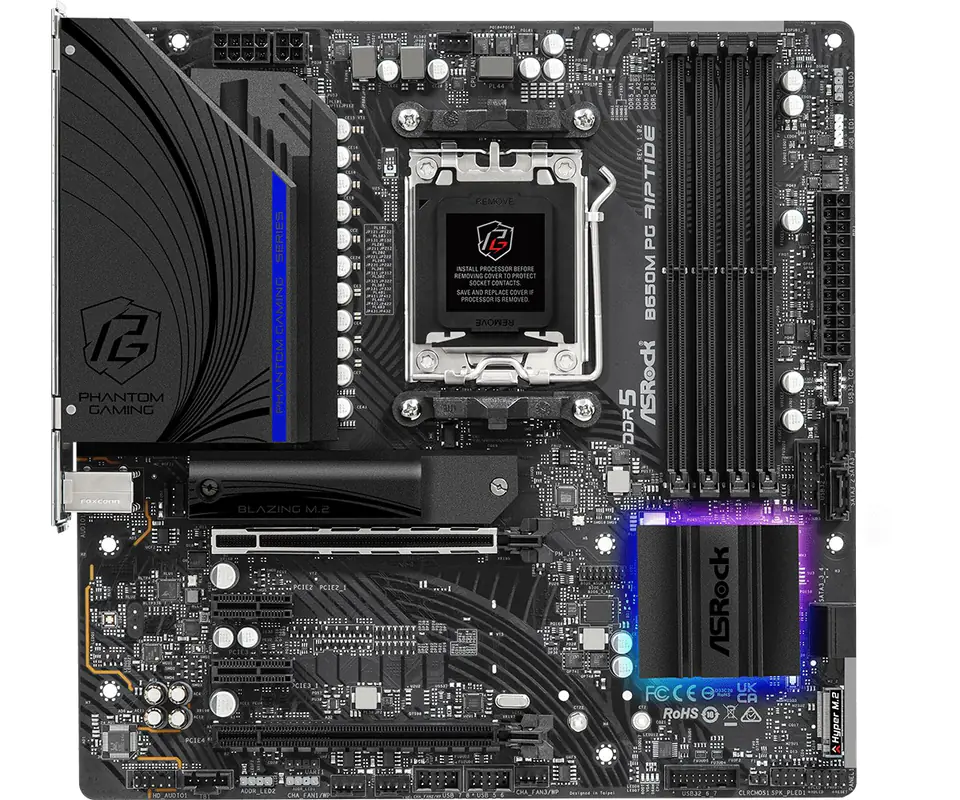

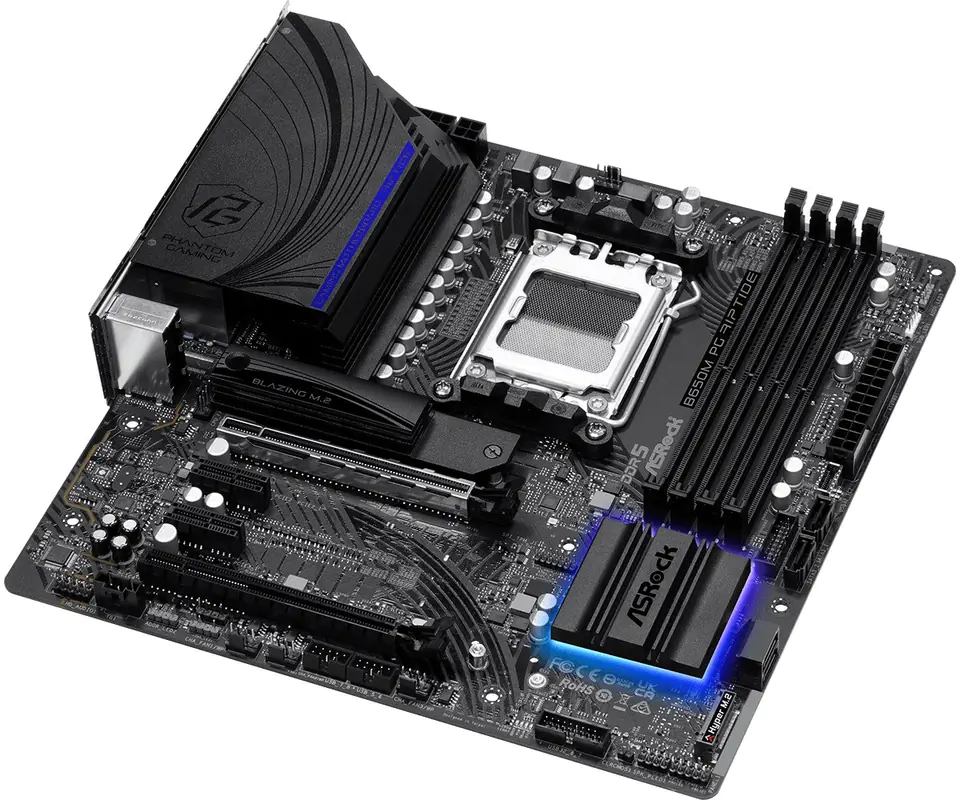

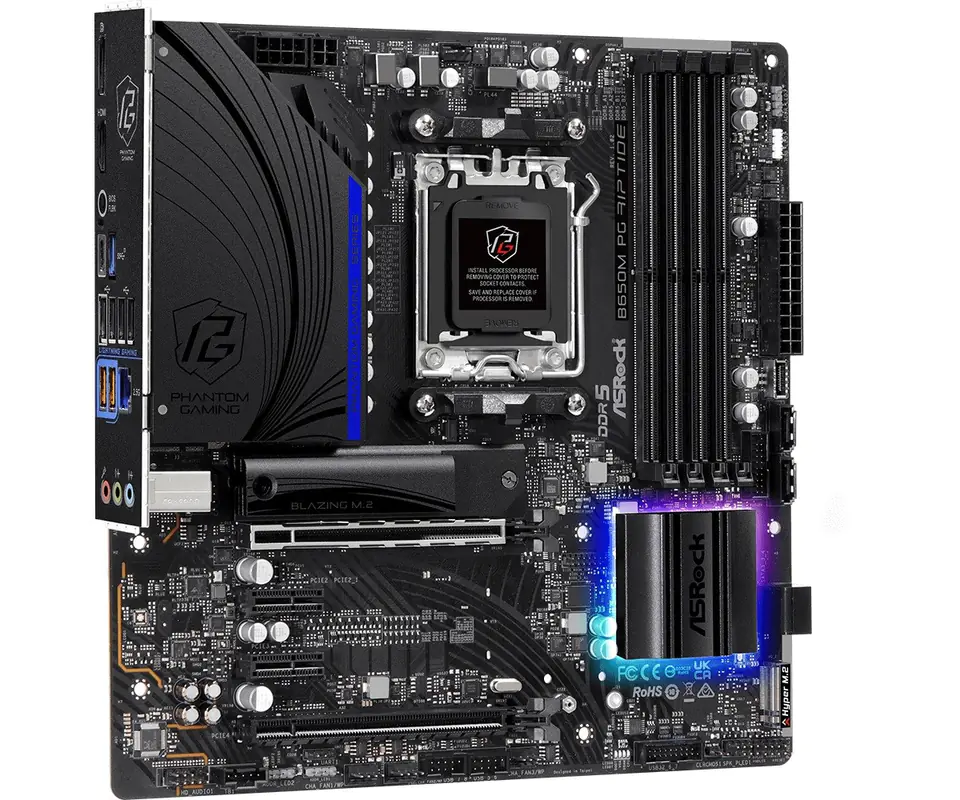

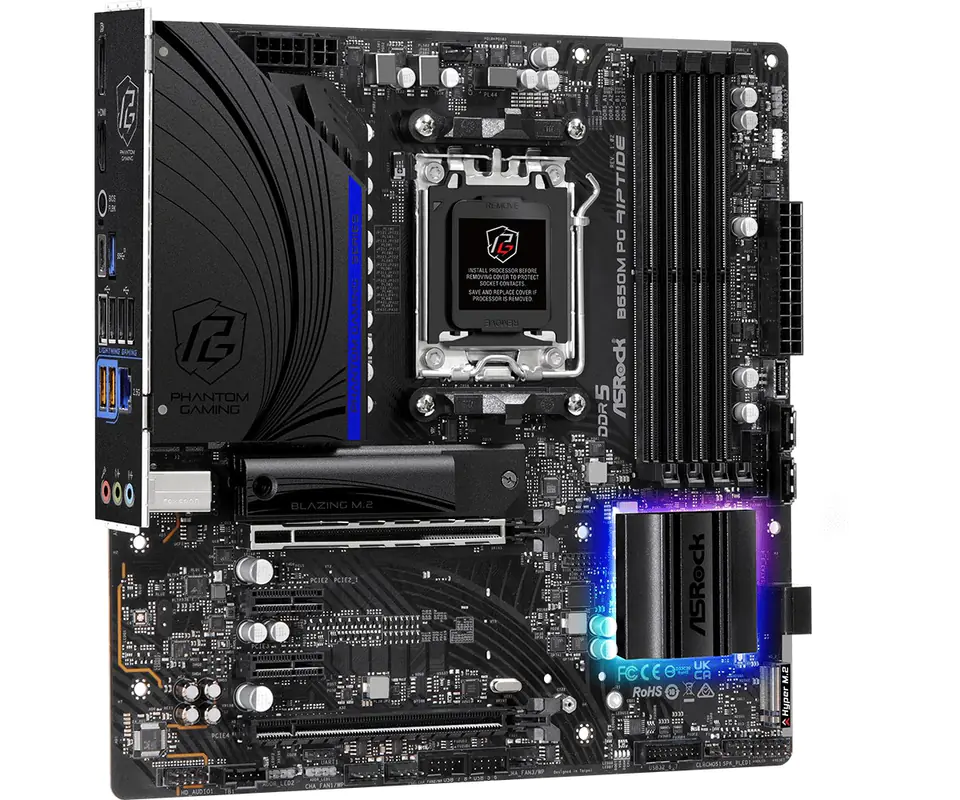

Asrock B650M PG Riptide AMD B650 Socket AM5 micro ATX

€206.45
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
ASRock
Product code:
B650M PG RIPTIDE / 4710483940835

Specification

Atx power connector (24-pin):Yes
Audio output channels:7.1 channels
Bios type:UEFI AMI
Cables included:SATA
Cpu fan connector:Yes
Depth:244 mm
Displayport version:1.4
Displayports quantity:1
Ecc сompatibility:ECC & Non-ECC
Eps power connector (8-pin):Yes
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Graphics card family:AMD
Hdcp:Yes
Hdmi ports quantity:1
Lan controller:Dragon RTL8125BG
Line-in:Yes
Maximum internal memory:128 GB
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset:AMD B650
Motherboard chipset family:AMD
Motherboard form factor:micro ATX
Number of memory slots:4
Number of sata iii connectors:4
On-board graphics card:Yes
Pci express x16 (gen 3.x) slots:2
Pci express x16 (gen 4.x) slots:1
Processor manufacturer:AMD
Processor socket:Socket AM5
Raid levels:10, 1, 0
Raid support:Yes
Rgb led pin header:Yes
Supported memory types:DDR5-SDRAM
Supported storage drive interfaces:M.2, SATA III
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:4
Usb 3.2 gen 1 (3.1 gen 1) connectors:3
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:2
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:1
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:1
Wi-fi:No
Width:244 mm
Windows operating systems supported:Windows 11 x64, Windows 10 x64

B650M PG Riptide motherboard

  • Supports AMD Ryzen 7000 series processors
  • 12+2+1 power phase, Dr.MOS
  • Supports DDR5 6200 MHz (OC)
  • 2 PCIe 4.0 x16, 2 PCIe 3.0 x1
  • Graphics output options: HDMI, DisplayPort
  • Realtek ALC897 7.1-channel HD Audio codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4)
  • 1 Hyper M.2 (PCIe Gen4x4)
  • 2 rear USB 3.2 Gen2 ports (Type A + Type C)
  • 1 front USB 3.2 Gen1 Type C port
  • 6 USB 3.2 Gen1 ports (2 rear, 4 front)
  • 8 USB 2.0 ports (4 rear, 4 front)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
