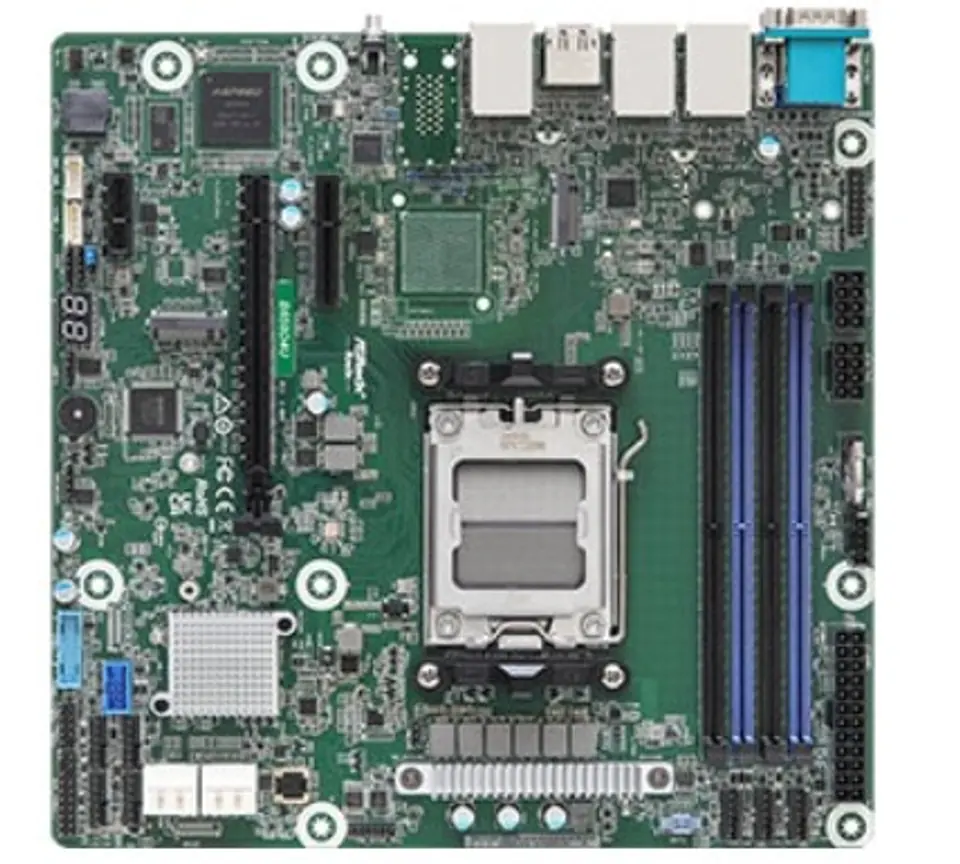

Asrock B650D4U motherboard AMD B650 Express Socket AM5 micro ATX
€489.86
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ASRock
- Product code:
- B650D4U / 4711430520988
Share this product:
Specification
| Acpi version: | 6.4 |
|---|---|
| Atx power connector (24-pin): | Yes |
| Bios memory size: | 256 Mbit |
| Bios type: | UEFI AMI |
| Compatible processor series: | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Component for: | Server |
| Depth: | 243.8 mm |
| Ecc сompatibility: | ECC & Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Hdmi ports quantity: | 1 |
| Ipmi lan (rj-45) port: | Yes |
| Maximum internal memory: | 32 GB |
| Maximum number of smp processors: | 1 |
| Memory slots type: | DIMM |
| Memory voltage: | 1.1 V |
| Motherboard chipset: | AMD B650 Express |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of com connectors: | 1 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| On-board graphics card model: | Aspeed AST2600 |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 10 - 35 °C |
| Pc health monitoring: | Fan, Voltage, CPU |
| Pci express x4 (gen 4.x) slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Raid levels: | 1, 10, 0 |
| Raid support: | Yes |
| Serial ports quantity: | 1 |
| Storage temperature (t-t): | -40 - 70 °C |
| Supported memory clock speed (max): | 5200 MHz |
| Supported memory clock speeds: | 5200, 3600 |
| Supported memory types: | DDR5-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| System management bios (smbios) version: | 3.5 |
| Tpm connector: | Yes |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 243.8 mm |
