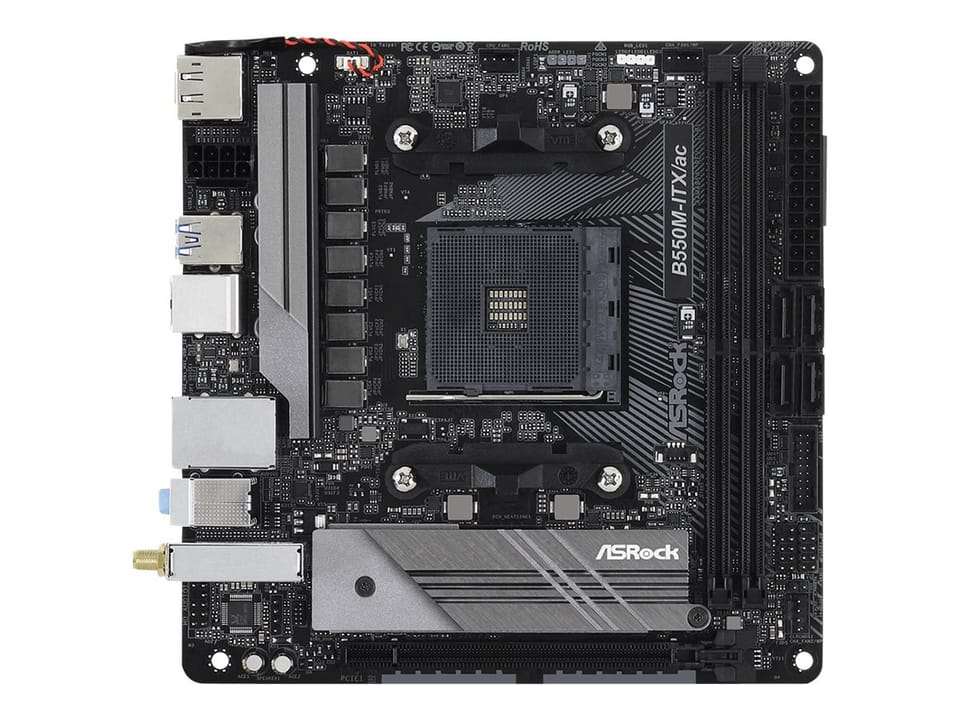

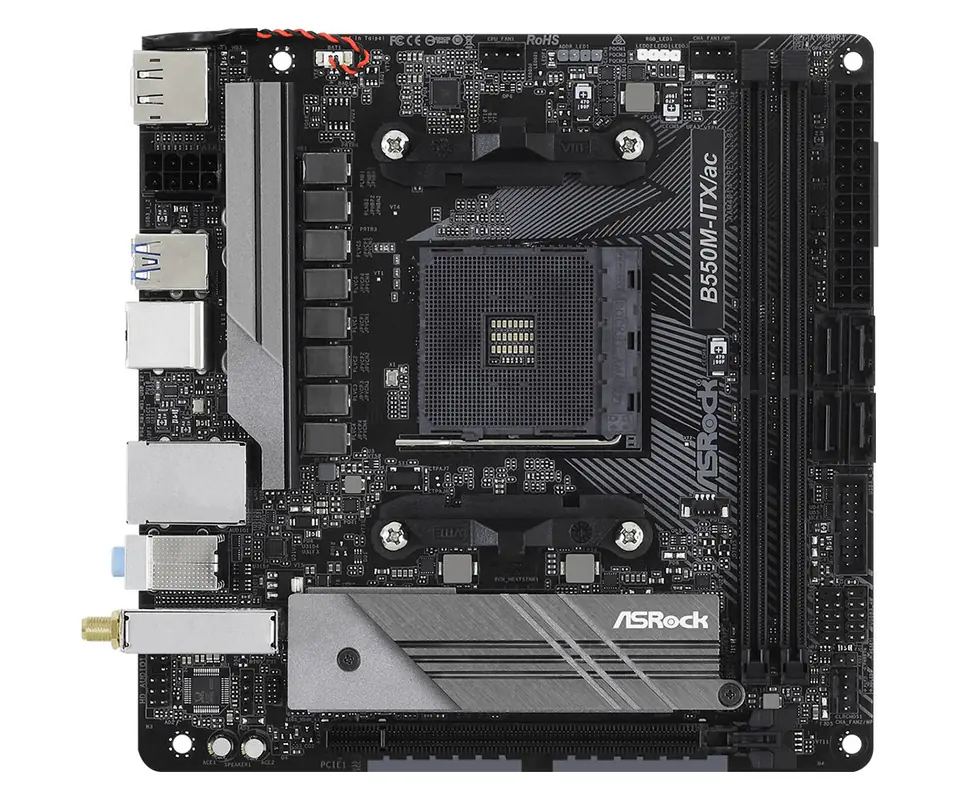

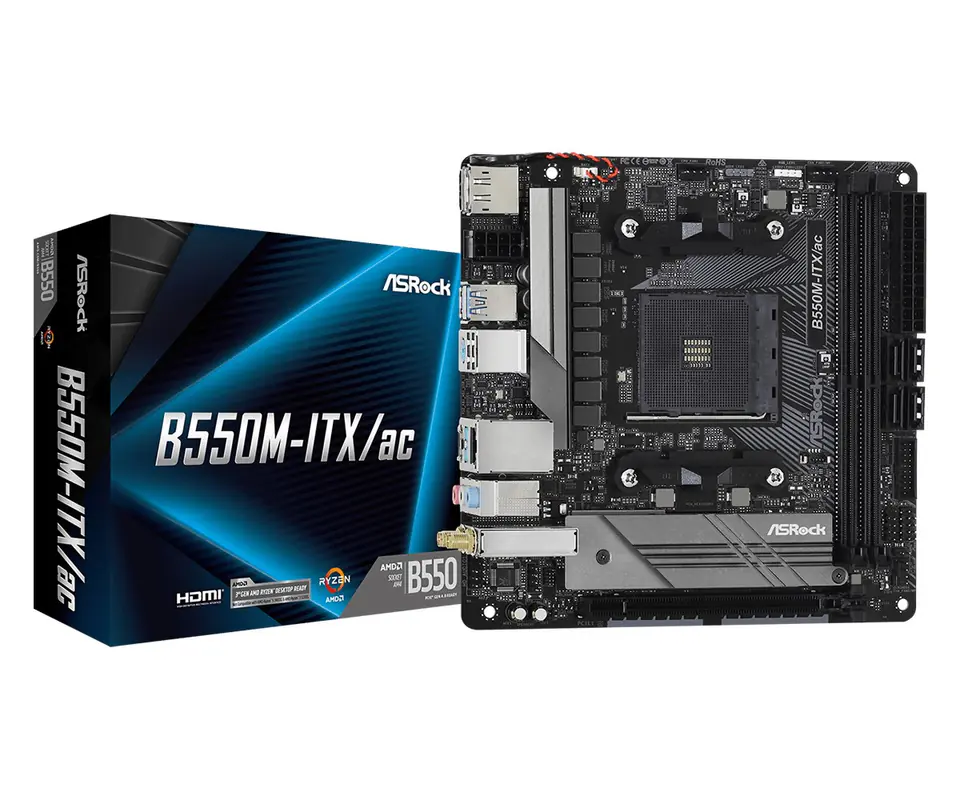

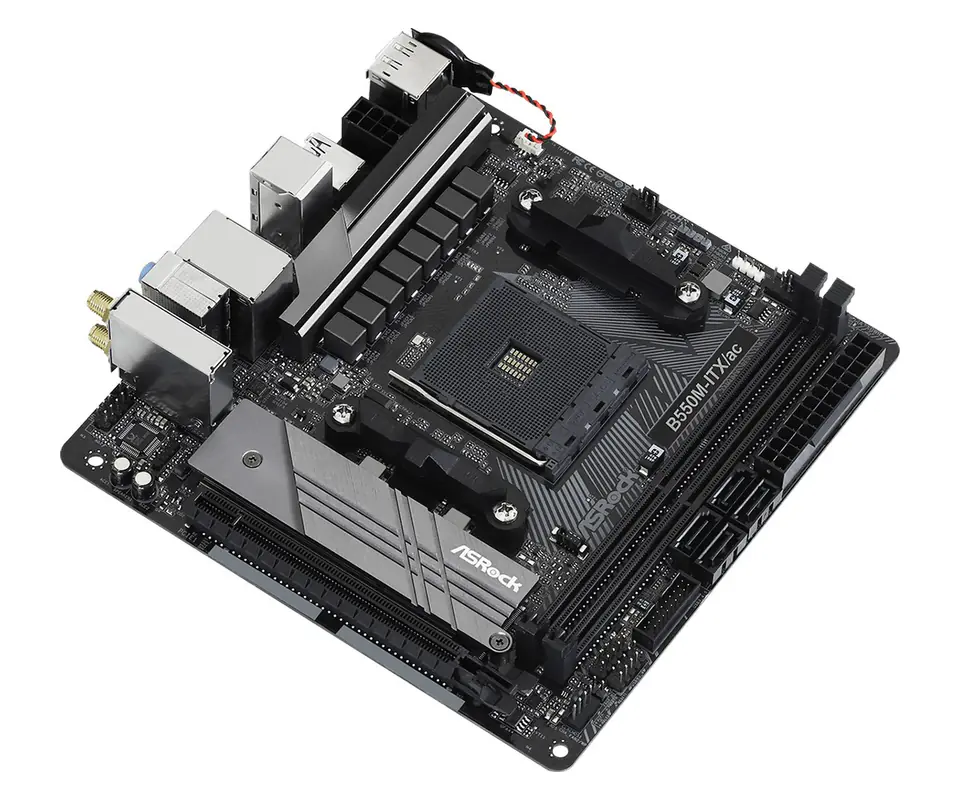

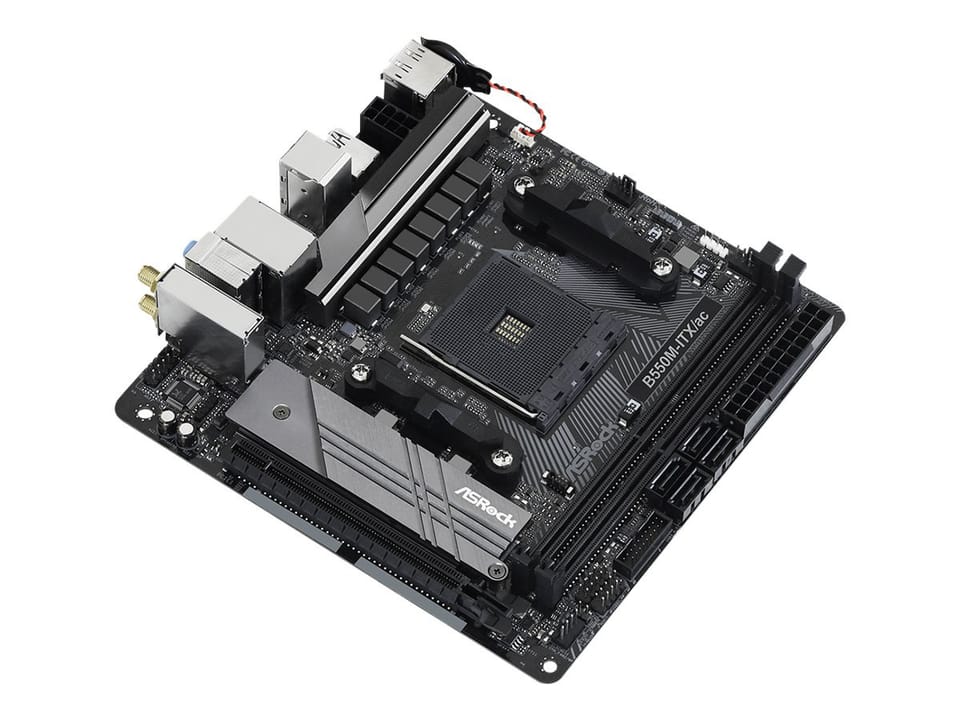

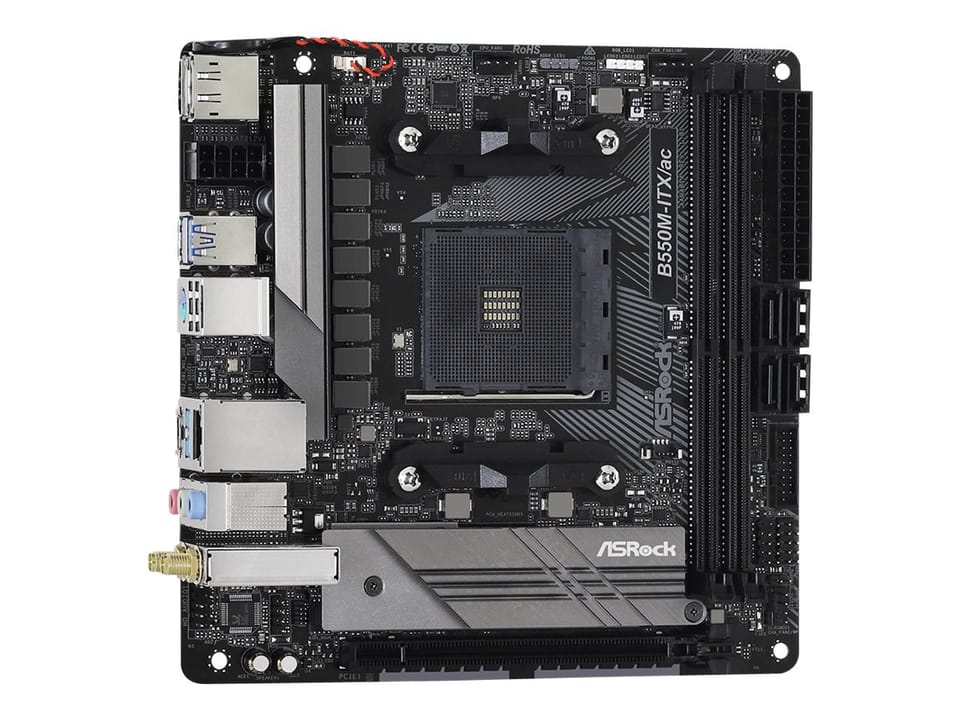

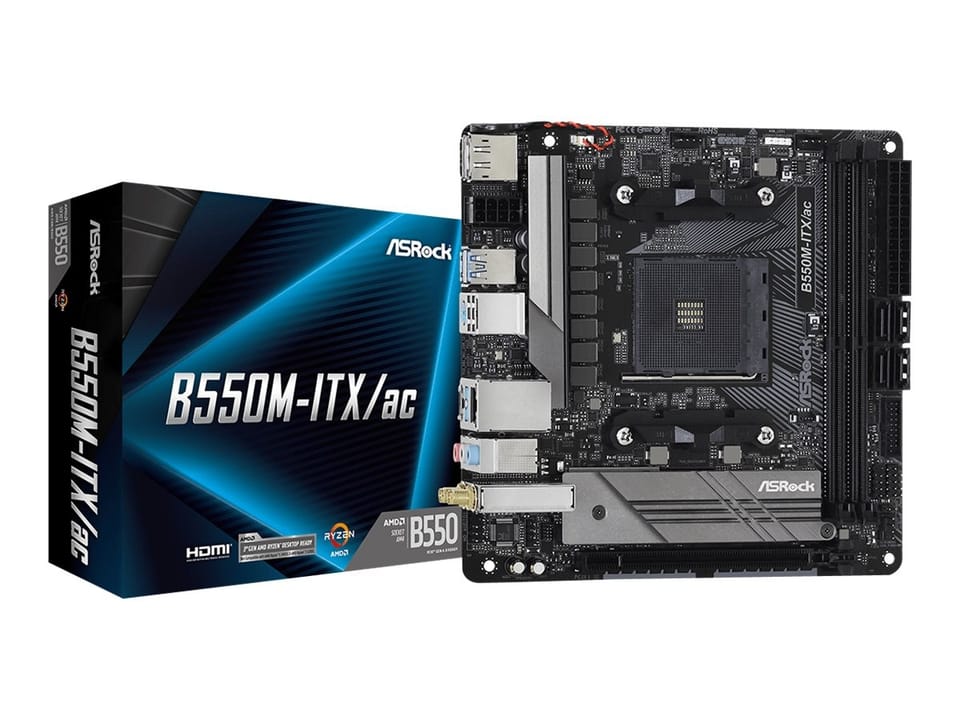

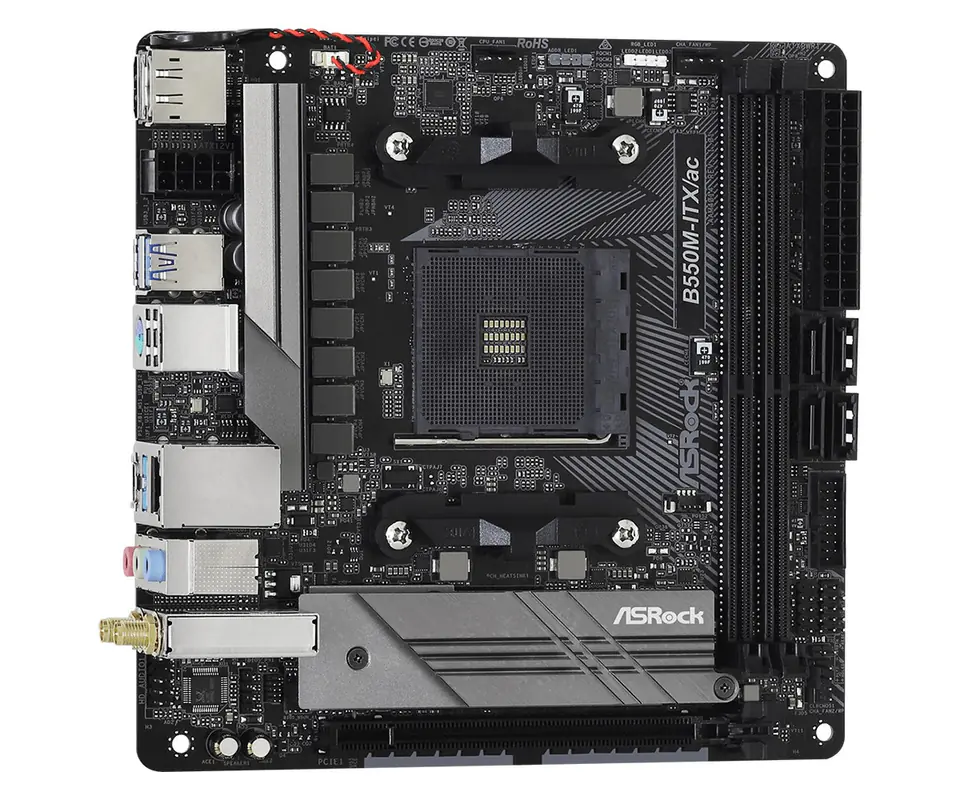

Asrock B550M-ITX/ac Socket AM4 mini ITX AMD B550
€152.68
Shipping from warehouse: A3
Estimated shipping: Mon, Sep 23 - Tue, Sep 24
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ASRock
- Product code:
- B550M-ITX/AC / 4710483931727
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC887 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 4.2 |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
| Cpu fan connector: | Yes |
| Depth: | 170 mm |
| Directx version: | 12.0 |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Graphics card: | Radeon Vega |
| Graphics card family: | AMD |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Lan controller: | Realtek RTL8111H |
| Maximum internal memory: | 64 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD B550 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | mini ITX |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| On-board graphics card: | Yes |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 1 |
| Rgb led pin header: | Yes |
| Supported memory clock speeds: | 4133 MHz, 4000, 3200 MHz, 4266, 4533, 4333, 4600, 2933 MHz, 3600, 3800, 4466, 2400, 3466, 2667, 3733, 4400, 3866, 2133, 4200 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, Serial ATA III |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: | 1 |
| Wake-on-lan ready: | Yes |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11a, 802.11g, Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac) |
| Width: | 170 mm |
