External card and key ring reader
ASR2101A-ME DAHUA KEYPAD PROXIMITY READER
€158.47
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- ASR2101A-ME / 6939554942204
Share this product:
Specification

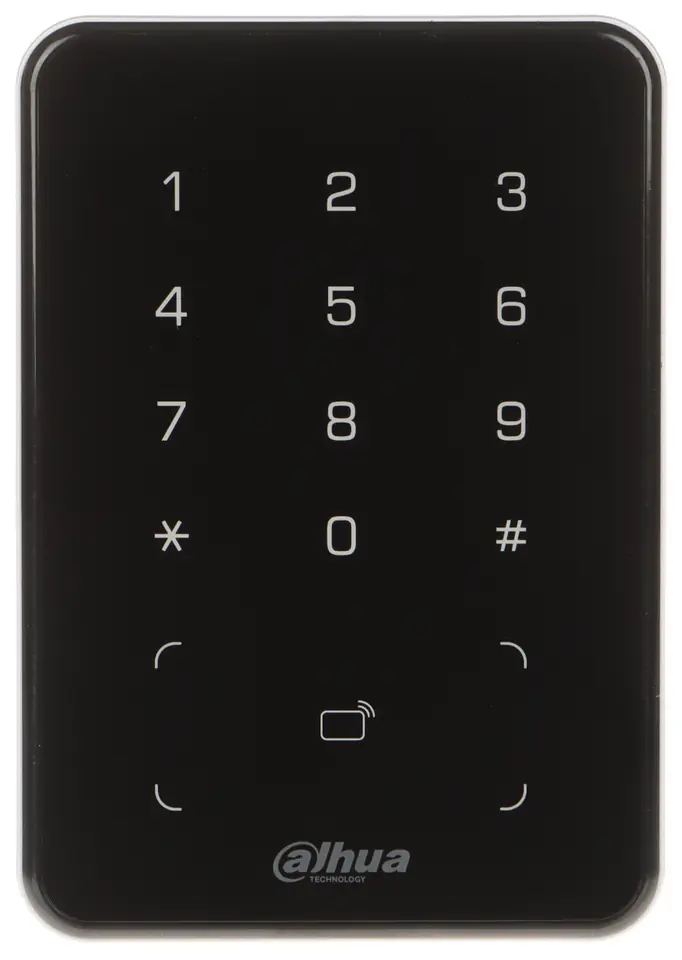

| Built-in keyboard: | Touch control buttons |
|---|---|
| Card read range: | 0 ... 5 cm |
| Card support: | Unique EM 125kHz, MIFARE 13.56 MHz |
| Case: | Plastic + Acrylic glass (plexiglas), Waterproof |
| Colour: | Black + Silver |
| Communication: | RS-485, Wiegand |

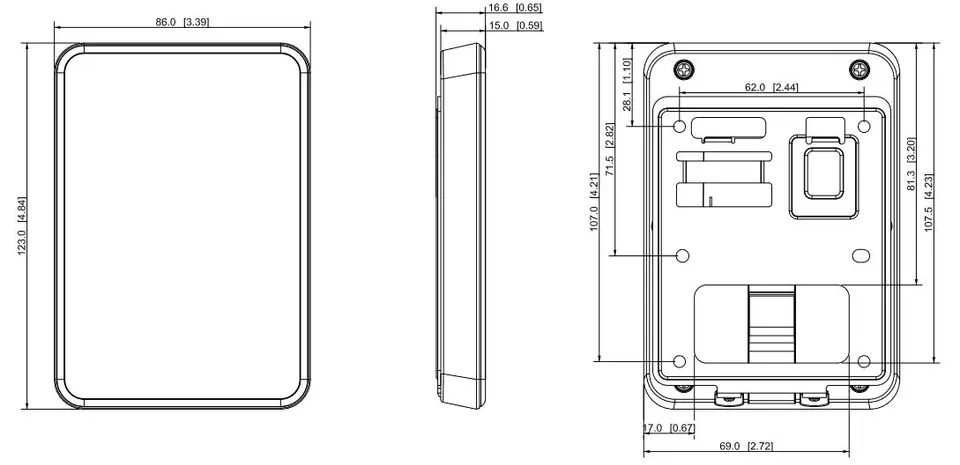

| Dimensions: | 123 x 86 x 15 mm |
| Maximum current consumption: | 500 mA |
| Operating temperature: | -30 °C ... 70 °C |
| Permissible relative ambient humidity: | 5 ... 95 % (non-condensing) |
| Power: | 12 volts DC |
| Producer / brand: | DAHUA |
| Scales: | 0.2 kg |
| Sealing: | IP66 - after additional sealing of the connection of the housing with the mounting surface, e.g. silicone |
| Selected features: | Built-in Watchdog Buzzer LED indicator for working status Identification modes (Card or PIN, Card & PIN, Card Only, PIN Only) Security : Overvoltage, Overload |
| Warranty: | 3 years |
