External card and key ring reader
ASR1200E-D DAHUA PROXIMITY READER
€14.74
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- ASR1200E-D / 6939554928338
Share this product:
Specification
| Card reading range:: | 3 ... 6 cm (max.) |
|---|---|
| Card support:: | Unique EM 125kHz |
| Case:: | Plastic, Waterproof |
| Colour:: | Black |
| Communication:: | RS-485, Wiegand 34 |

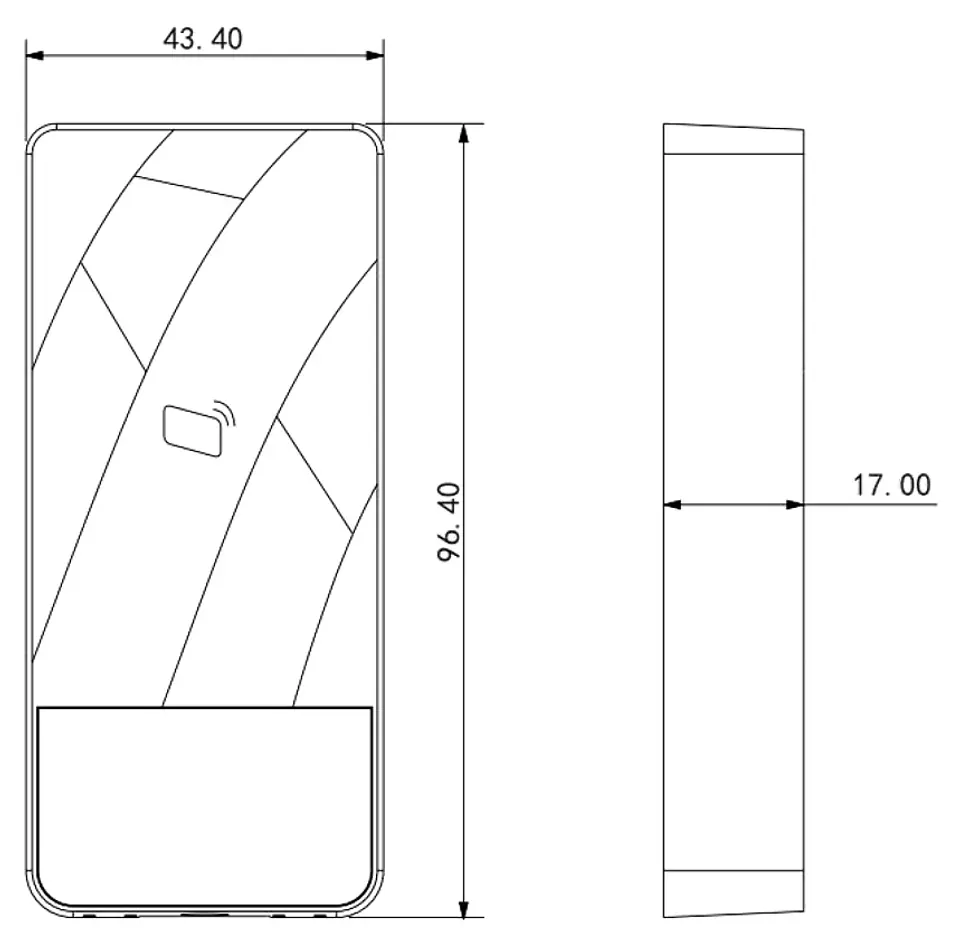

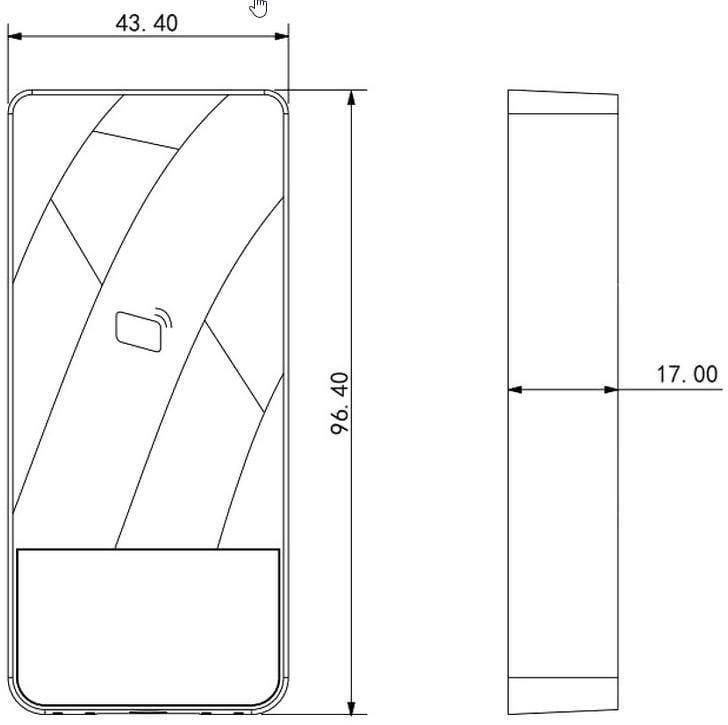

| Dimensions:: | 97 x 44 x 17 mm |
| Manufacturer / brand:: | DAHUA |
| Maximum current consumption:: | 100 mA |
| Operating temperature:: | -30 °C ... 60 °C |
| Permissible relative humidity:: | ≤ 95 % |
| Power:: | 9 ... 15 VDC |
| Scales:: | 0.06 kg |
| Sealing:: | IP66 - after additional sealing of the housing connection with the mounting surface, e.g. silicone |
| Selected features:: | LED indicators displaying the operating status of the Buzzer device |
| Warranty:: | 3 years |
