The ASC2204B-S controller is designed for use in access control systems based on electric door opening control

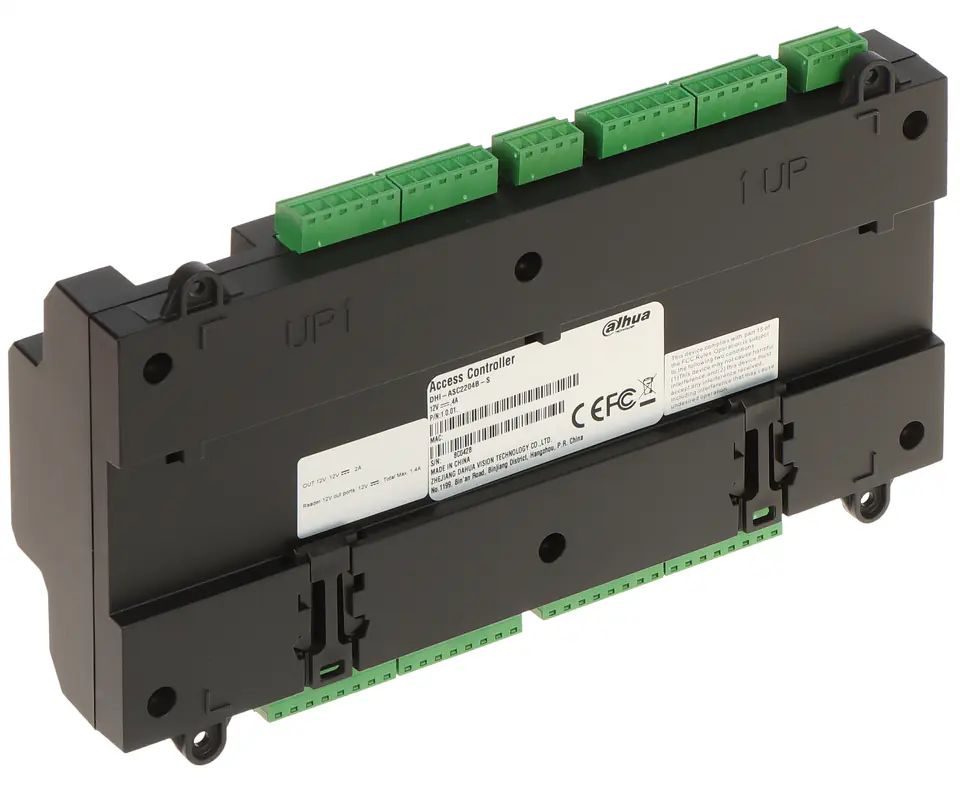

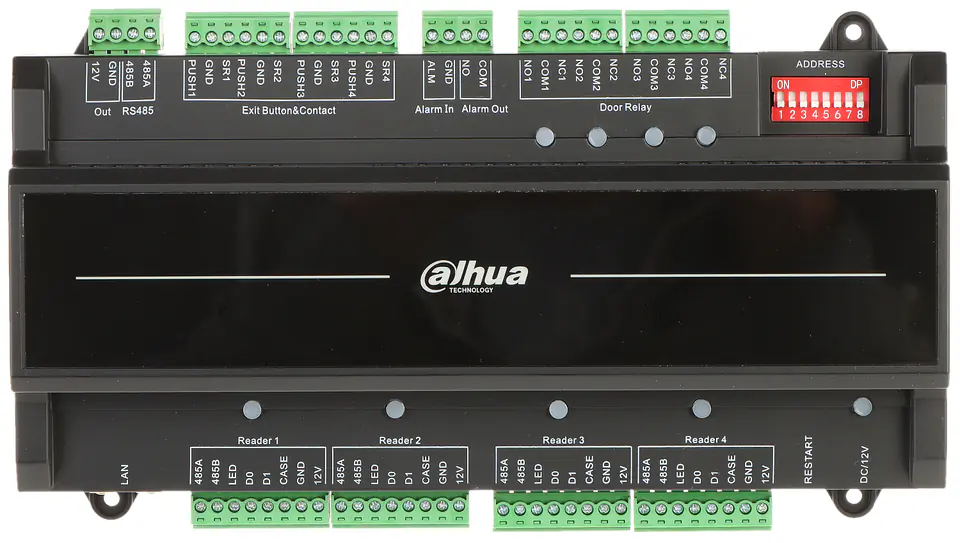

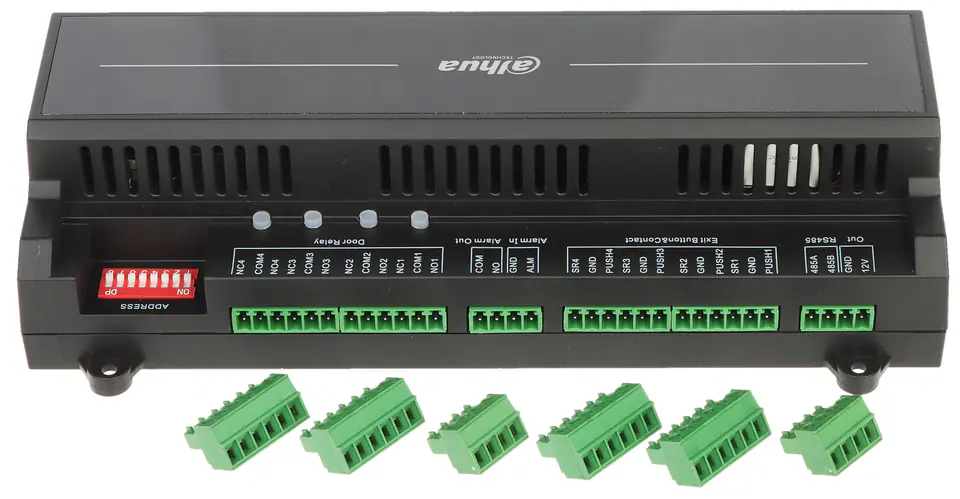

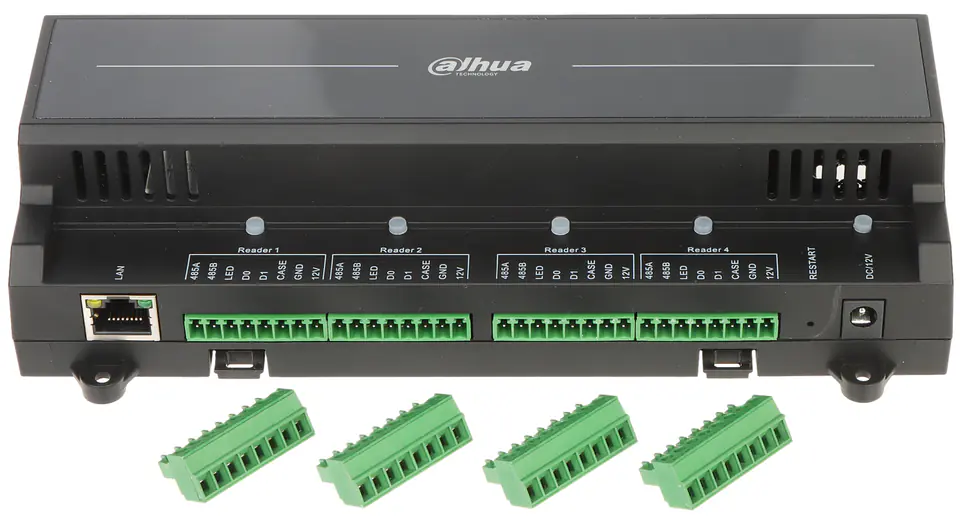

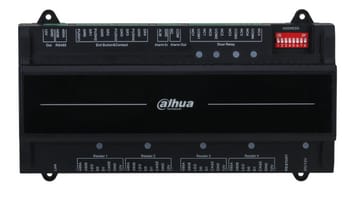

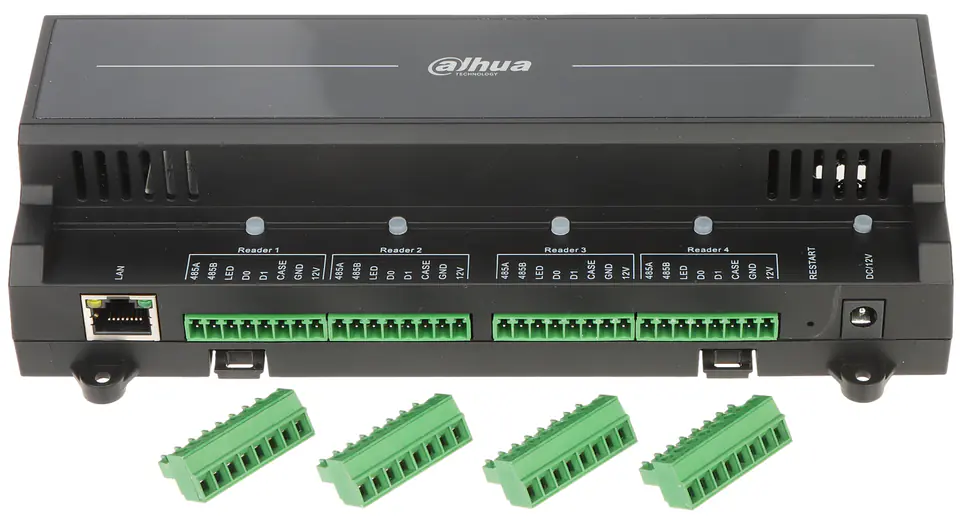

ASC2204B-S DAHUA ACCESS CONTROLLER
€157.34
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- ASC2204B-S / 6939554993411
Share this product:
Specification
| Communication: | RS-485, Ethernet, Wiegand |
|---|---|
| Cooperation: | DAHUA |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.0.2 |
| Dimensions: | 207 x 116 x 52 mm |
| Number of supported readers: | 4 pcs. |
| Number of supported transitions: | 4 (unidirectional) |
| Operating temperature: | -30 °C ... 60 °C |
| Output lines: | 5 pcs. -Relay |
| Permissible relative ambient humidity: | .max. 95 % (non-condensing) |
| Power: | 12 volts DC / 1.4 A |
| Producer / brand: | DAHUA |
| Scales: | 0.354 kg |
| Selected features: | 100000 indexed users History of 150000 events Remote programming from a computer Anti-passback function Door opening timer with the possibility of sending an alarm signal when a set value is exceeded Automatic transmission of alarm messages to the SmartPSS system or by entering a code, card or fingerprint defined as opening the door under duress |
| Warranty: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
